Fuel Pump Relay

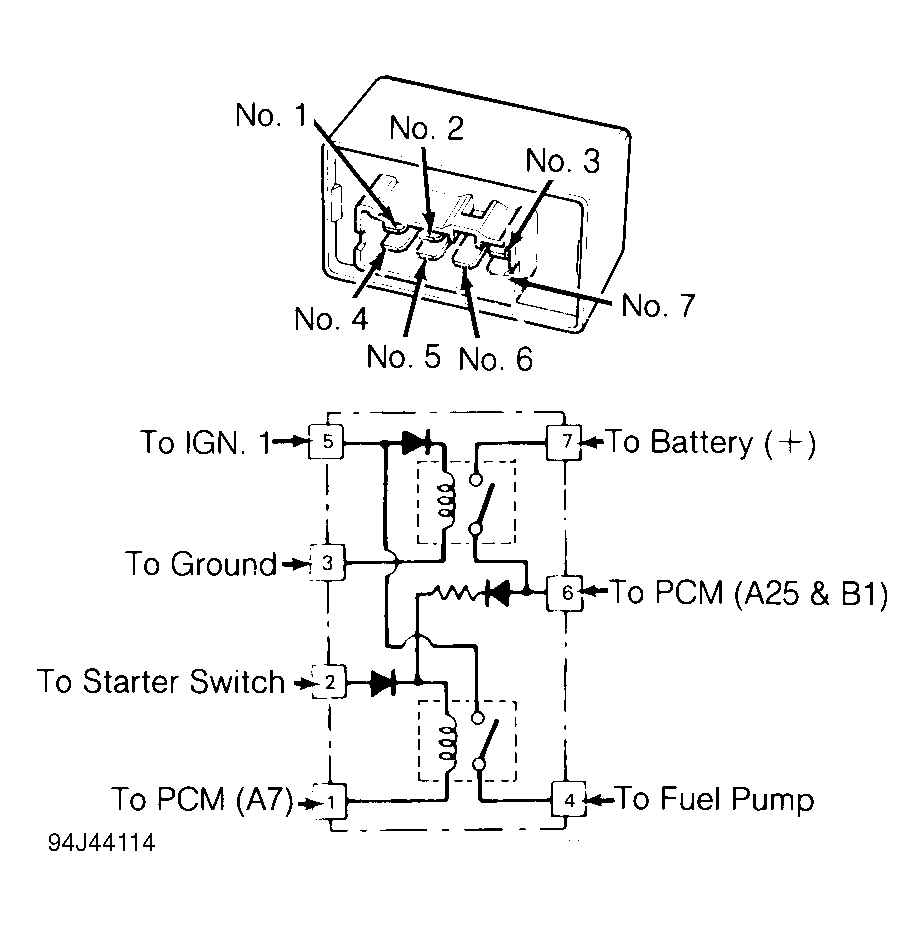

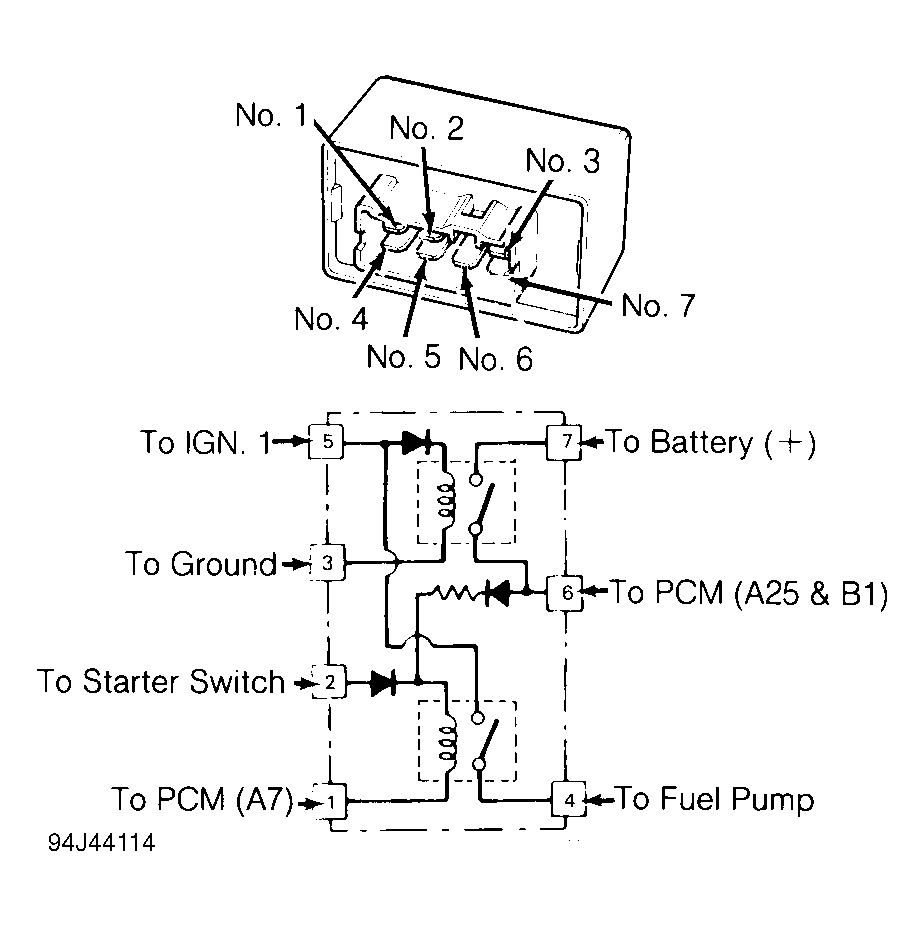

- Remove fuel pump relay, located under left side of dash. Connect battery voltage to terminal No. 2, and ground terminal No. 1 of relay. See Fig 1.
- Check continuity between relay terminals No. 5 and 4. If continuity exists, go to next step. If continuity does not exist, replace relay.
- Connect battery positive to relay terminal No. 5, and ground terminal No. 3. Check continuity between relay terminals No. 7 and 6. If continuity exists, go to next step. If continuity does not exist, replace relay.
- Connect battery positive to relay terminal No. 6, and ground terminal No. 1. Check continuity between relay terminals No. 5 and 4. If continuity exists, relay is okay. If continuity is not present, replace relay.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
