Intake Air Bypass (IAB) Control System

Satisfactory power performance is achieved by closing and opening the intake air bypass (IAB) control valves. High torque at low RPM is achieved when the valves are closed, whereas high power at high RPM is achieved by when the valves are opened. See Fig 1 . For the troubleshooting flowchart see Fig 2 and Fig 3 .

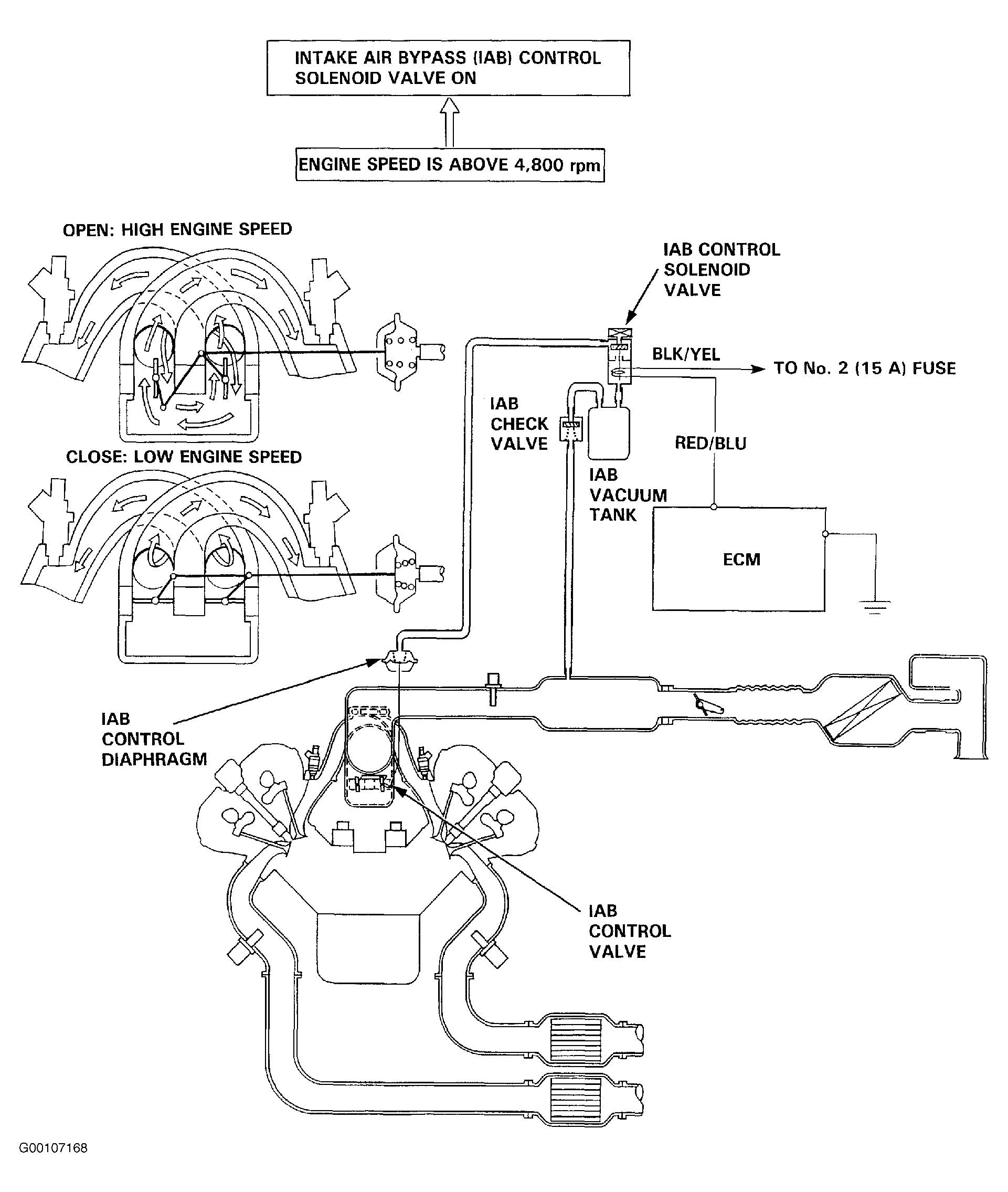

Fig 1: Intake Air Bypass (IAB) Control System

Courtesy of AMERICAN HONDA MOTOR CO., INC.

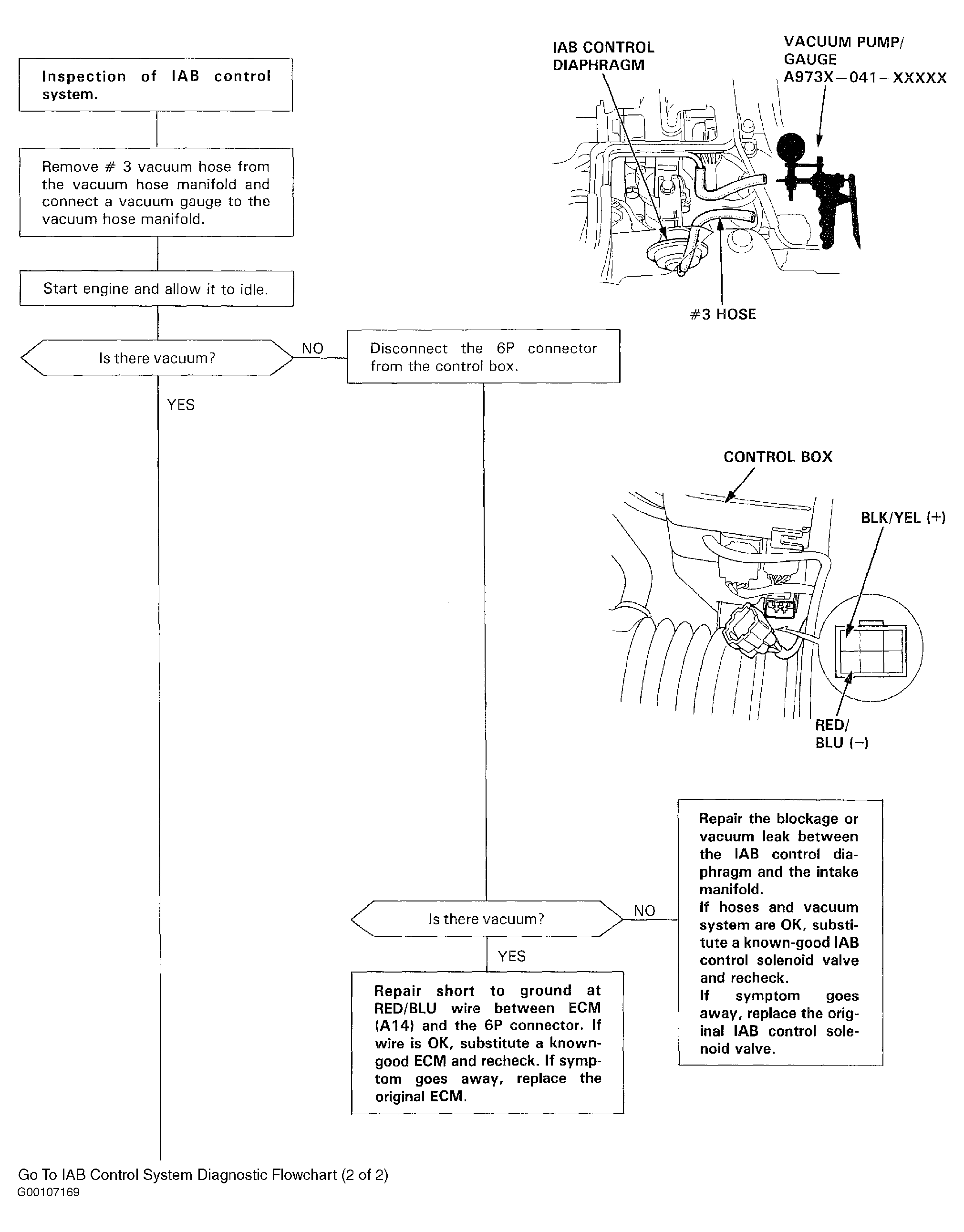

Fig 2: IAB Control System Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

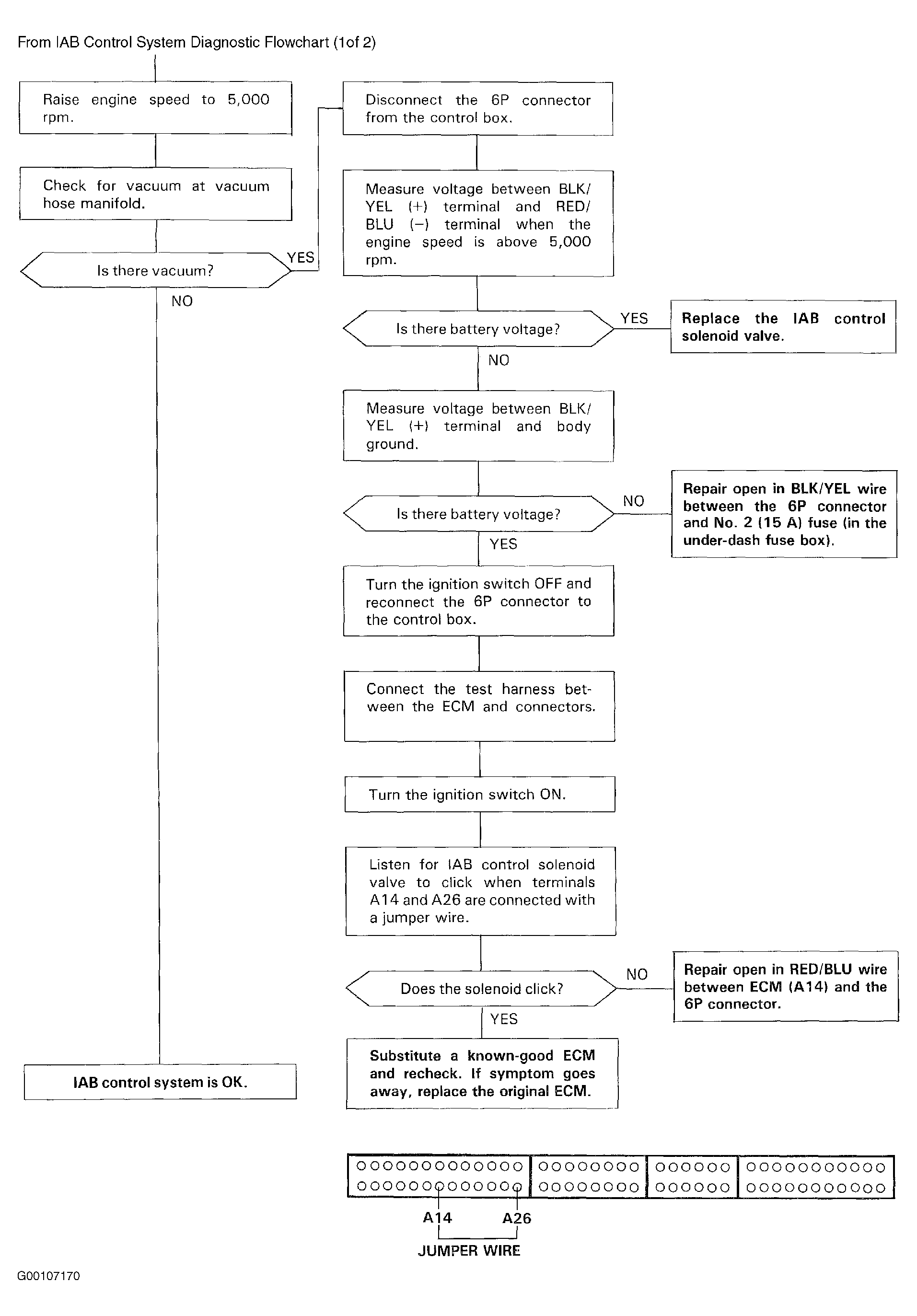

Fig 3: IAB Control System Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Check the IAB control valve shaft for binding or sticking.
2. Check the IAB control valve for smooth movement.
3. Check that (A) of the IAB control valve is in close contact with the stopper when the vacuum hose is disconnected from the IAB control diaphragm. See Fig 4 .

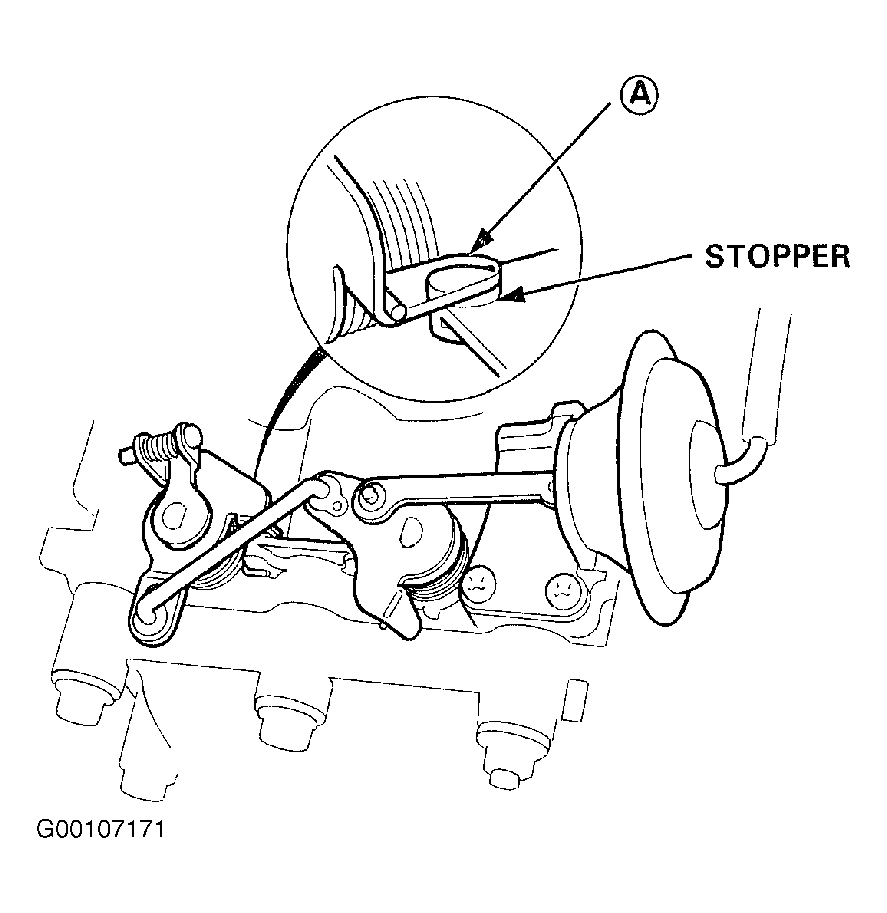

   Fig 4: Inspecting IAB Control Valve

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check that (B) of the IAB control valve is in close contact with the full-close screw when you apply 15 in. Hg (380 mm Hg) of vacuum to the IAB control diaphragm. See Fig 5 .

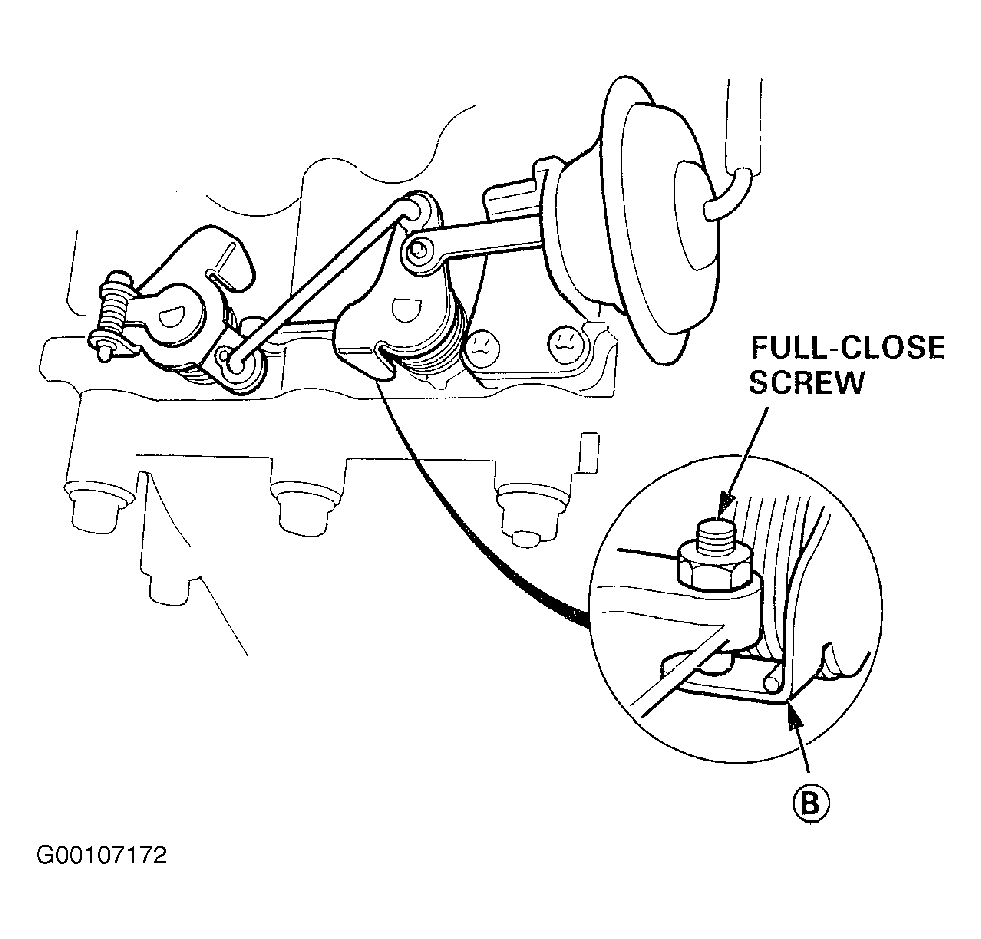

   Fig 5: Inspecting The Full-Close Screw Of The IAB

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If any fault is found, clean the linkage and shafts with carburetor cleaner.
6. If the problem still exists after cleaning, disassemble the intake manifold and check the chamber volume control valve.
