MIL Does Not Come On
See
Fig 1
.

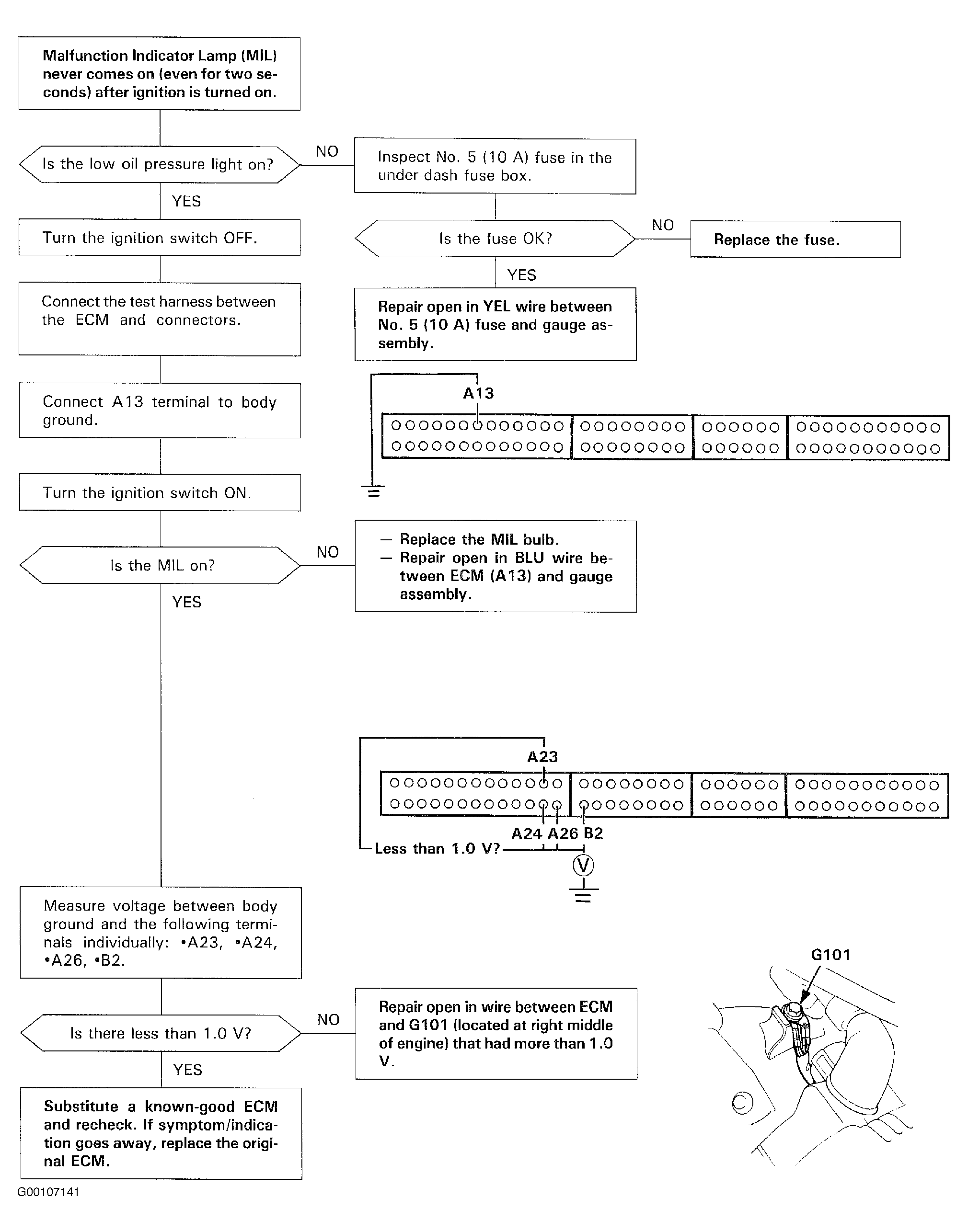

Fig 1: MIL Never Comes On After Ignition Is Turned On Diagnostic Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
