Fuel Pump Resistor

WARNING: DO NOT smoke during the test. Keep open flame away from your work area. ALWAYS release fuel pressure before disconnecting any fuel injection-related component. DO NOT allow fuel to contact engine or electrical components.

For the troubleshooting of the fuel pump resistor see Fig 2 and Fig 3 .

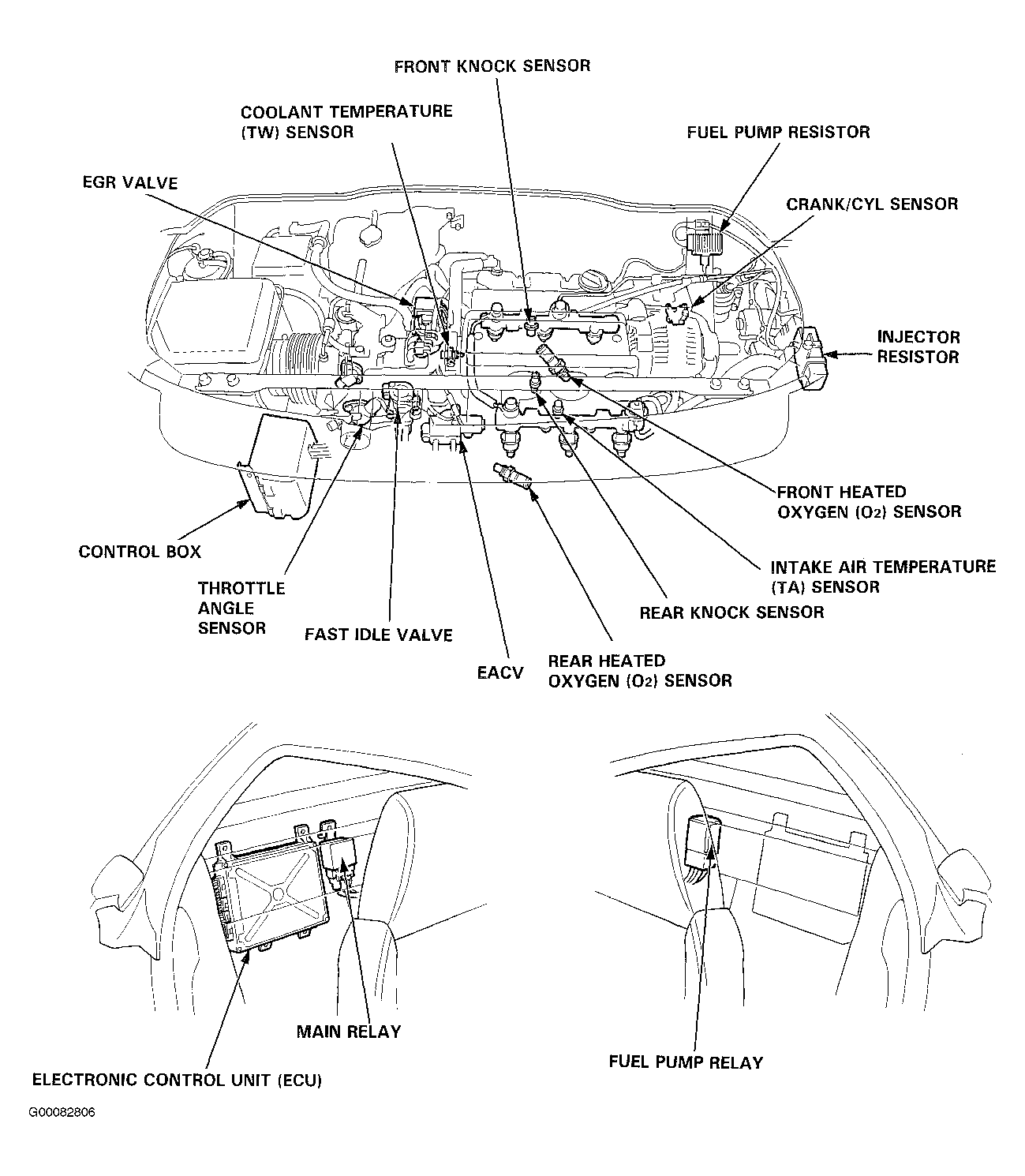

Fig 1: Locating Fuel Pump Resistor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

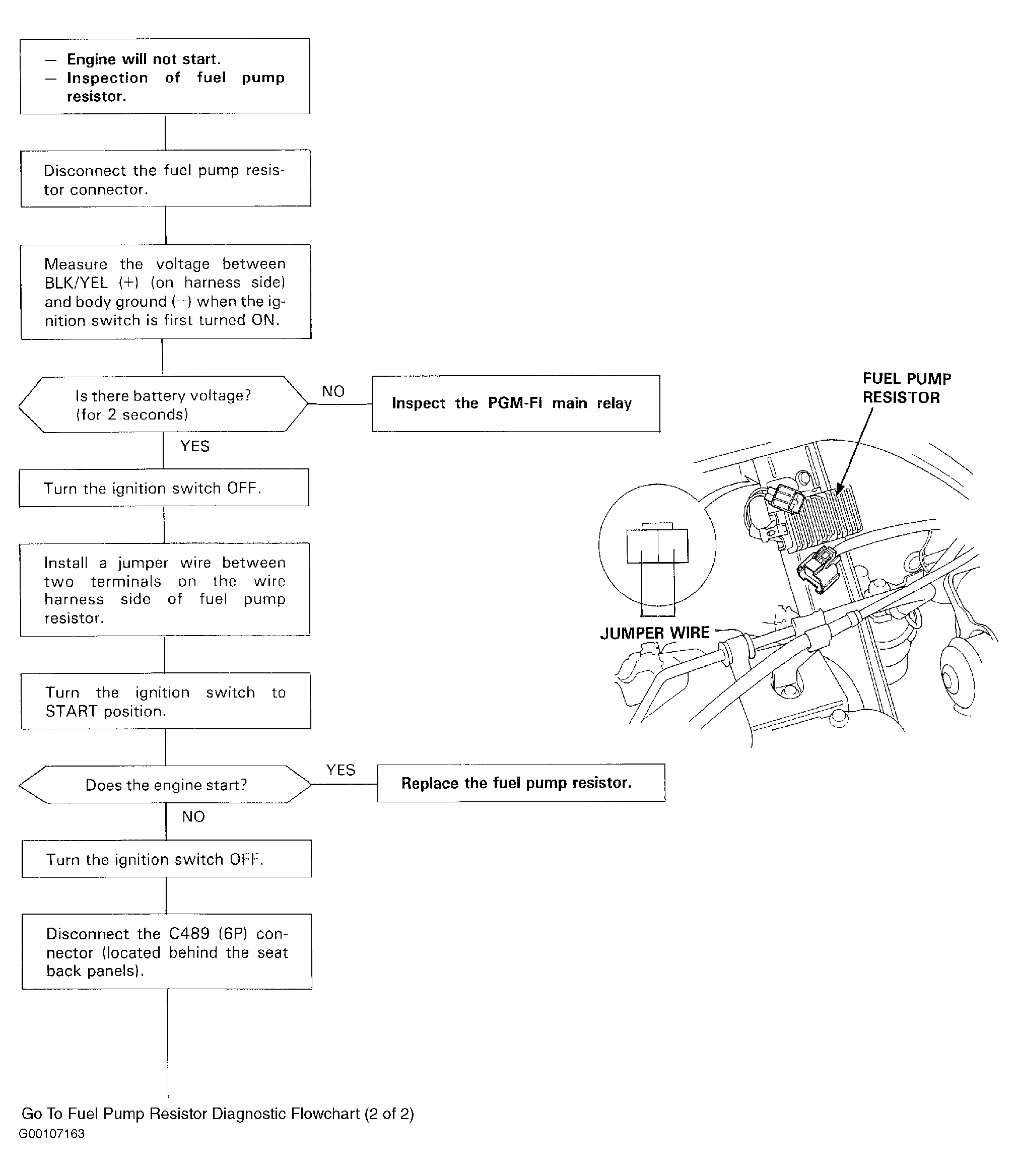

Fig 2: Fuel Pump Resistor Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

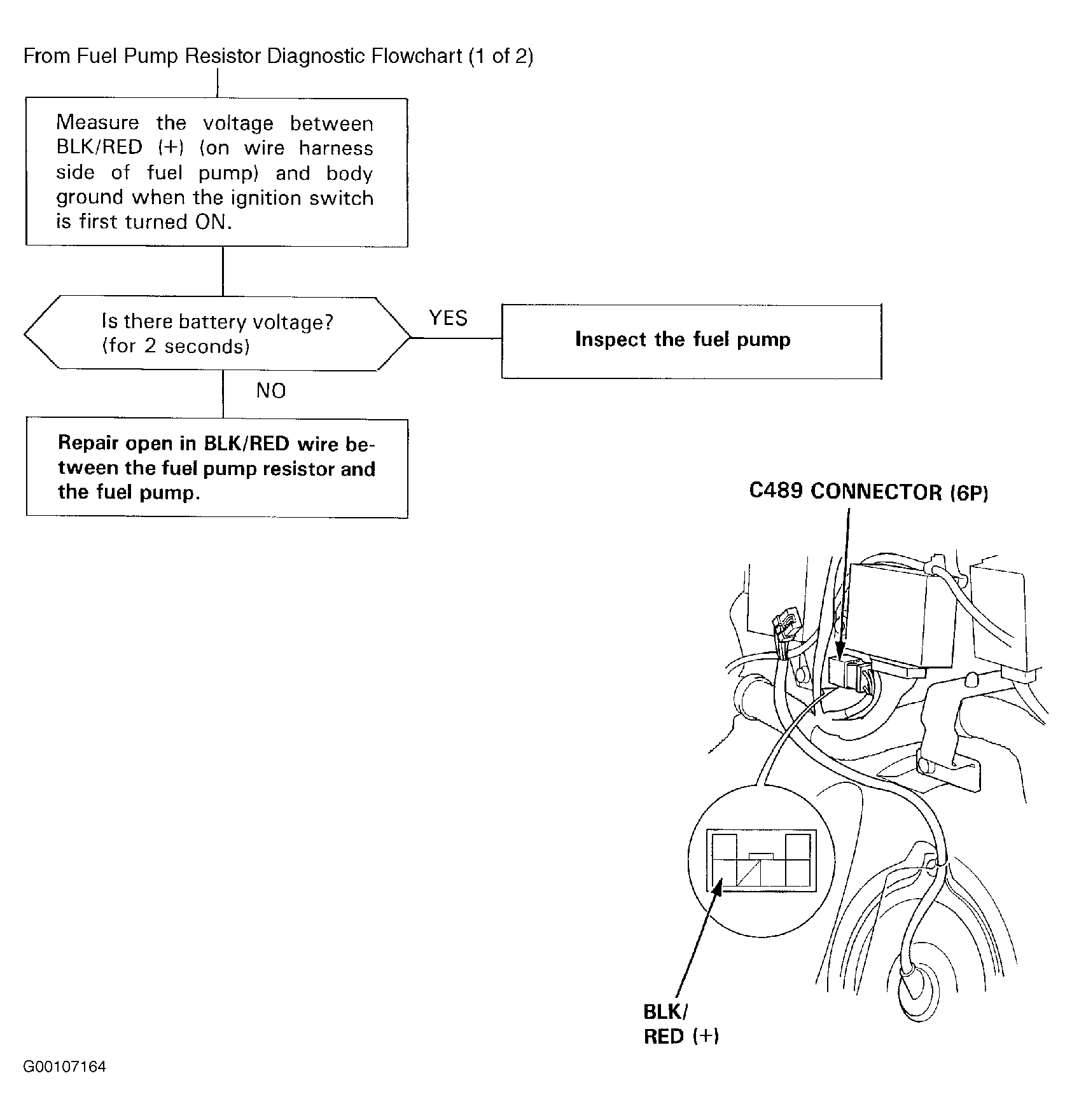

Fig 3: Fuel Pump Resistor Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
