Air Conditioning Signal

This signals the ECM when there is a demand for cooling from the air conditioning system. See Fig 1 and Fig 2 .

Fig 1: Air Conditioning Signal Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

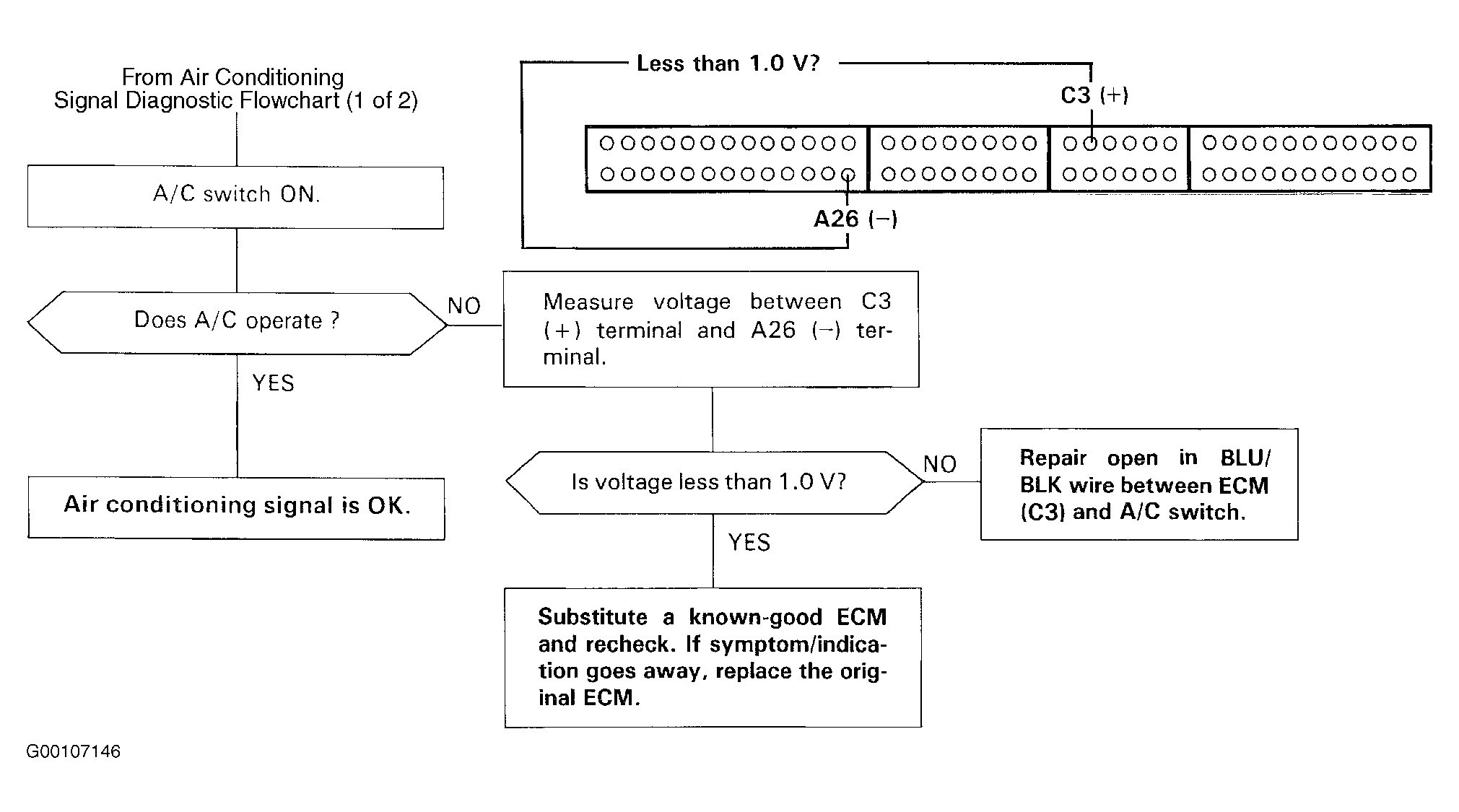

Fig 2: Air Conditioning Signal Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
