Alternator Fr Signal

This signals the ECM when the alternator is charging. See Fig 1 and Fig 2 .

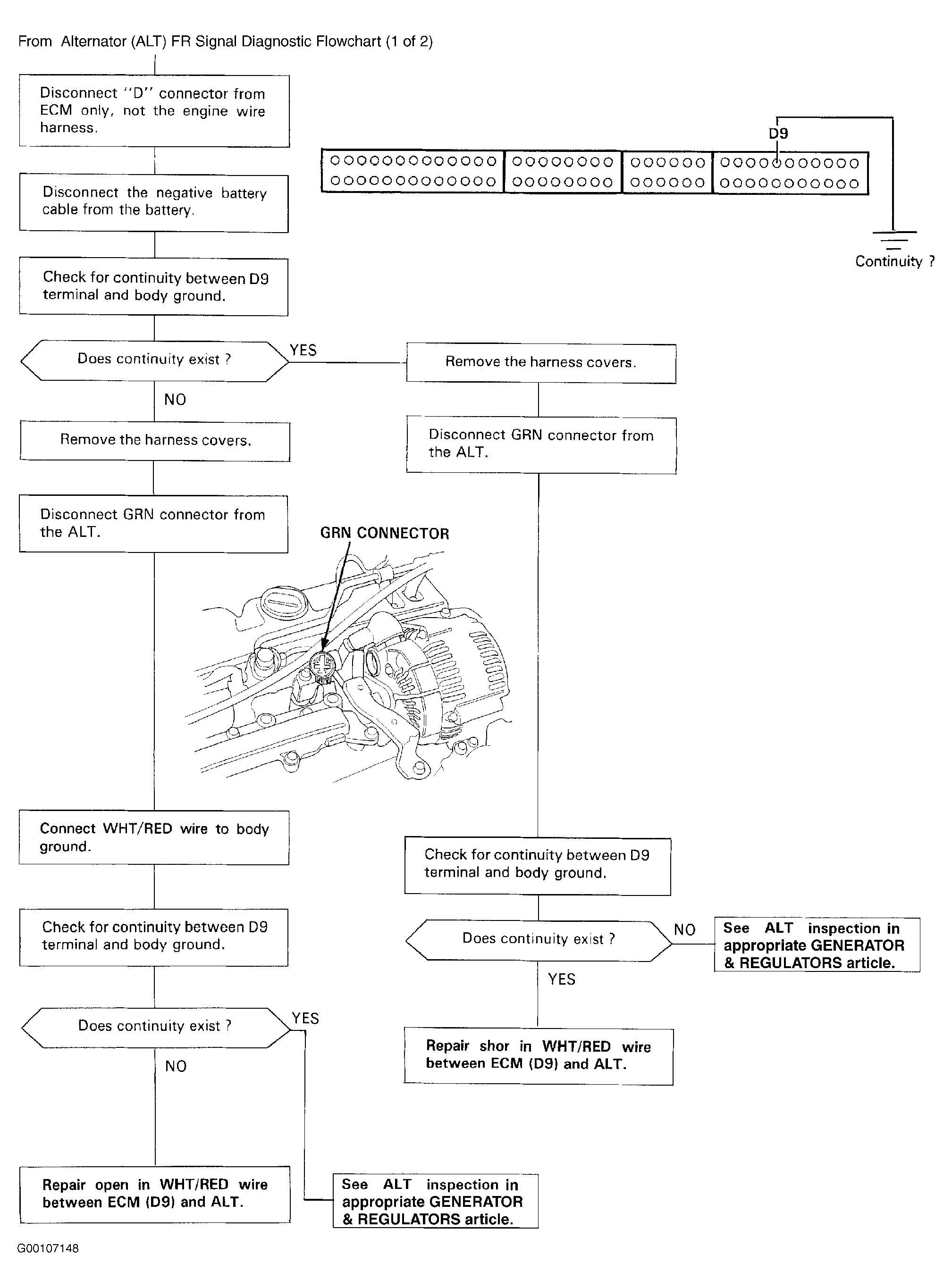

Fig 1: Alternator (ALT) FR Signal Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

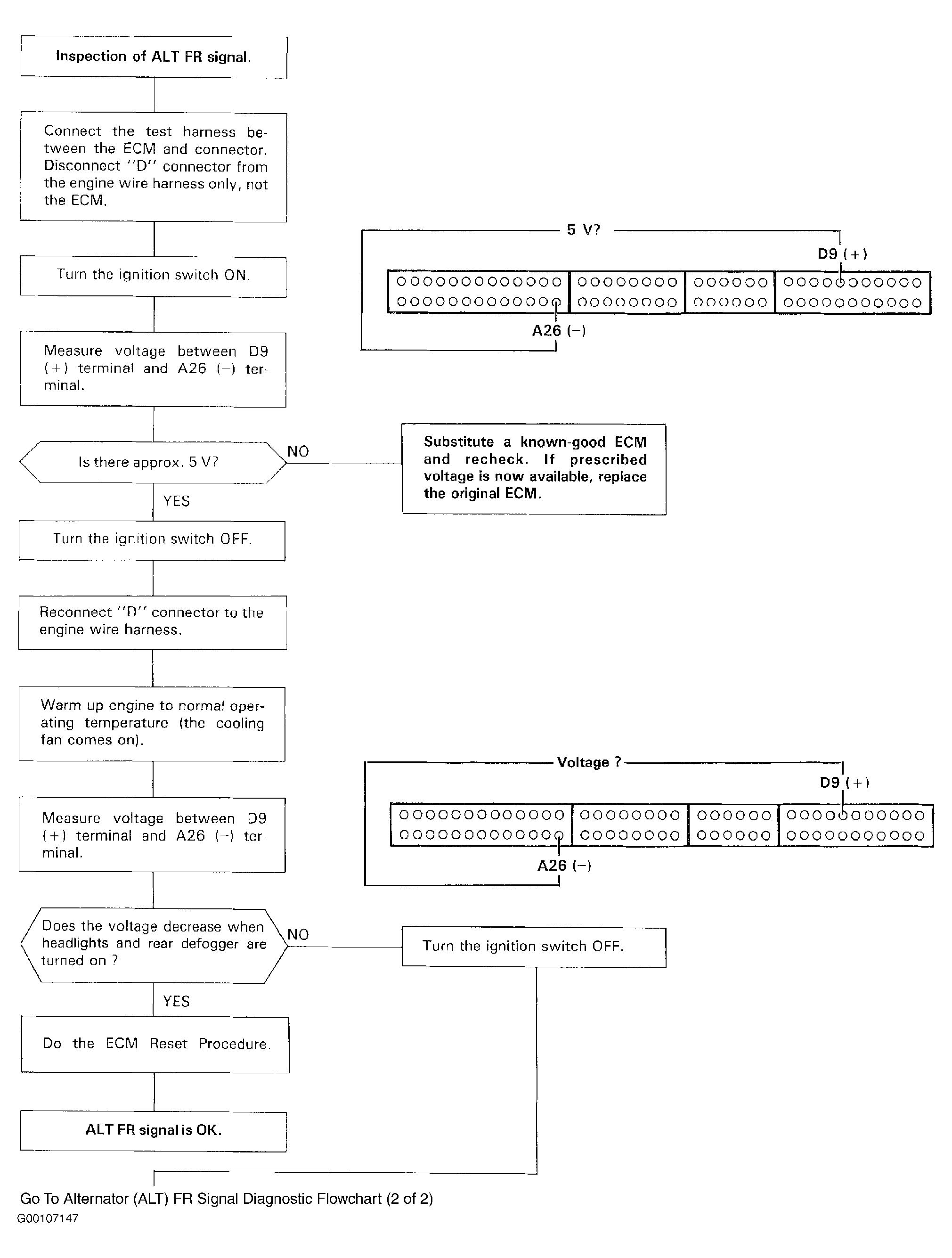

Fig 2: Alternator (ALT) FR Signal Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
