Gear Position Switch
- Shift to PARK position, and loosen the gear position switch mounting bolts.

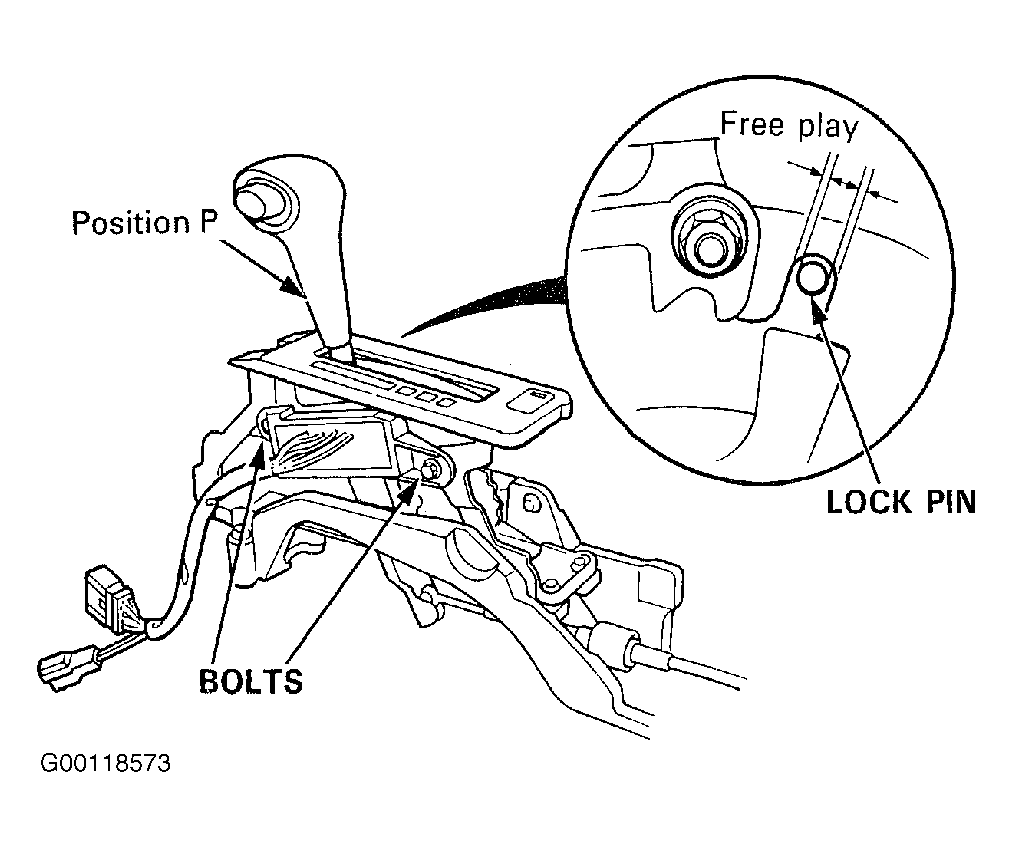

- Slide the switch within 0.08" (2.0 mm) of the direction of the PARK position until there is continuity between terminals No. 8 and No. 11 in the range of free play of the shift lever. See Figure
and Fig 1
. If adjustment is not possible, check for damage to the shift lever detent and/or bracket. If there is no damage, replace the A/T gear position switch.
- Recheck for continuity between each of the terminals. You should be able to start the engine with the shift lever in Neutral position within the range of free play.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
