Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
In-Line Diode A Above underdash fuse/relay box, taped to harness.
In-Line Diode B Behind right kick panel, taped to harness.
Keyless Door Lock In-Line Fuse Behind right side of dash, taped to harness.

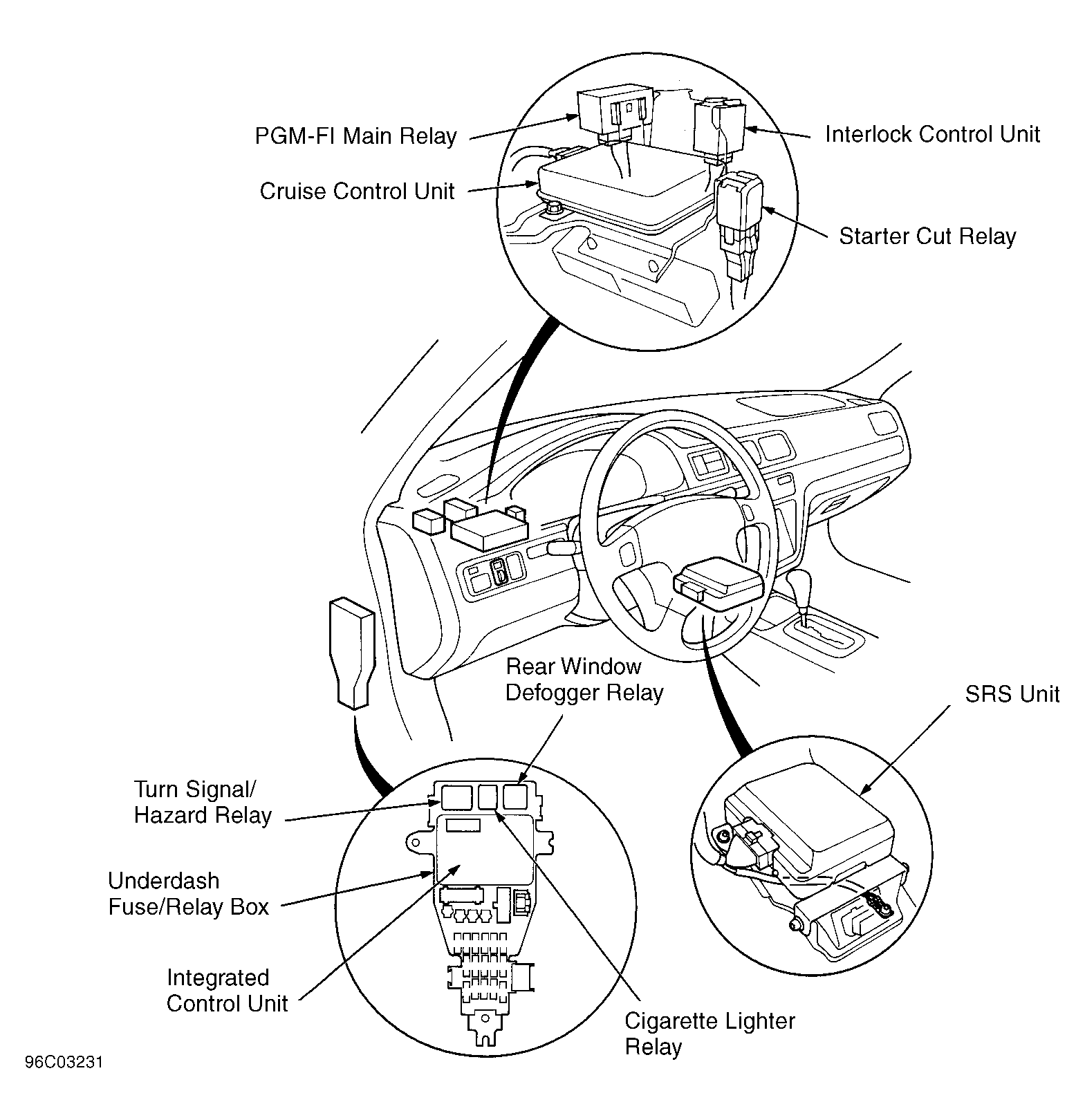

Underdash Fuse/Relay Box Behind left side of dash. See Figure .

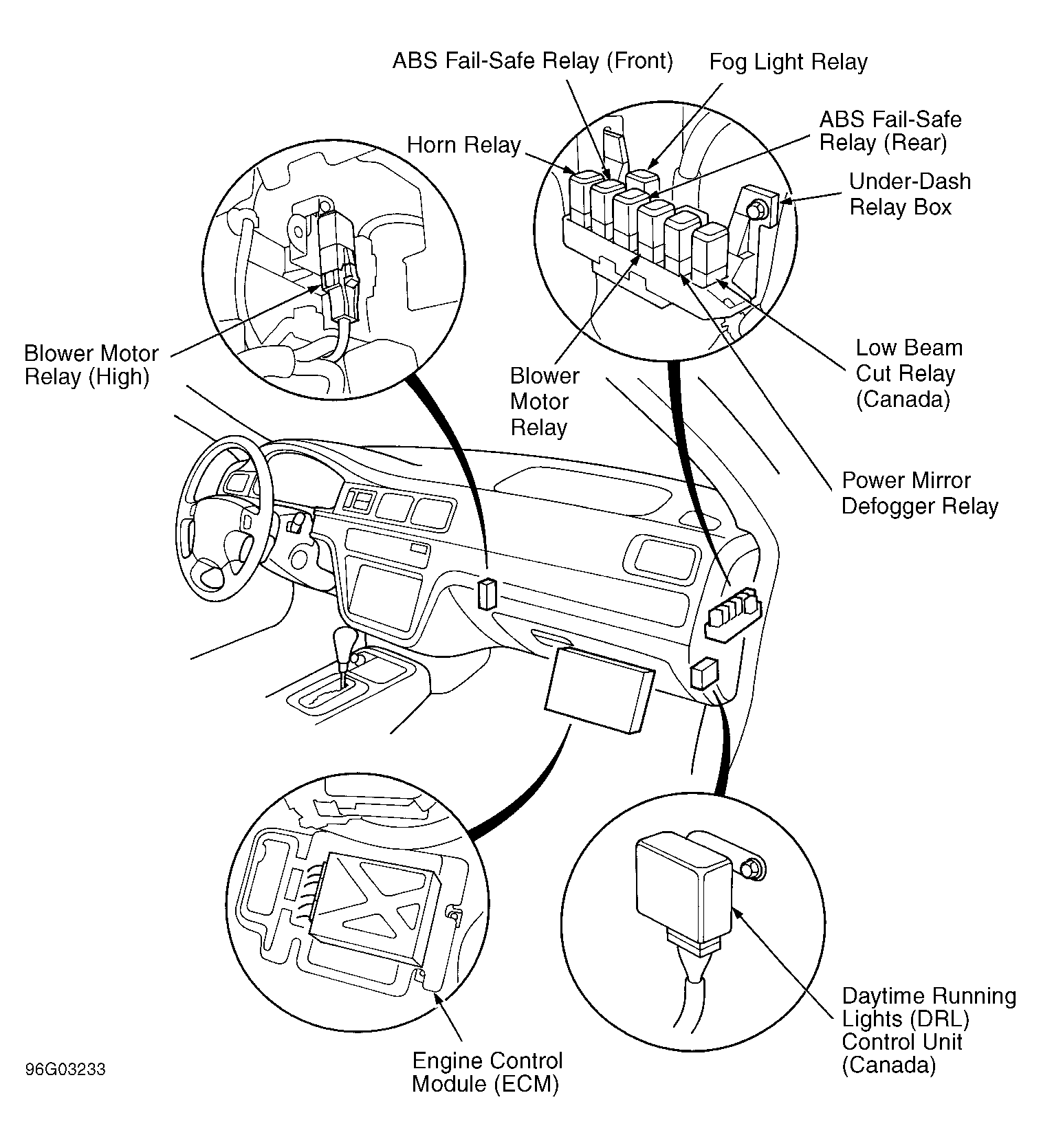

Underdash Relay Box Behind right side of dash. See Figure .

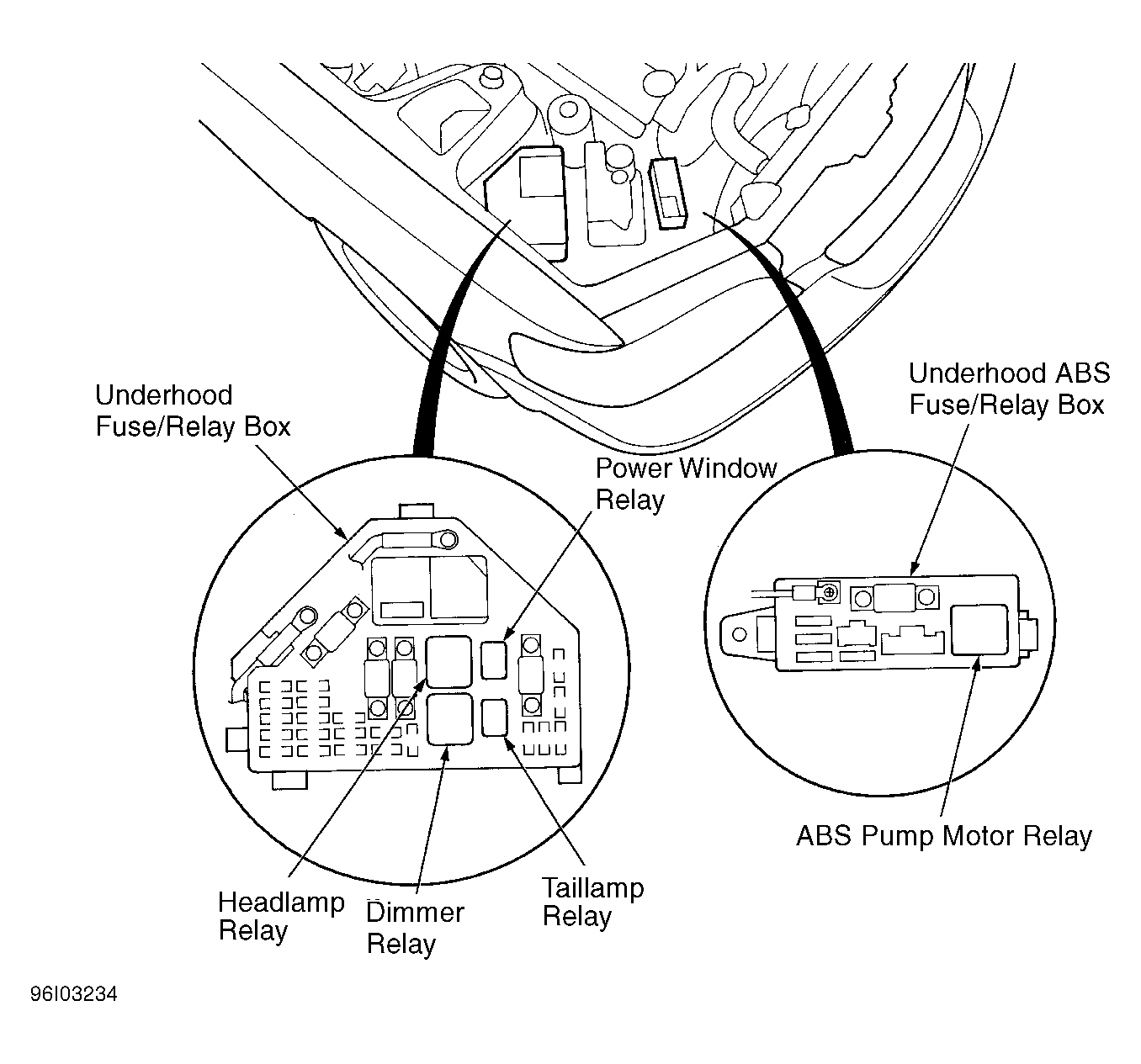

Underhood ABS Fuse/Relay Box Right front corner of engine compartment. See Figure .
Underhood Fuse/Relay Box Right side of engine compartment. See Figure .
