Removal & Installation

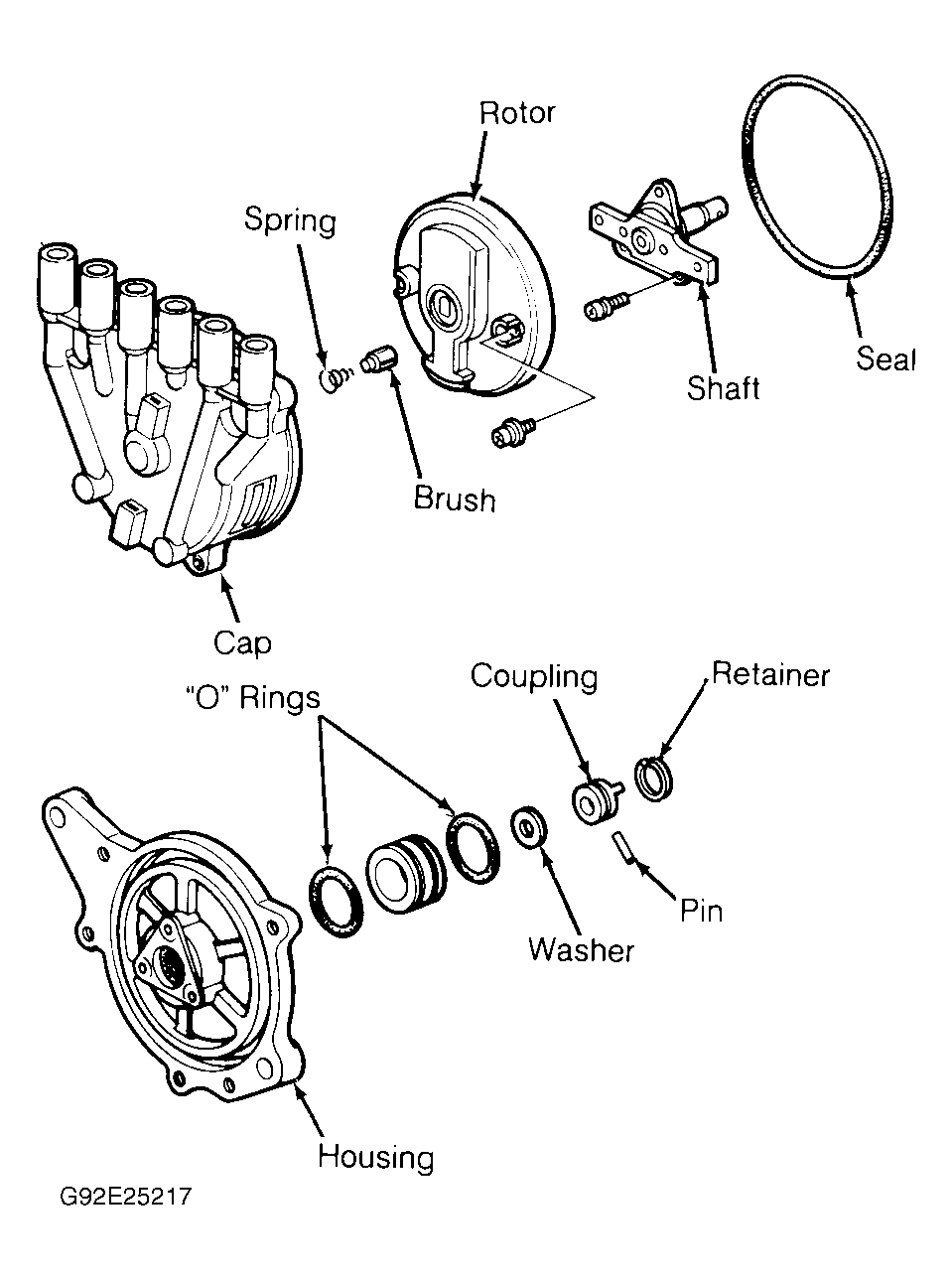

Note location of each spark plug wire. Disconnect wires from distributor cap. Remove hold-down bolts, distributor and seal. See Fig 1. Coat new seal with engine oil. Align lugs on distributor drive with grooves in camshaft. Install hold-down bolts loosely. Connect wires. Adjust ignition timing. Tighten hold-down bolts.
