Fuel Pump Relay

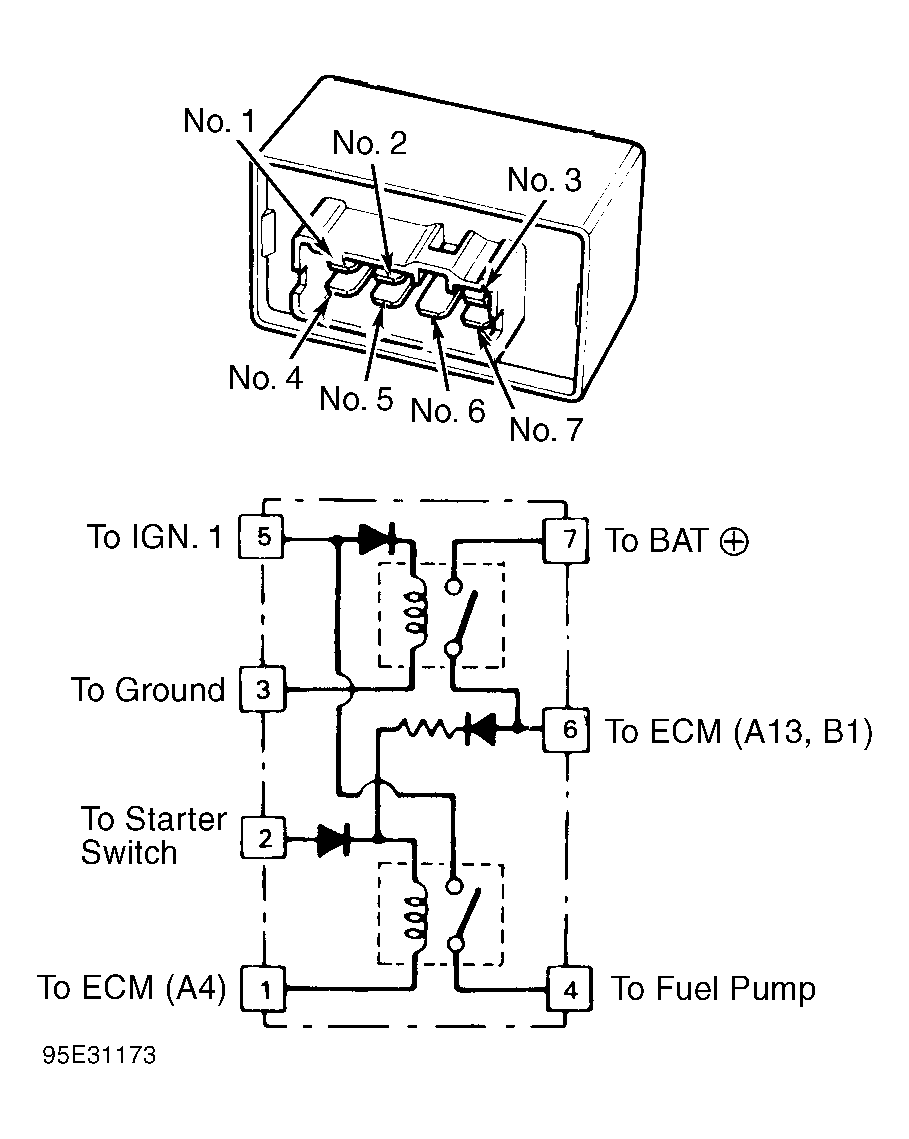

- Remove fuel pump main relay, located under left side of dash. Connect battery voltage to relay terminal No. 2. Connect terminal No. 1 to ground. See Fig 1.
- Test for continuity between relay terminals No. 4 and 5. If continuity exists, go to next step. If continuity does not exist, replace relay.
- Connect battery voltage to relay terminal No. 5. Connect terminal No. 3 to ground. Test for continuity between terminals No. 6 and 7. If continuity exists, go to next step. If continuity does not exist, replace relay.
- Connect battery voltage to relay terminal No. 6. Connect terminal No. 1 to ground. Test for continuity between relay terminals No. 4 and 5. If continuity exists, relay is okay. If continuity does not exist, replace relay.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
