Ignition Timing
IGNITION TIMING (Degrees BTDC @ RPM)
Application
(1)
Man. Trans.
(2)
Auto. Trans.
Integra
14-18 @ 700-800
14-18 @ 700-800
(1)
Manual transmission in Neutral.
(2)
Automatic transmission in Neutral or Park.

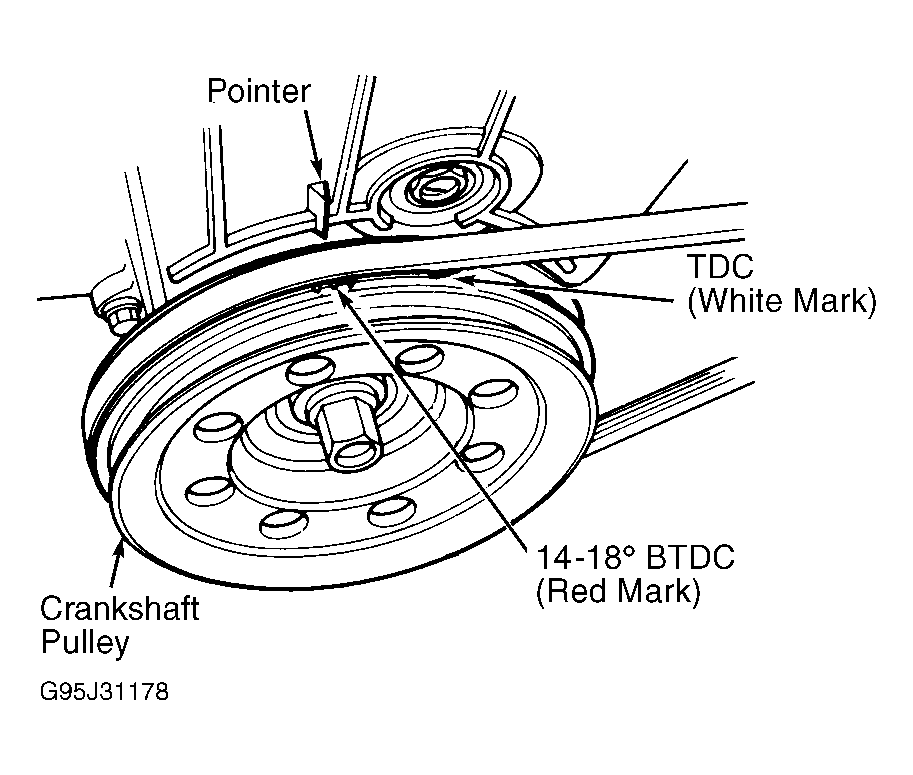

Fig 1: Locating Ignition Timing Mark
Courtesy of AMERICAN HONDA MOTOR CO., INC.
