Entry Light Control System

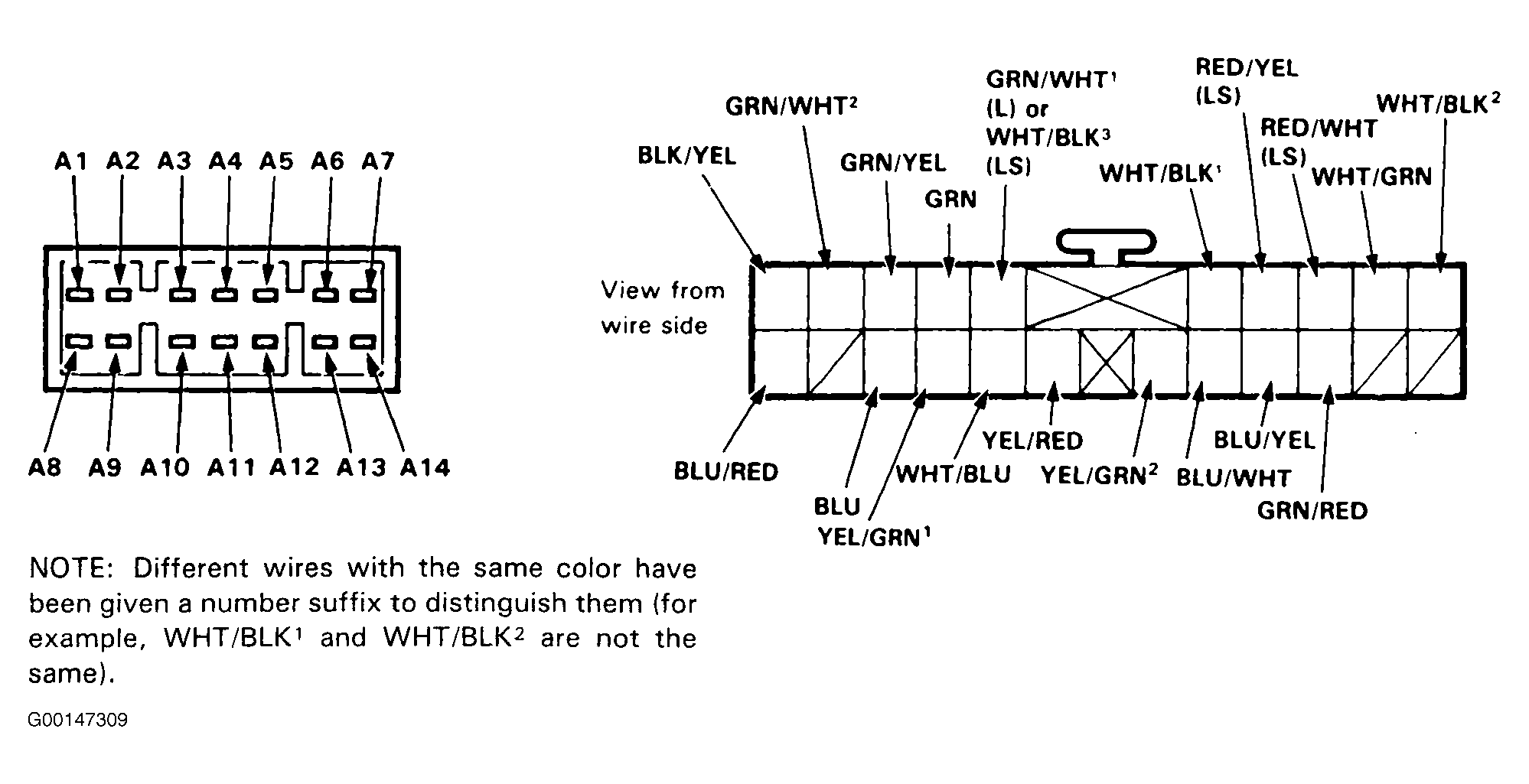

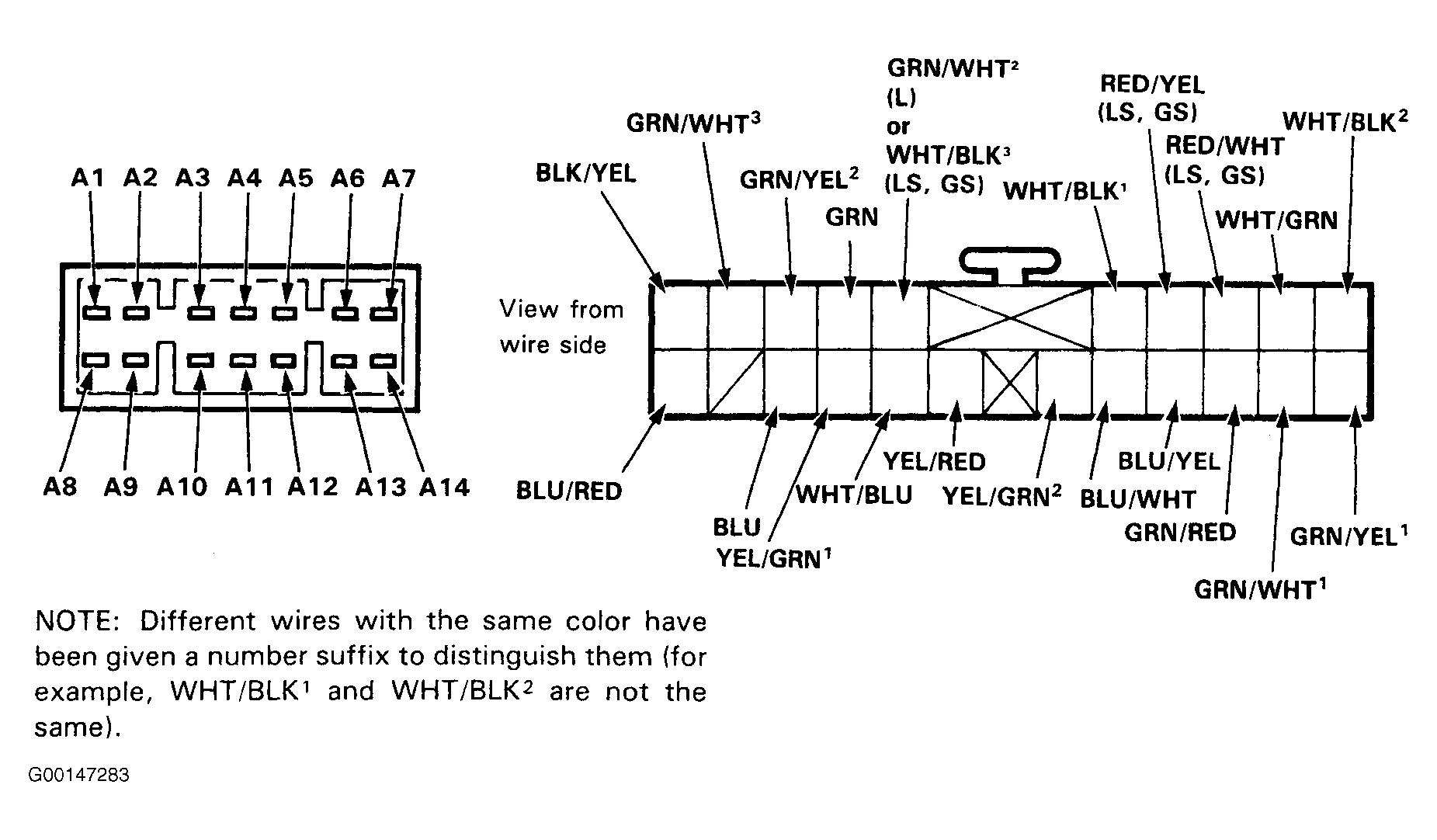

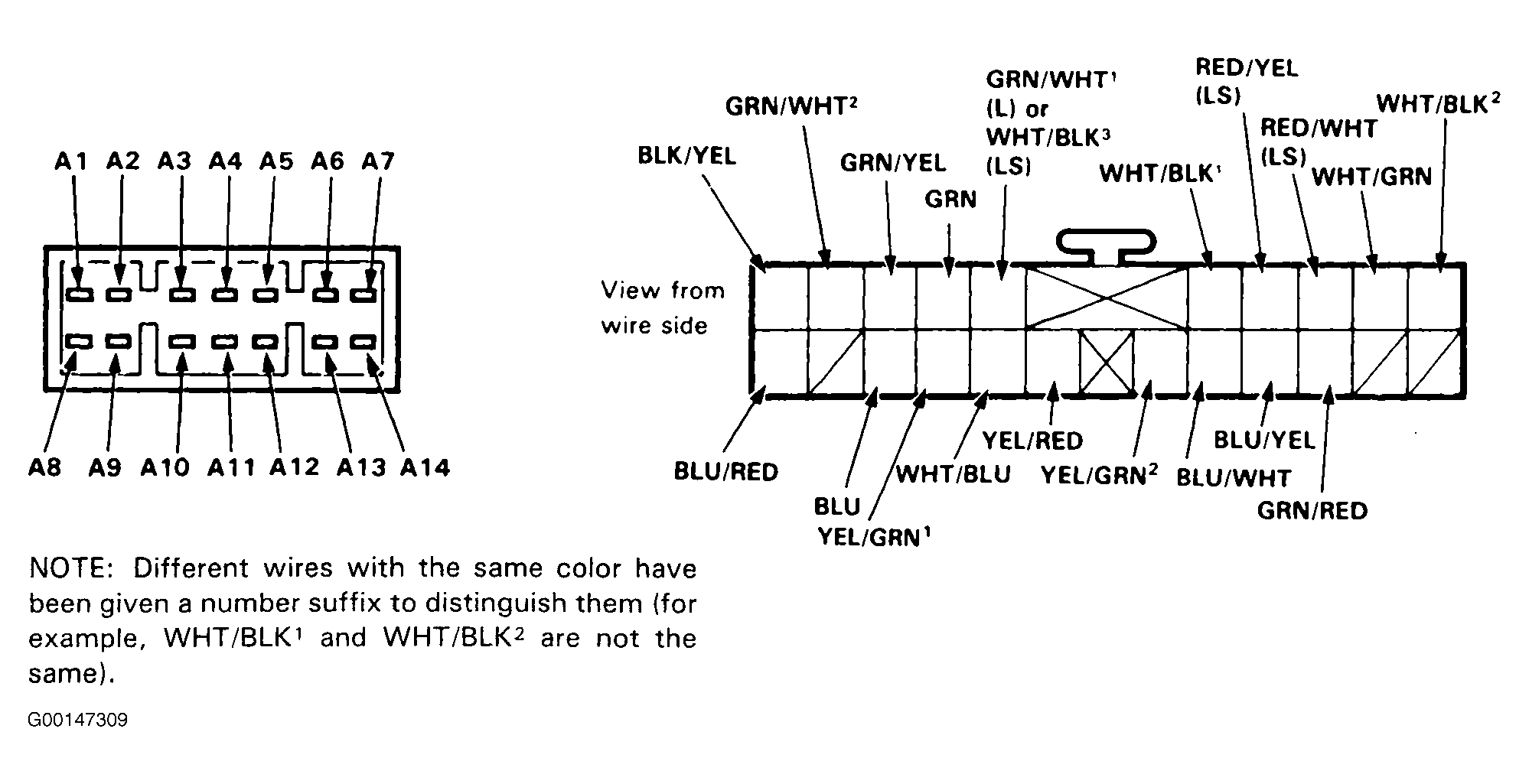

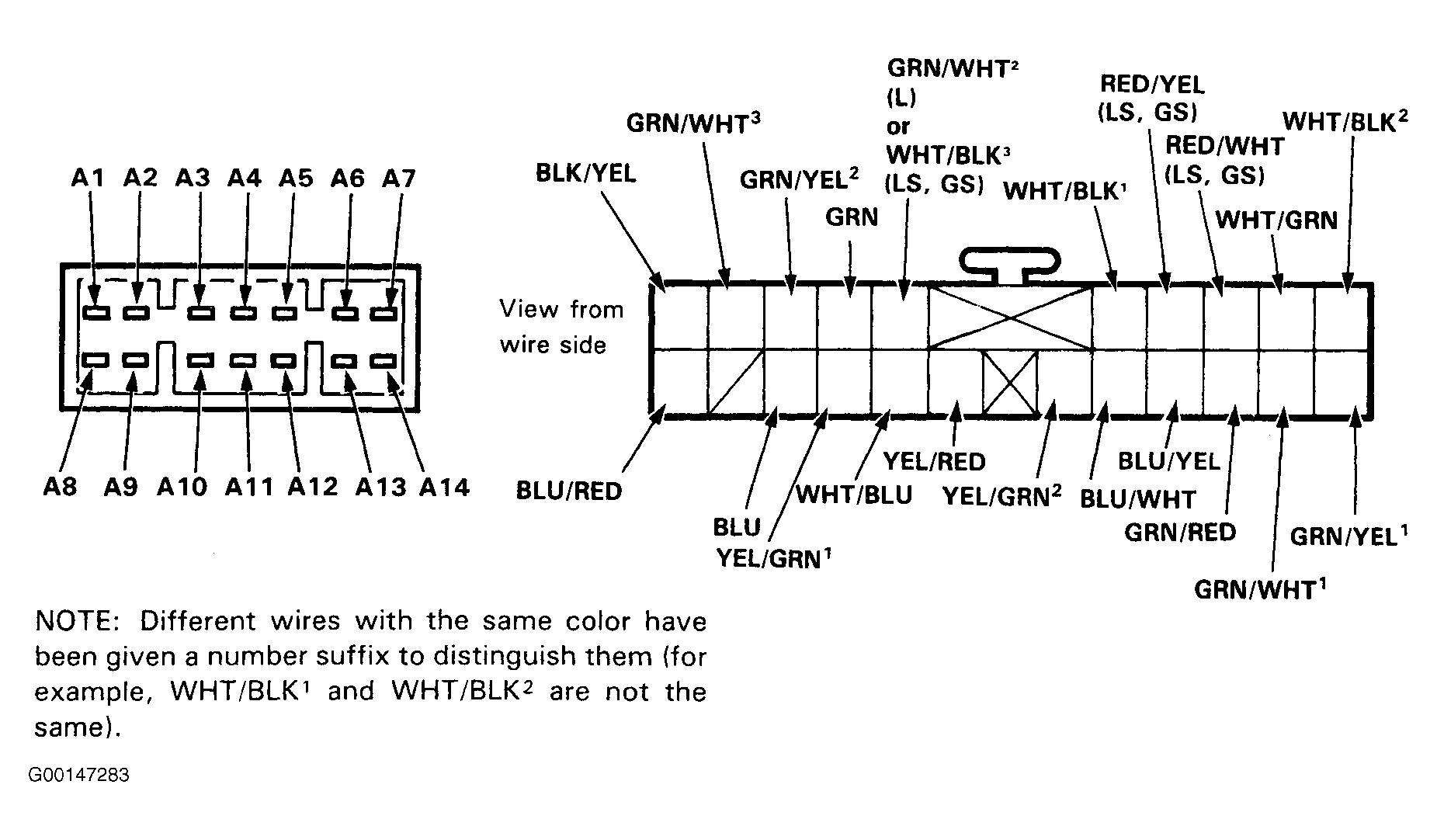

See Figure or Figure for connector terminal identification.

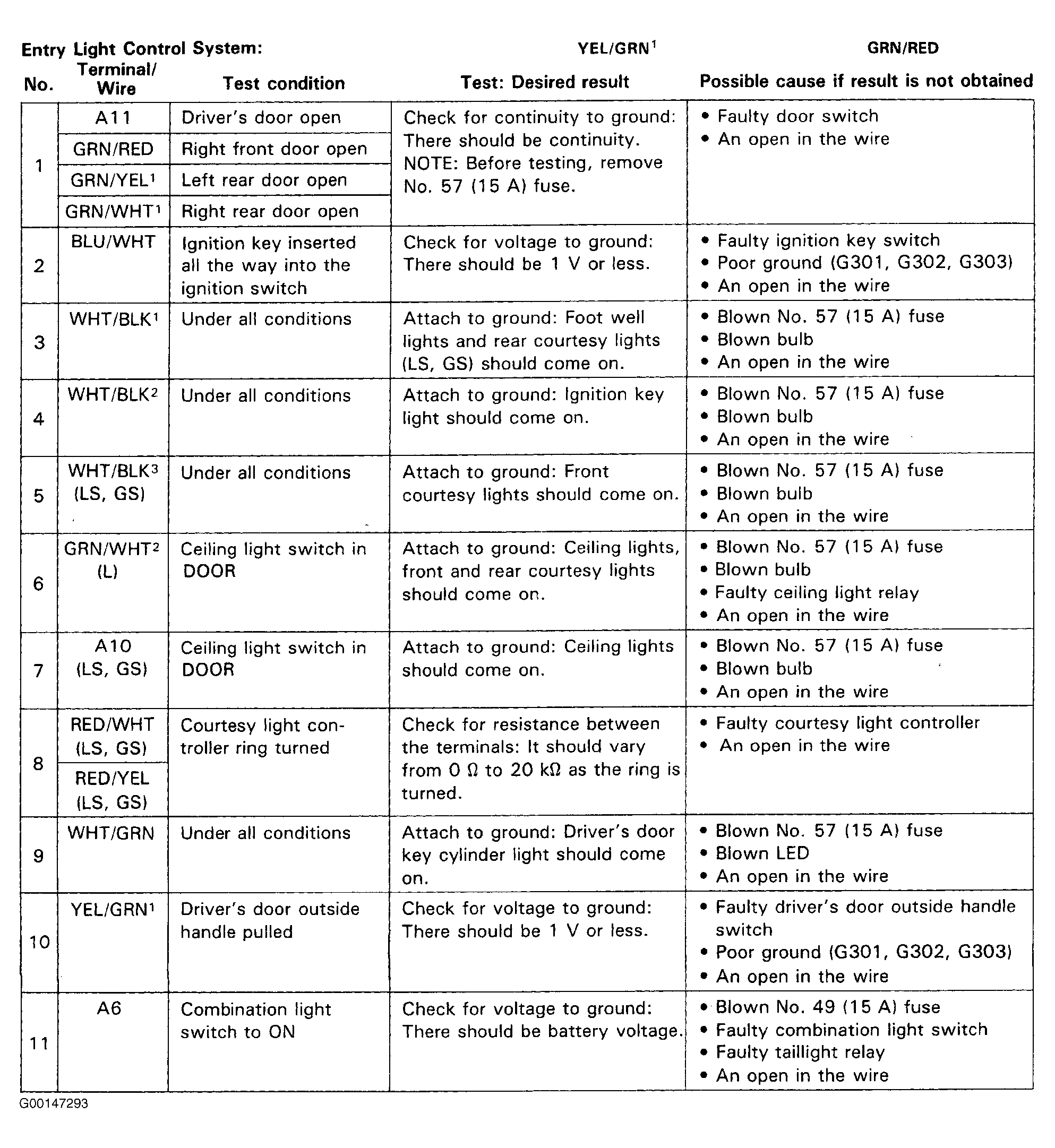

Fig 1: Entry Light Control System Input Test (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

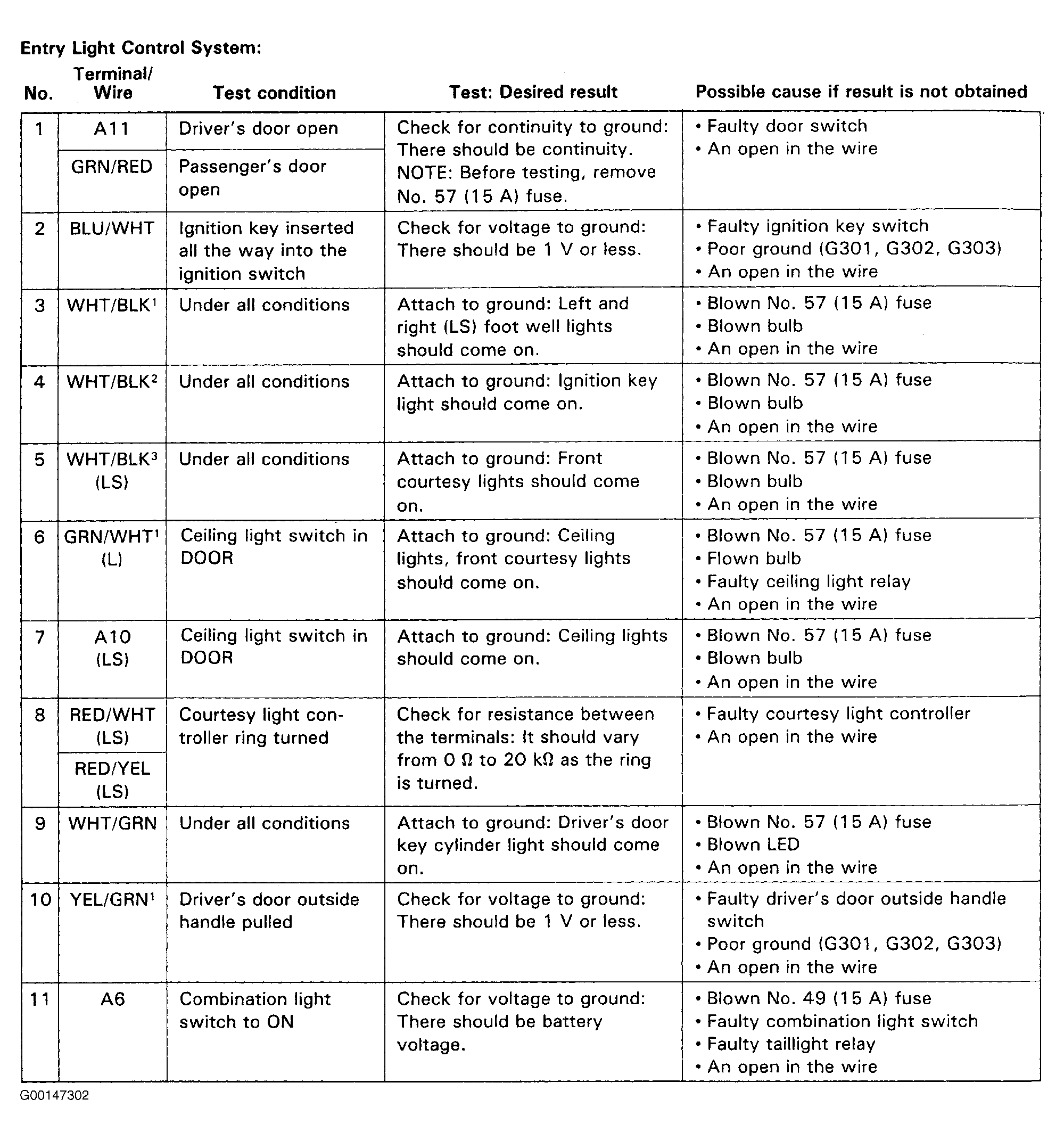

Fig 2: Entry Light Control System Input Test (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
