Side Marker Light Flasher System
See
Figure
or
Figure
for connector terminal identification.

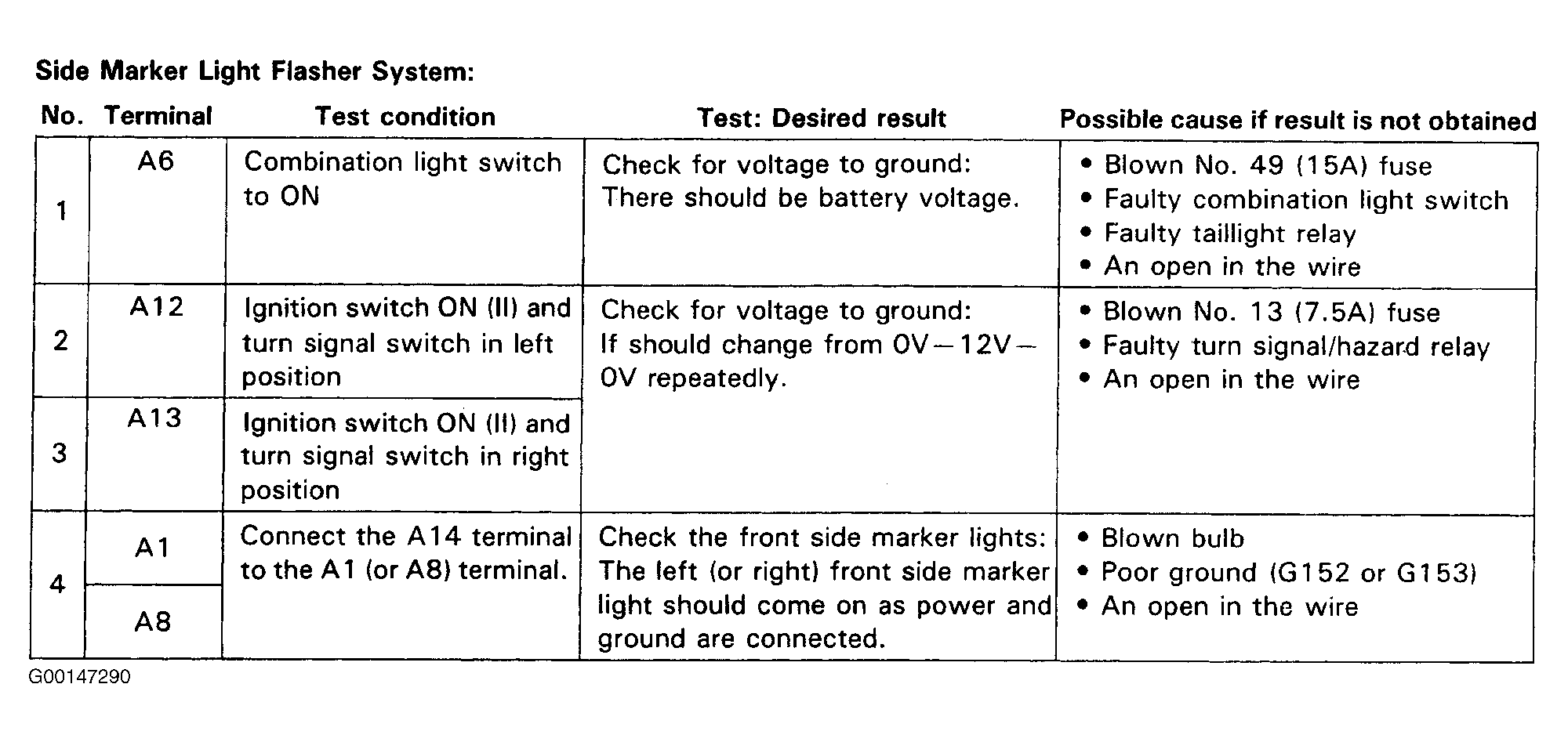

Fig 1: Side Marker Light Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
