Component Locations

COMPONENT LOCATIONS

Component	Location
Engine Compartment Fuse/Relay Block	On Left Inner Fender Panel, Behind Battery. See Fig 1 .
Engine Oil Pressure Switch	At Base Of Oil Filter, To Right Of Crankshaft Pulley.
Passenger Compartment Fuse/Relay Block	Behind Left Kick Panel. See Fig 2 & Fig 3 .
Underhood Relay Box "A"	On Left Top Radiator Support, Near Battery. See Fig 1 .
Underhood Relay Box "B"	On Right Rear Of Engine Compartment, Near Strut Tower. See Fig 1 .
Integrated Control Unit	Mounted Behind Passenger Compartment Fuse/Relay Block. See Fig 3 .
Lights-On Chime Module	Behind Left Side Of Steering Column, On Steering Column Crossbar Support
Seat Belt Switch	In Driver's Seat Belt Buckle
G152	Left Front Of Engine Compartment. See Fig 4 .
G153	Right Front Corner Of Engine Compartment. See Fig 5 .
G301	Left Kick Panel. See Fig 6 .
G302	Right Rear Corner Of Engine Compartment. See Fig 7 .
G303	Right Kick Panel. See Fig 8 .

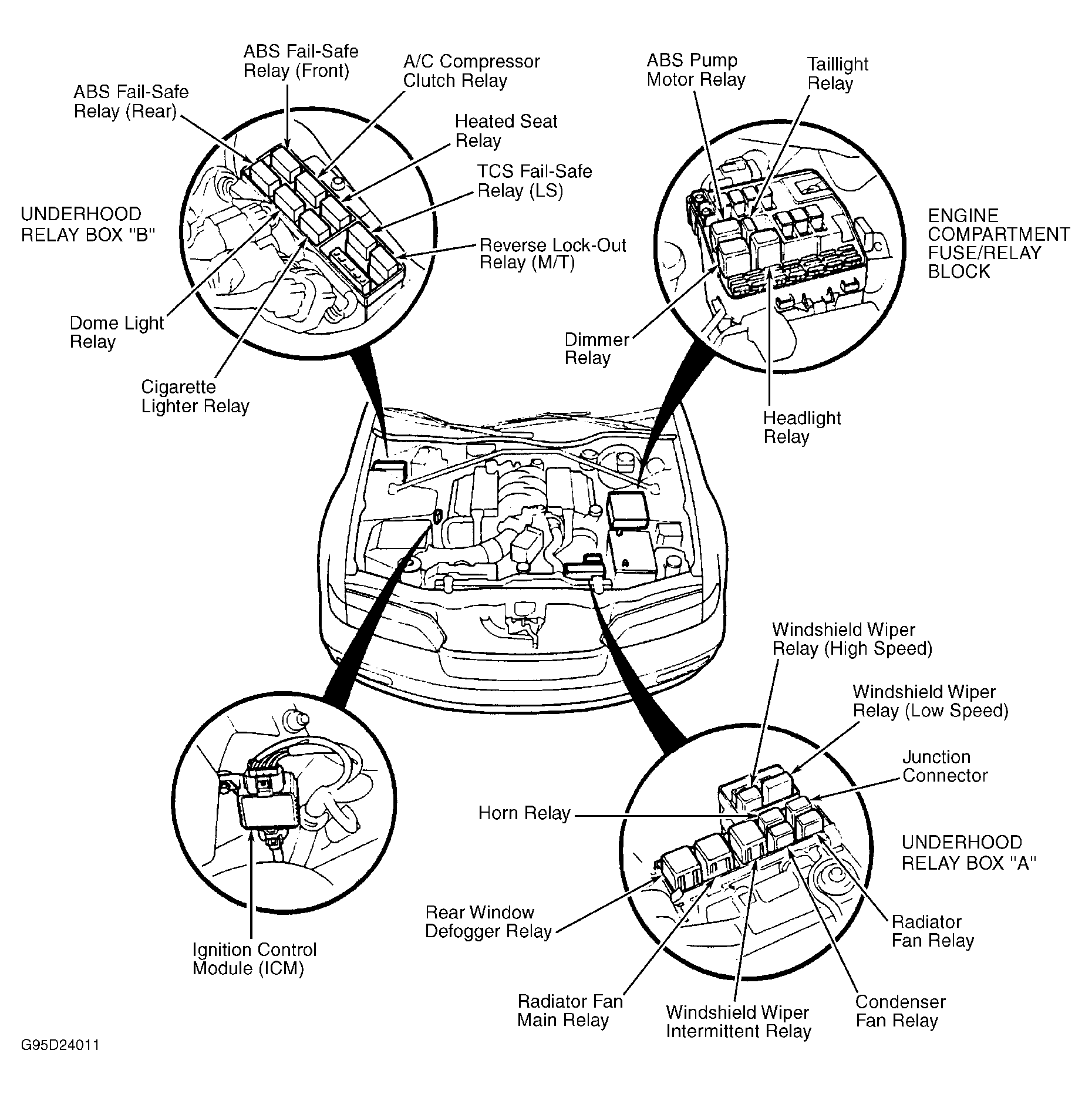

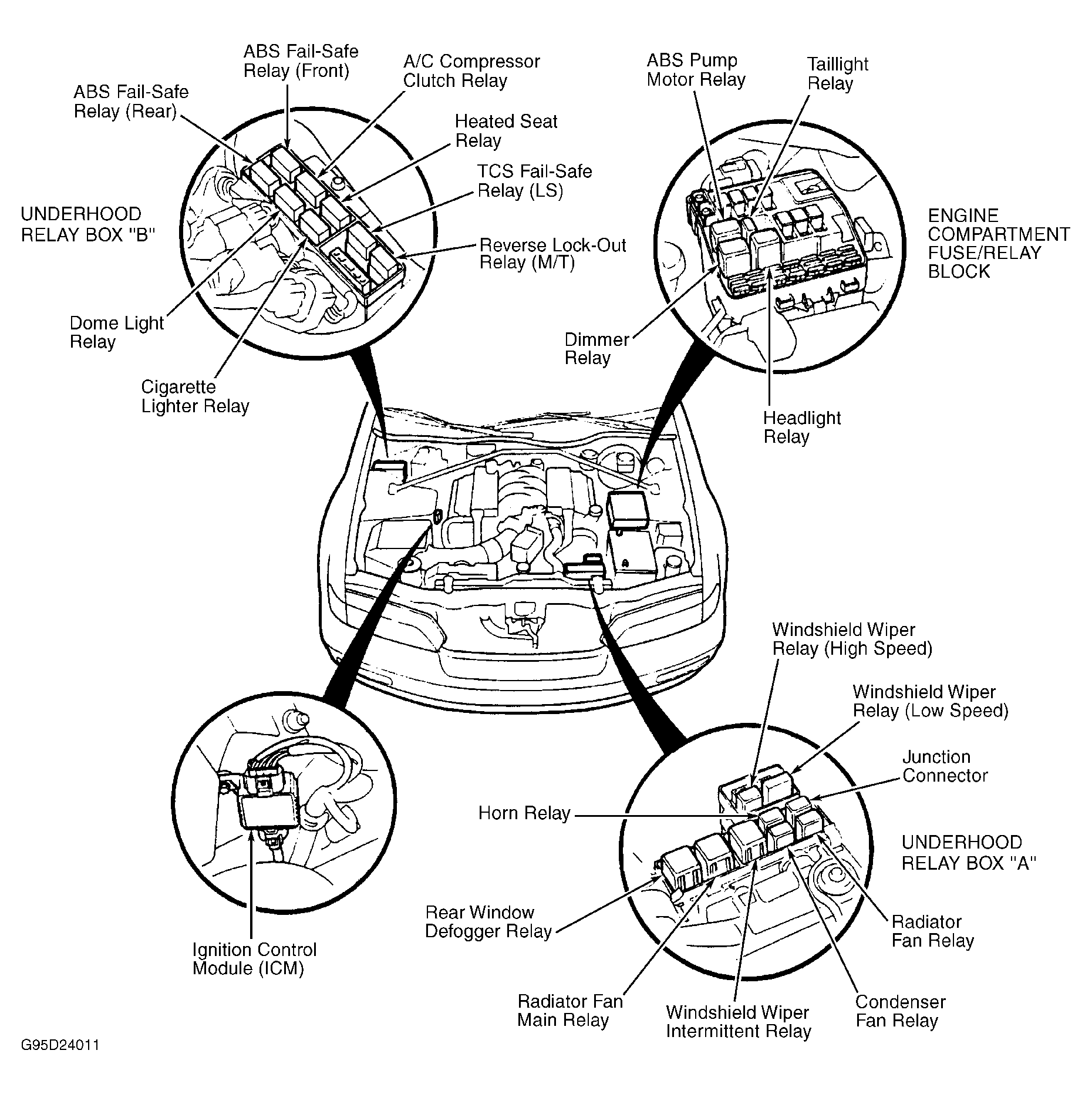

Fig 1: Component Locations (1 Of 8)

G95D24011

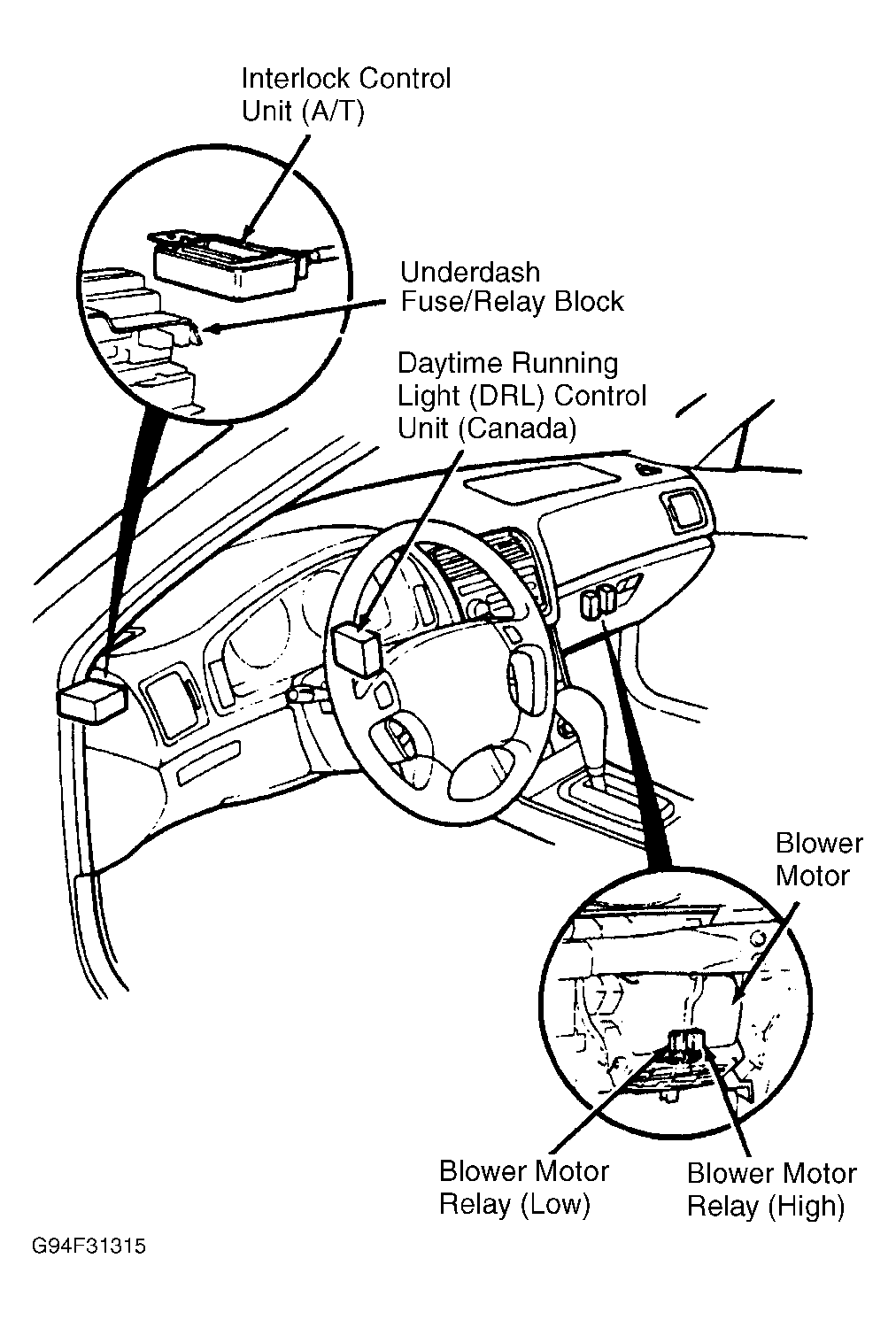

Fig 2: Component Locations (2 Of 8)

G94F31315

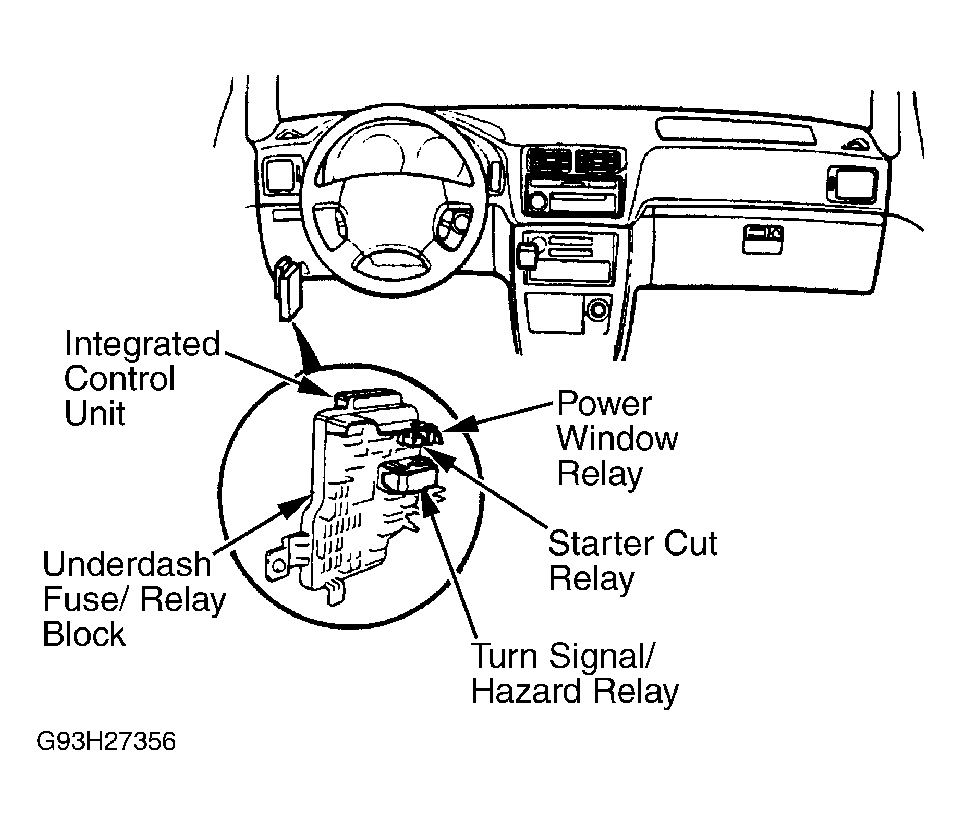

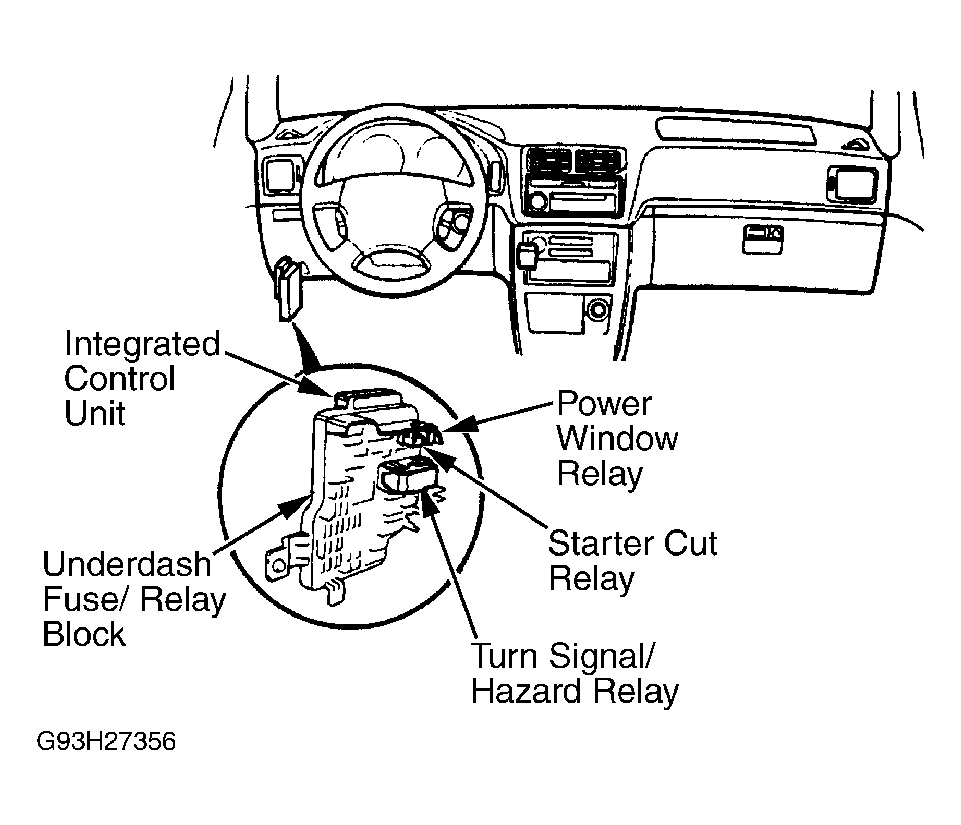

Fig 3: Component Locations (3 Of 8)

G93H27356

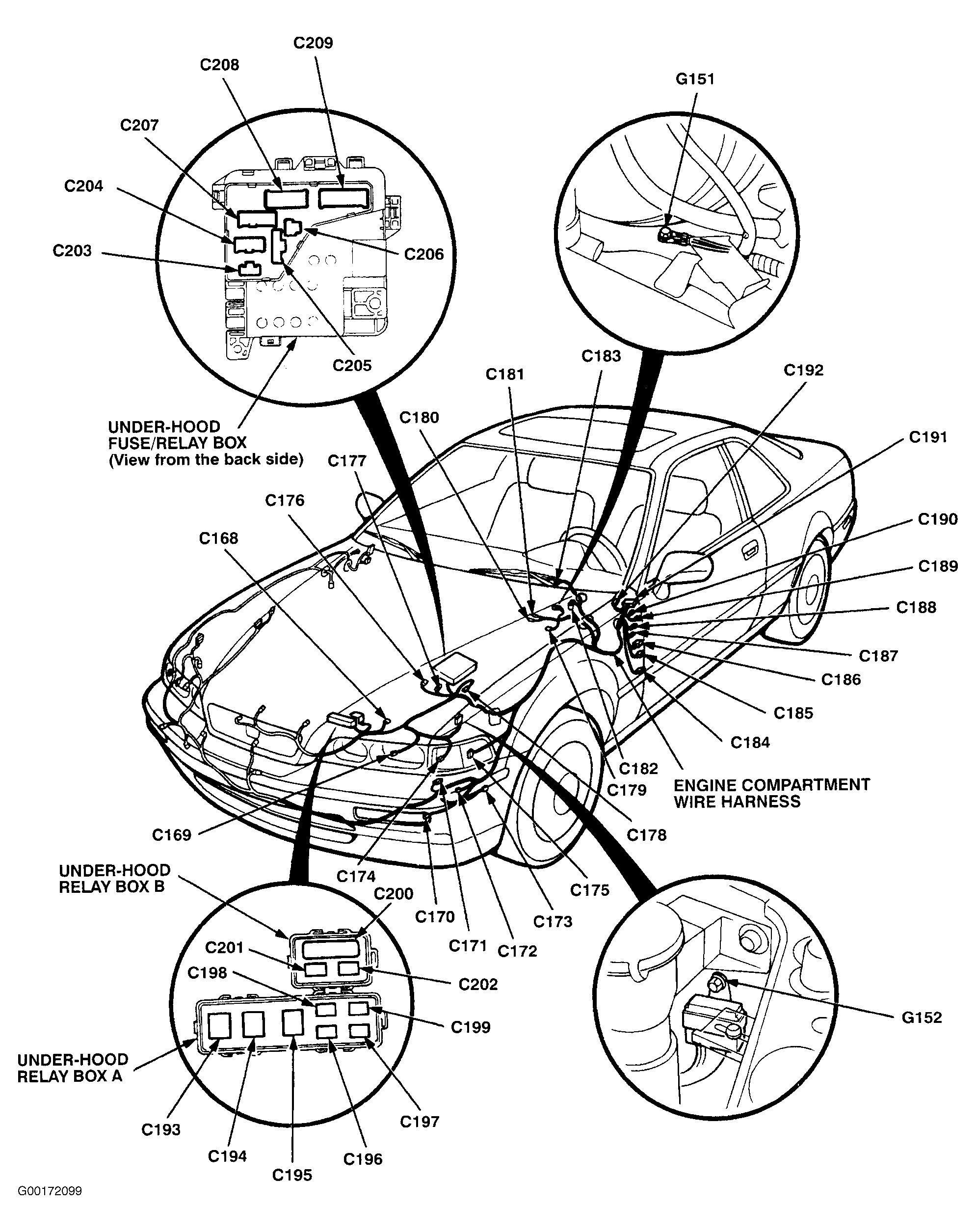

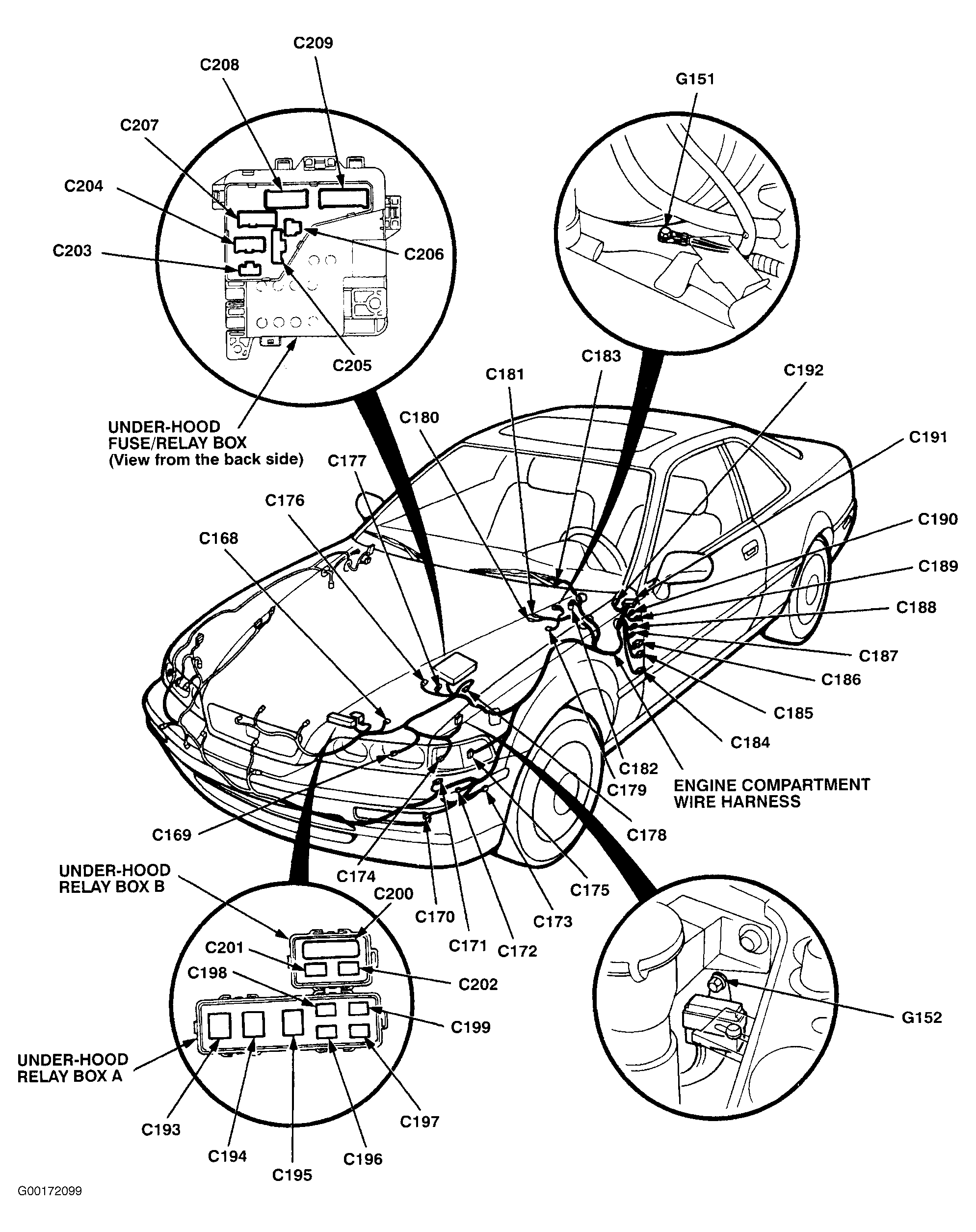

Fig 4: Component Locations (4 Of 8)

G00172099

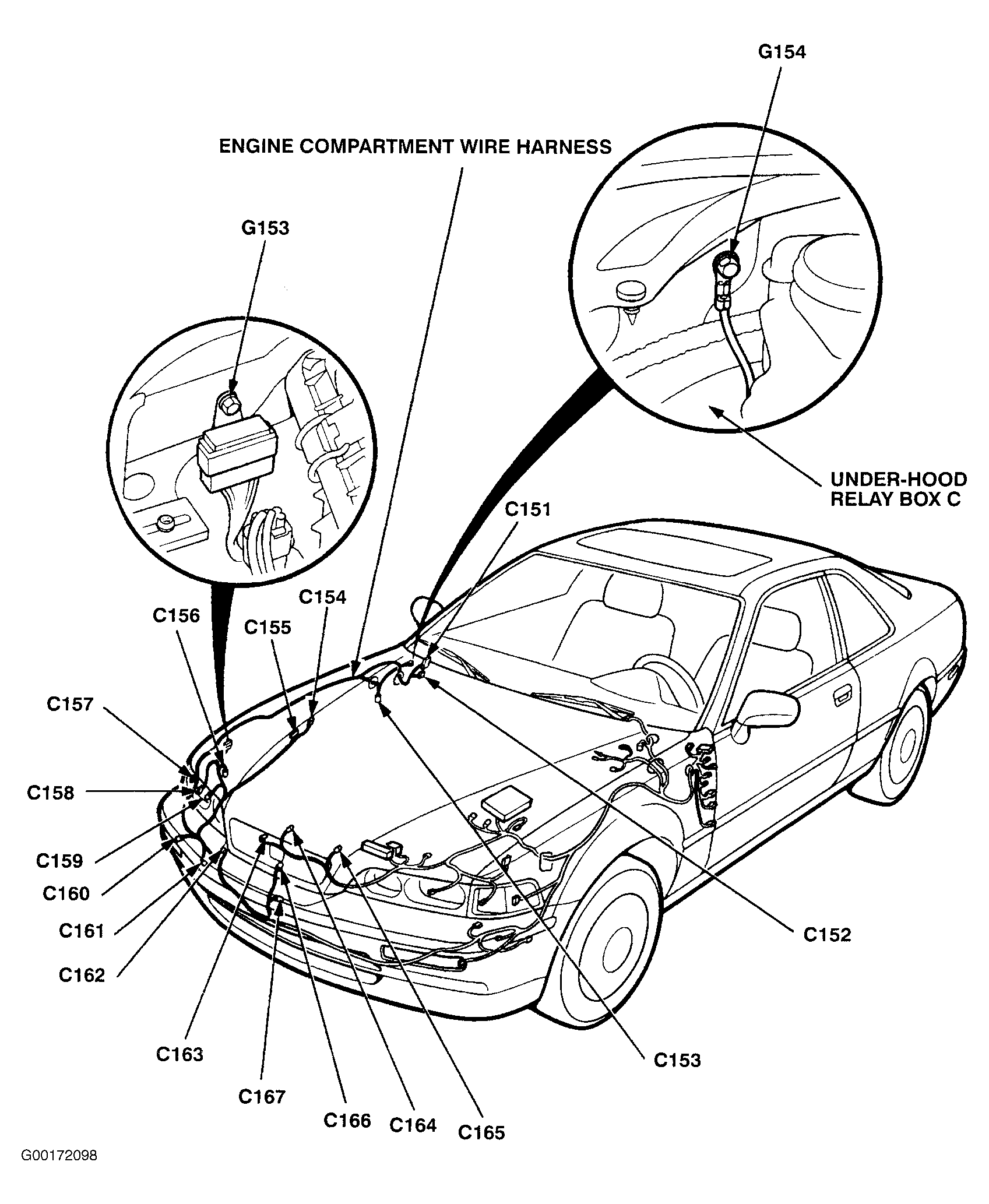

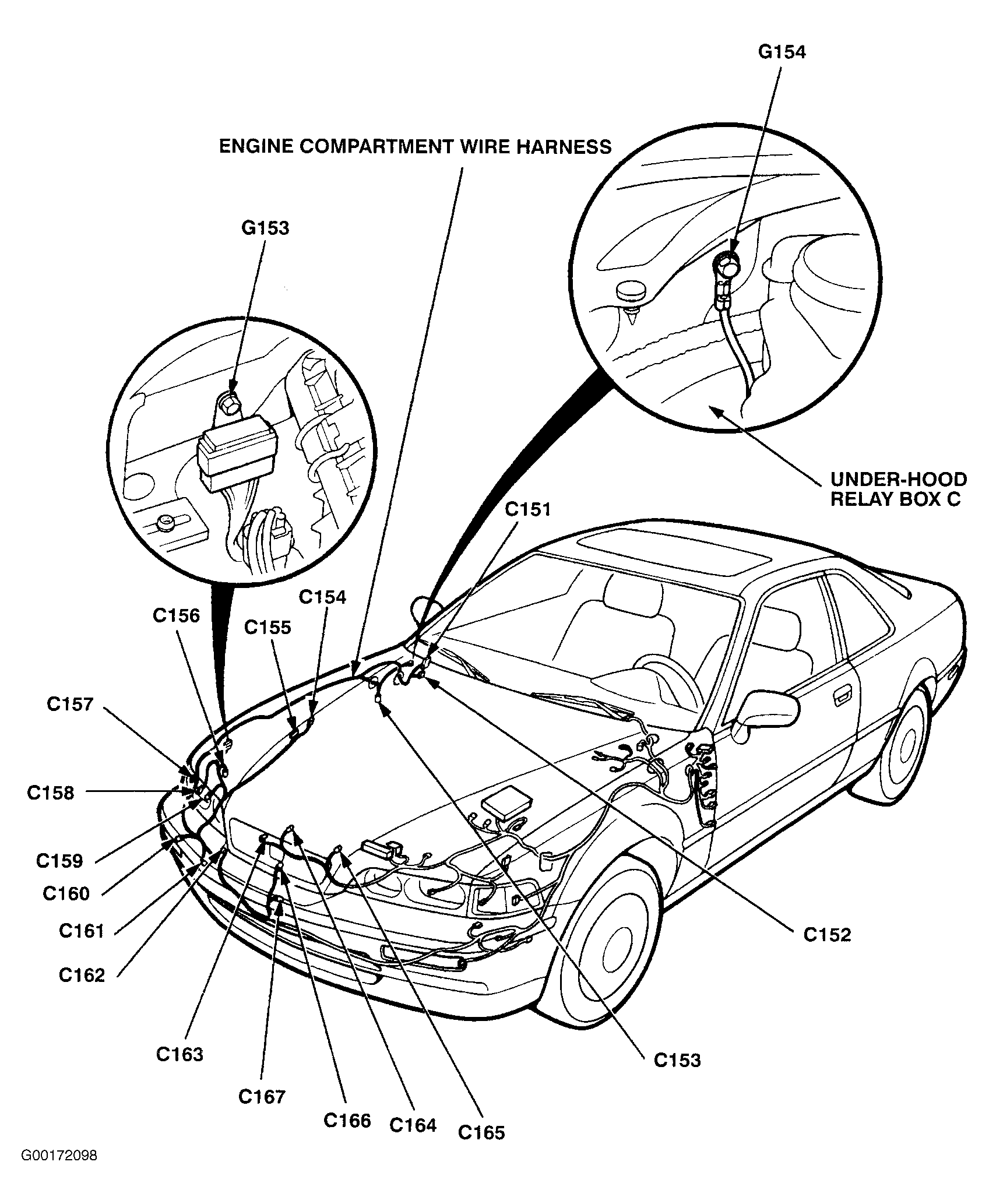

Fig 5: Component Locations (5 Of 8)

G00172098

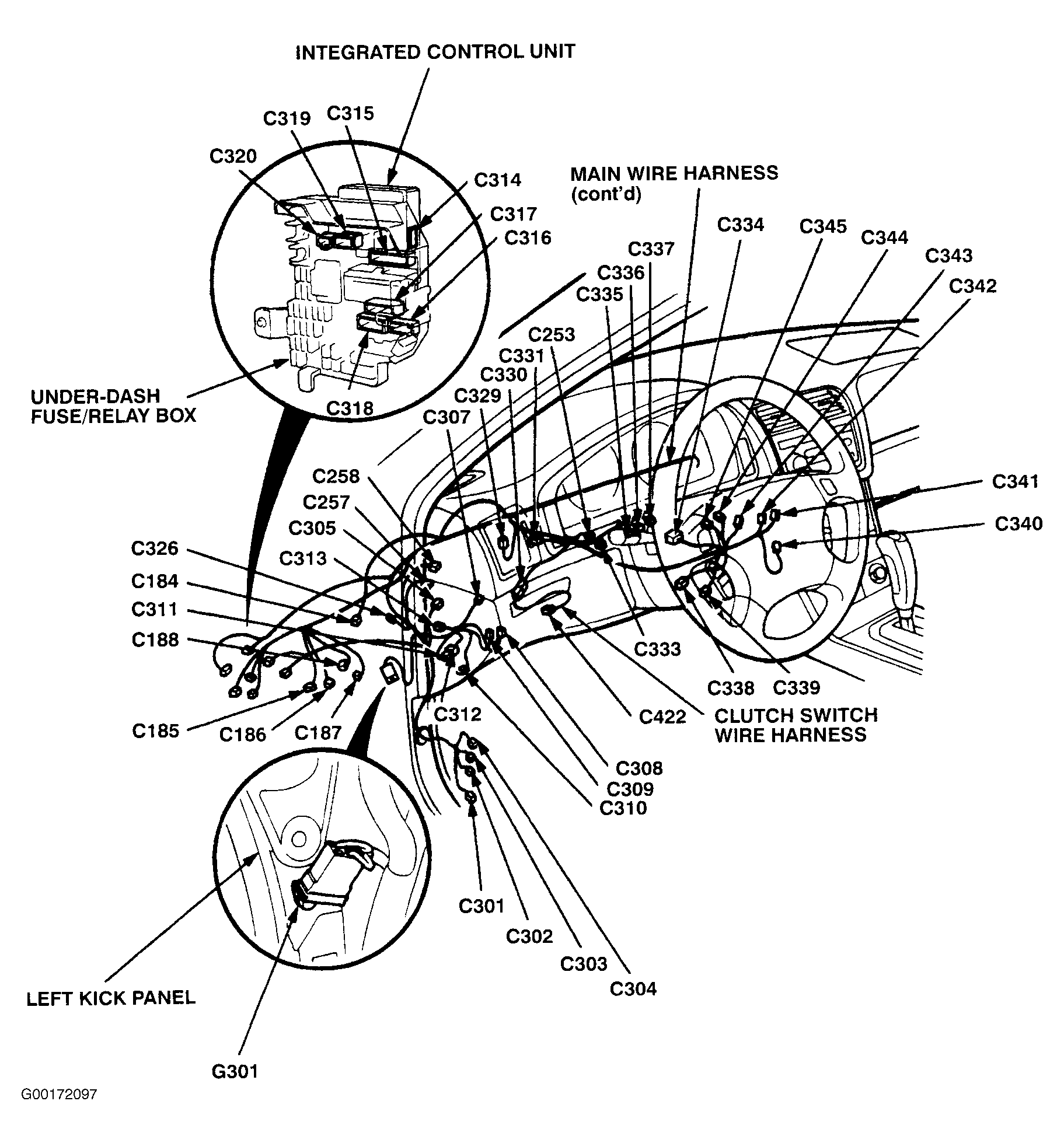

Fig 6: Component Locations (6 Of 8)

G00172097

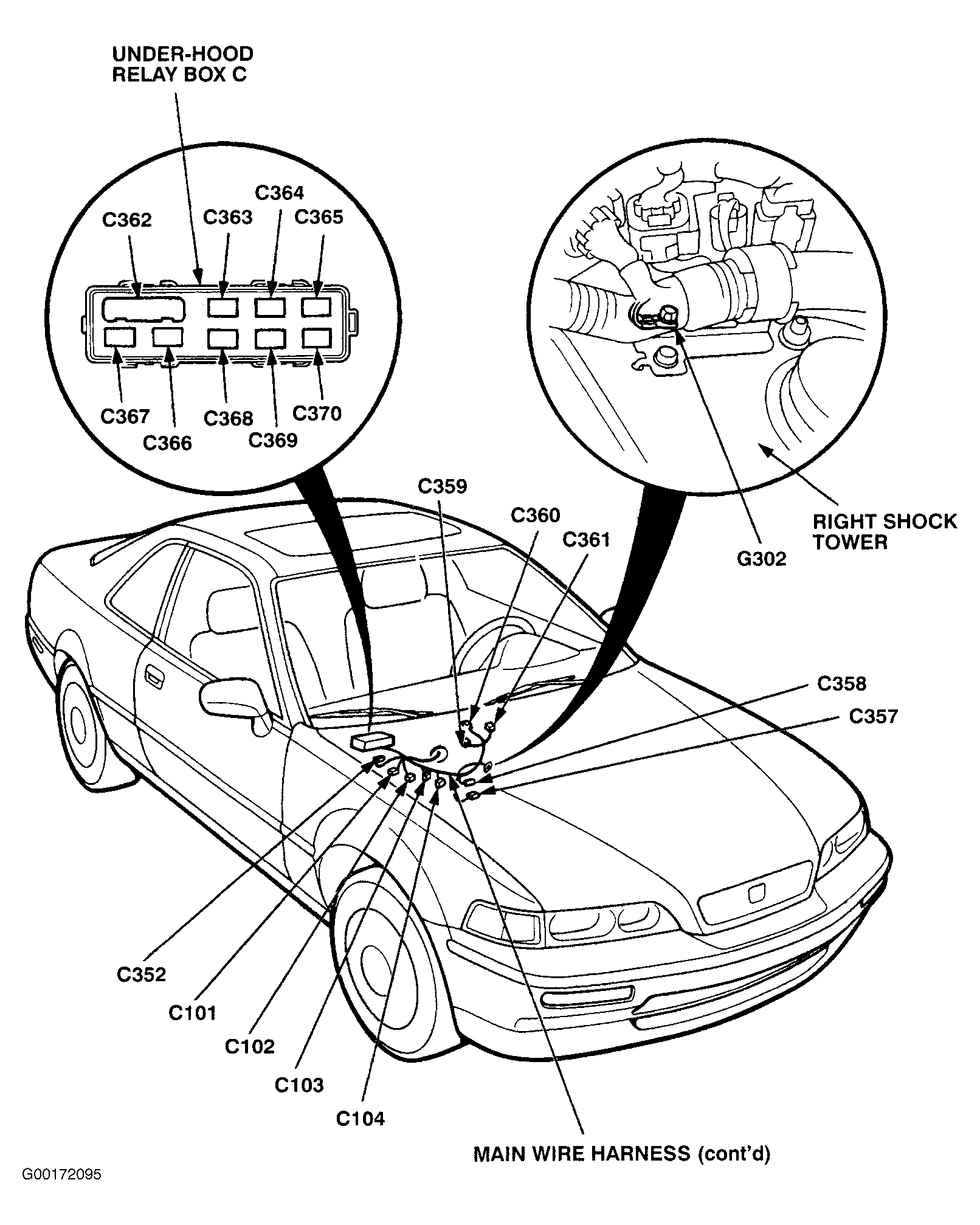

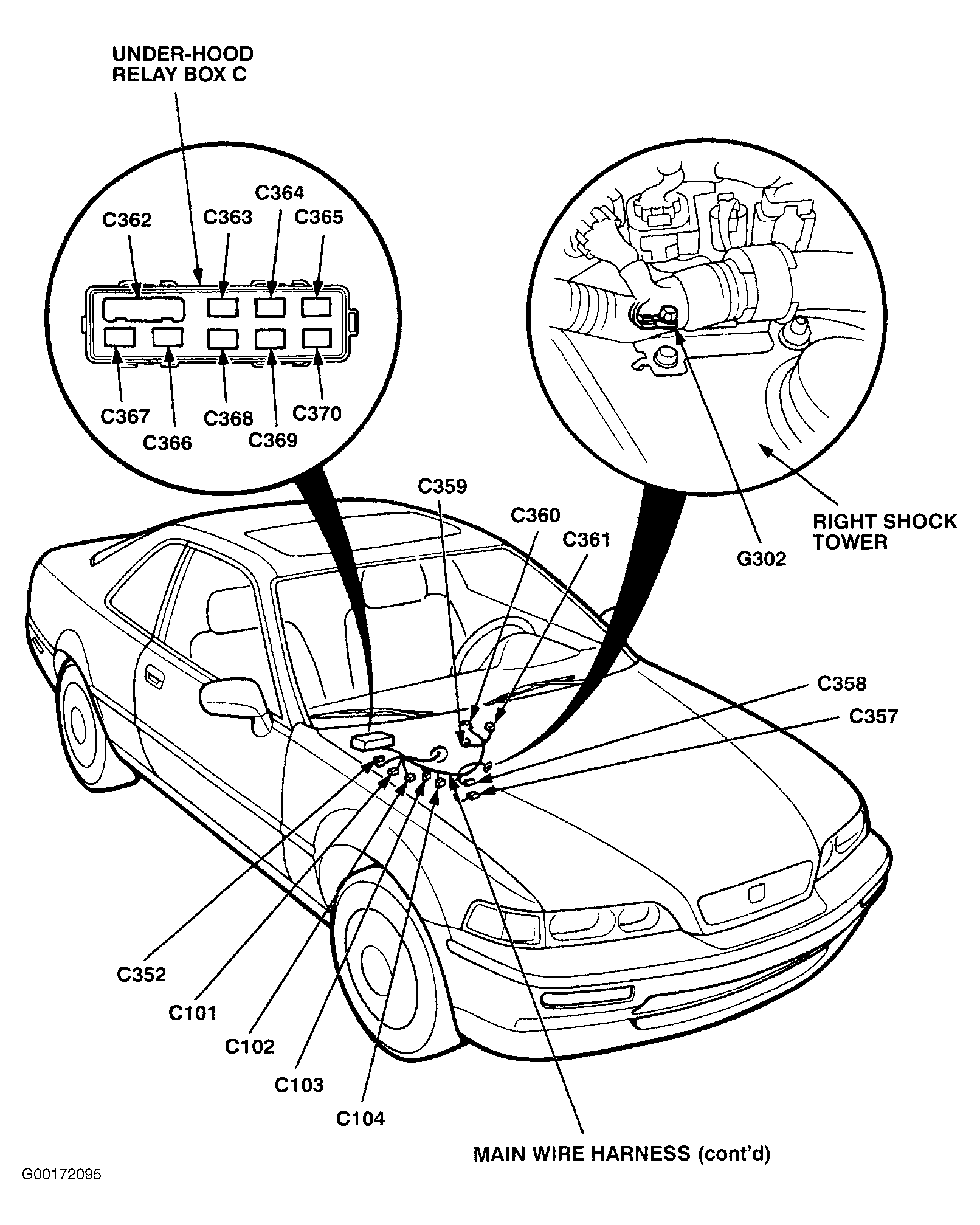

Fig 7: Component Locations (7 Of 8)

G00172095

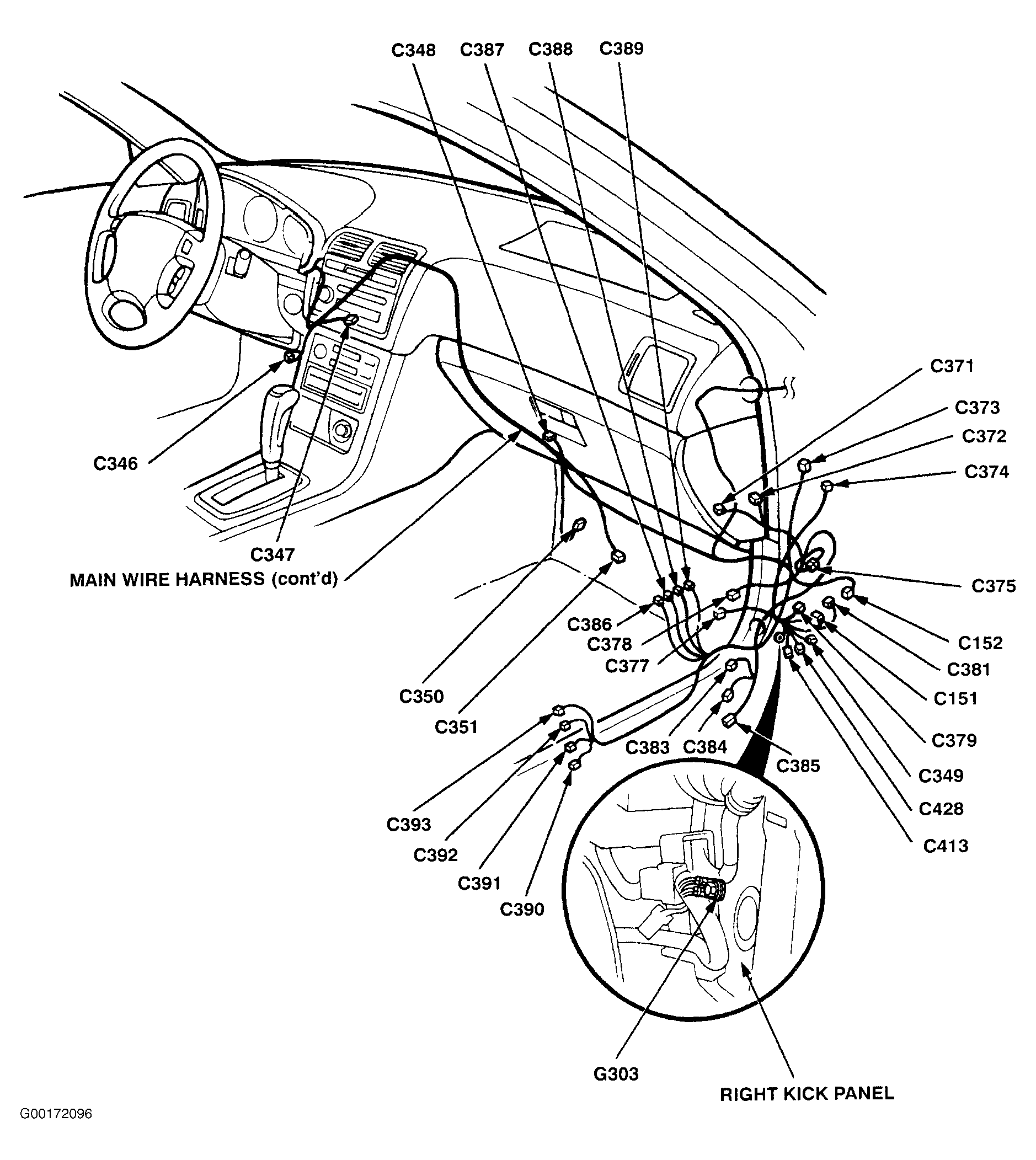

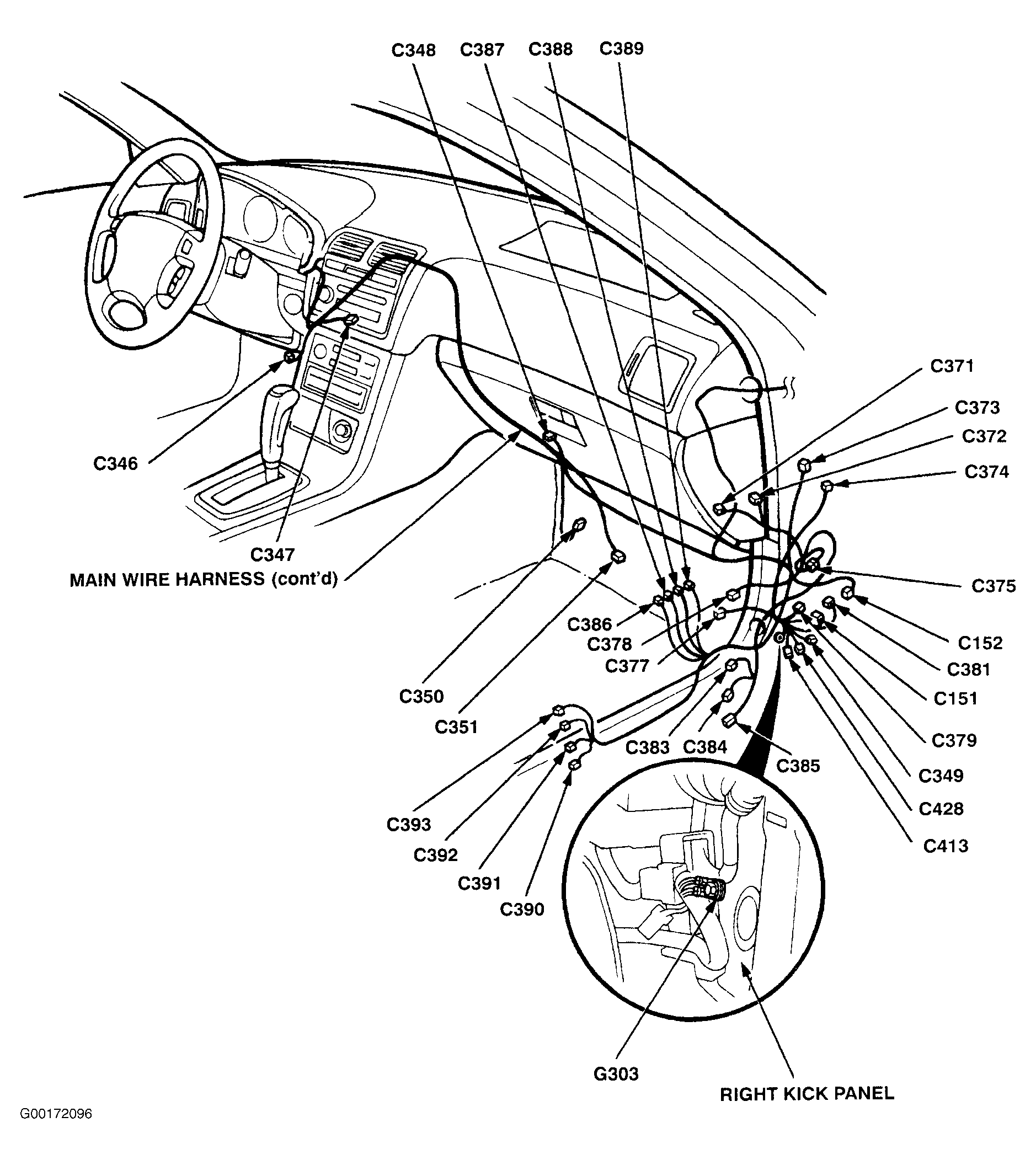

Fig 8: Component Locations (8 Of 8)

G00172096
