Wiring Diagrams

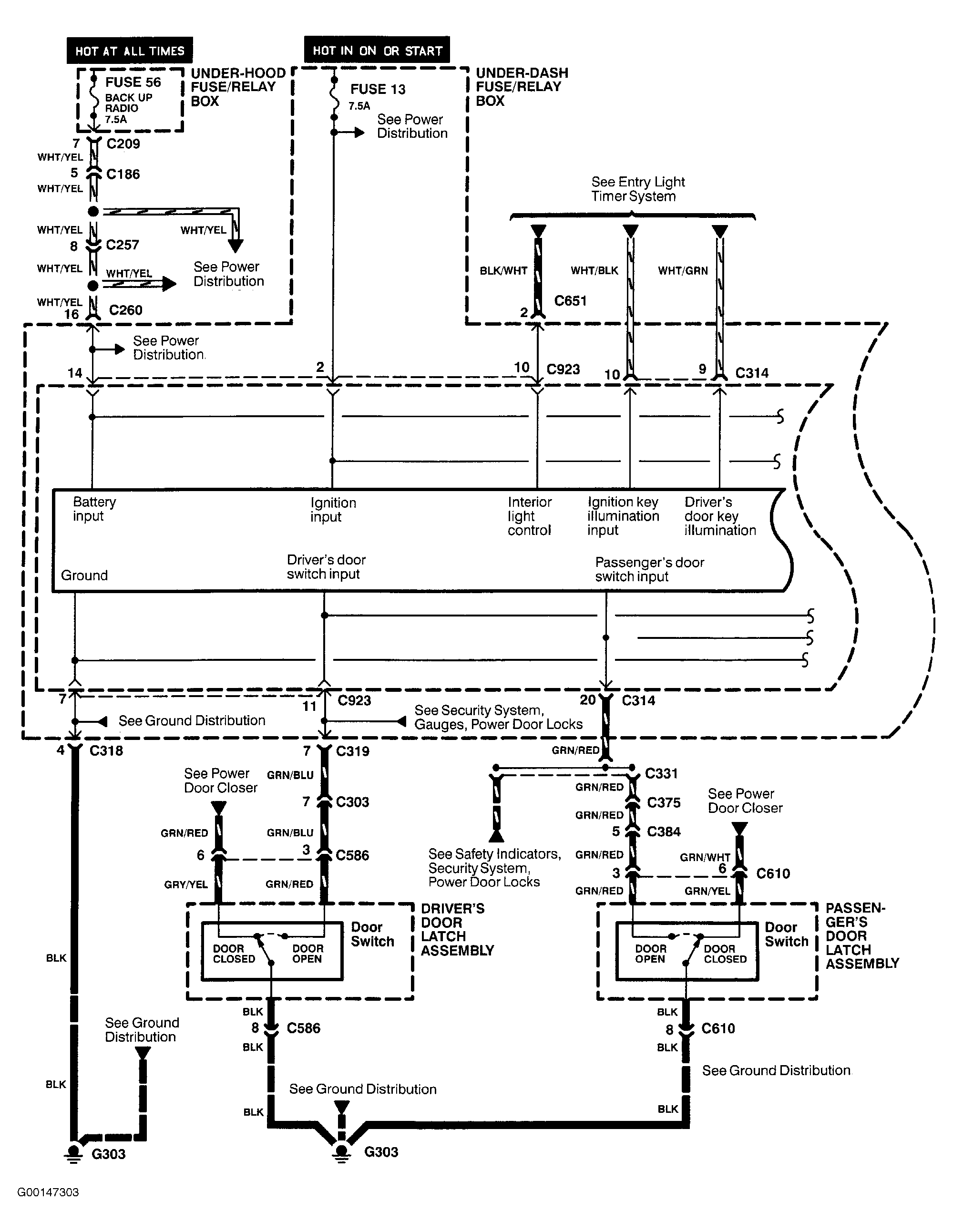

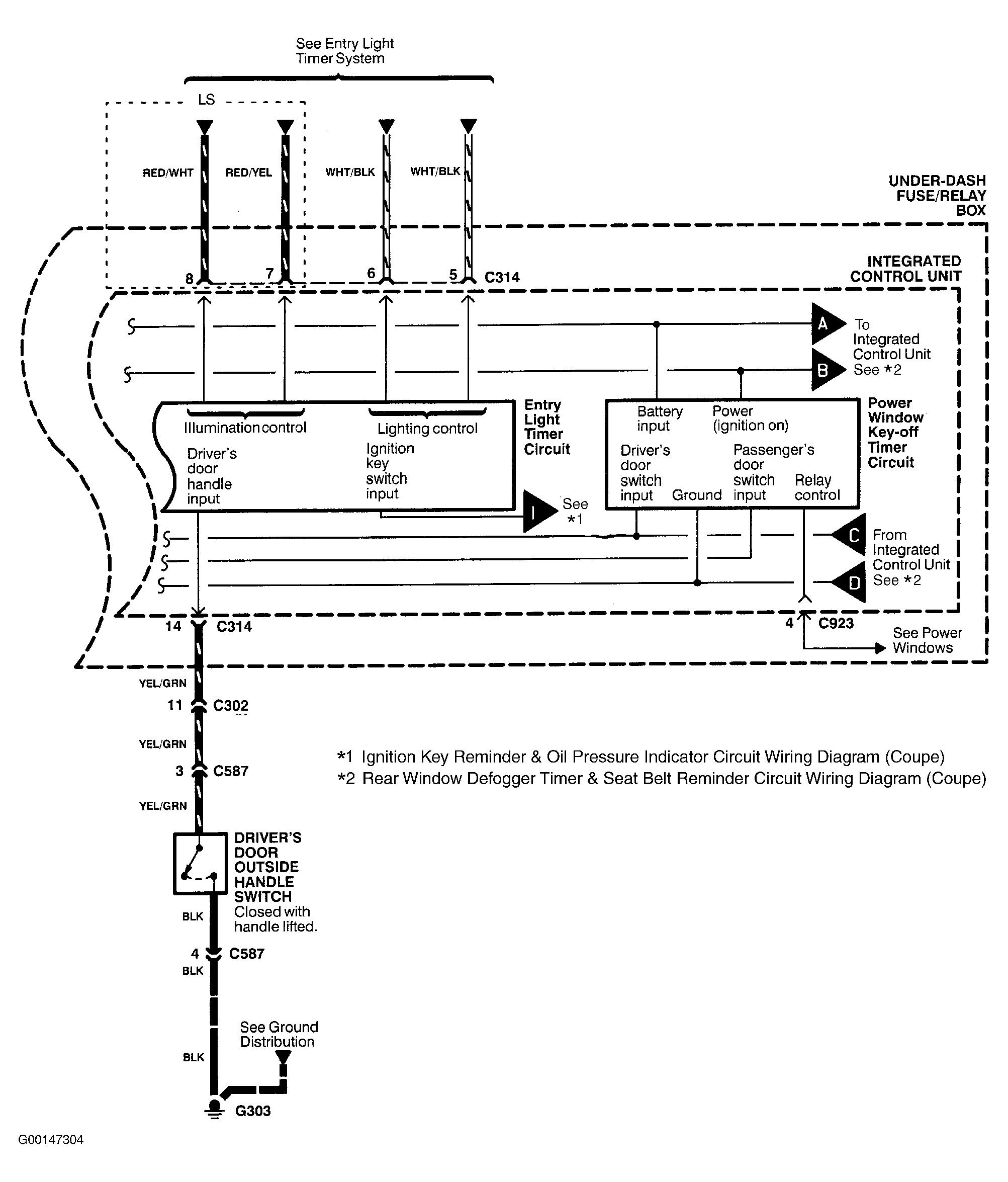

Fig 1: Entry Light & Key Off Timer Circuits Wiring Diagram (Coupe - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Entry Light & Key Off Timer Circuits Wiring Diagram (Coupe - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

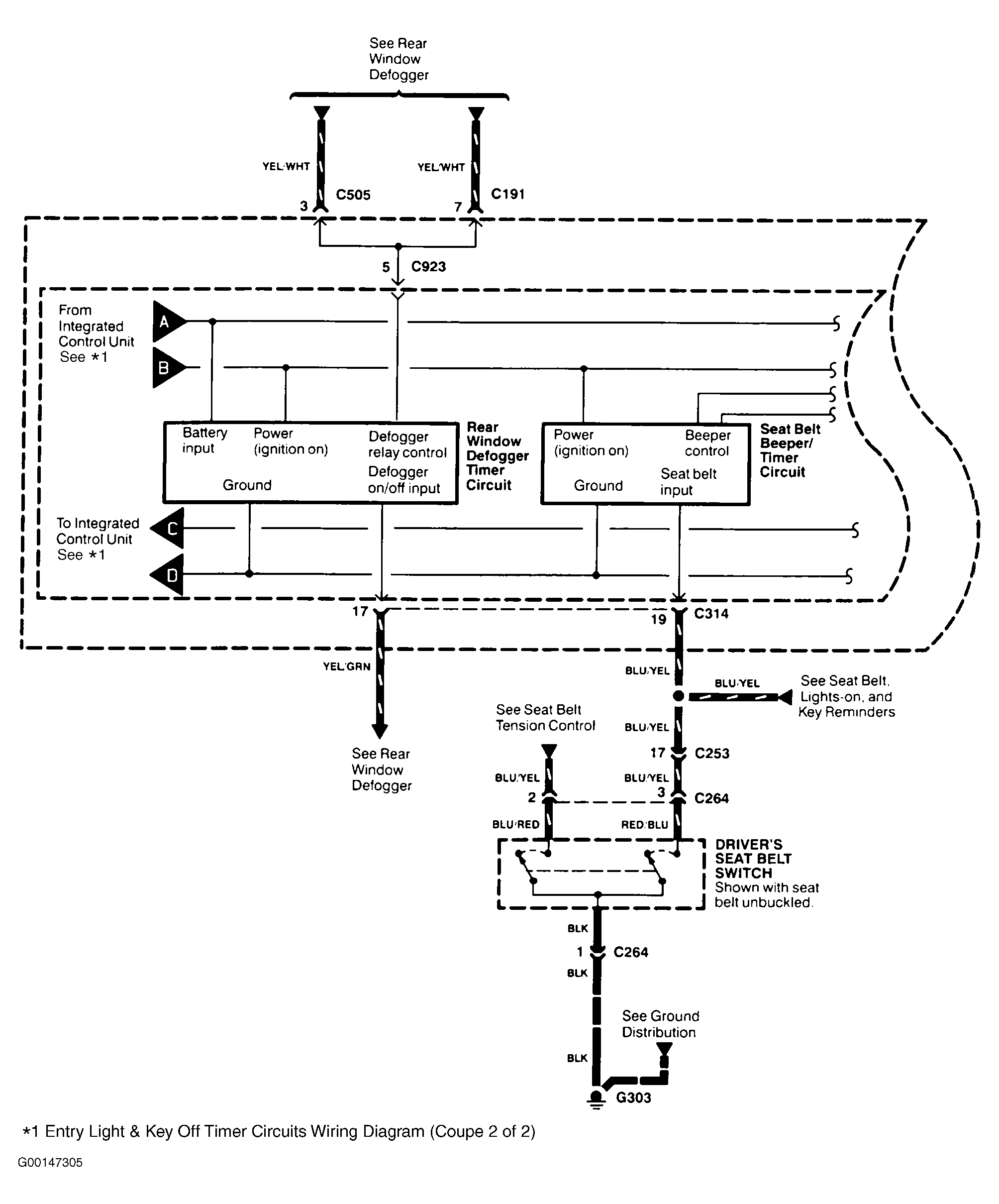

Fig 3: Rear Window Defogger Timer & Seat Belt Reminder Circuit Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

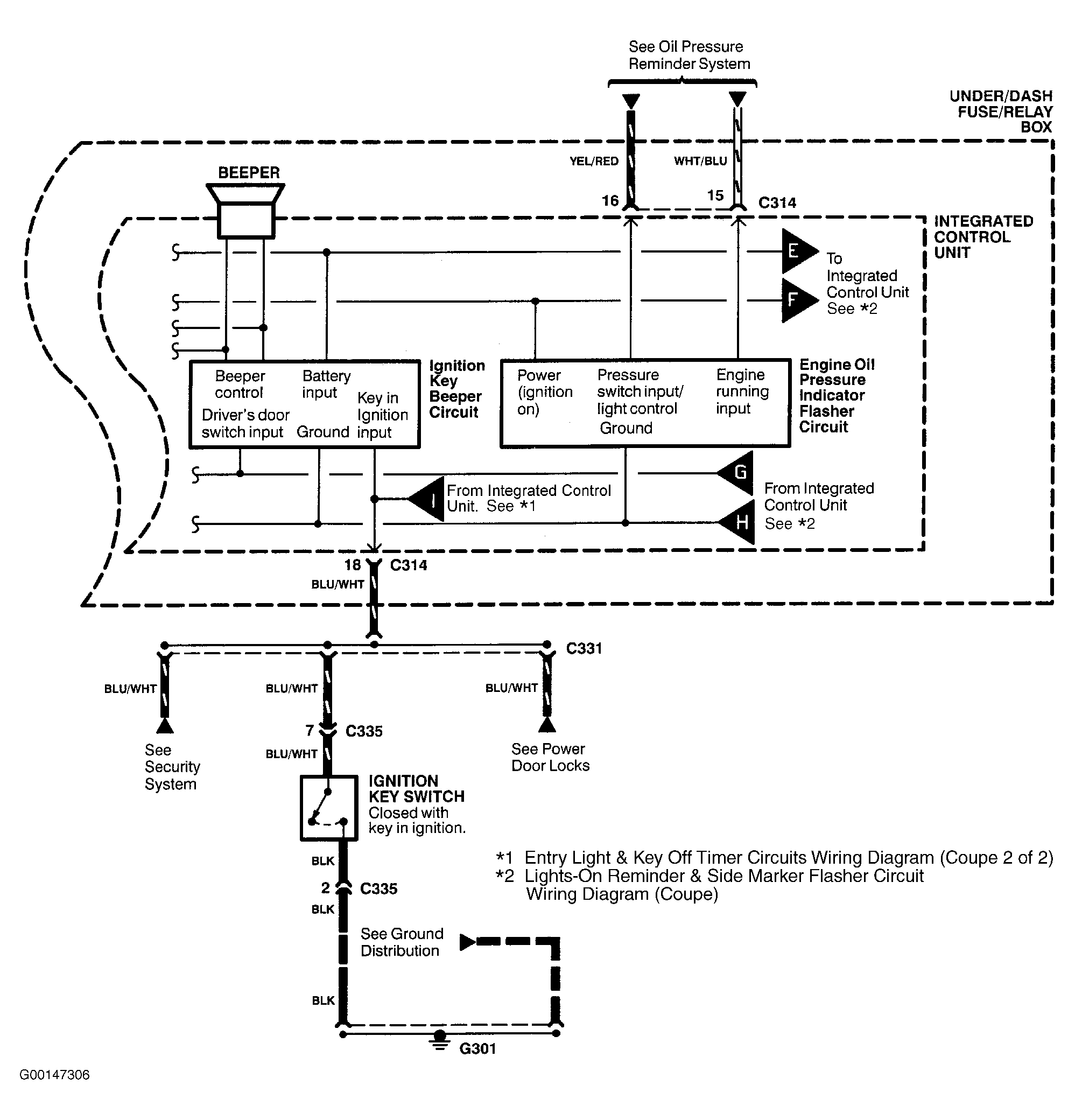

Fig 4: Ignition Key Reminder & Oil Pressure Indicator Circuit Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

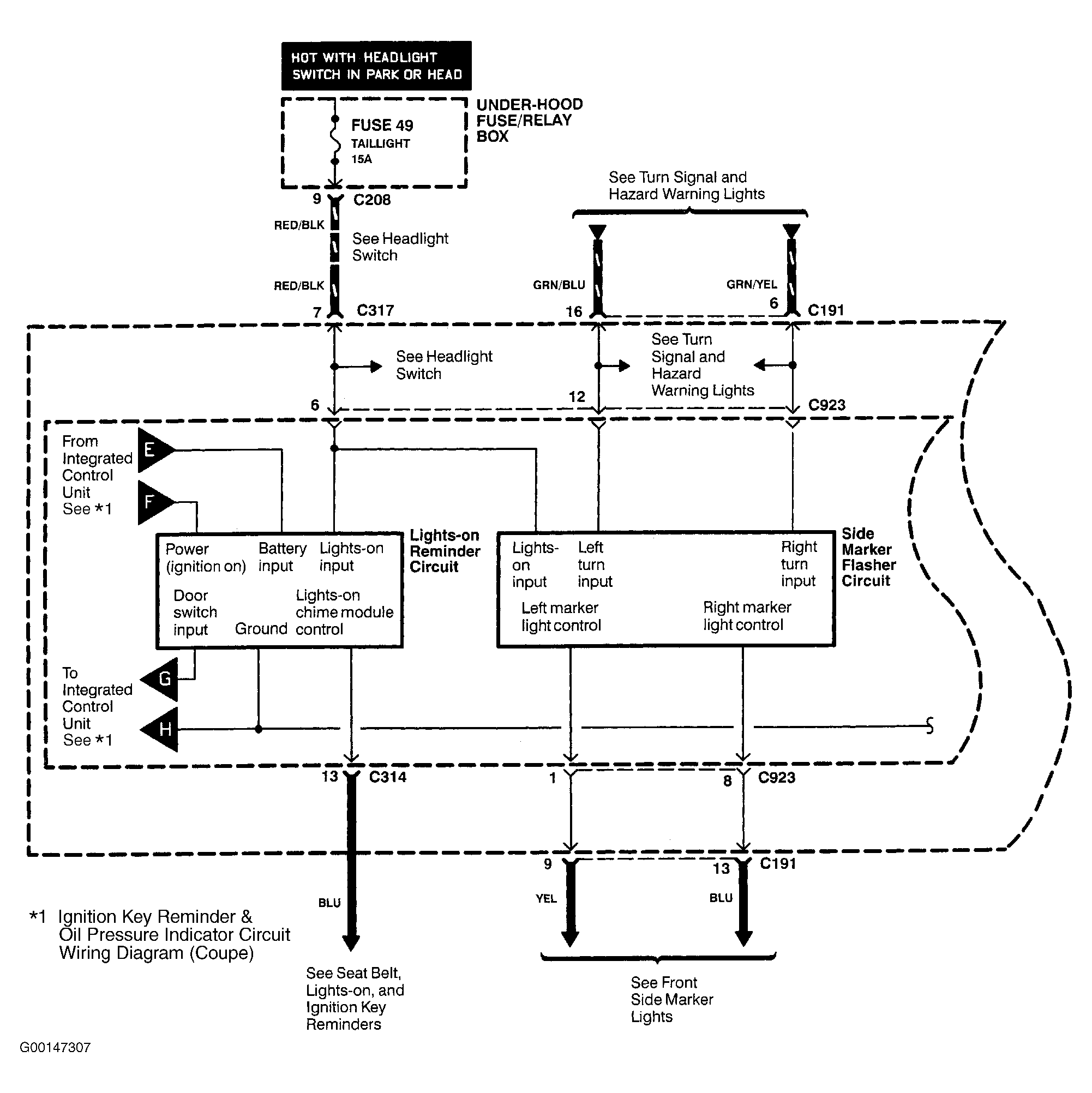

Fig 5: Lights-On Reminder & Side Marker Flasher Circuit Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

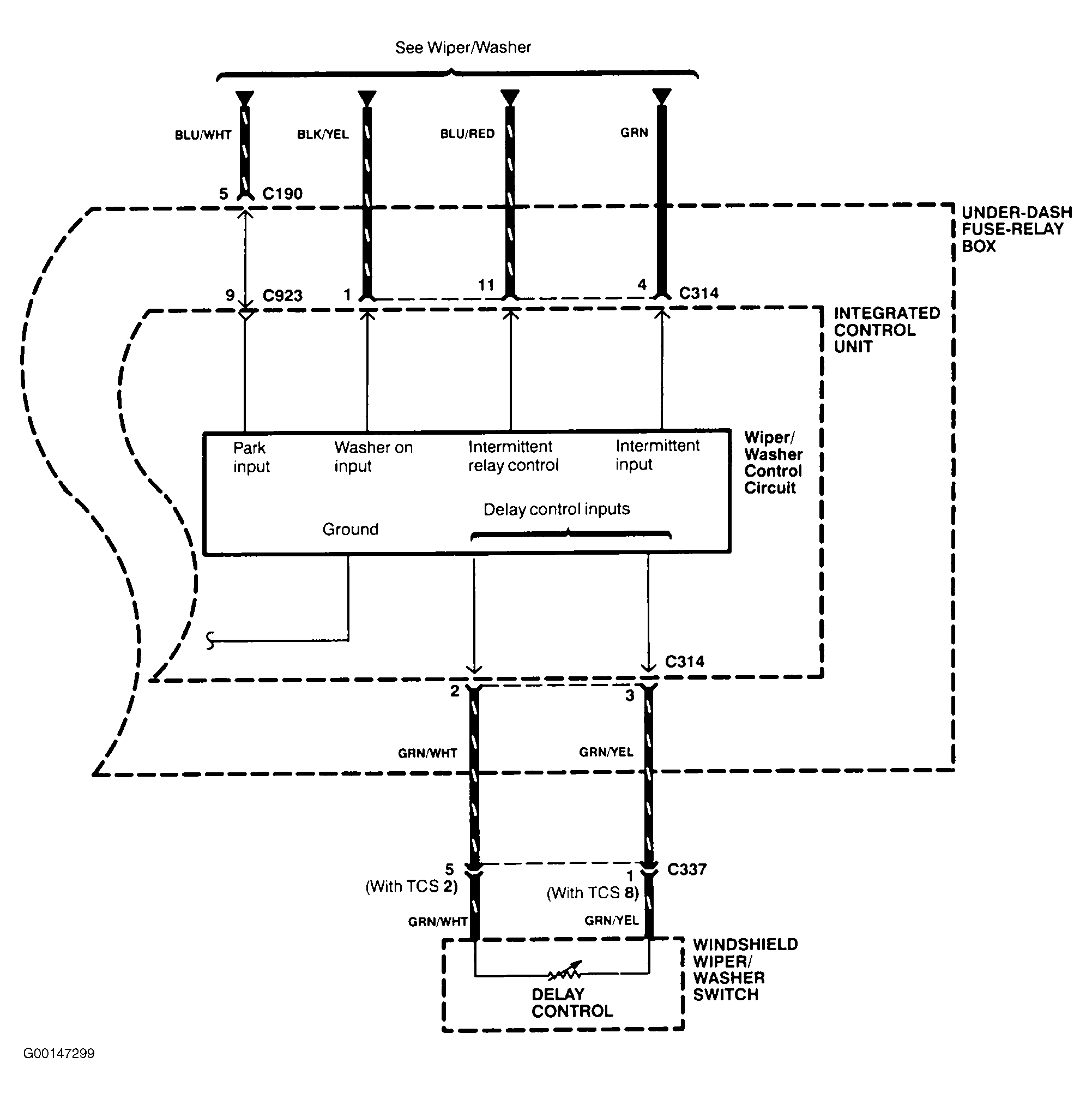

Fig 6: Intermittent Wiper Control Circuit Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

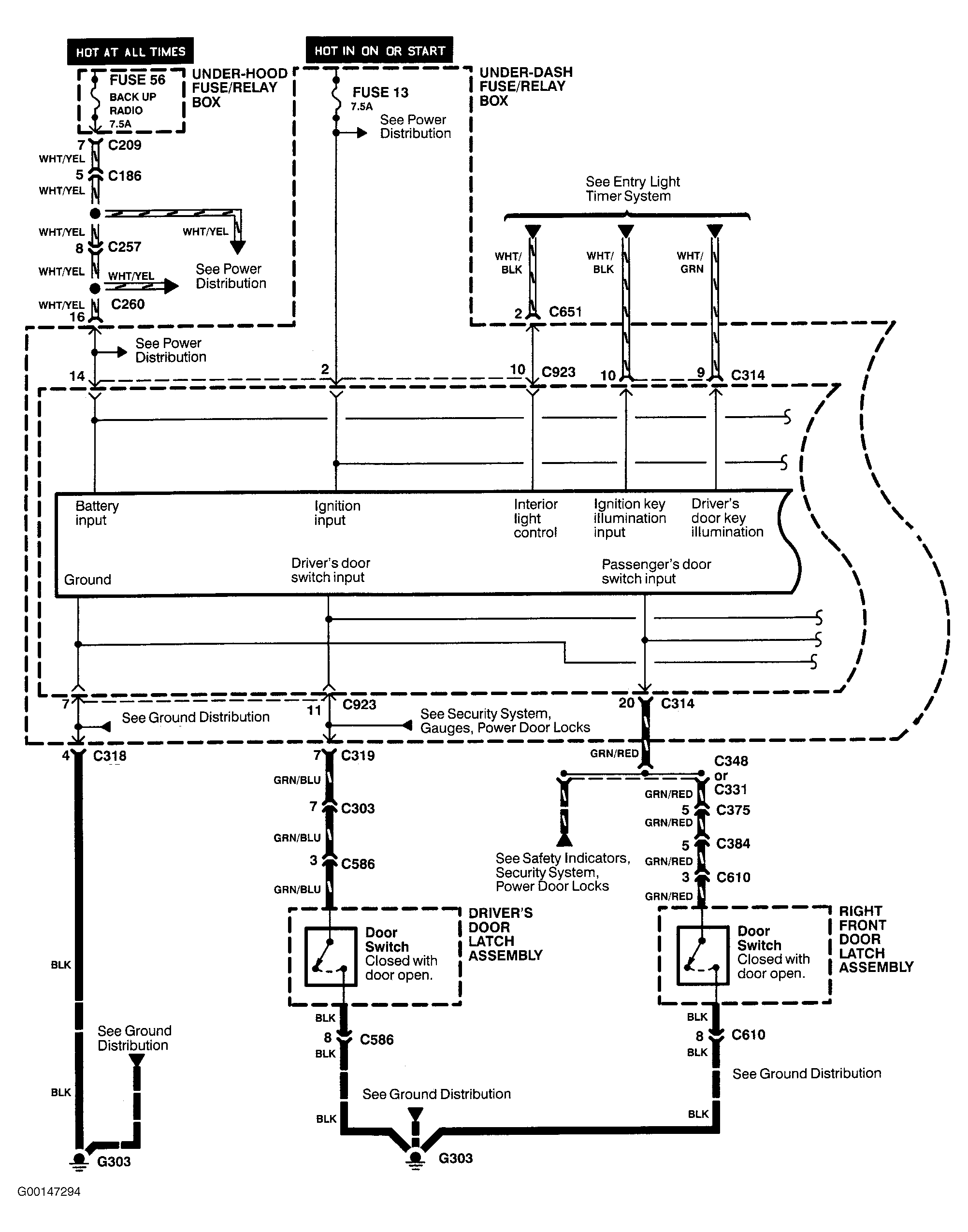

Fig 7: Entry Light & Key Off Timer Circuits Wiring Diagram (Sedan - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

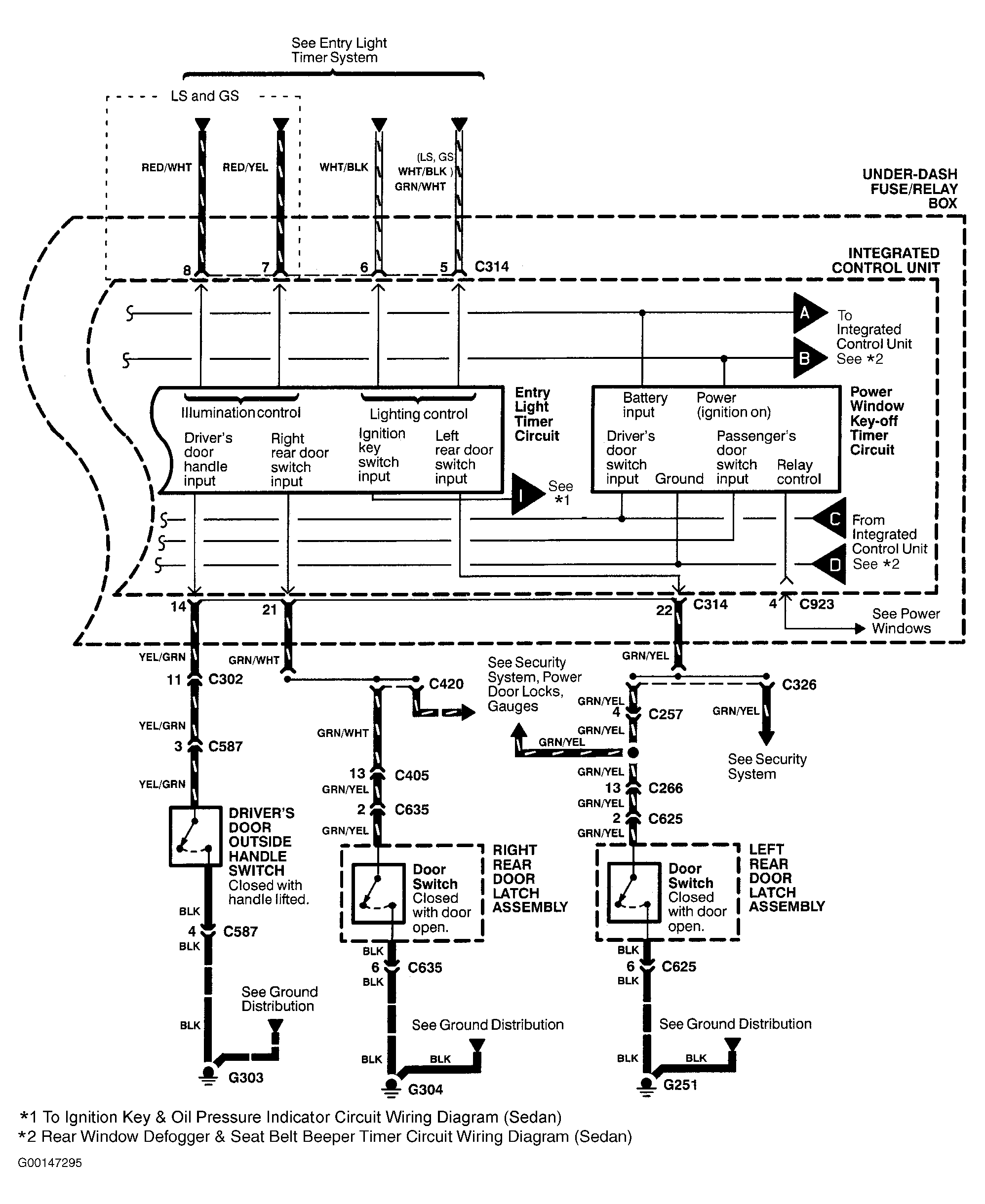

Fig 8: Entry Light & Key Off Timer Circuits Wiring Diagram (Sedan - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

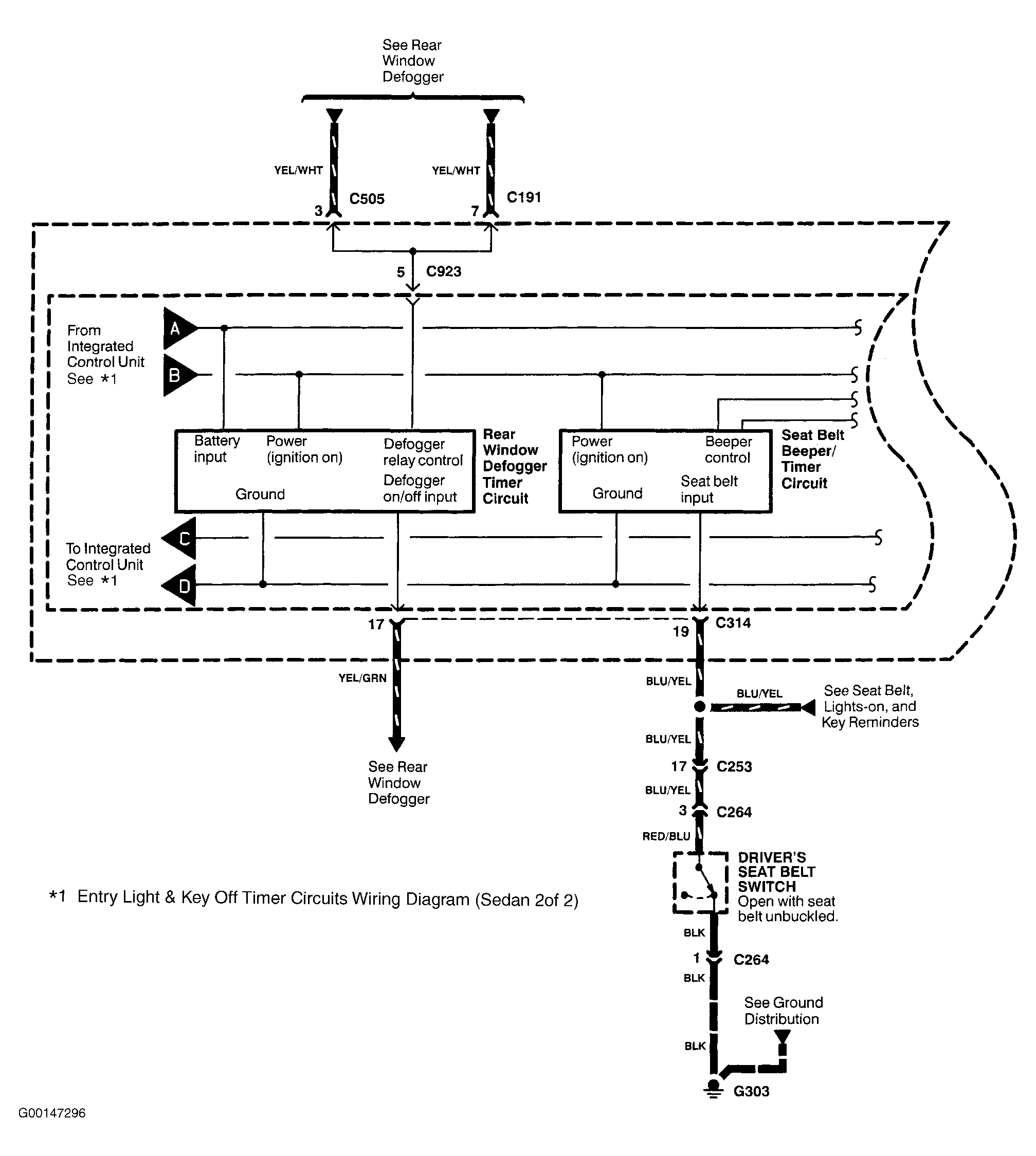

Fig 9: Rear Window Defogger & Seat Belt Beeper Timer Circuit Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

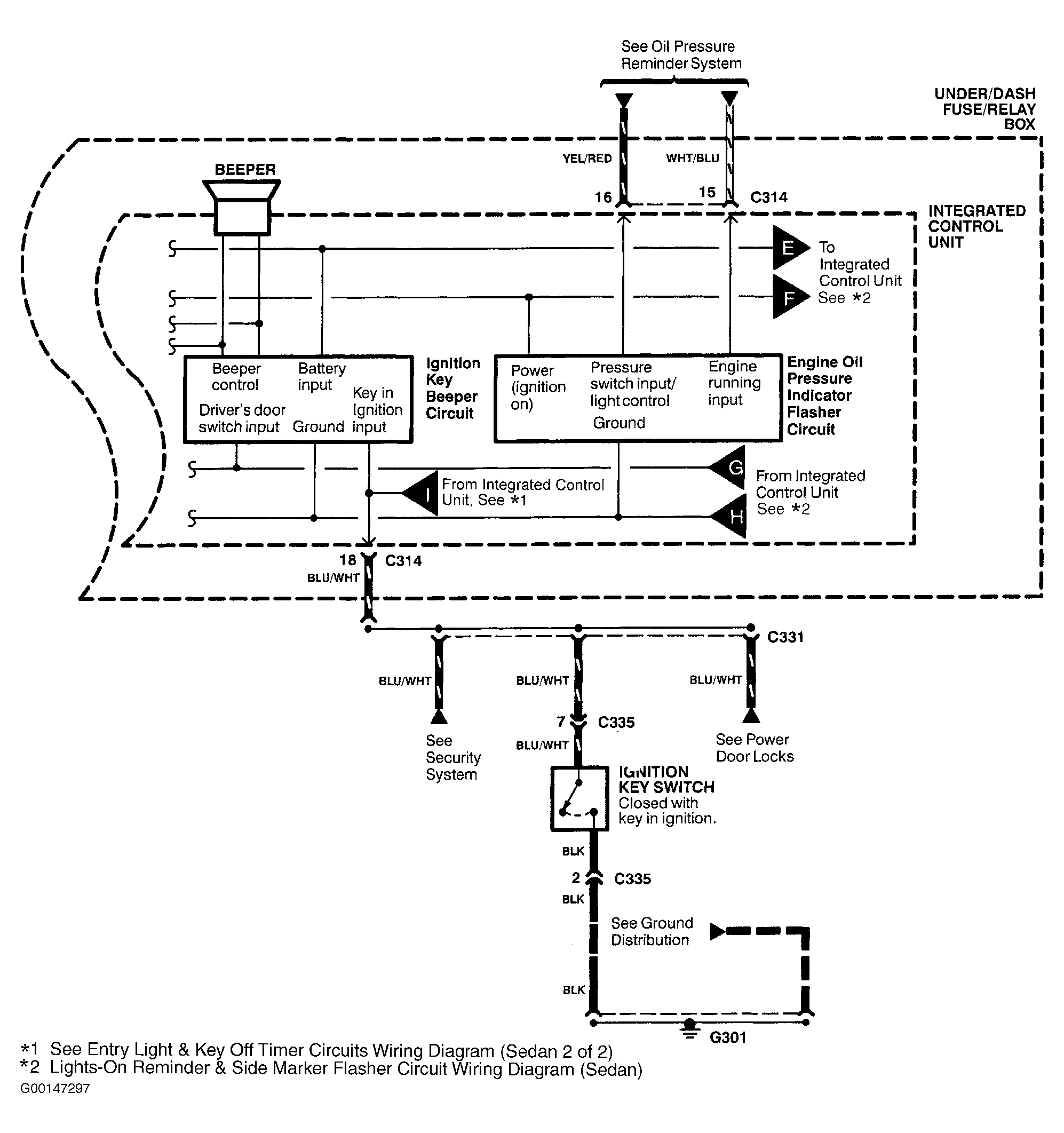

Fig 10: Ignition Key & Oil Pressure Indicator Circuit Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

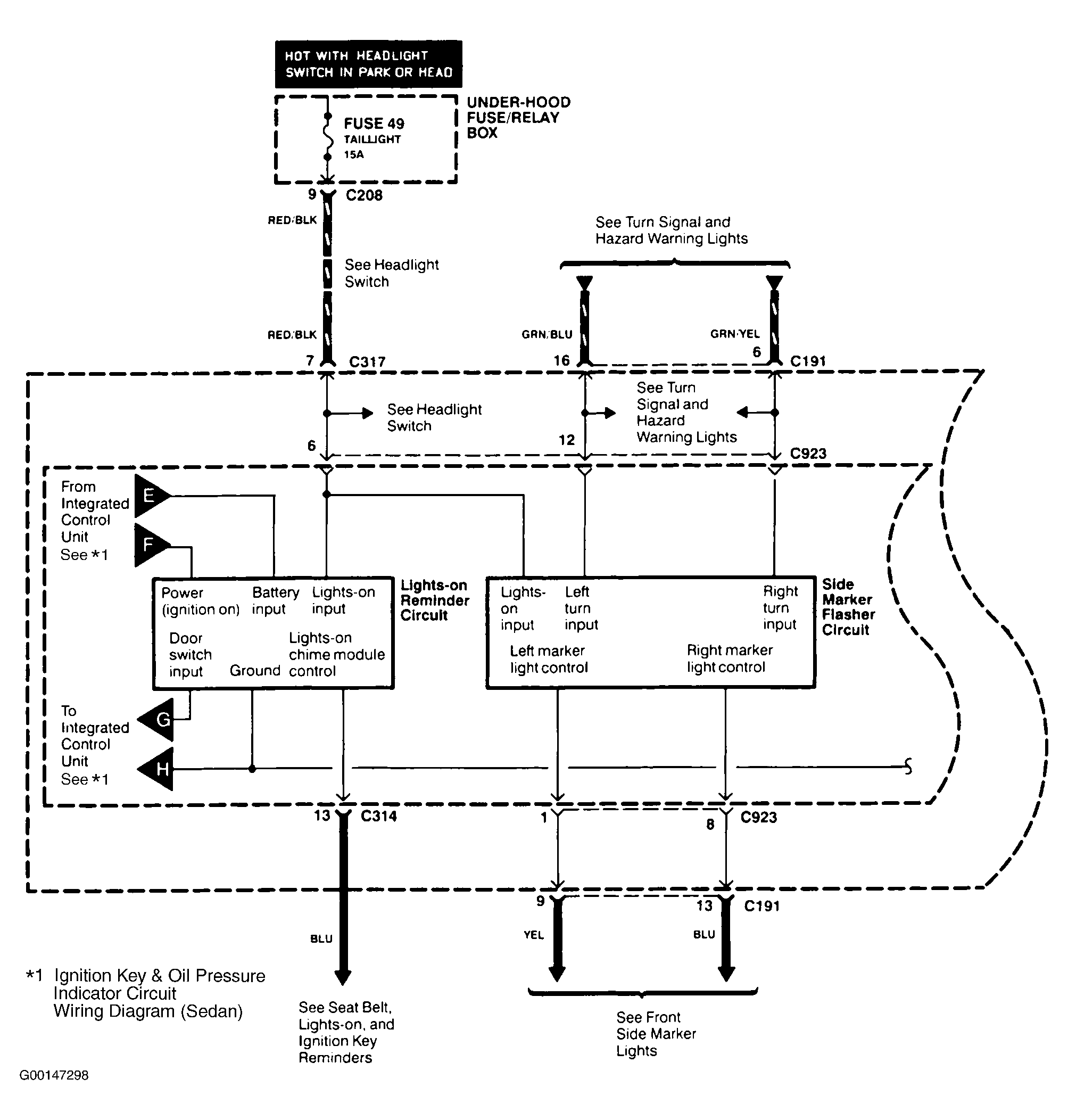

Fig 11: Lights-On Reminder & Side Marker Flasher Circuit Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Intermittent Wiper Control Circuit Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
