TCS Function Test

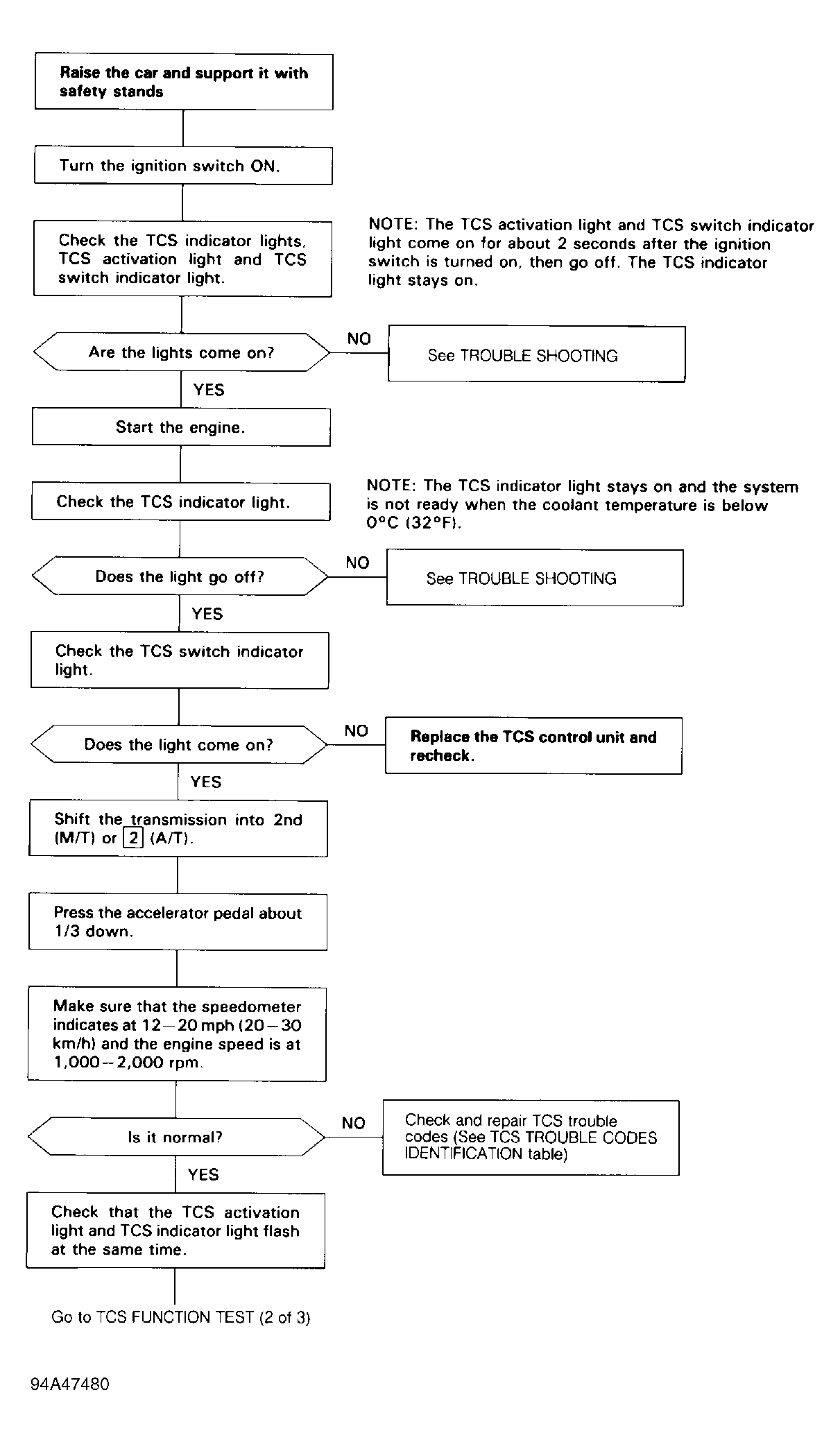

Fig 1: TCS Function Test (1 Of 3)

G94A47480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

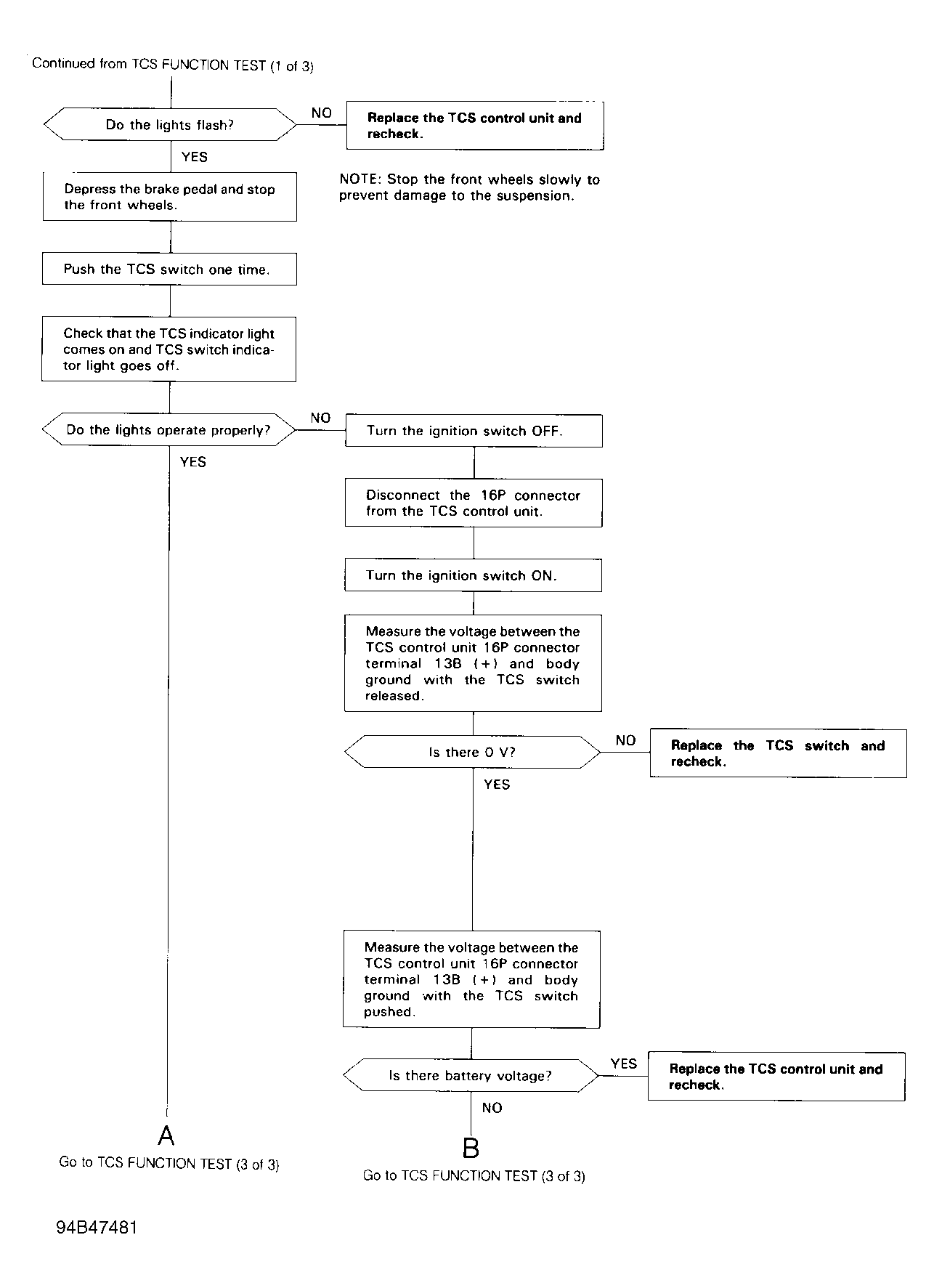

Fig 2: TCS Function Test (2 Of 3)

G94B47481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

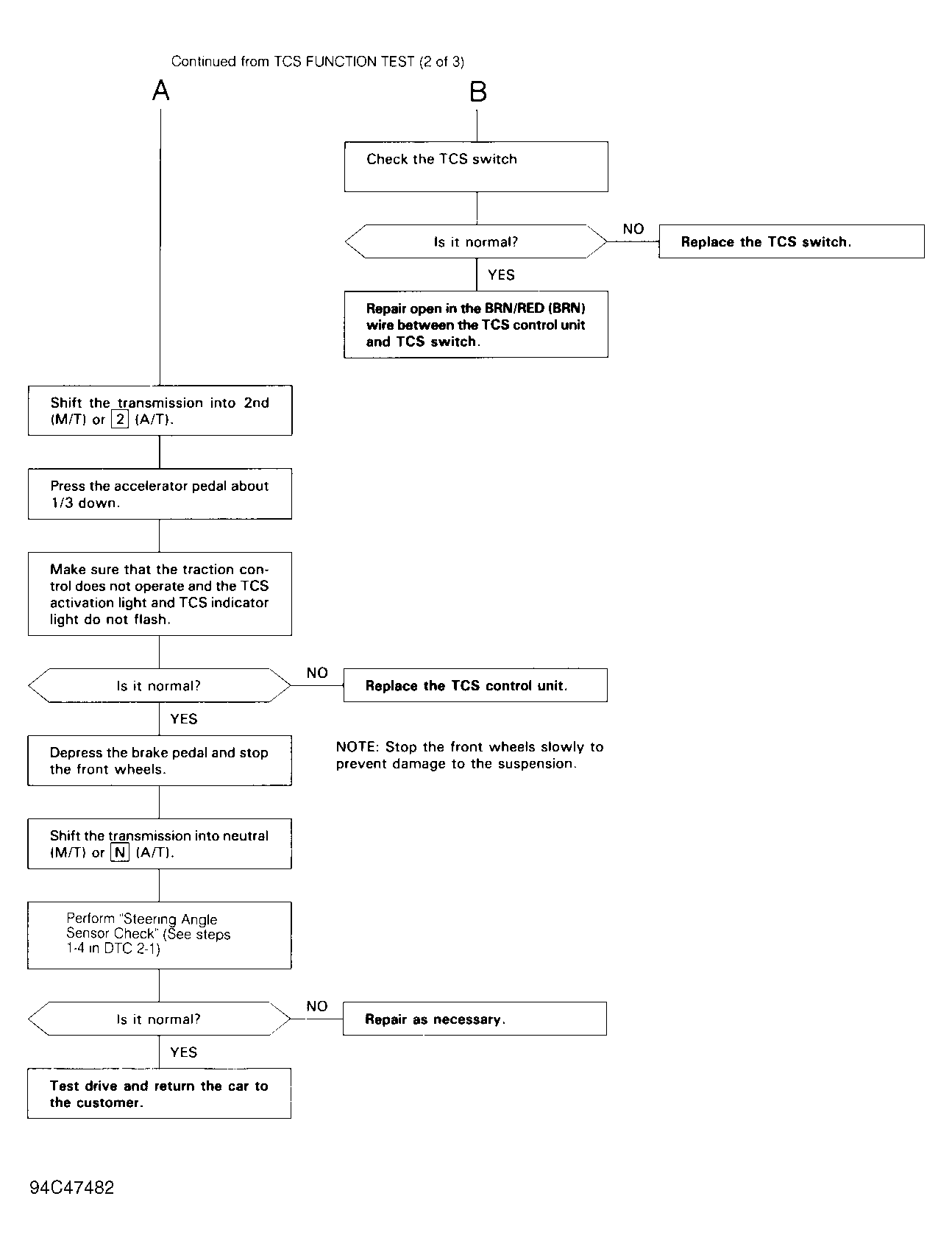

Fig 3: TCS Function Test (3 Of 3)

G94C47482

Courtesy of AMERICAN HONDA MOTOR CO., INC.
