Trouble Shooting: Notes
NOTE:

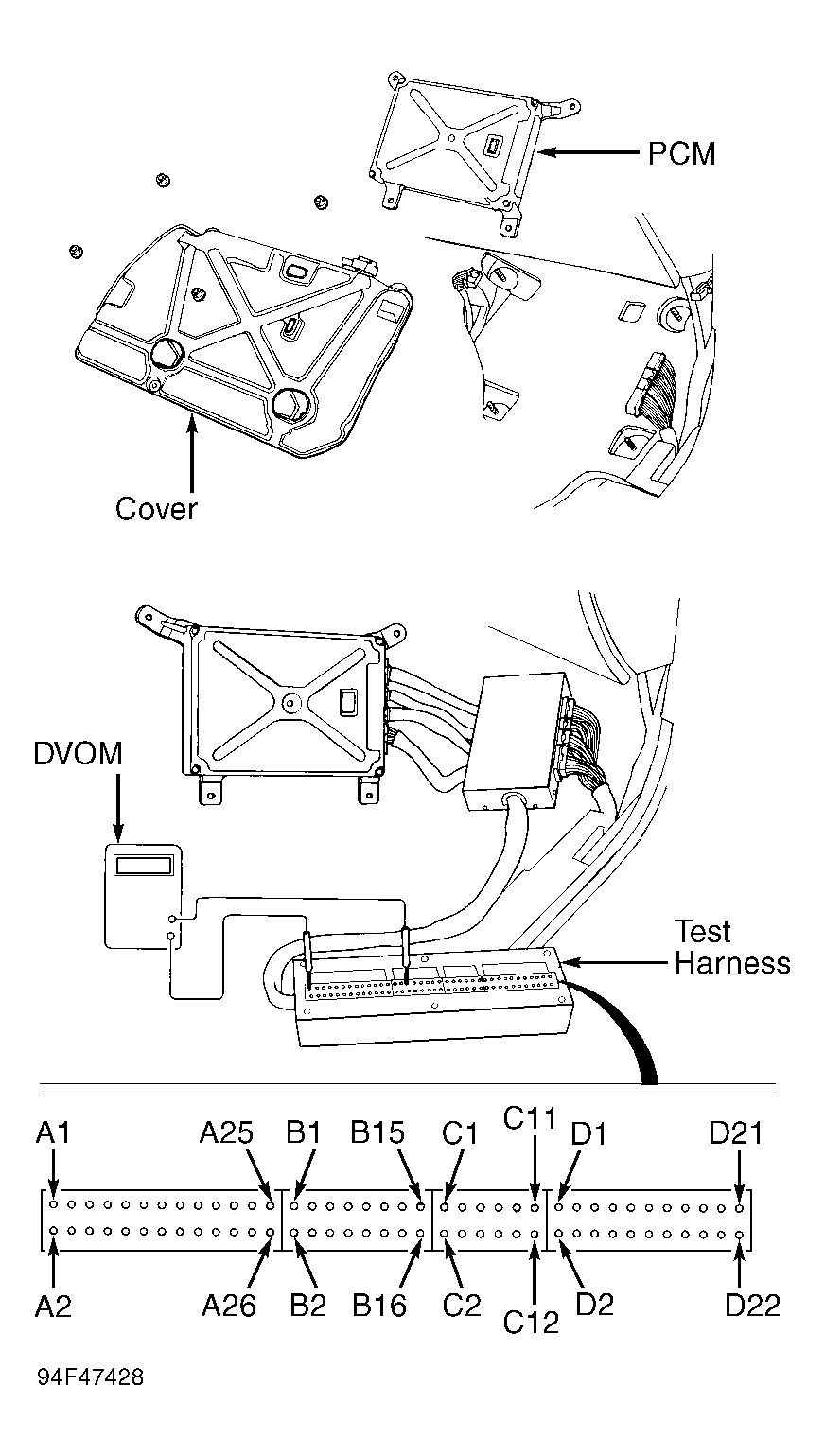

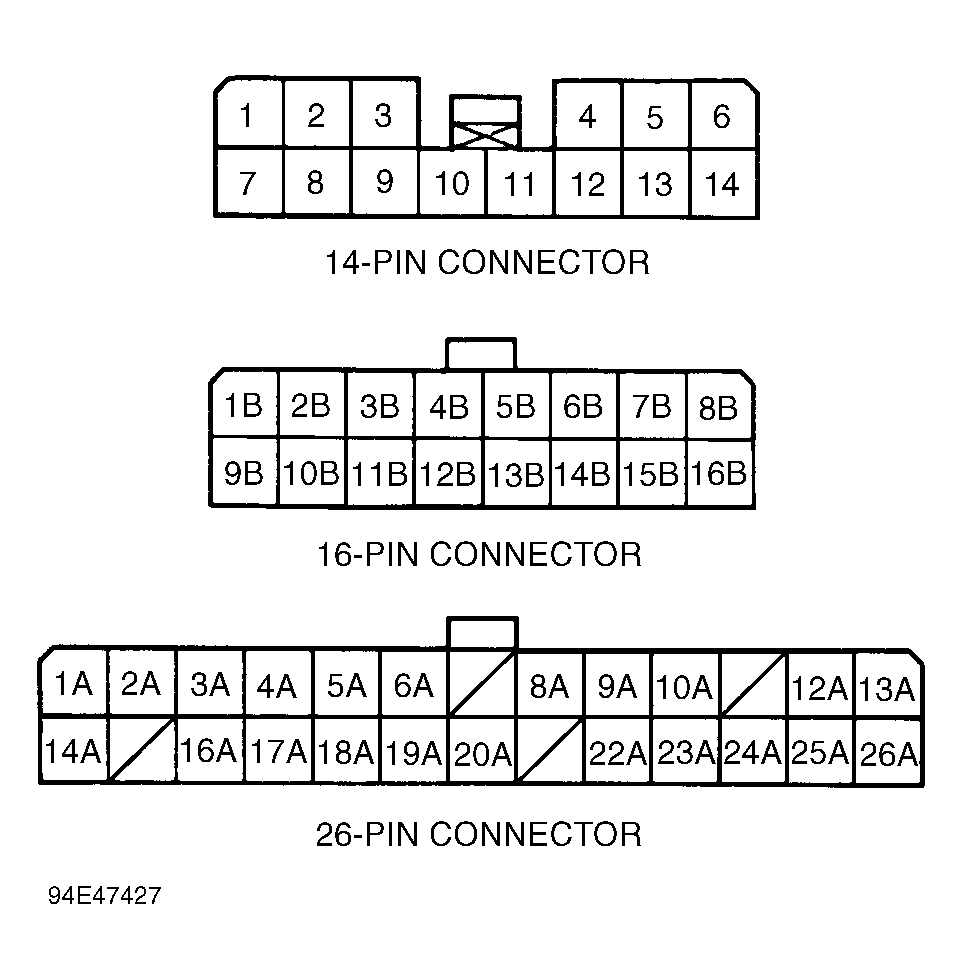

For connector and Test Harness (07LA3-PT3010A) terminal identifications, see
Figure
and
Figure
.
