Component Locations

For component locations, see Fig 1 and Fig 2 .

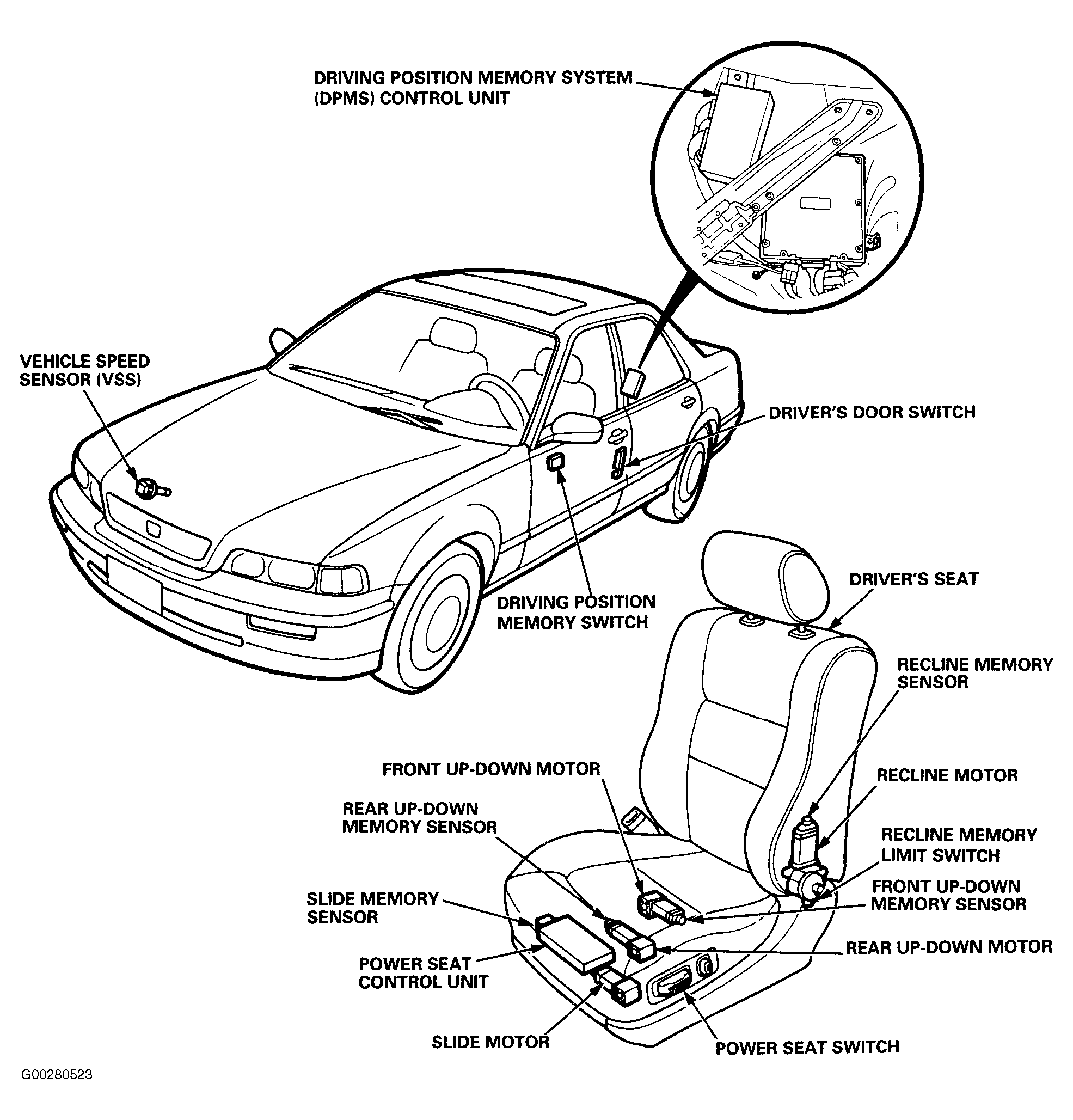

Fig 1: Identifying Power Seat Component Locations (Sedan Shown, Coupe Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

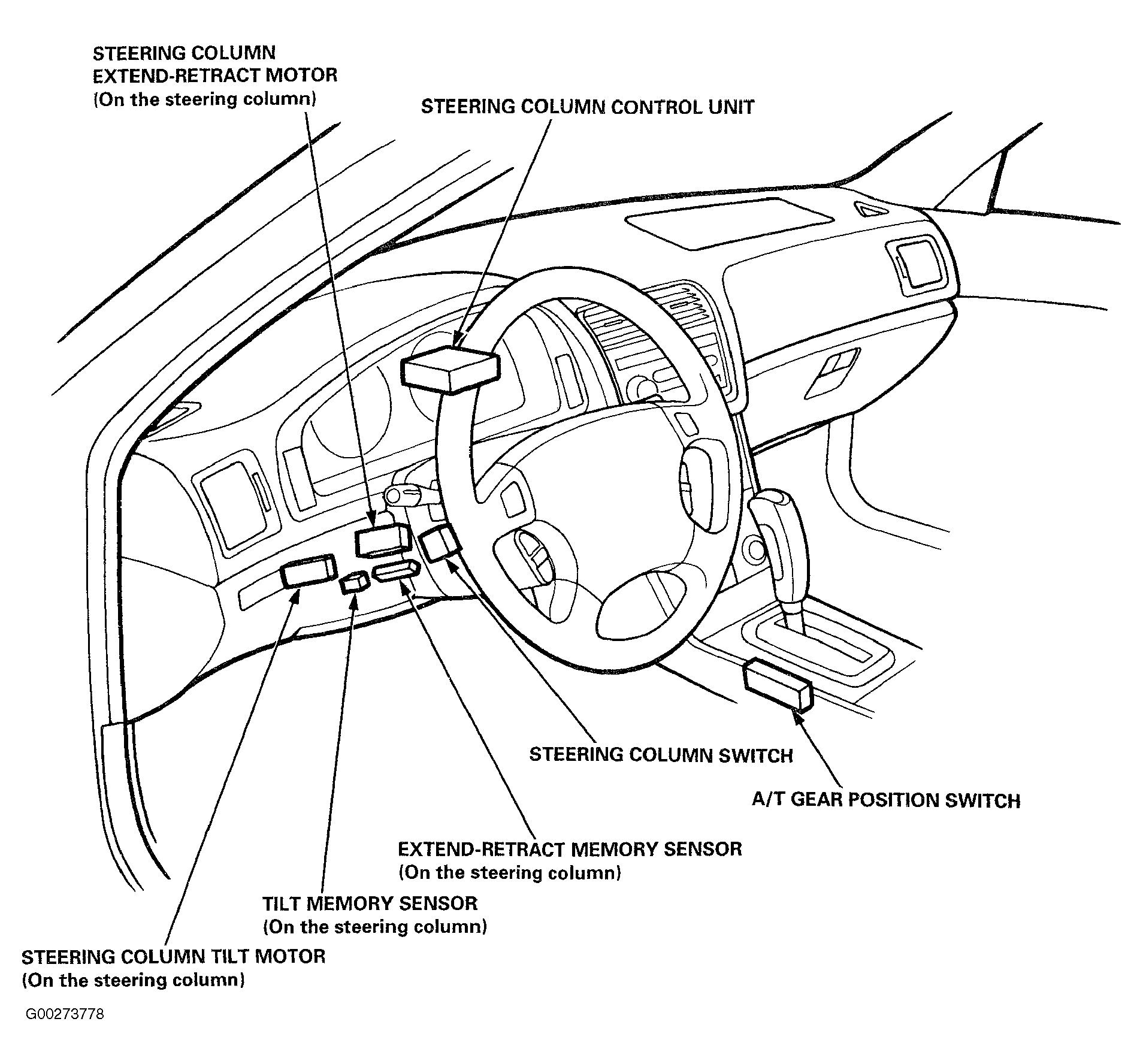

Fig 2: Identifying Tilt/Extend-Retract Steering Column Component Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
