Driving Position Memory Switch

Remove driving position memory switch. Check continuity of switch in each position. See DRIVING POSITION MEMORY SWITCH CONTINUITY table. See Fig 1 . If continuity is not as specified, replace switch.

DRIVING POSITION MEMORY SWITCH CONTINUITY

Switch Position

⁽¹⁾ Between Terminals

MEMO - On

E & J

Position 1 - On

G & J

Position 2 - On

F & J

Indicator 1

A & C

Indicator 2

A & D

⁽¹⁾	Illumination bulb is between terminals "H" & "I".

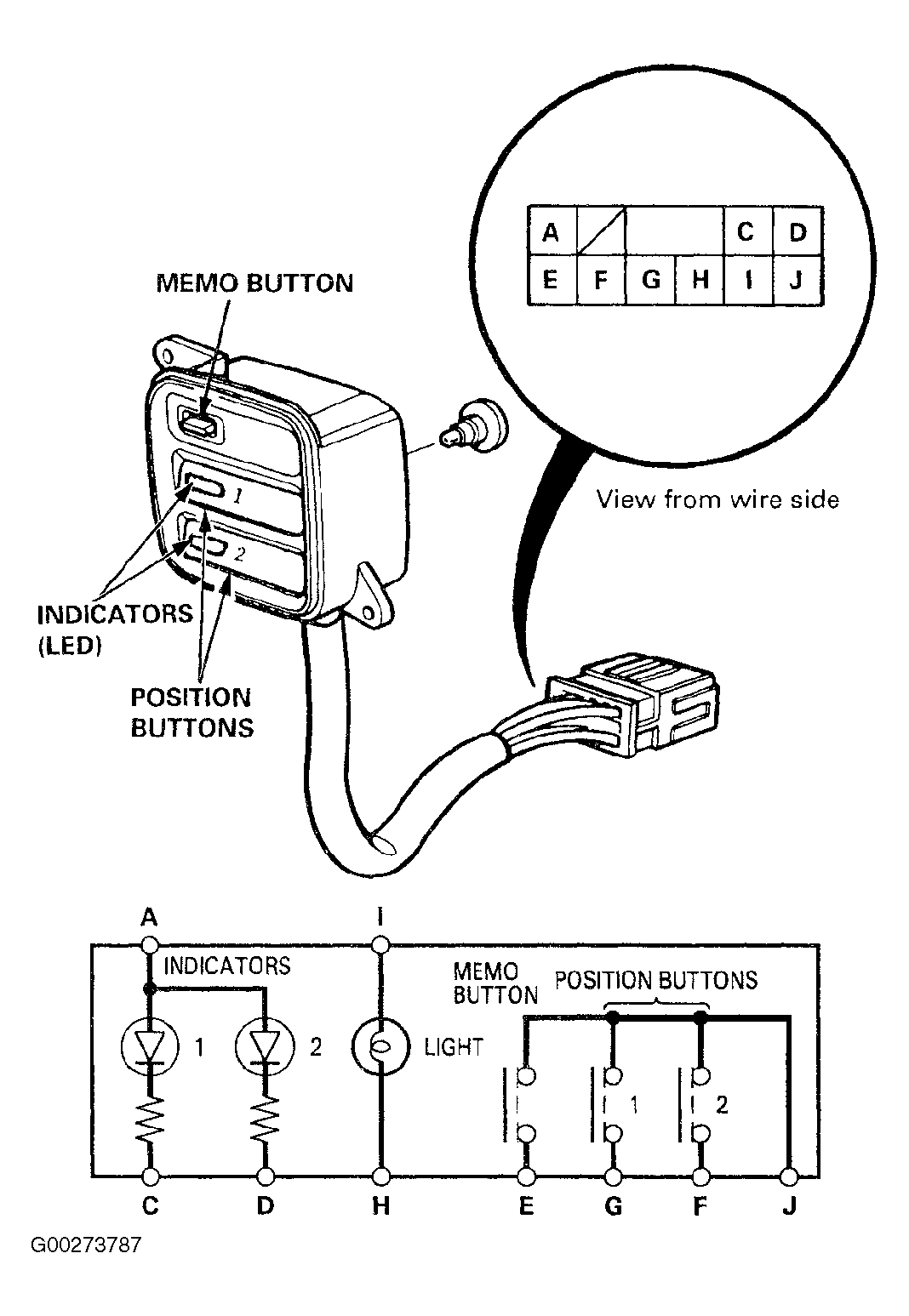

Fig 1: Testing Driving Position Memory Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
