Driving Position Memory System Control Unit Inputs

Seat control unit is located under front center of driver's seat. Driving Position Memory System (DPMS) Control Unit is located under left rear seat at left side. Unplug connectors. Check all connections and repair as necessary. See Fig 1 -Fig 5 .

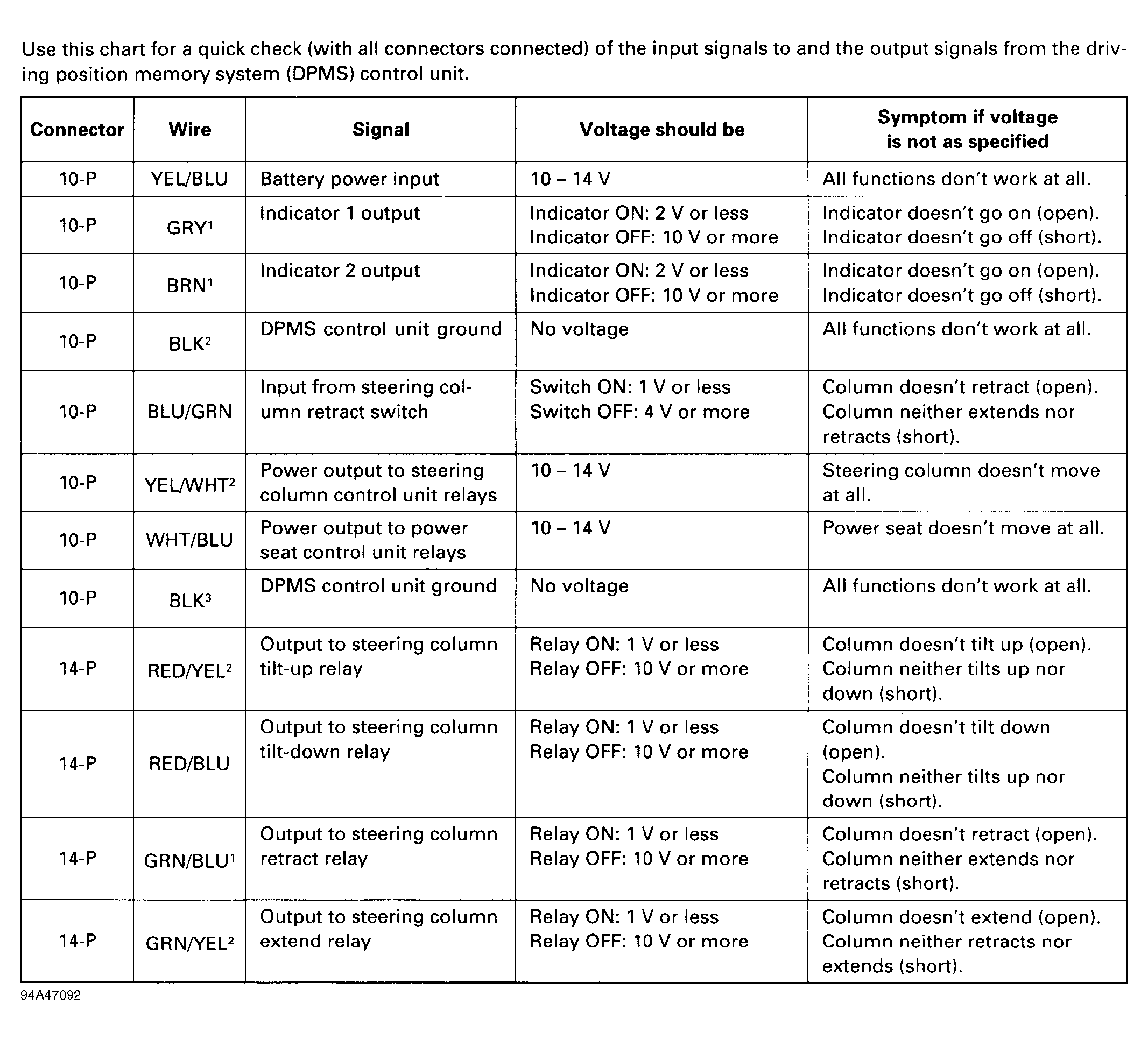

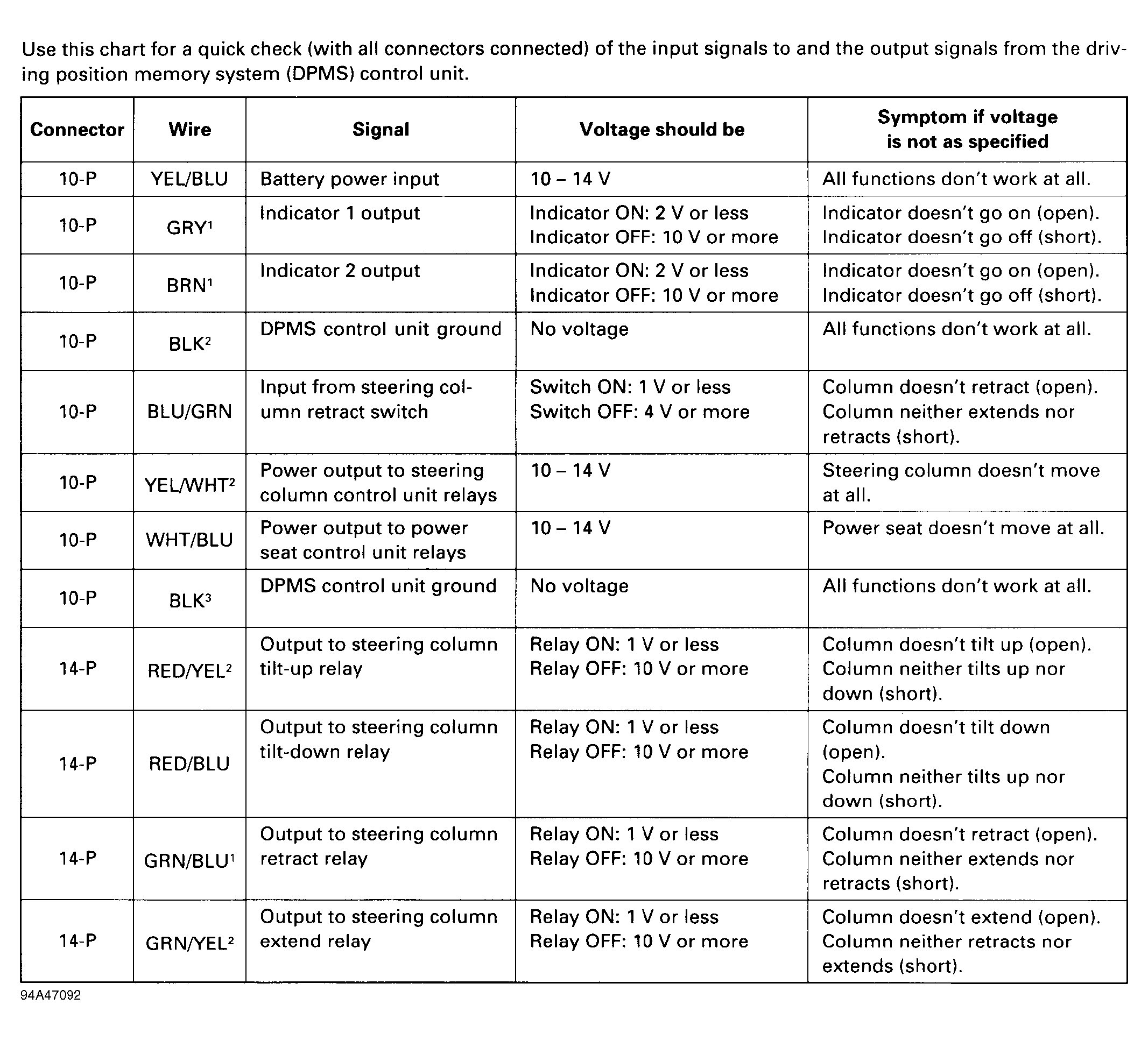

Fig 1: Testing DPMS Input & Output Signals (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

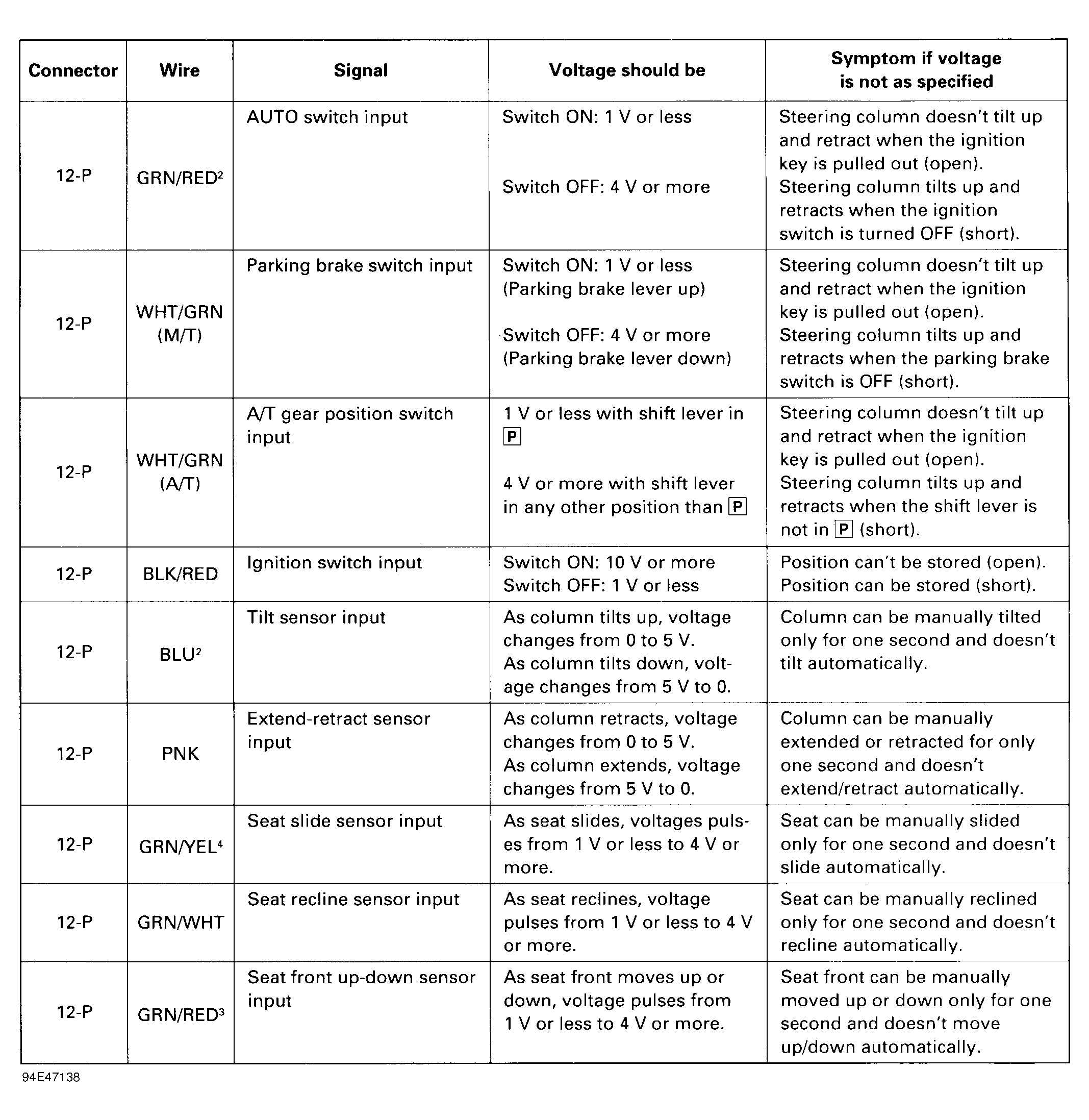

Fig 2: Testing DPMS Input & Output Signals (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

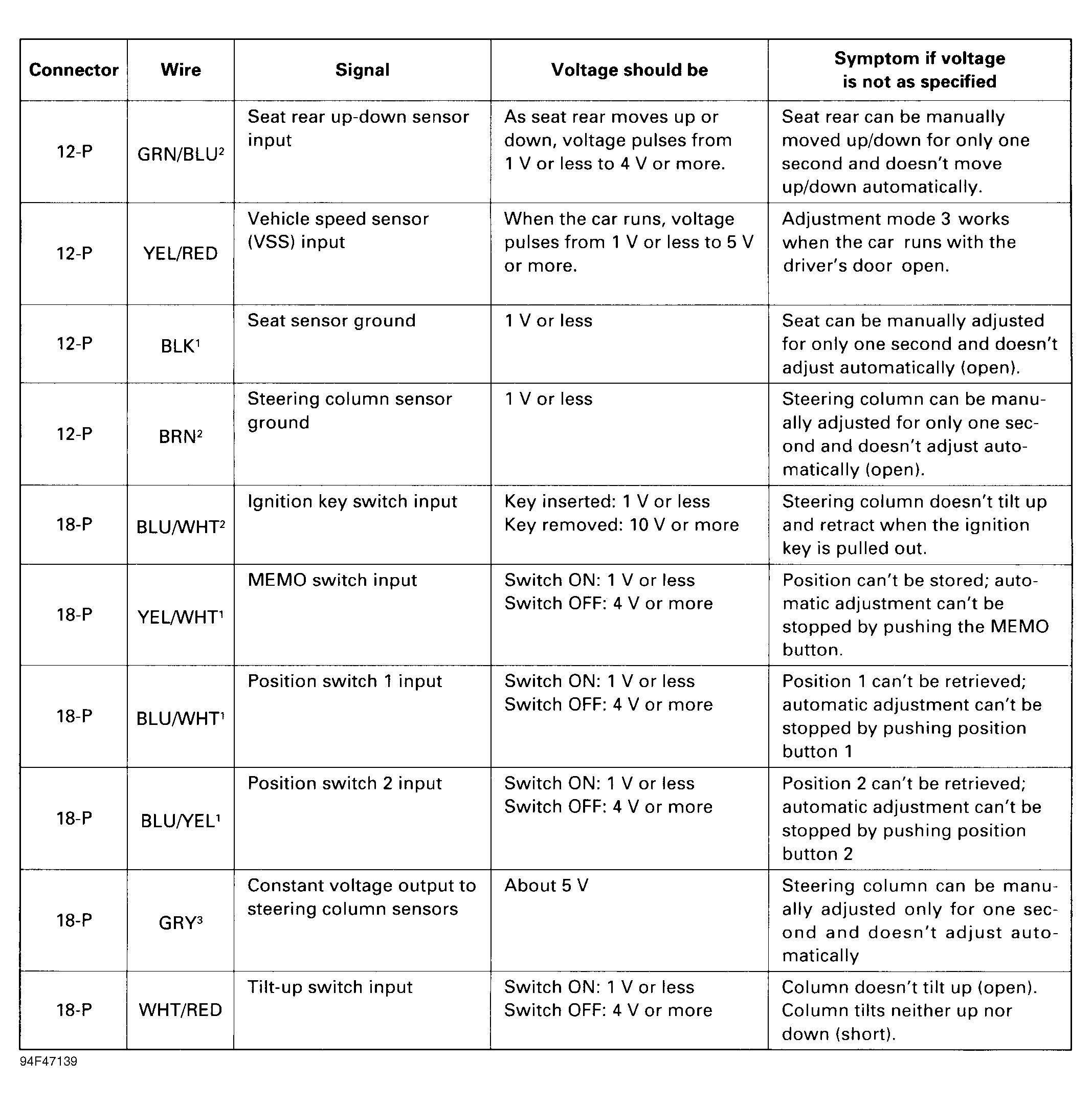

Fig 3: Testing DPMS Input & Output Signals (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

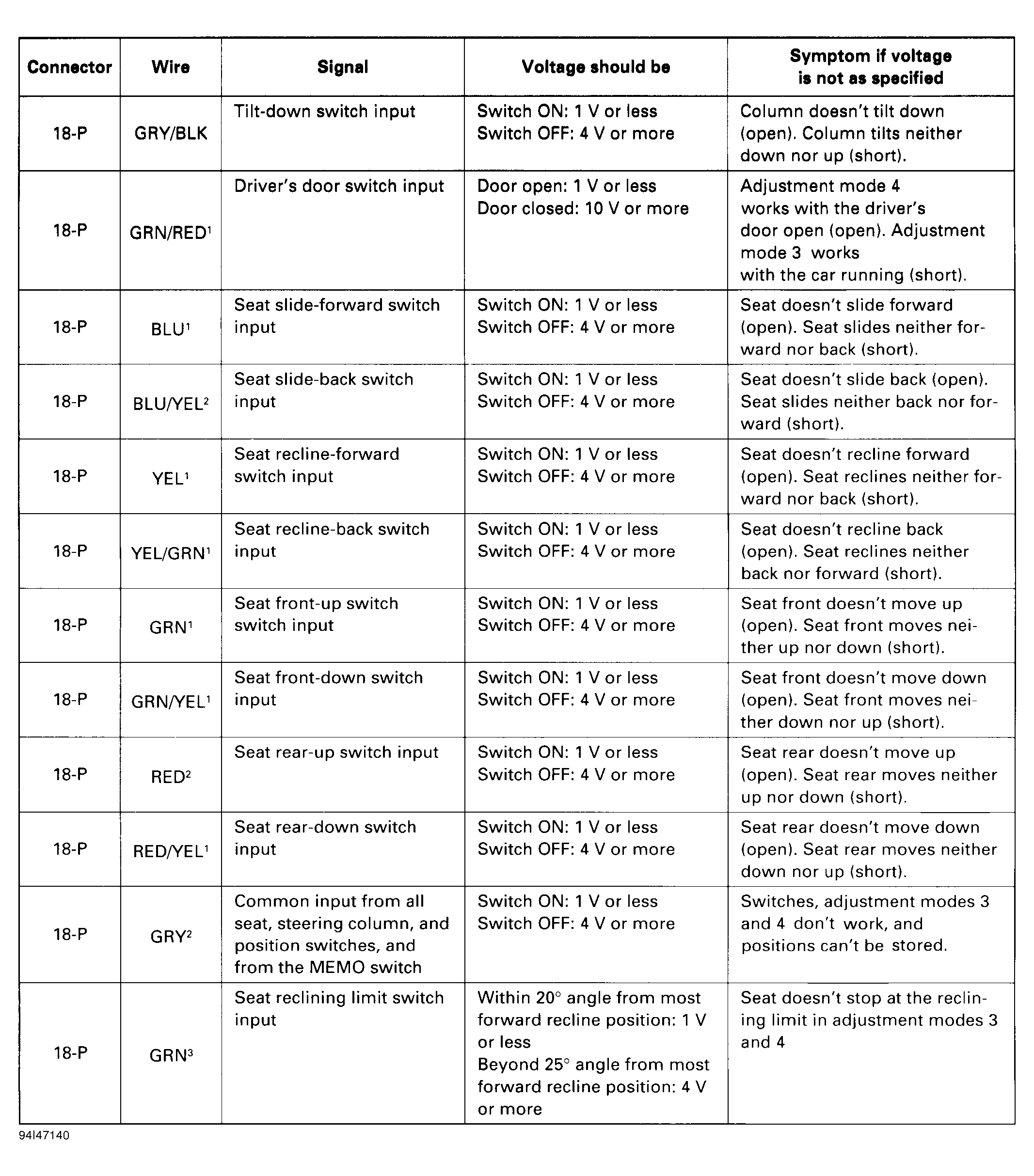

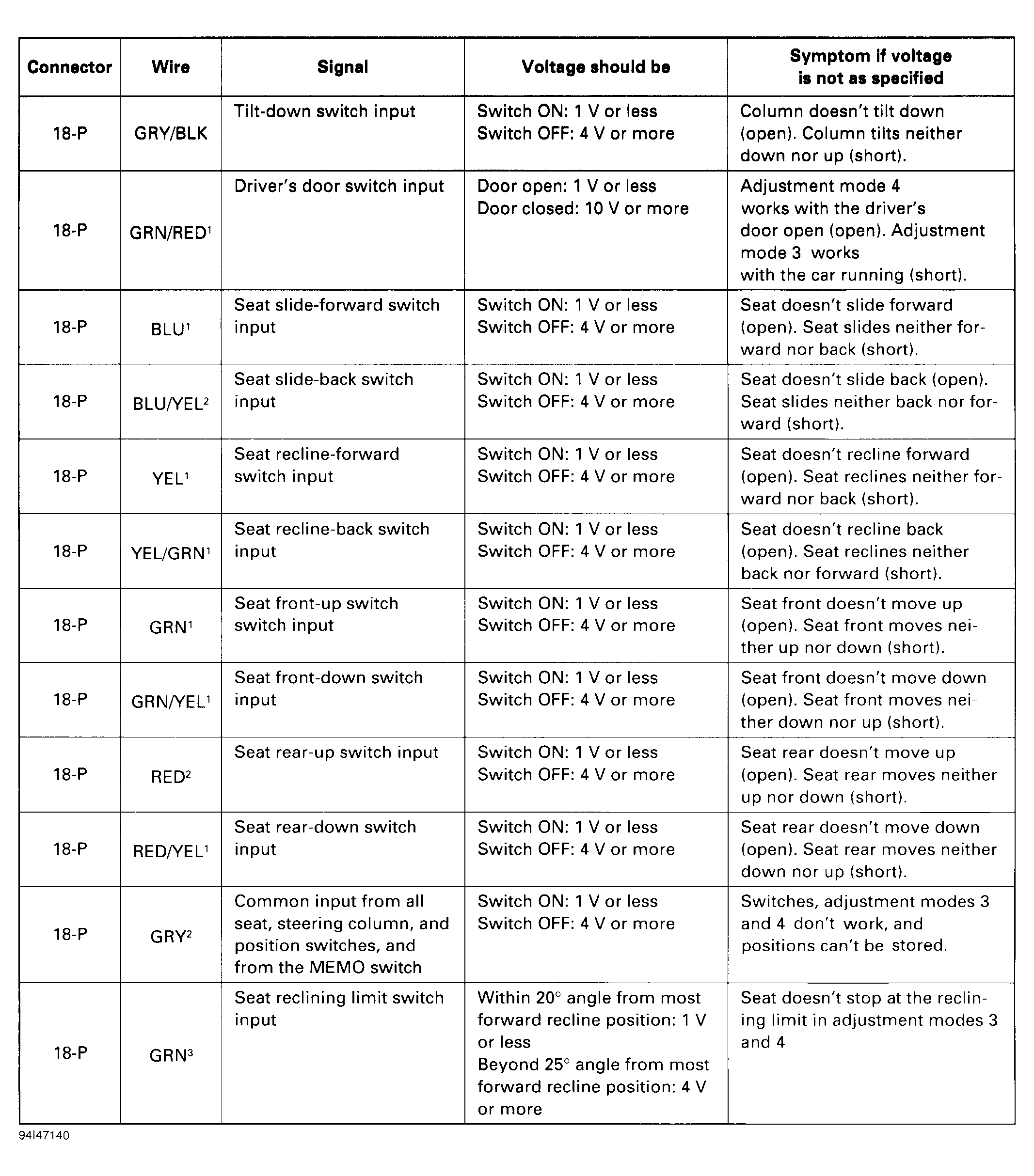

Fig 4: Testing DPMS Input & Output Signals (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

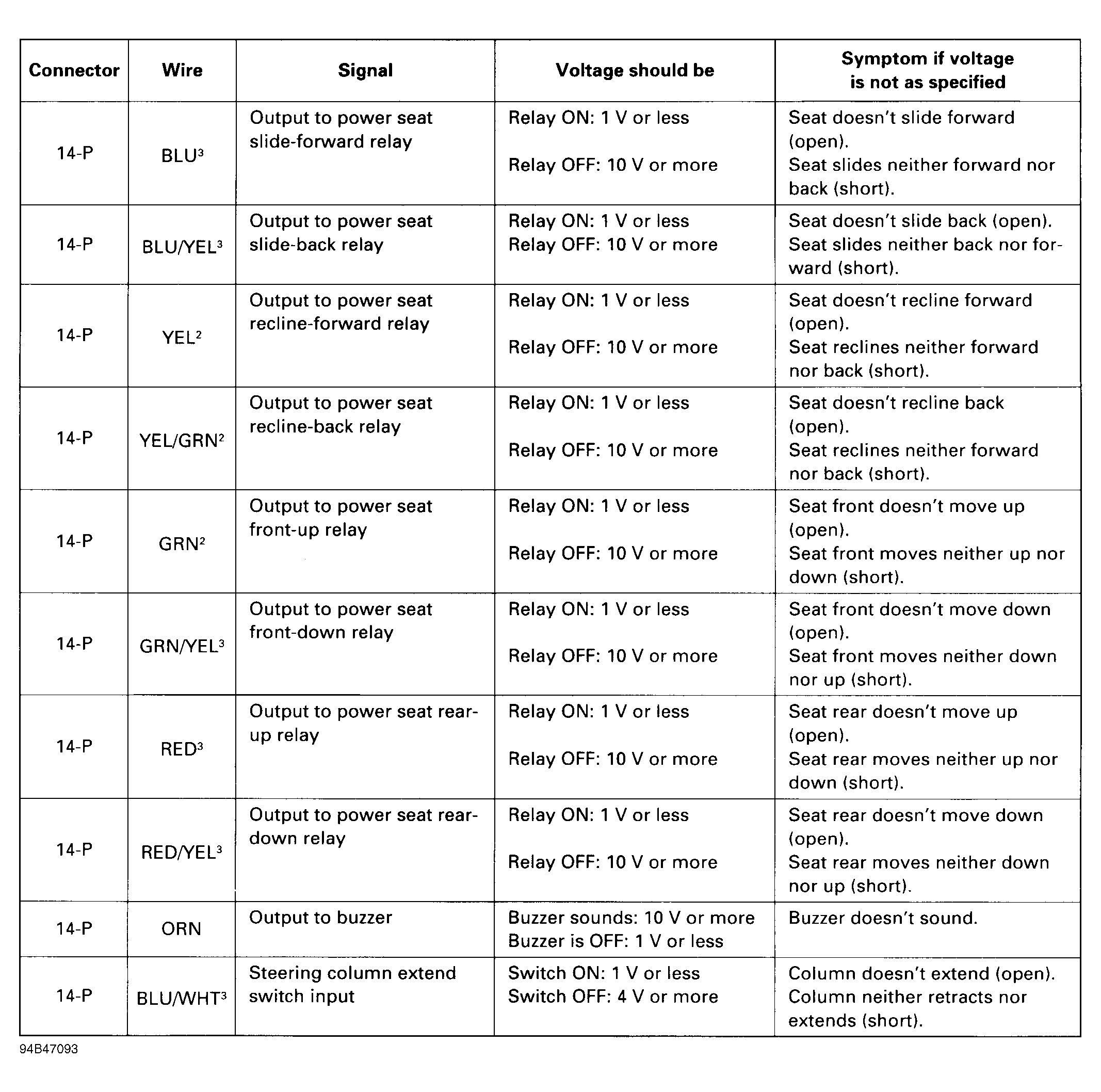

Fig 5: Testing DPMS Input & Output Signals (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
