Seat Memory Sensor

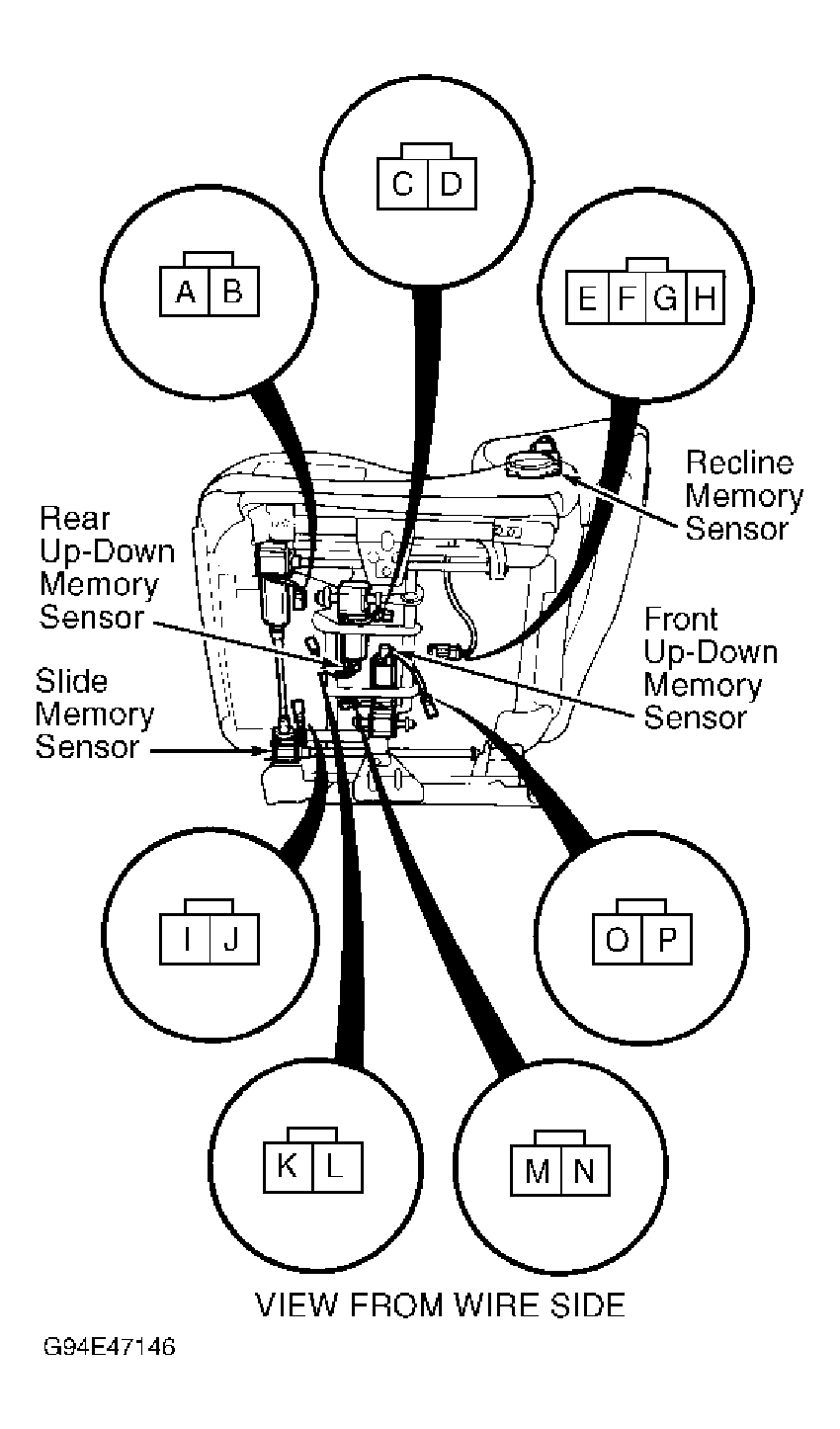

Remove driver's seat. Unplug connectors. Check for continuity between specified terminals with motor operating. Apply battery voltage between specified terminals (reverse leads if motor does not run). Resistance should increase smoothly as motor moves. Replace seat memory sensors if resistance is not as specified. See SEAT MEMORY SENSORS table. See Fig 1 .
SEAT MEMORY SENSORS
| Sensor | Apply Battery Voltage To Motor Terminals (+)/(-) | Resistance Should Increase Between Sensor Terminals |
|---|---|---|
| Slide | A/B | I & J |
| Recline | E/F | G & H |
| Front Up/Down | M/N | O & P |
| Rear Up/Down | C/D | K & L |
