Connector Identification

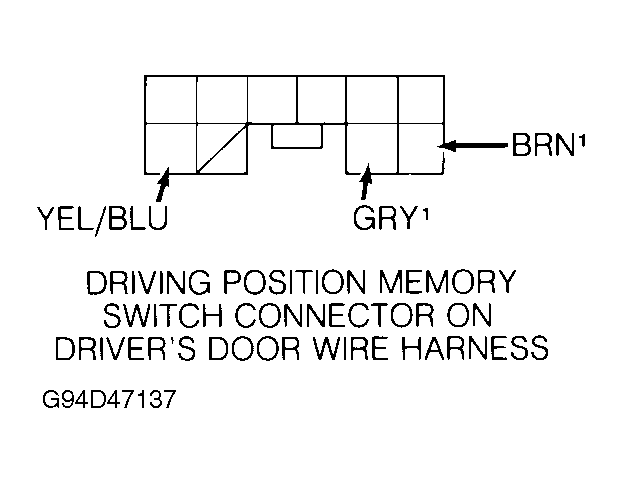

Fig 1: Identifying Driving Position Memory Switch Connector On Driver's Door Wire Harness
G94D47137Courtesy of AMERICAN HONDA MOTOR CO., INC.

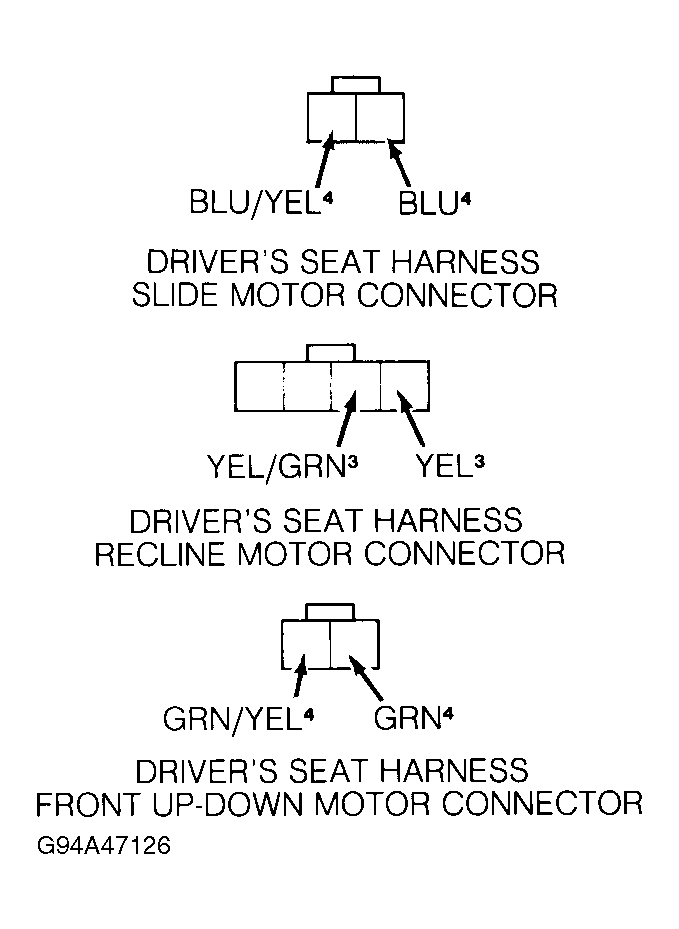

Fig 2: Identifying Driver's Seat Motor Connectors
G94A47126Courtesy of AMERICAN HONDA MOTOR CO., INC.

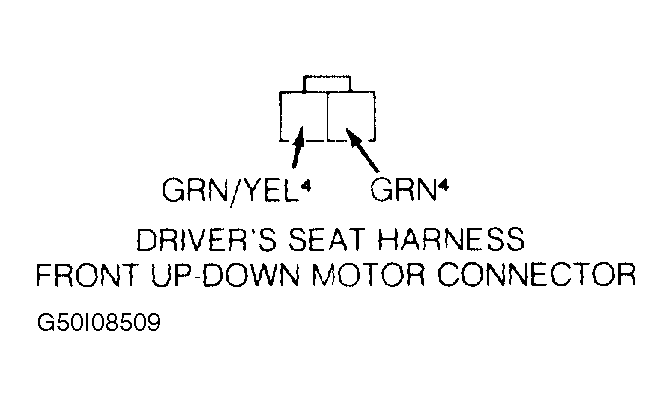

Fig 3: Identifying Driver's Seat Harness Front Up-Down Motor Connector
G50I08509Courtesy of AMERICAN HONDA MOTOR CO., INC.

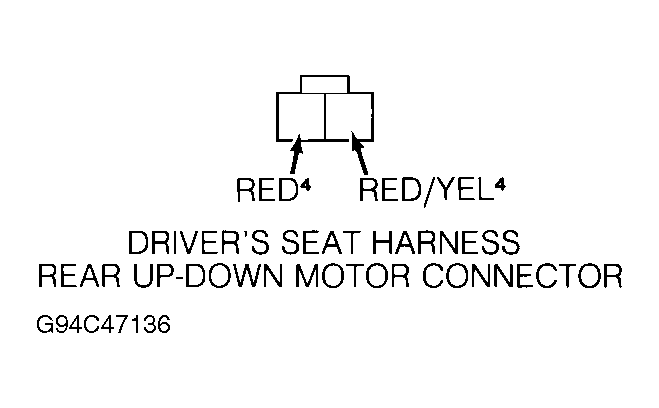

Fig 4: Identifying Driver's Seat Harness Rear Up-Down Motor Connector
G94C47136Courtesy of AMERICAN HONDA MOTOR CO., INC.

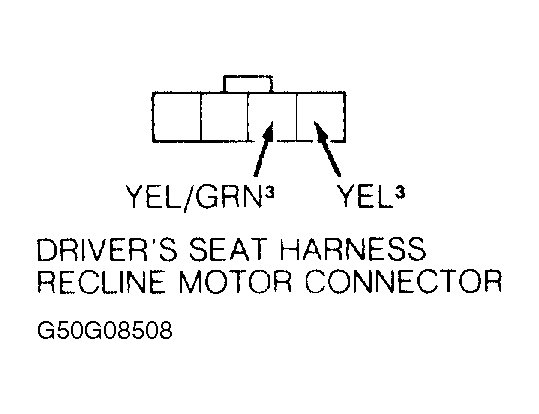

Fig 5: Identifying Driver's Seat Harness Recline Motor Connector
G50G08508Courtesy of AMERICAN HONDA MOTOR CO., INC.

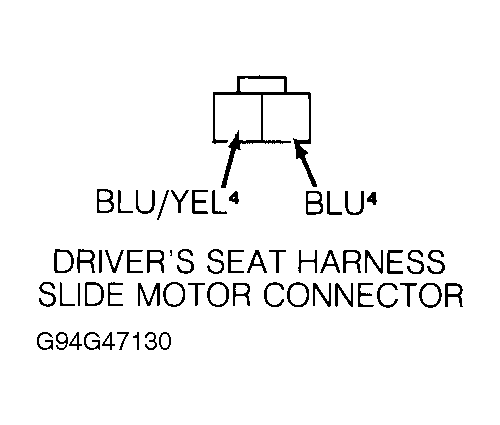

Fig 6: Identifying Driver's Seat Harness Slide Motor Connector
G94G47130Courtesy of AMERICAN HONDA MOTOR CO., INC.

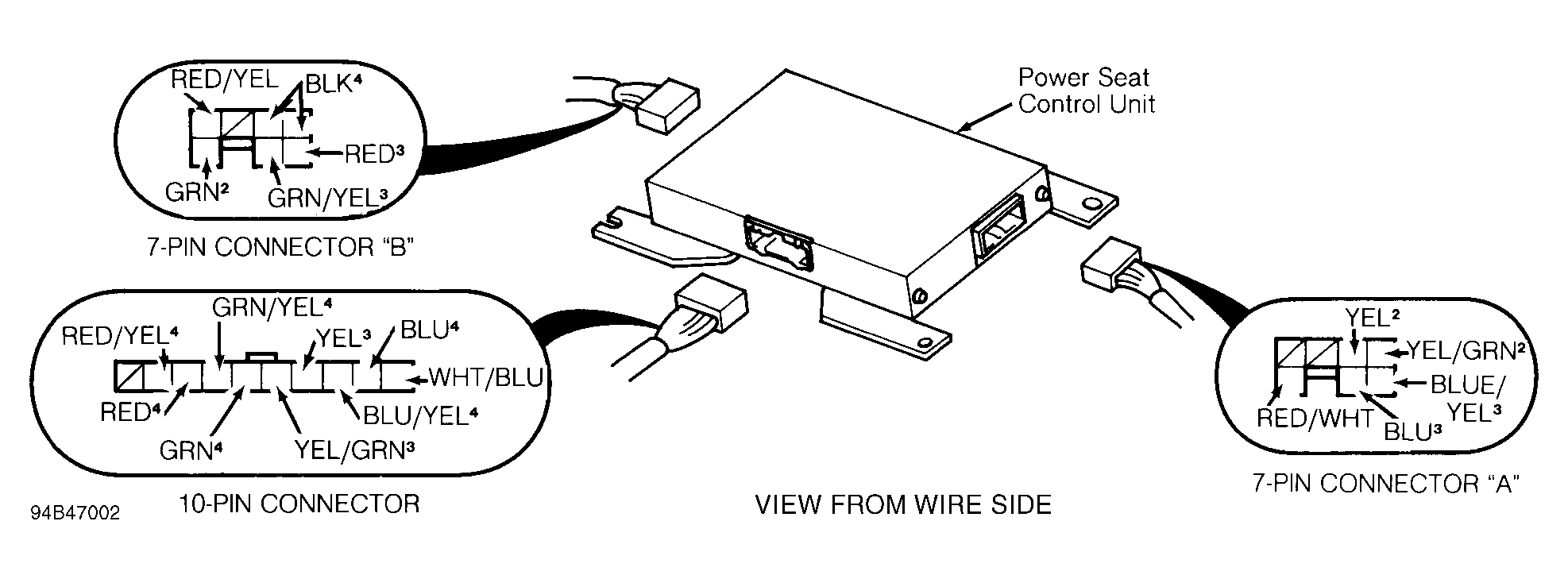

Fig 7: Identifying Power Seat Control Unit Terminals
G94B47002Courtesy of AMERICAN HONDA MOTOR CO., INC.

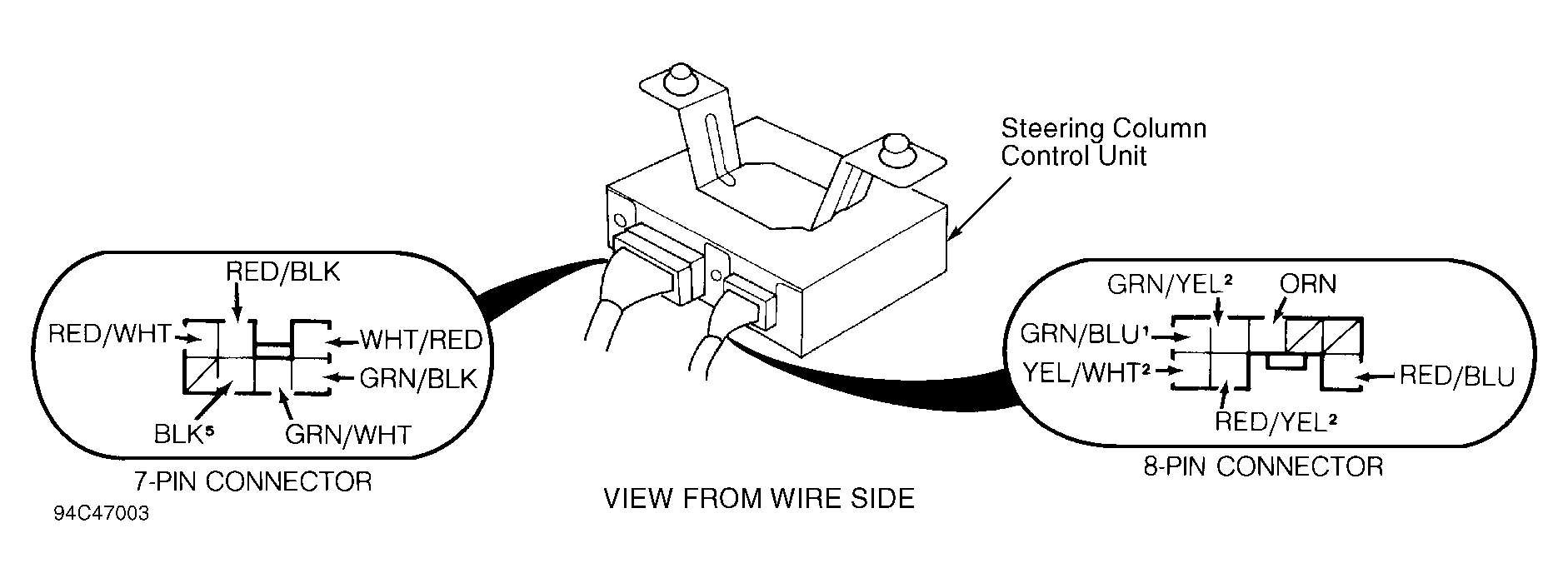

Fig 8: Identifying Steering Column Control Unit Terminals
G94C47003Courtesy of AMERICAN HONDA MOTOR CO., INC.

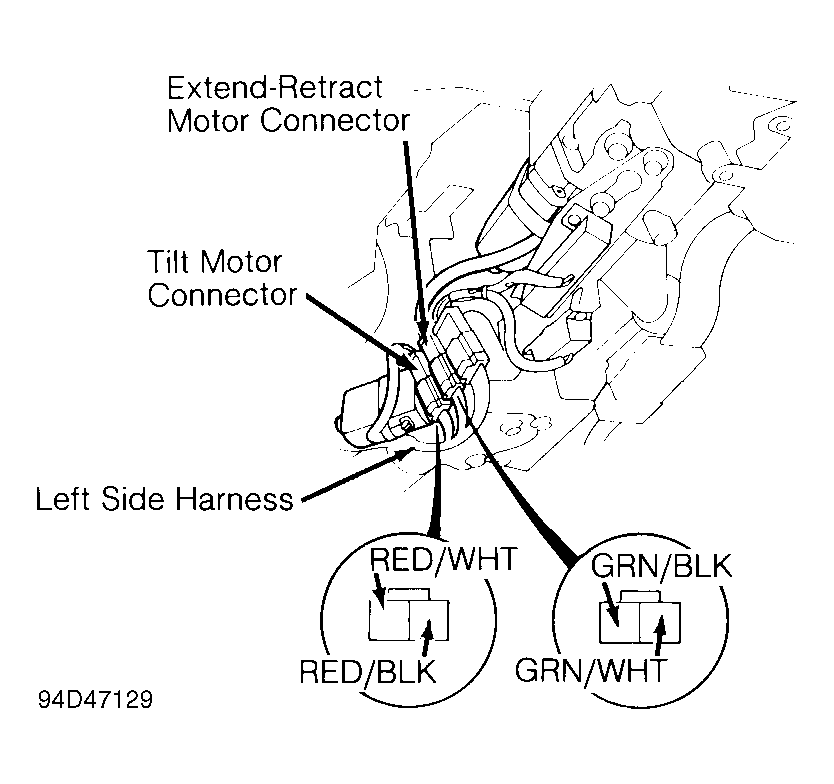

Fig 9: Identifying Steering Column Extended Retract Motor Connector
G94D47129Courtesy of AMERICAN HONDA MOTOR CO., INC.

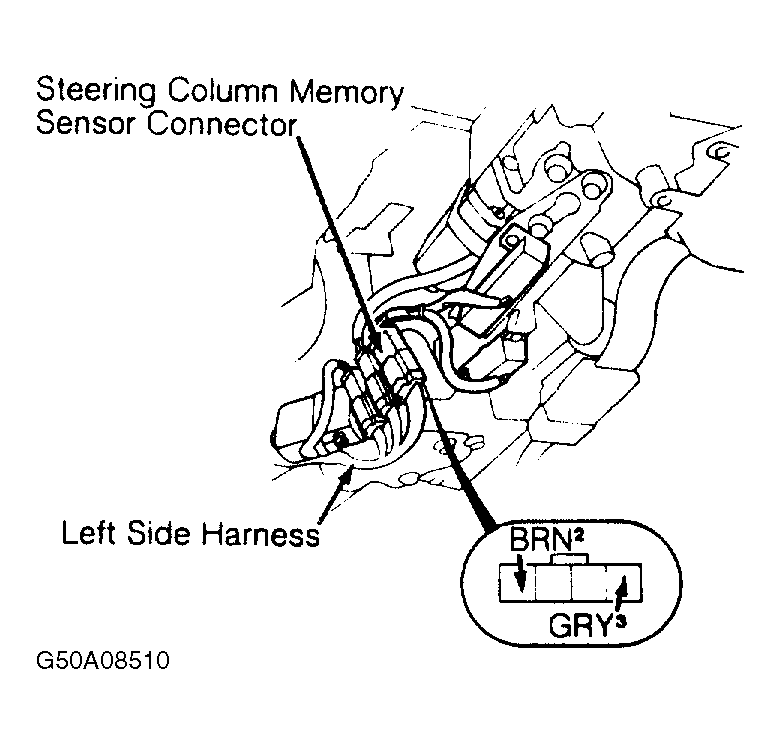

Fig 10: Identifying Steering Column Memory Sensor Connector
G50A08510Courtesy of AMERICAN HONDA MOTOR CO., INC.
