Flow Chart No. 12

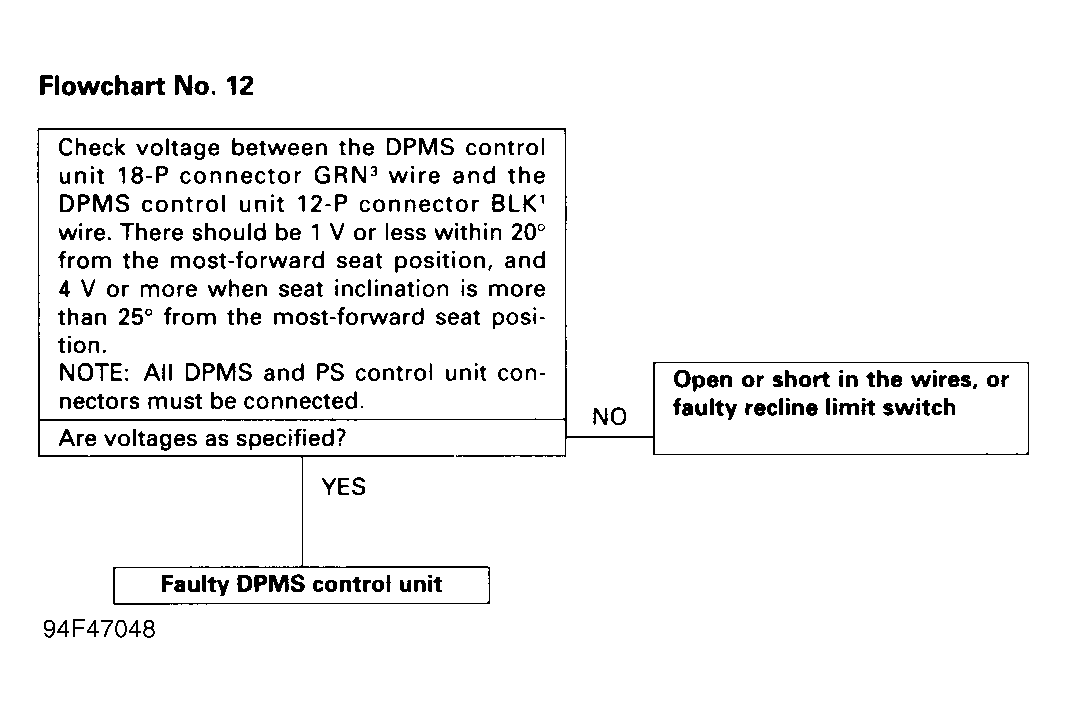

Fig 1: Flow Chart No. 12
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
