Flow Chart No. 16

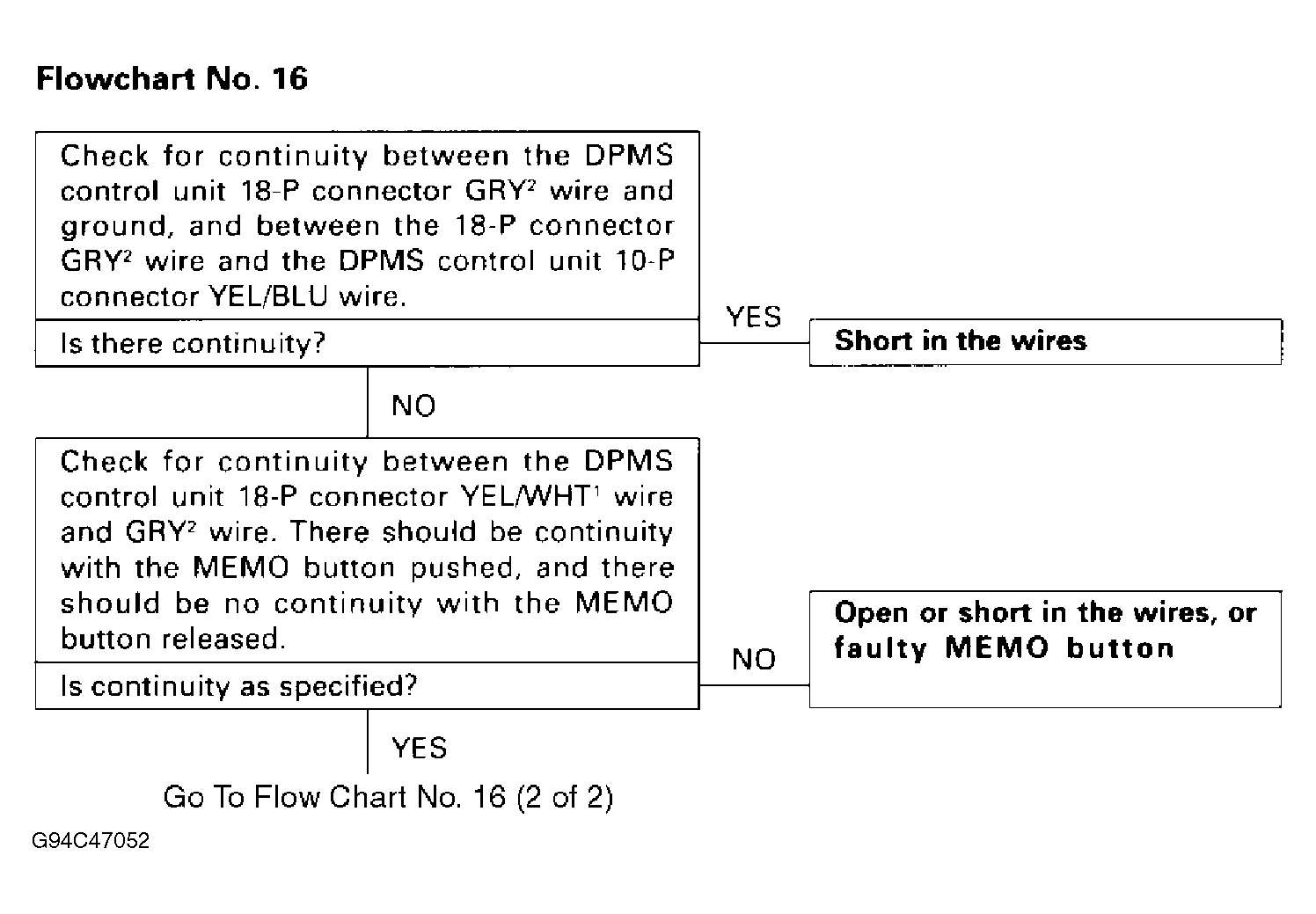

Fig 1: Flow Chart No. 16 (1 Of 2)
G94C47052Courtesy of AMERICAN HONDA MOTOR CO., INC.

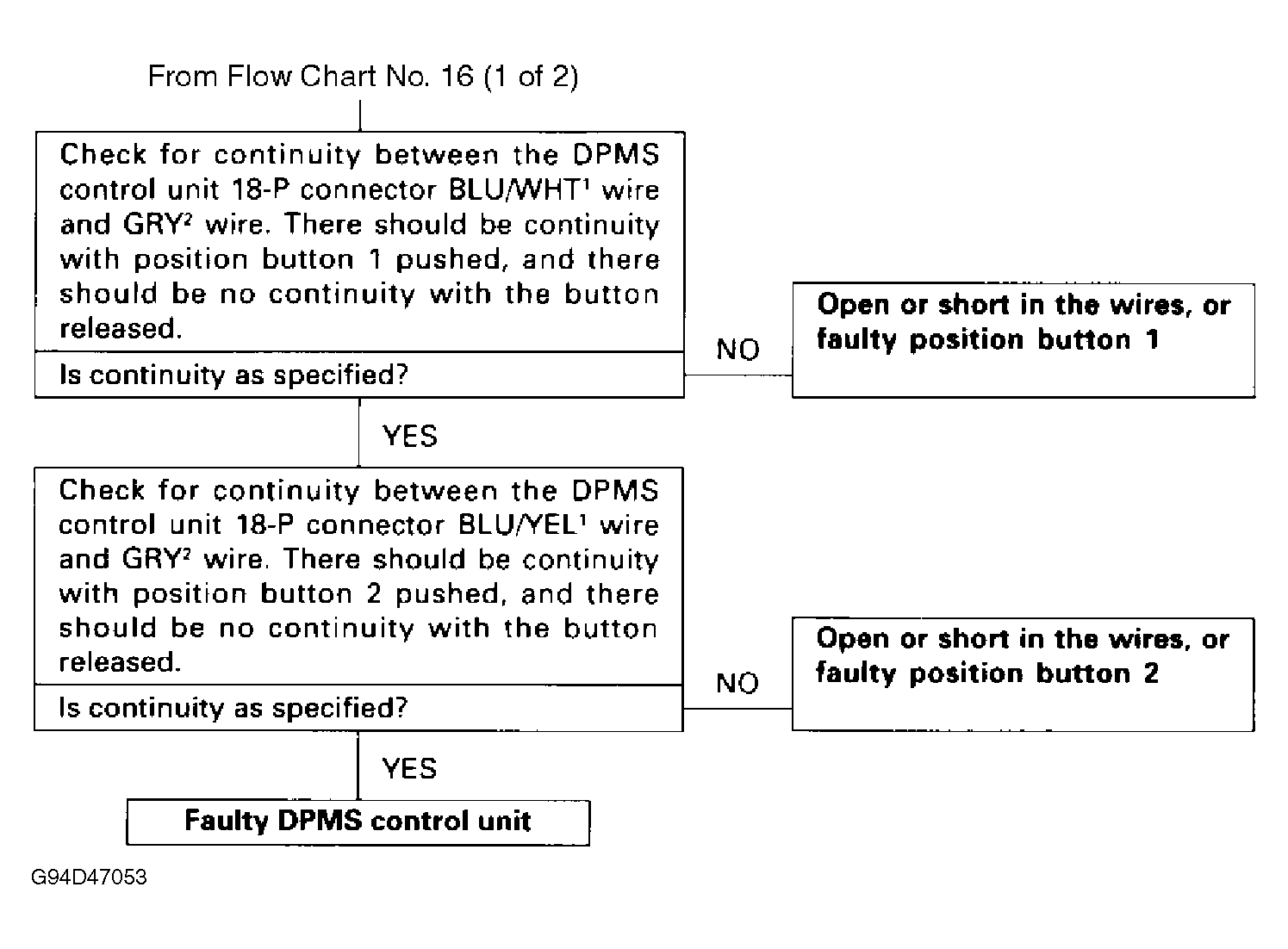

Fig 2: Flow Chart No. 16 (2 Of 2)
G94D47053Courtesy of AMERICAN HONDA MOTOR CO., INC.
