Flow Chart No. 2

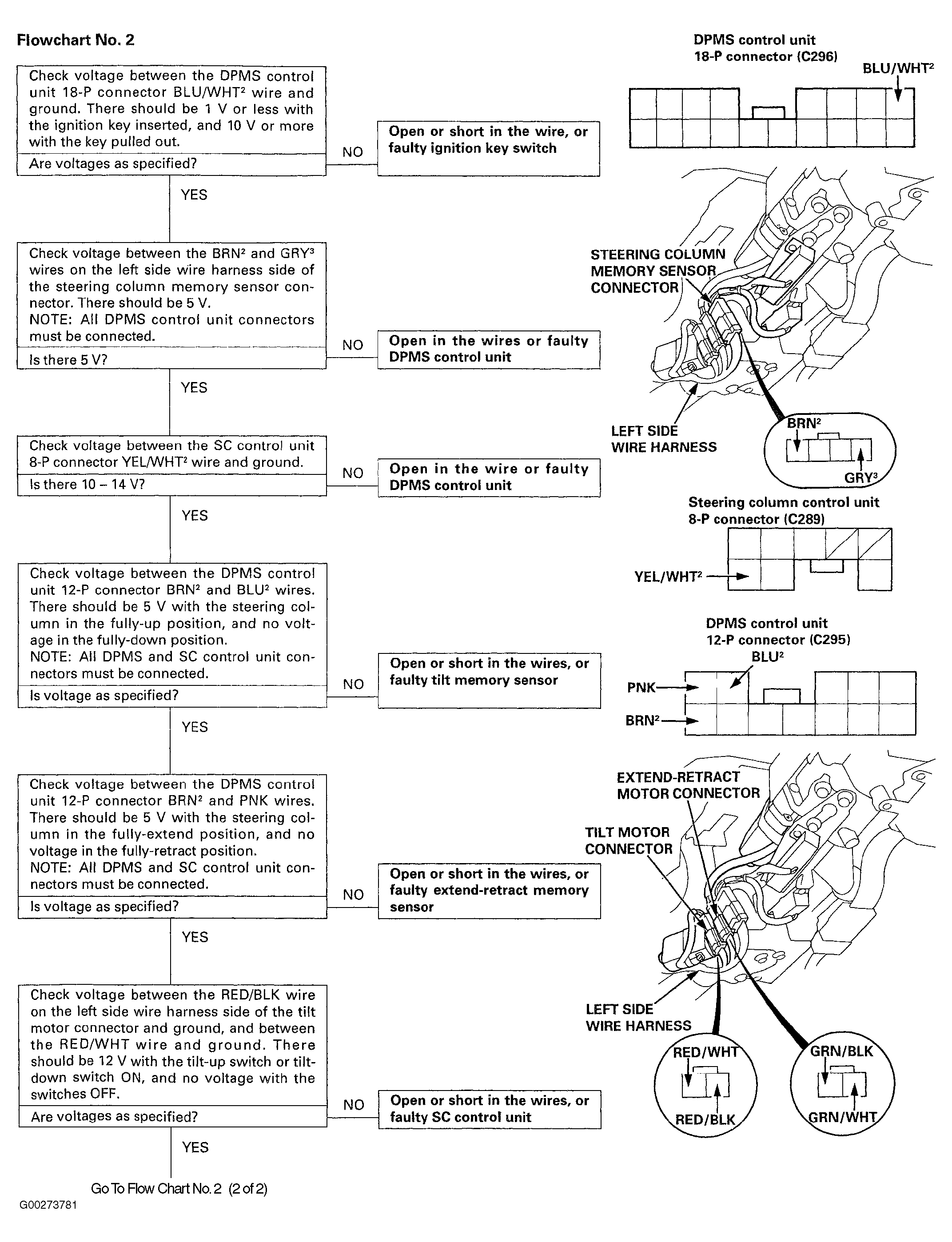

Fig 1: Flow Chart No. 2 (1 Of 2)
G00273781Courtesy of AMERICAN HONDA MOTOR CO., INC.

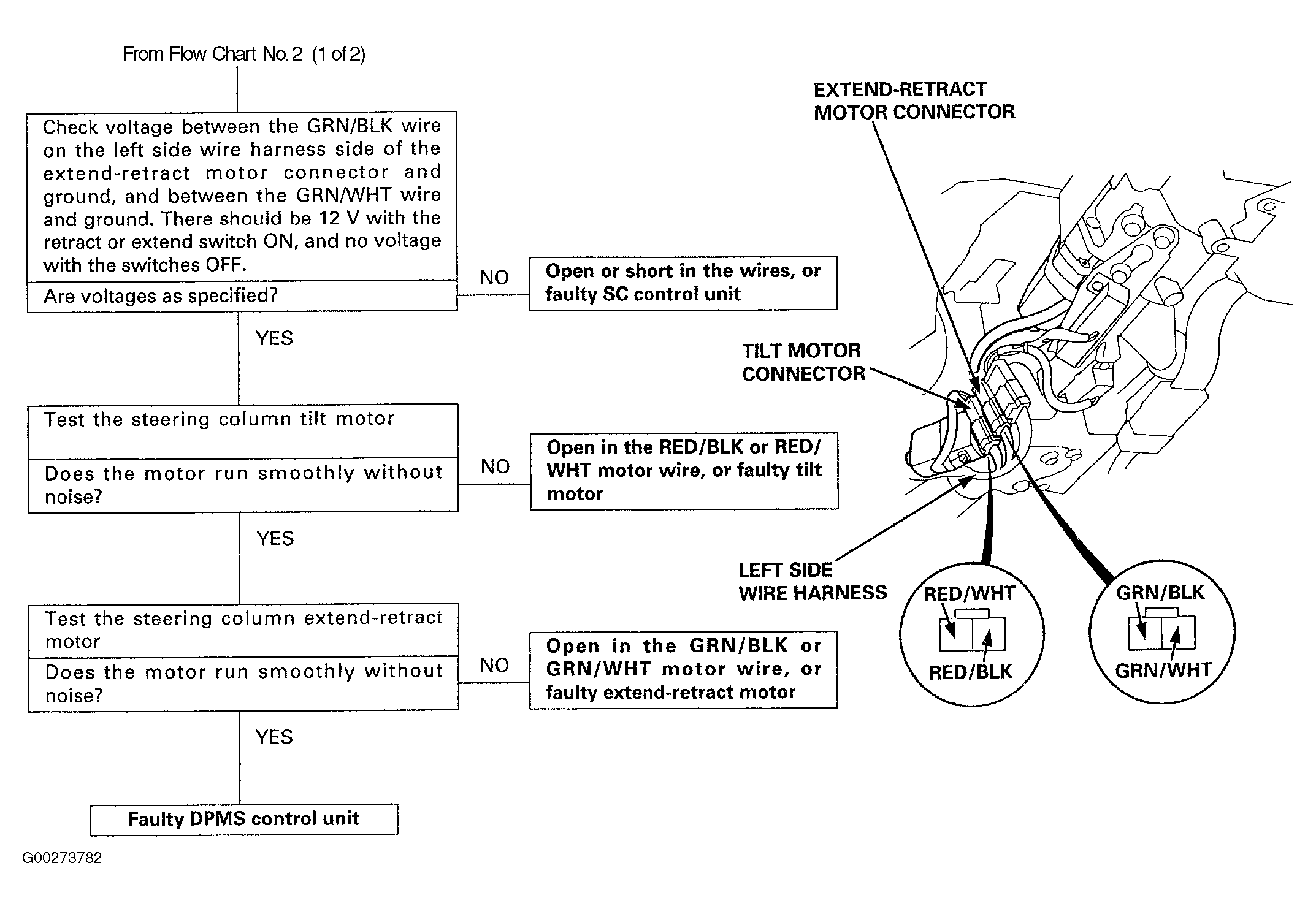

Fig 2: Flow Chart No. 2 (2 Of 2)
G00273782Courtesy of AMERICAN HONDA MOTOR CO., INC.
