Ignition Control Module
- Inspect the connector terminals to be sure they are all making good contact. If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, perform ICM input tests.

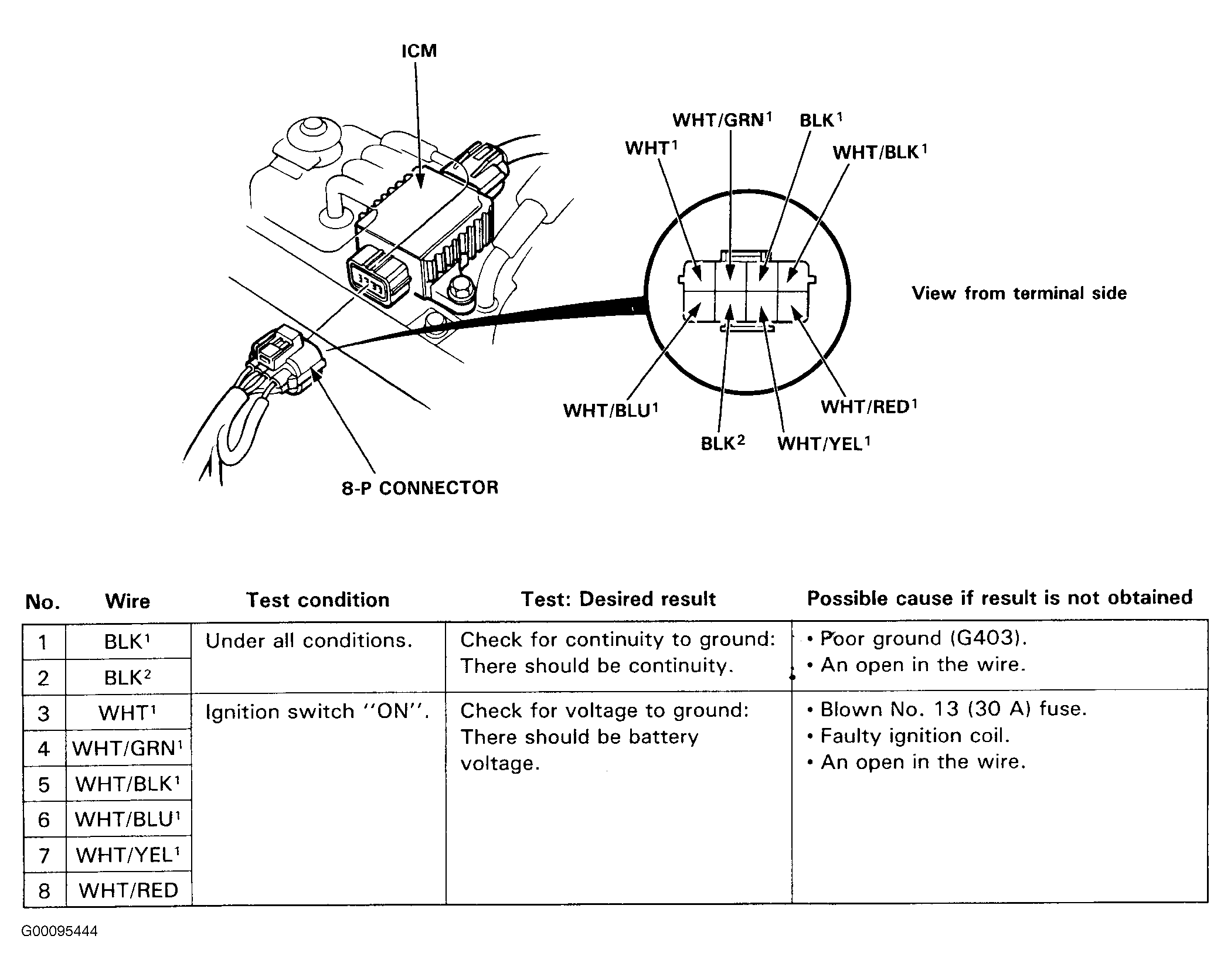

- Disconnect the 8 pin connector from the ICM. See Fig 1
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Perform circuit tests on the connector as shown in the chart. If any test indicates a problem, find and correct cause, then recheck the system.
- If all the input tests prove OK, replace ICM.
