M/T Neutral Switch Signal

This signals the ECM when the transaxle is in Neutral. For troubleshooting of the M/T neutral switch signal circuit, see Fig 1 .

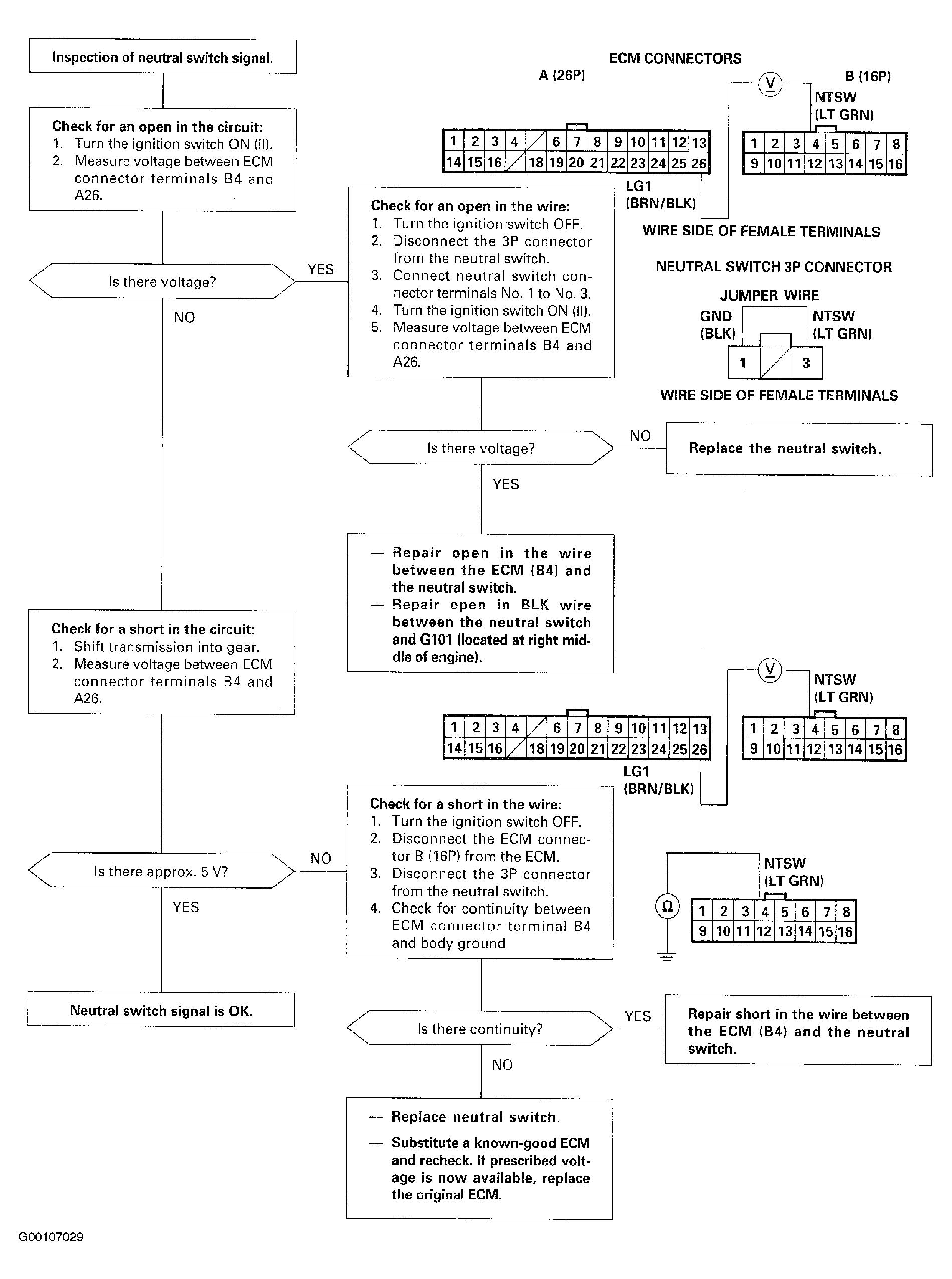

Fig 1: Neutral Switch Signal (M/T) Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
