Interlock Control Unit Circuit

Disconnect the 8 pin connector from the control unit. Inspect the connector and socket terminals to be sure they are all making good contact. If interlock control unit circuit tests good, replace control unit. For circuit tests, see Fig 1 .

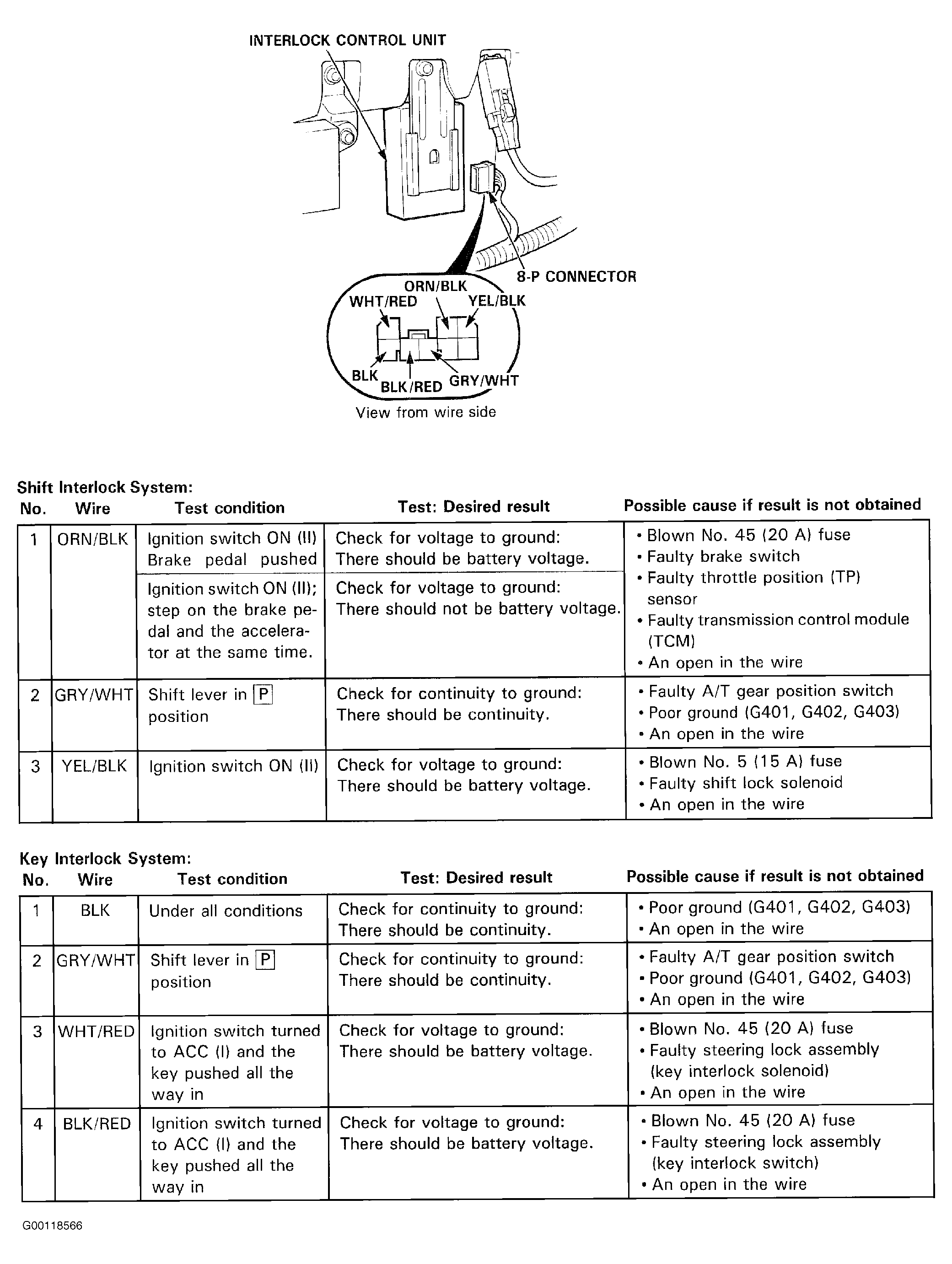

Fig 1: Testing Interlock System Control Unit Circuit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
