Shift Lock Solenoid

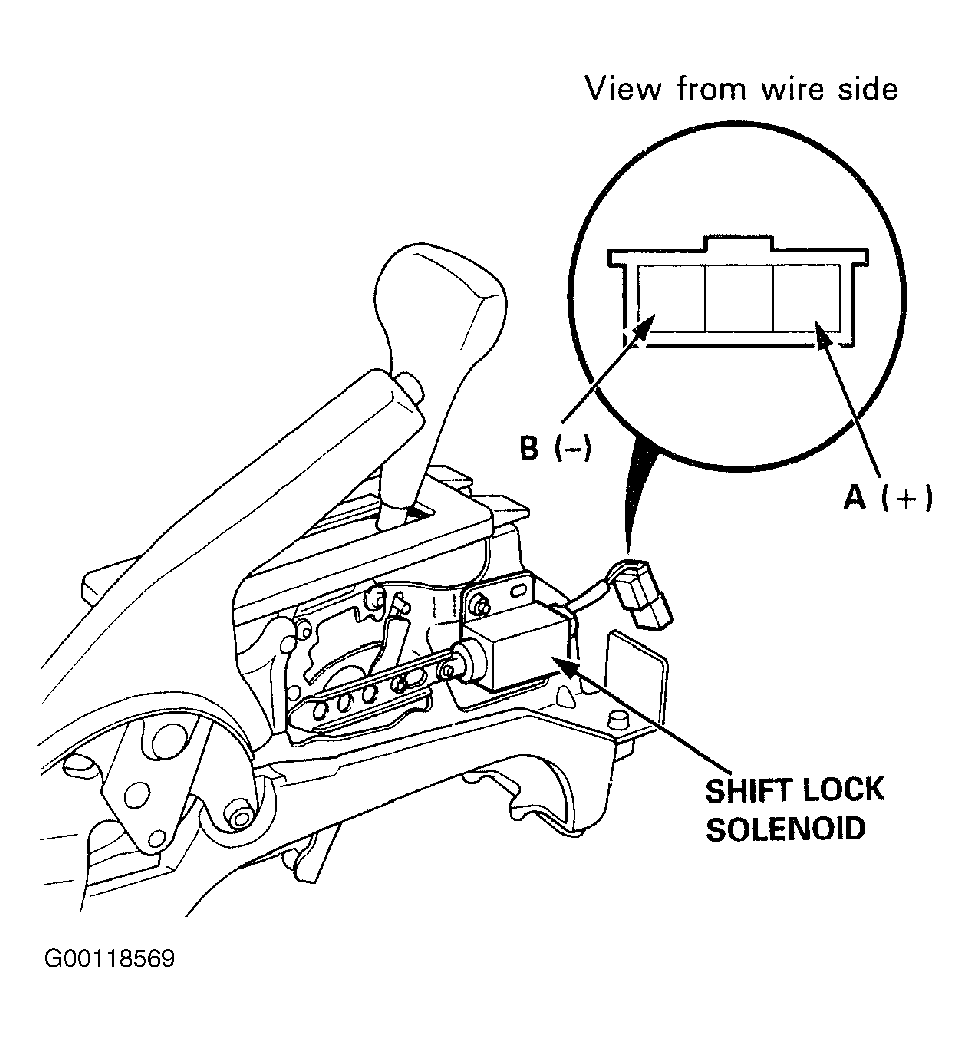

- Remove the console and disconnect the shift lock solenoid 3 pin connector from the floor wire harness. See Fig 1
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect battery power to terminal "A" and ground to terminal "B" momentarily, and check to see if the solenoid works. If it does not work, replace it. If it works, go to next step.

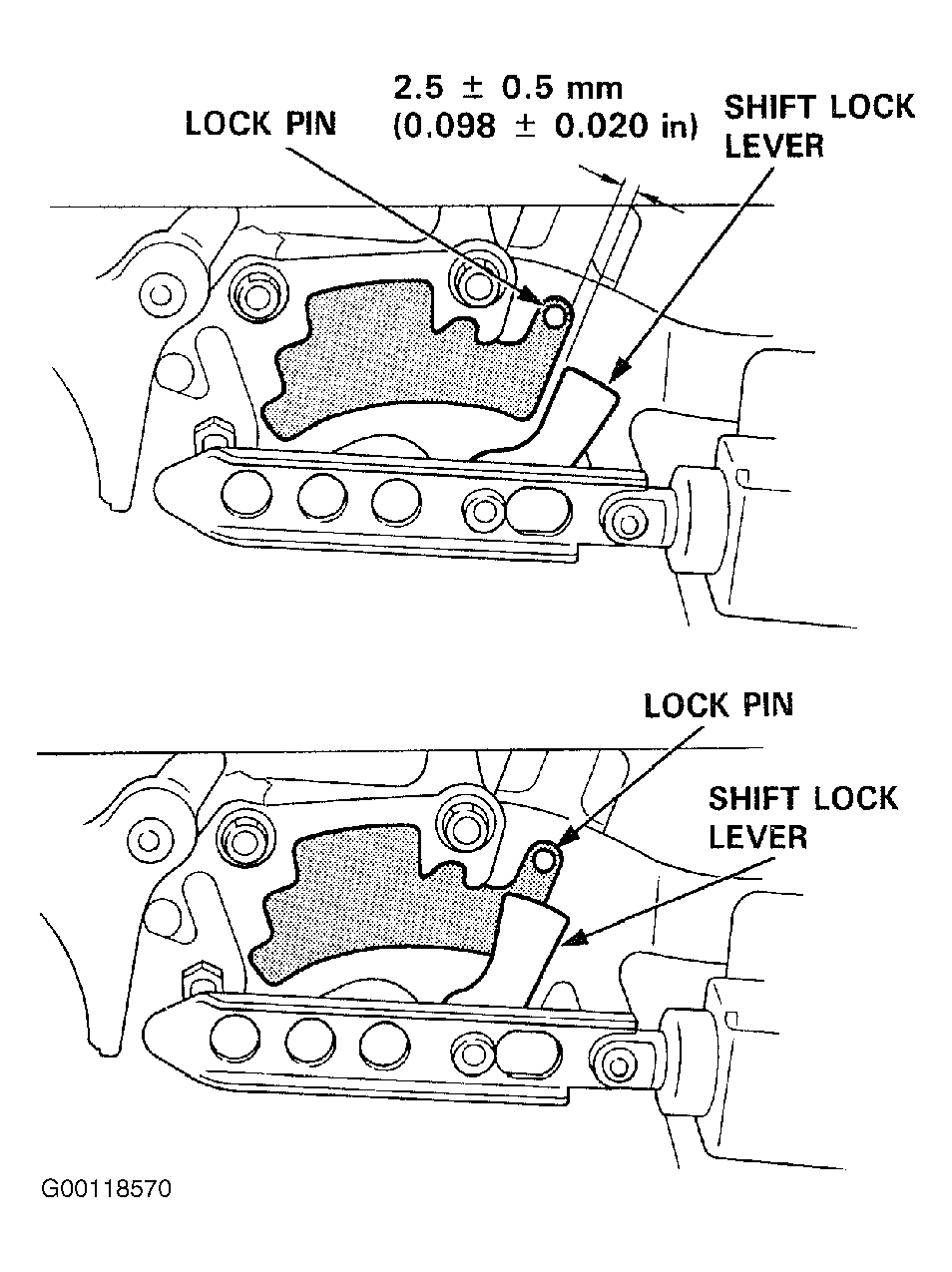

- When the shift lock solenoid is ON, check that there is a clearance of 0.098 +/- 0.020 in. (2.5 +/- 0.5 mm) between the top corner of the shift lock lever and the side of the lock pin. If clearance is correct, go to next step. If clearance is incorrect, loosen the self-locking nuts and adjust the solenoid as needed. See Fig 2
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- When the shift lock solenoid is OFF, make sure that the top of the shift lock lever blocks the lock pin. If it is not blocked, adjust the position of the shift lock solenoid as needed to block it. See Fig 2
.
