Ignition Timing

IGNITION TIMING ⁽¹⁾ (Degrees BTDC @ RPM)

Application

⁽²⁾ Specification

2.5TL

13-17 @ 650-750

⁽¹⁾	Install Service Check Connector Tool (07PAZ-0010100 ) to service check connector before checking timing.

⁽²⁾	Automatic transmission in Neutral or Park.

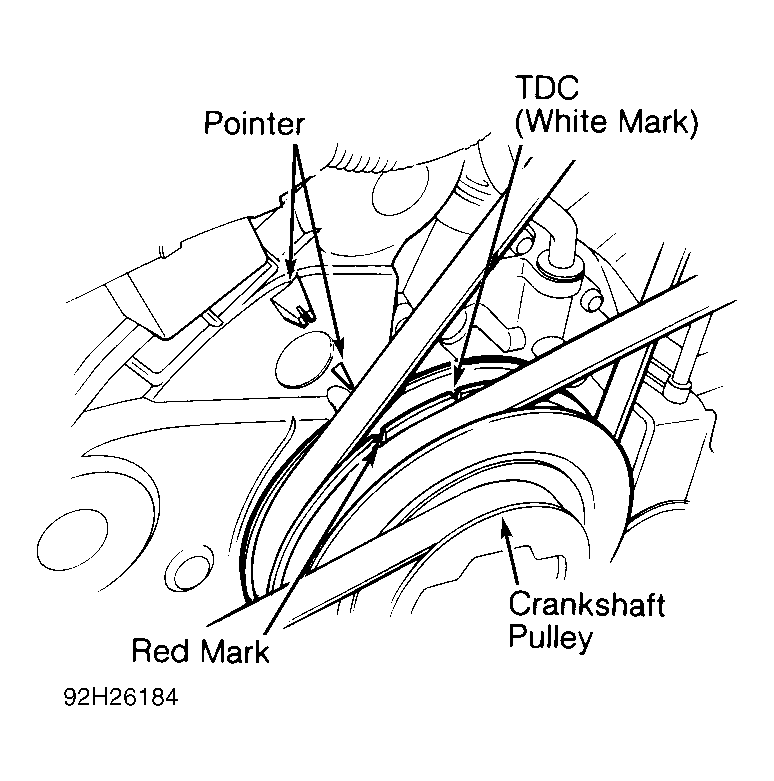

Fig 1: Locating Ignition Timing Mark

G92H26184

Courtesy of AMERICAN HONDA MOTOR CO., INC.
