Starter Signal

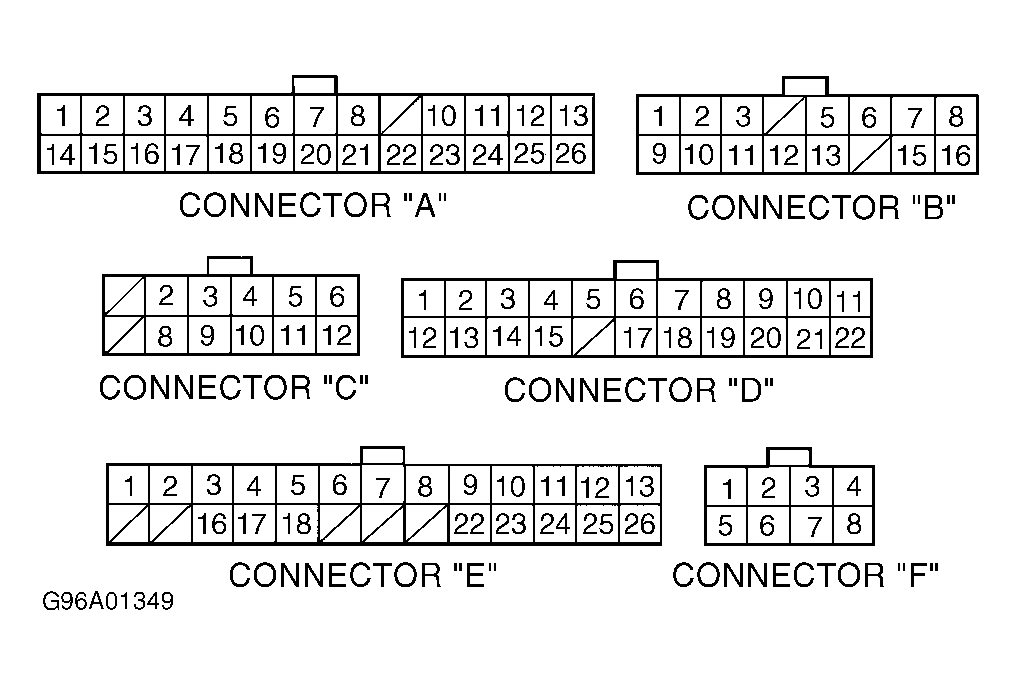

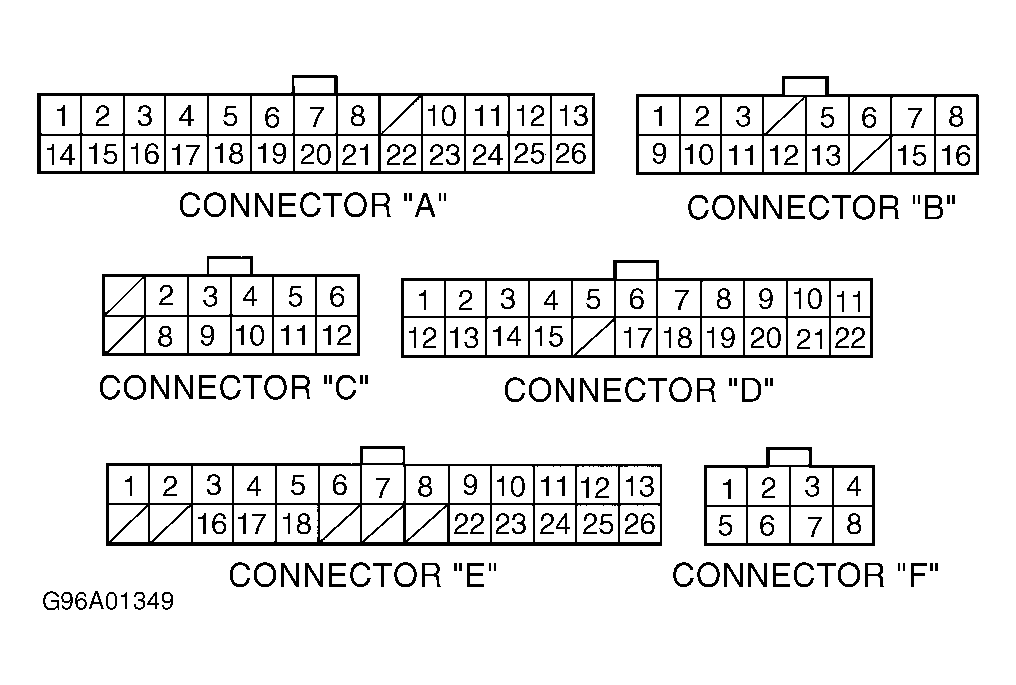

Measure voltage between PCM harness connector terminals B5 (positive) and A26 (negative) with ignition switch in START position. See Figure . If battery voltage exists, starter signal is okay. If voltage does not exist, inspect fuse No. 9 (7.5-amp). If fuse is okay, repair open in Blue/Red wire between PCM and fuse No. 9. If fuse is blown, check Blue/White wire for short to ground. Repair as necessary.
