Retrieving Codes Using OBD-II Scan Tool

NOTE: An OBD-II compliant scan tester is necessary for self-diagnostics.

Locate Data Link Connector (DLC), in center console, behind ash tray. See Fig 1 . Connect and operate scan tester in accordance with manufacturer's instructions.

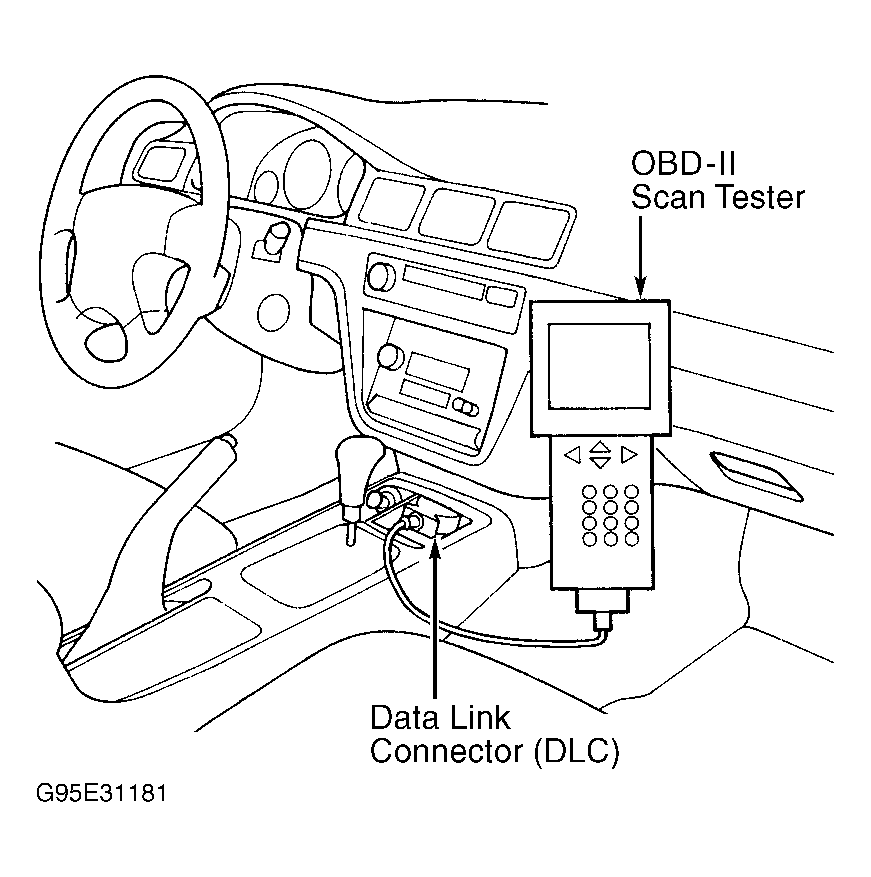

Fig 1: Locating OBD-II Data Link Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
