DTC 5-1: Fail-Safe Relay

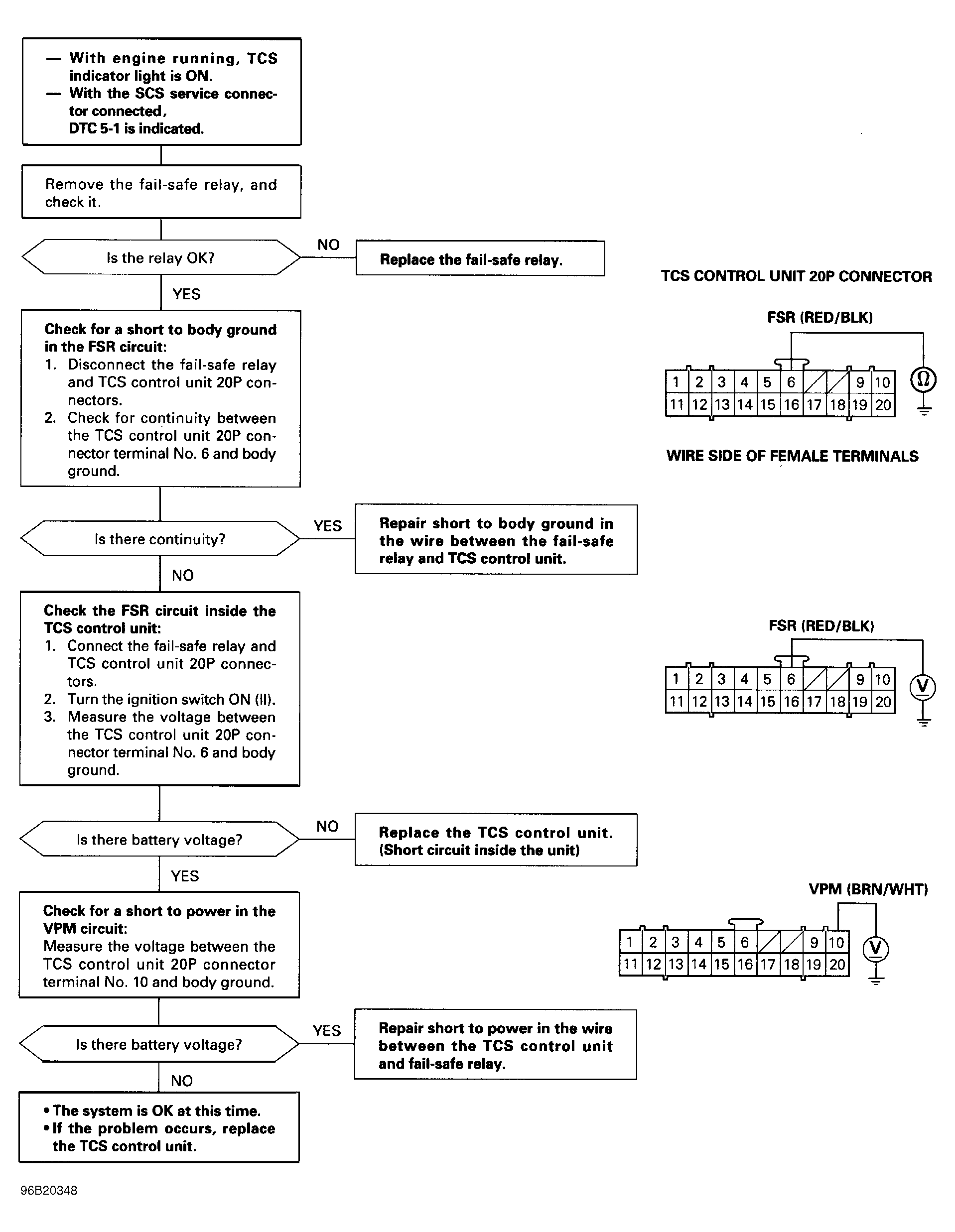

Fig 1: DTC 5-1: Fail-Safe Relay
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
