Passenger's Multiplex Control Unit

  1. Remove right side kick panel. Turn ignition switch to OFF position. Disconnect passenger's multiplex control unit Gray 26-pin and 22-pin connectors. See Fig 1 . Ensure terminals of both connectors are okay and making proper contact. Repair connector terminals as necessary and retest system. If connector terminals are okay, go to next step.
  2. Using a voltmeter, probe between Gray 26-pin connector terminal A1 (White/Yellow wire) and ground. See Fig 1 . See PASSENGER'S MULTIPLEX CONTROL UNIT CONNECTOR TERMINAL  ID table. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 56 (7.5-amp), located in fuse/relay box, in engine compartment. If fuse is okay, check for an open in White/Yellow wire.
  3. Ensure ignition switch is in OFF position. Using an ohmmeter, probe between passenger's multiplex control unit Gray 26-pin connector terminals A2 (Black wire) and A3 (Black wire) and ground. If continuity exists, go to next step. If continuity does not exist, check for open in Black wire and/or a bad ground connection.
  4. Ensure ignition switch is in OFF position. Using a voltmeter, probe between passenger's multiplex control unit Gray 26-pin connector terminal A12 (White wire) and ground. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 44 (20-amp), located in fuse/relay box, in engine compartment. If fuse is okay, check for an open in White wire.
  5. Turn ignition switch to ON position. Using a voltmeter, probe between passenger's multiplex control unit Gray 26-pin connector terminal A14 (Yellow wire) and ground. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 13 (7.5-amp), located in fuse/relay box under instrument panel. If fuse is okay, check for an open in Yellow wire.
  6. Turn ignition switch to OFF position. Using an ohmmeter, probe between passenger's multiplex control unit Gray 26-pin connector terminal A16 (Black wire) and ground. If continuity does not exist, check for an open in Black wire and/or a bad ground connection. If wire and ground connection are okay, replace passenger's multiplex control unit.

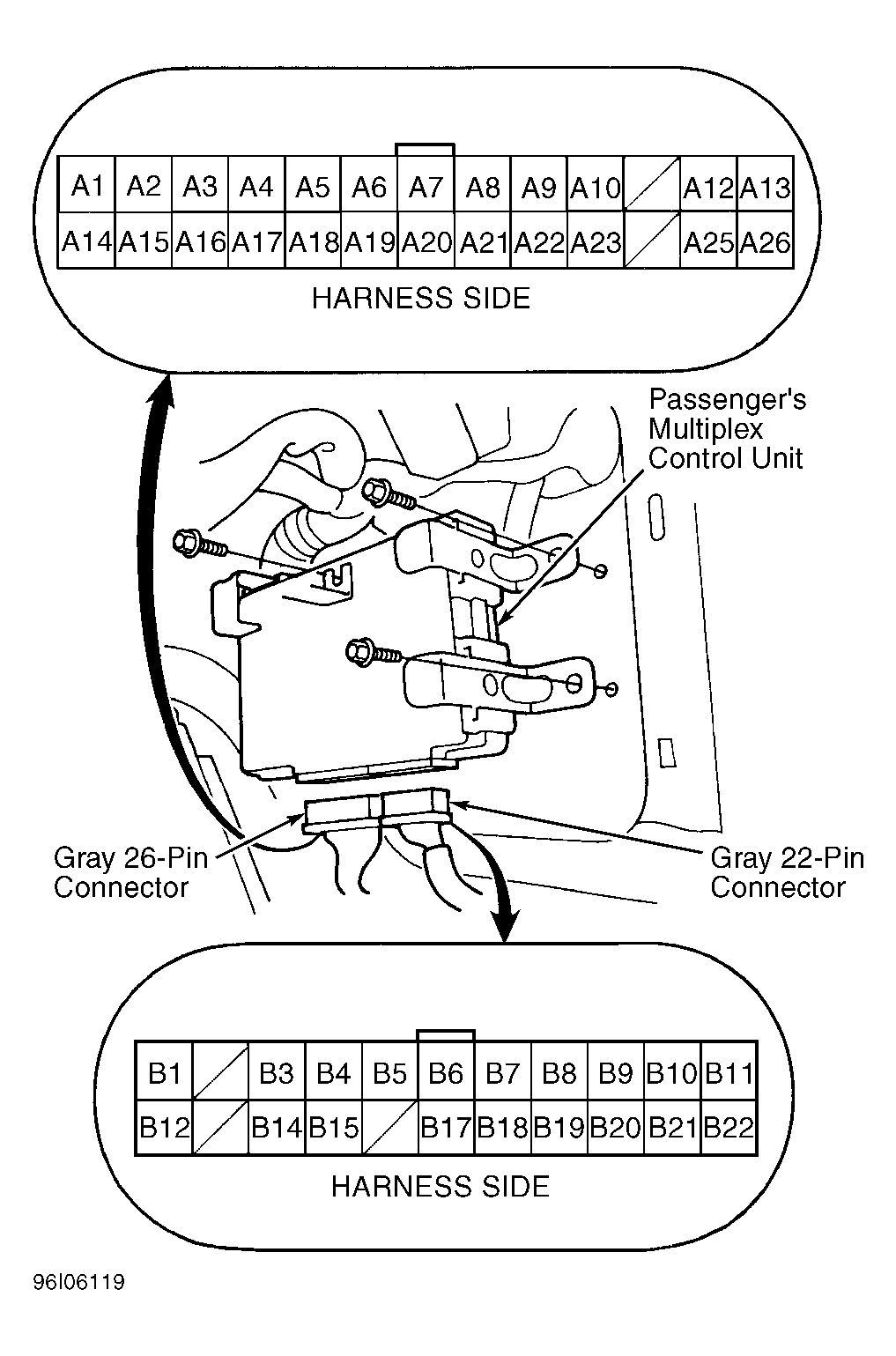

Fig 1: Passenger's Multiplex Control Unit Connector Terminals
G96I06119Courtesy of AMERICA HONDA MOTOR CO., INC.
PASSENGER'S MULTIPLEX CONTROL UNIT CONNECTOR TERMINAL ID

Terminal (Wire Color) (1) Circuit
Gray 26-Pin Connector
A1 (WHT/YEL) Battery Input
A2 (BLK) Ground
A3 (BLK) Ground
A4 (BLK/RED) Front Passenger Power Window Control
A5 (YEL) Trunk Opener Main Switch Input
A6 (YEL/BLU) Rear Defogger ON Input
A7 (GRN/ORG) Hood Switch Input
A8 (BLU) Audio Unit Input
A9 (RED/YEL) A-D Line
A10 (PNK/BLU) Wake-Up
A12 (WHT) Battery Input
A13 (WHT/RED) Driver's/ Left Rear Door Lock Control
A14 (YEL) Ignition Input
A15 (RED) Dim Control
A16 (BLK) Ground
A17 (BLU/BLK) Front Passenger Power Window Control
A18 (YEL/RED) Engine Oil Pressure Input
A19 (YEL/GRN) Rear Defogger ON Output
A20 (WHT/BLU) Engine Running Input
A21 (BLU/RED) Front Passenger Knob Switch Input
A22 (BRN/WHT) D-A Line
A23 (GRN/RED) Front Passenger Door Switch Input
A25 (LT GRN/BLK) Driver's Door Lock Control
A26 (YEL/RED) Left Rear Door Lock Control
Gray 22-Pin Connector
B1 (WHT/RED) Front Passenger/ Right Rear Door Lock Control
B3 (PNK/BLU) Trunk
B4 (RED/WHT) Lock
B5 (BLU/GRN) Trunk Latch Switch Input
B6 (YEL/GRN) Right Rear Power Window Control
B7 (RED/BLU) Right Rear Door Knob Switch Input
B8 (GRN/WHT) Front Passenger Door Lock Switch Input UNLOCK
B9 (GRN/RED) Front Passenger Door Lock Cylinder Switch Input UNLOCK
B10 (BLU/RED) Interior Light Control
B11 (WHT/BLK) Trunk Opener Solenoid Control
B12 (YEL/RED) Front Passenger/Right Rear Door Lock Control
B14 (YEL/BLK) PCM "C"
B15 (GRN) Unlock
B17 (YEL) Right Rear Power Window Control
B18 (GRN/ORG) Right Rear Door Switch Input
B19 (GRN/RED) Front Passenger Door Lock Switch Input LOCK
B20 (GRN/WHT) Front Passenger Door Lock Cylinder Switch Input LOCK
B21 (LT GRN/BLK) Courtesy Light Control
B22 (PNK/BLK) Multiplex Check Connector Input
(1) Terminals not listed are not used.
