Clearing Codes

NOTE: If procedure is not followed, SCS service connector is connected and/or parking brake is released during procedure, DTCs will not be cleared.

Turn ignition switch to OFF position. Set parking brake. Push and hold TCS ON/OFF switch and turn ignition switch to ON position. Hold TCS ON/OFF switch for 4-6 seconds and release. After 3 seconds, TCS indicator should go off and blink 2 times, and then stay on. DTCs are cleared if TCS indicator light operates as described. If TCS indicator light continues to blink, replace TCS control unit.

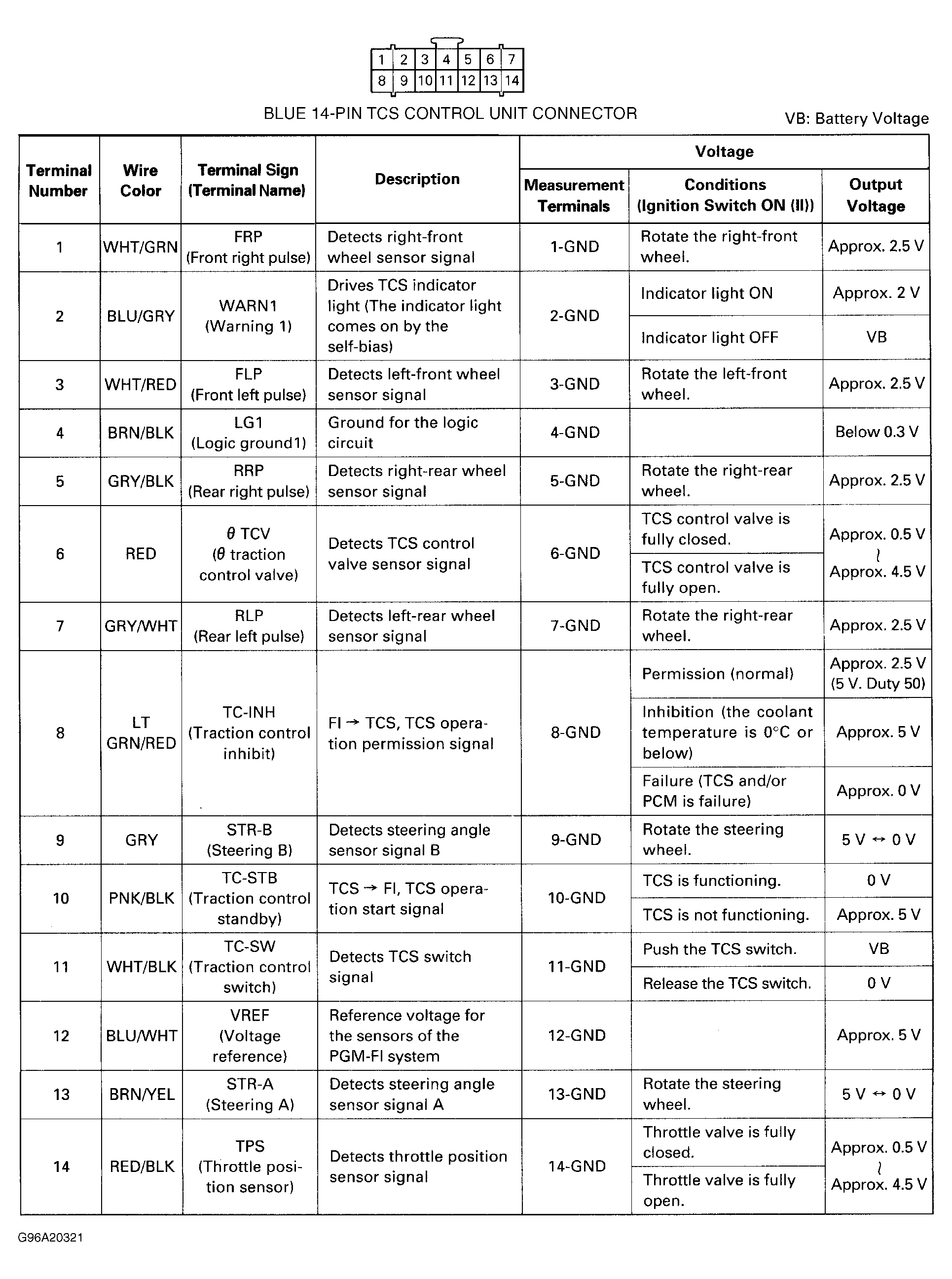

Fig 1: TCS Control Unit Connector Terminal Identification (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

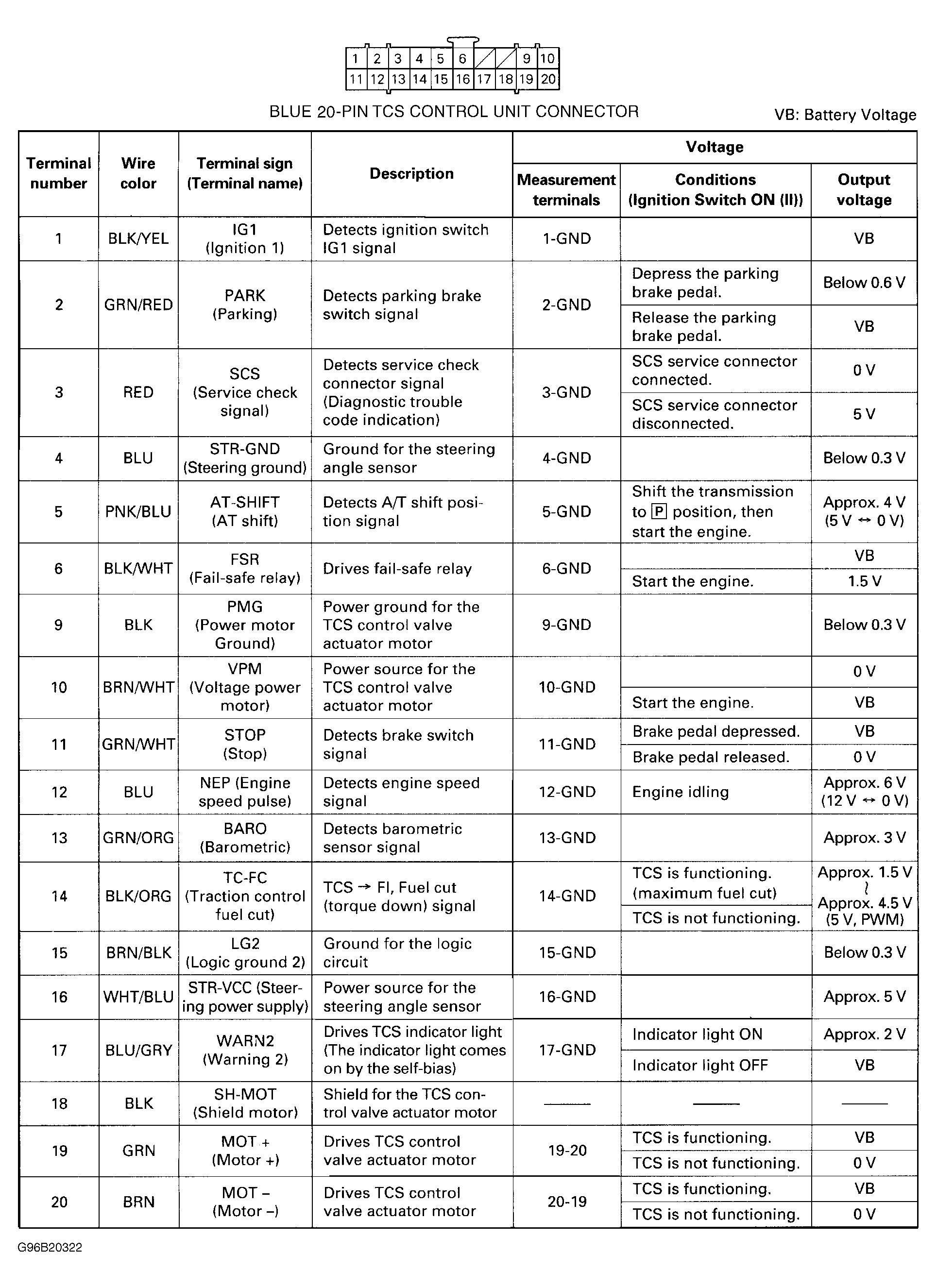

Fig 2: TCS Control Unit Connector Terminal Identification (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

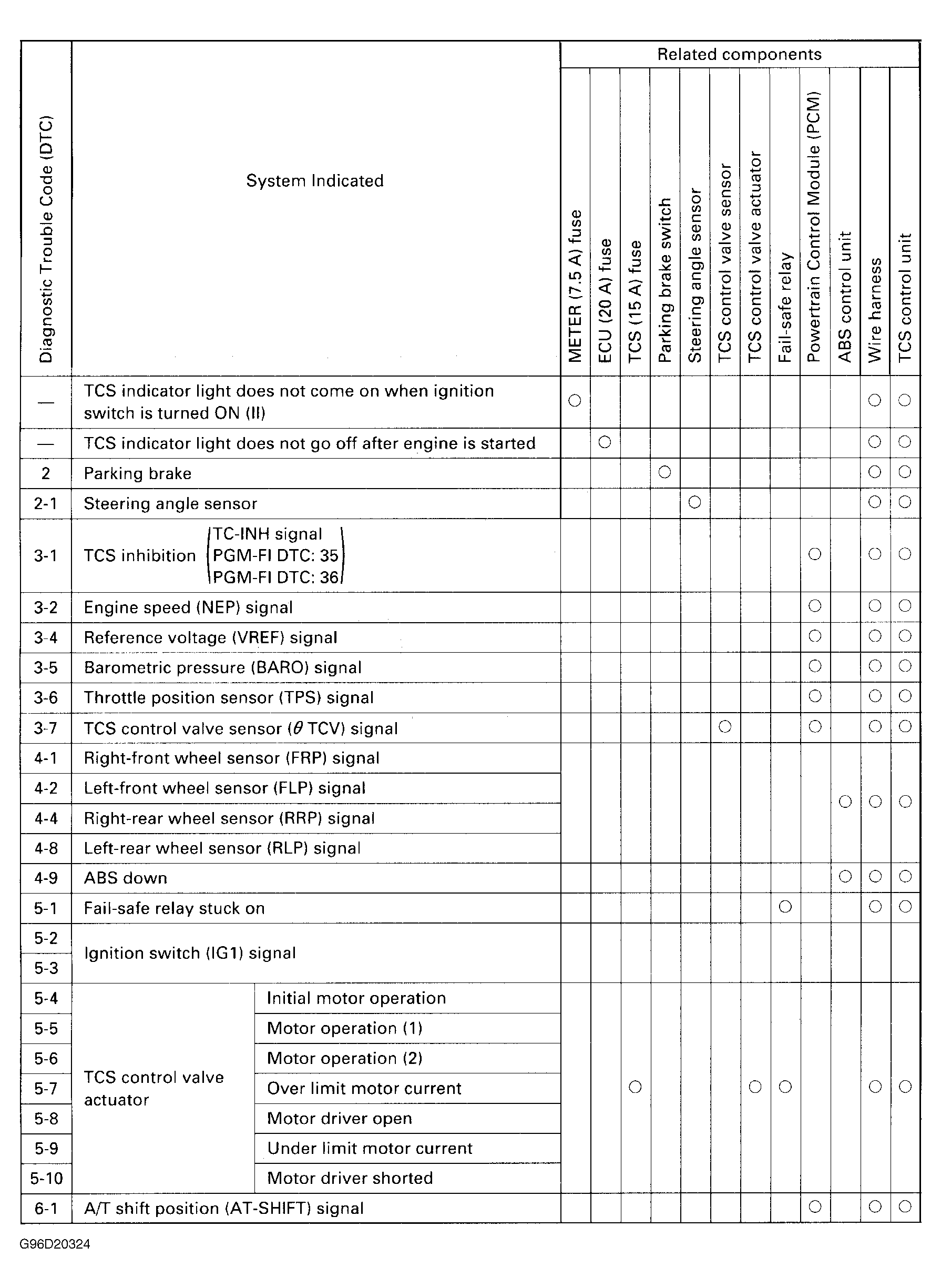

Fig 3: Self-Diagnostics & DTC Diagnosis Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
