DTC P1259 - VTEC System Malfunction
For test procedures, see
Fig 1
-
Fig 3
.

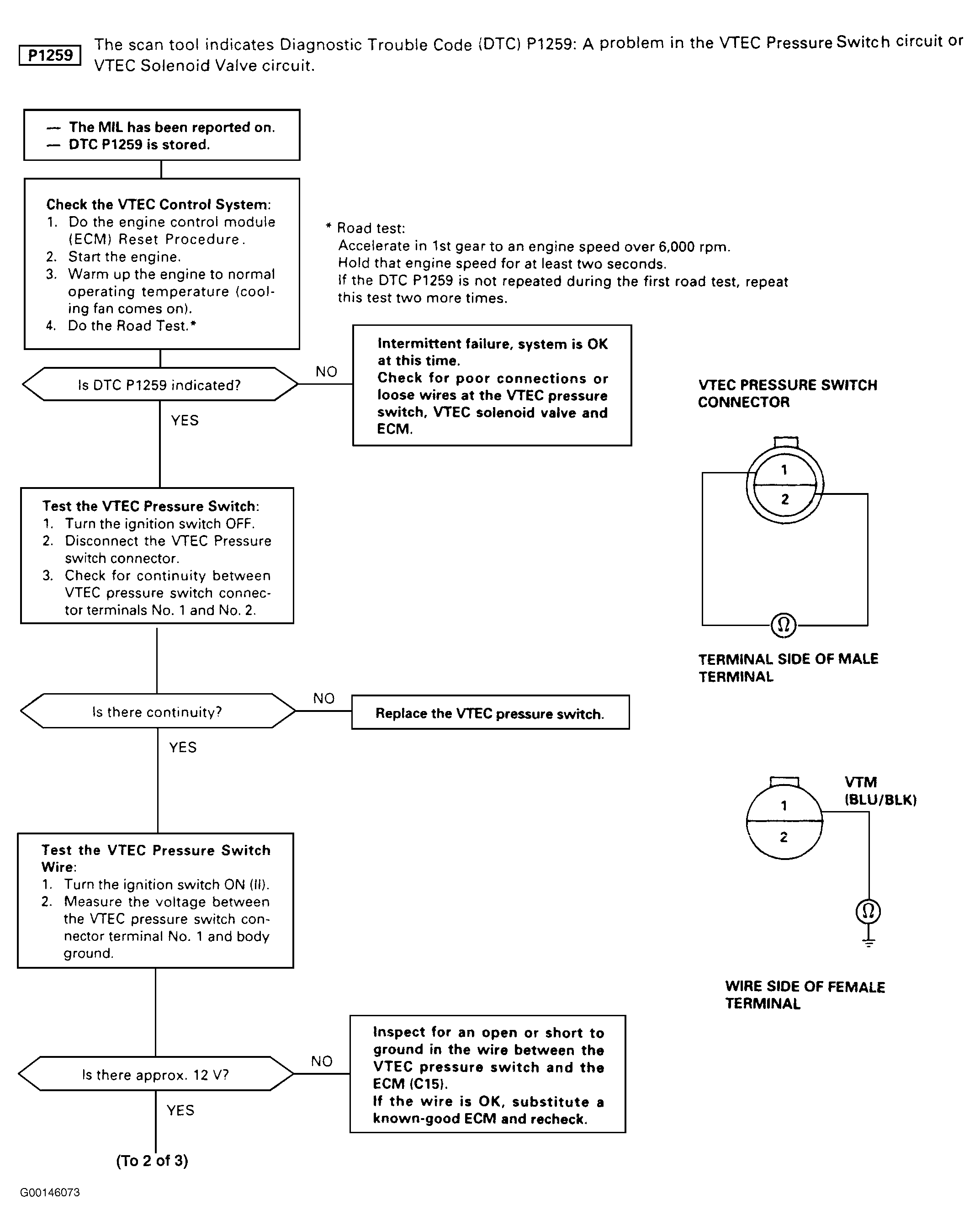

Fig 1: DTC 1259 - VTEC Pressure Switch Circuit Malfunction (1 Of 3)

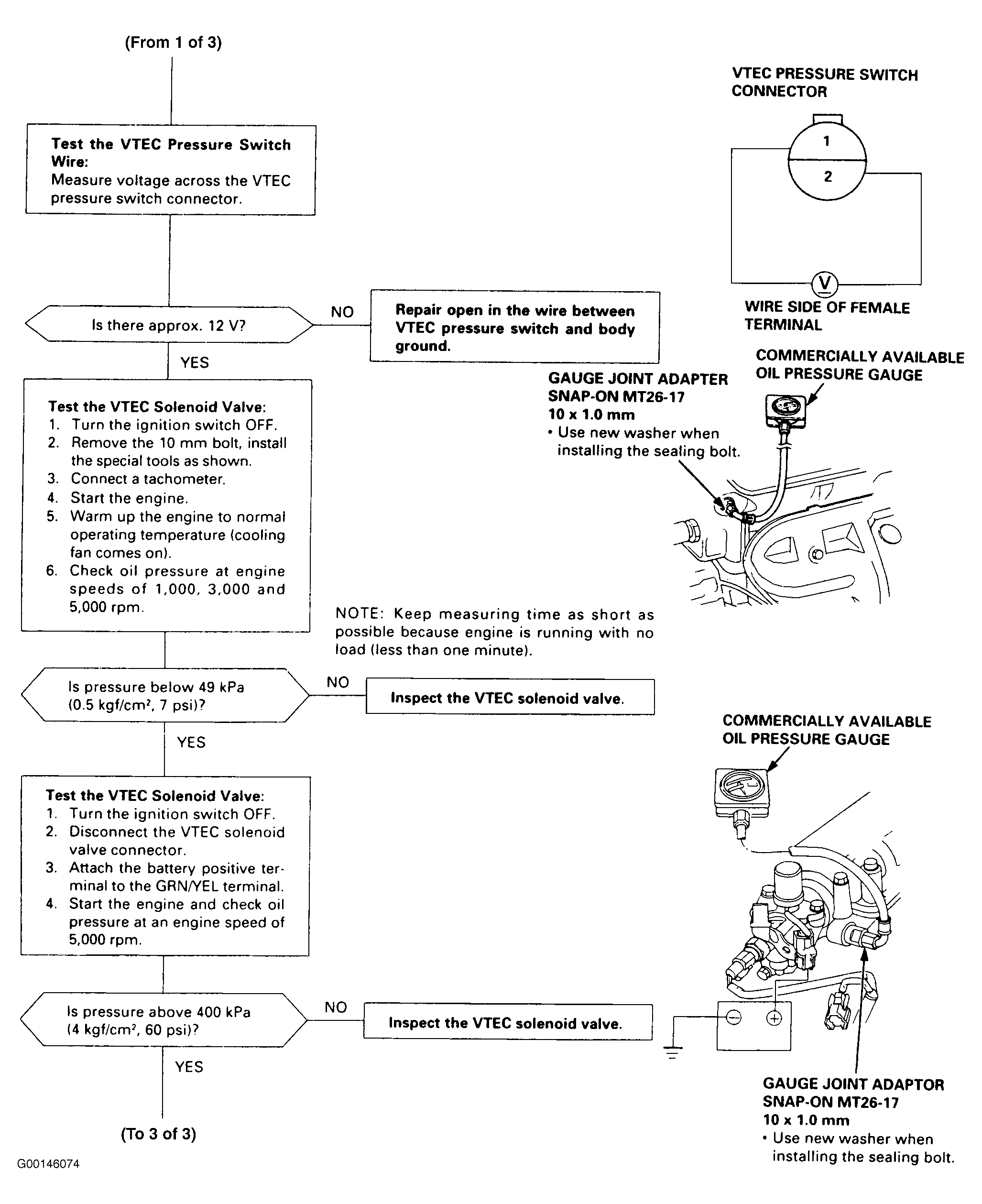

Fig 2: DTC 1259 - VTEC Pressure Switch Circuit Malfunction (2 Of 3)

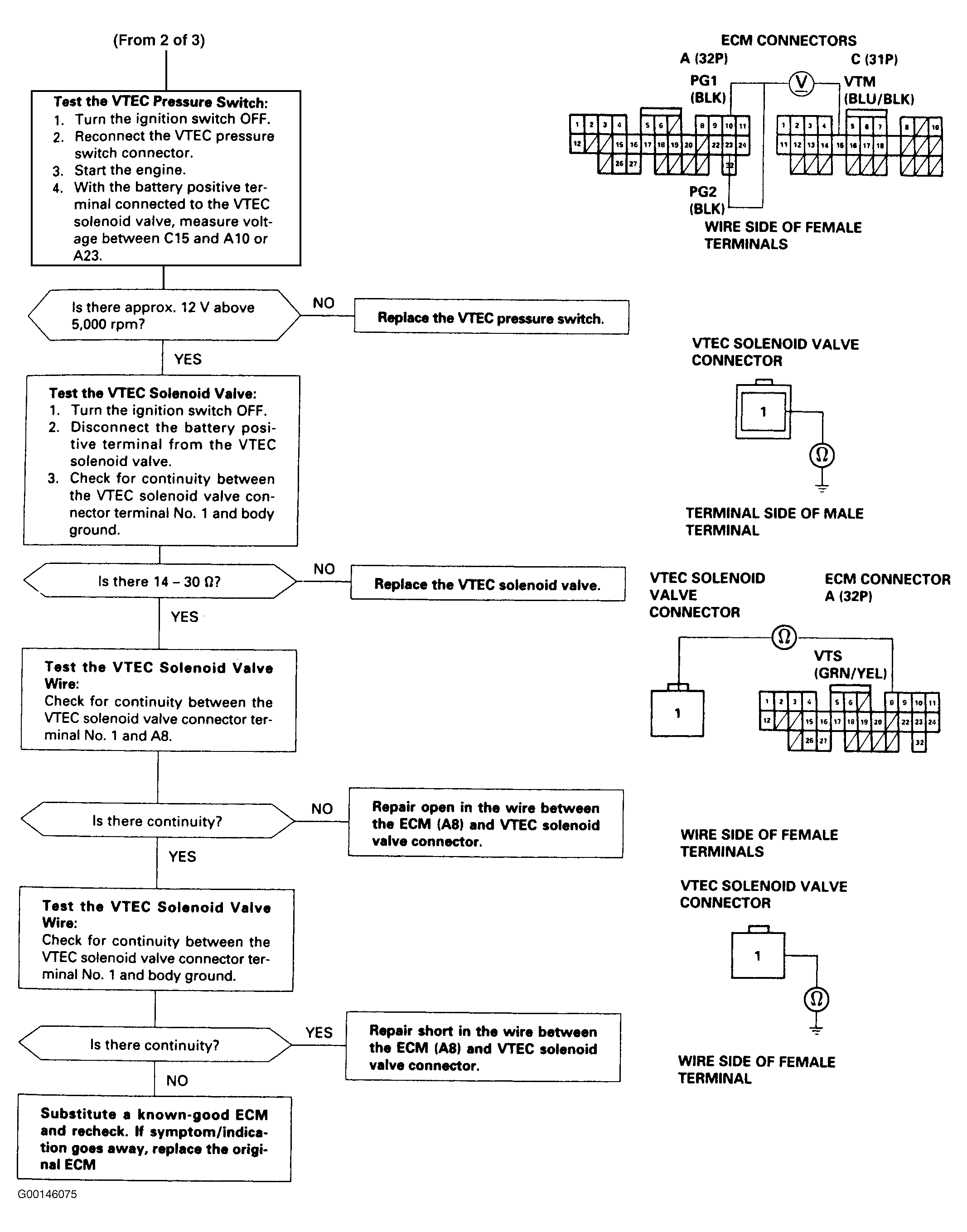

Fig 3: DTC 1259 - VTEC Pressure Switch Circuit Malfunction (3 Of 3)
