Passenger's Window Switch Test

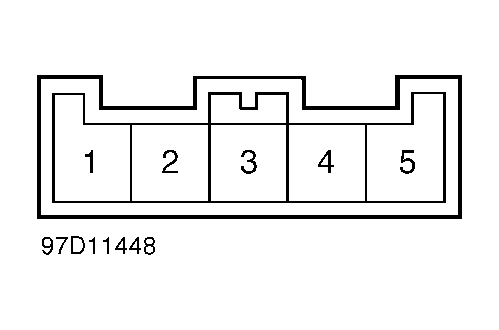

Disconnect connector from switch. See PASSENGER'S WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER'S POWER WINDOW SWITCH TEST table.
PASSENGER'S POWER WINDOW SWITCH TEST
| Window Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 3 & 4; 2 & 5 |
| Up | 1 & 4; 2 & 5 |
| Down | 1 & 2; 3 & 4 |
