Abs Modulator Unit: Installation

Ensure brake fluid level in reservoir is to MAX level. Slowly tilt ABS modulator unit suction port upward, about 45-degrees, to bleed air from suction port. To complete installation, reverse removal procedure. Bleed brake system. See BLEEDING BRAKE SYSTEM. Start engine and allow to idle a few minutes. Ensure ABS indicator light goes out and there are no brake fluid leaks. Stop engine and ensure brake fluid level in reservoir is filled to MAX level.

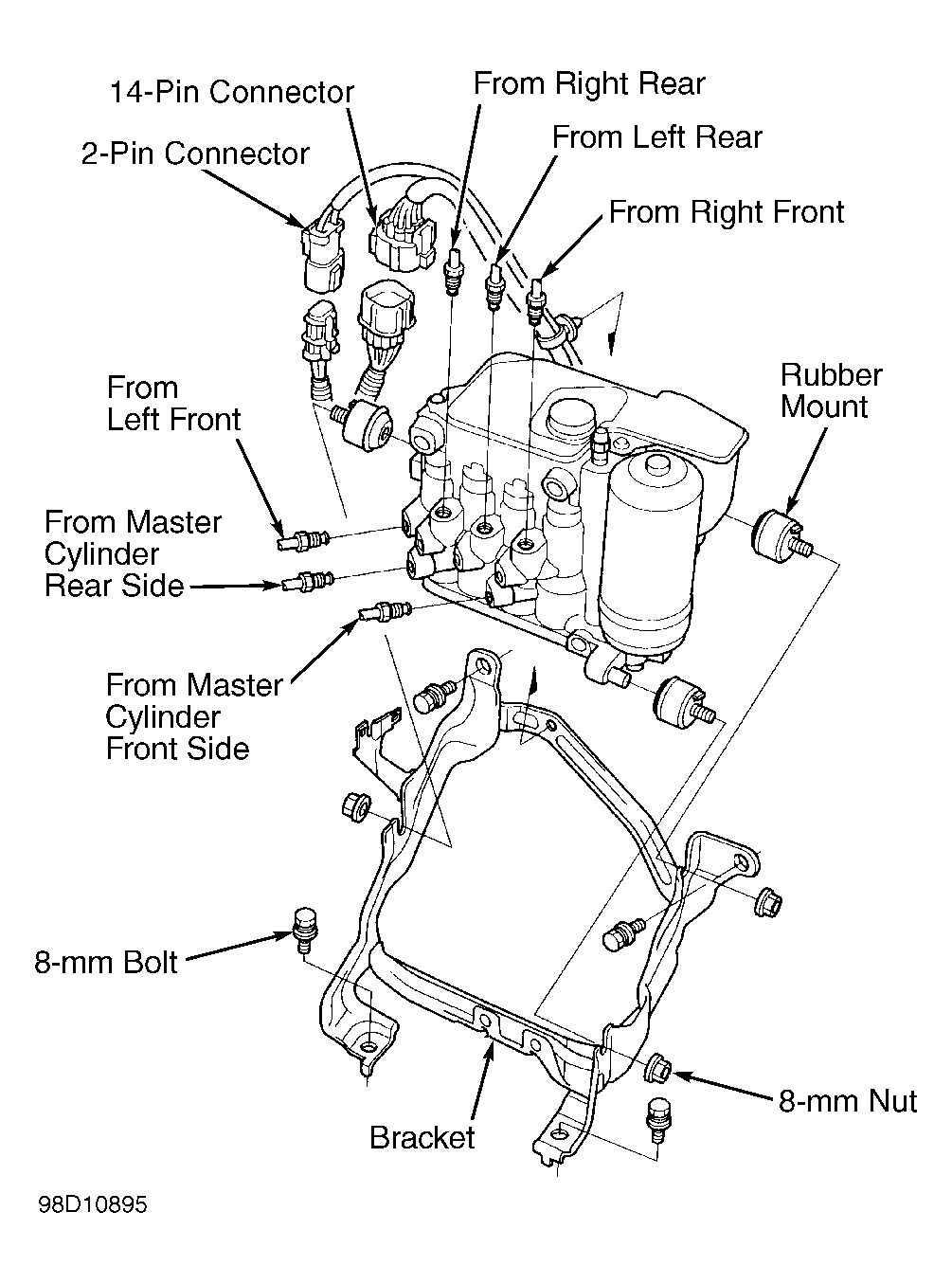

Fig 1: Locating ABS Modulator Unit Components (2.2CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

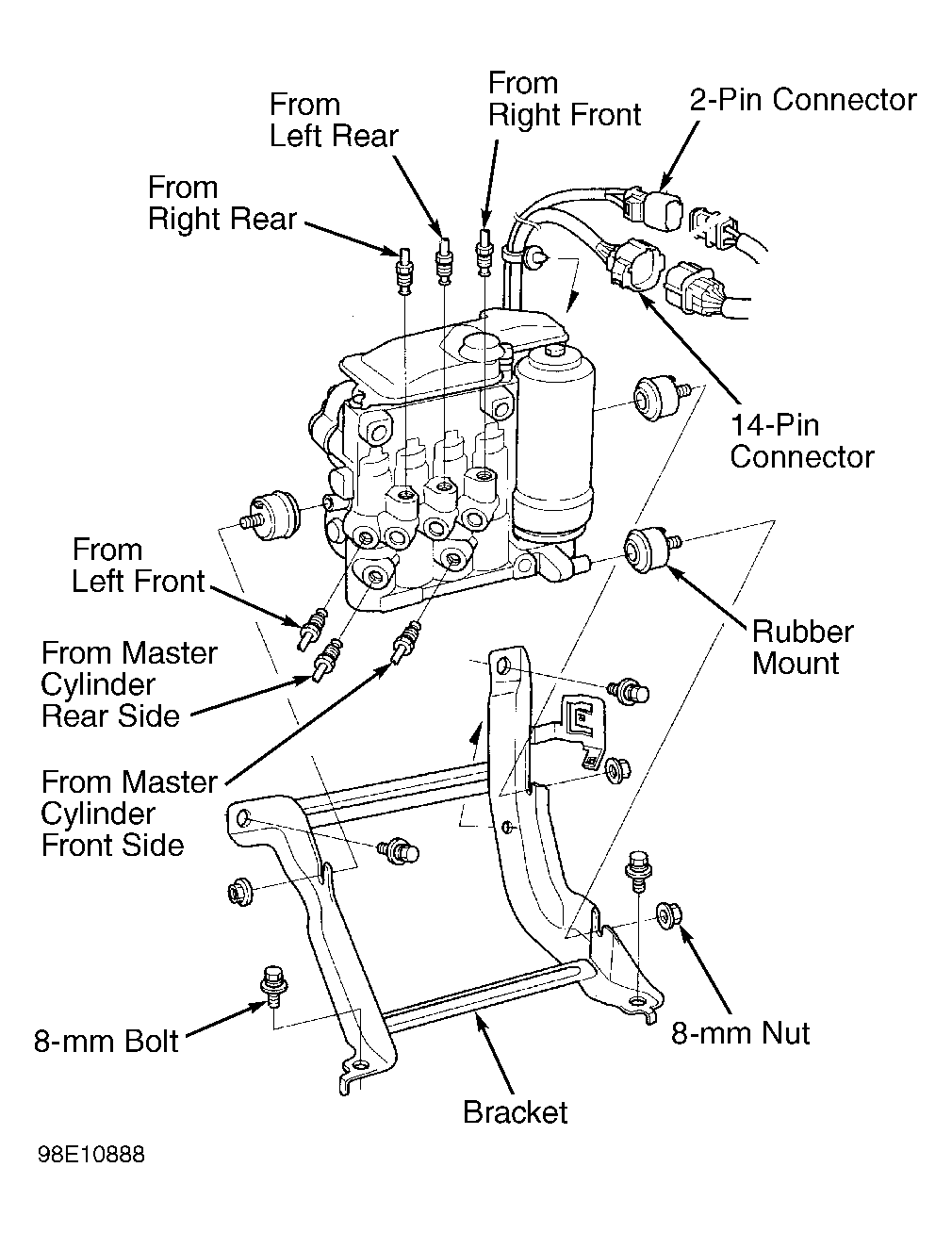

Fig 2: Locating ABS Modulator Unit Components (3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
