Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Auxiliary Fuse Holder On left side of underdash fuse/relay box.
Diode, A/C Taped to harness, near upper left kick panel.
Fog Lamp In-Line Fuse On battery bracket.
Underdash Fuse/Relay Box On left kick panel. See Figure .

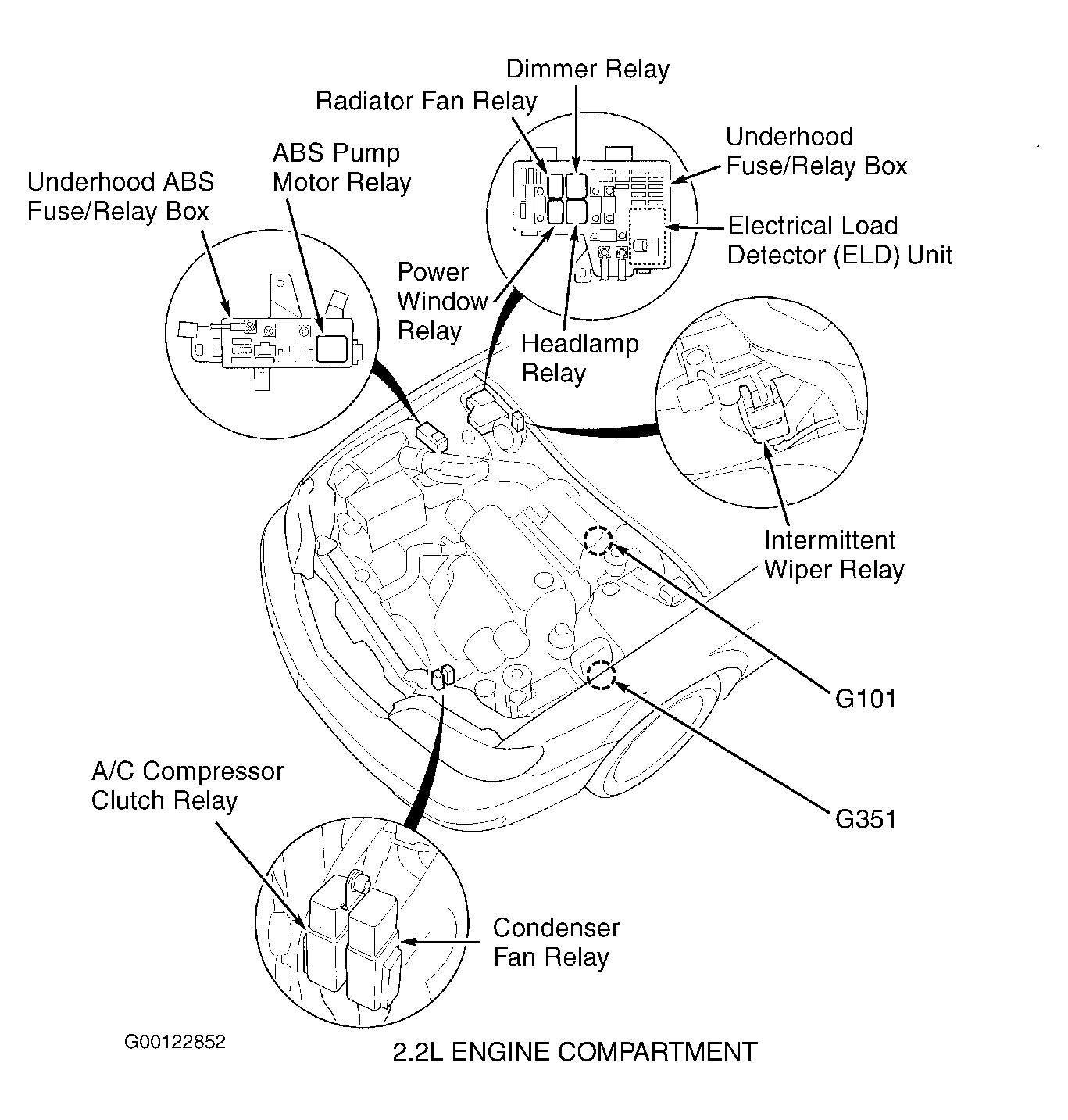

Underhood ABS Fuse/Relay Box (2.2L) On right side of engine compartment. See Figure .

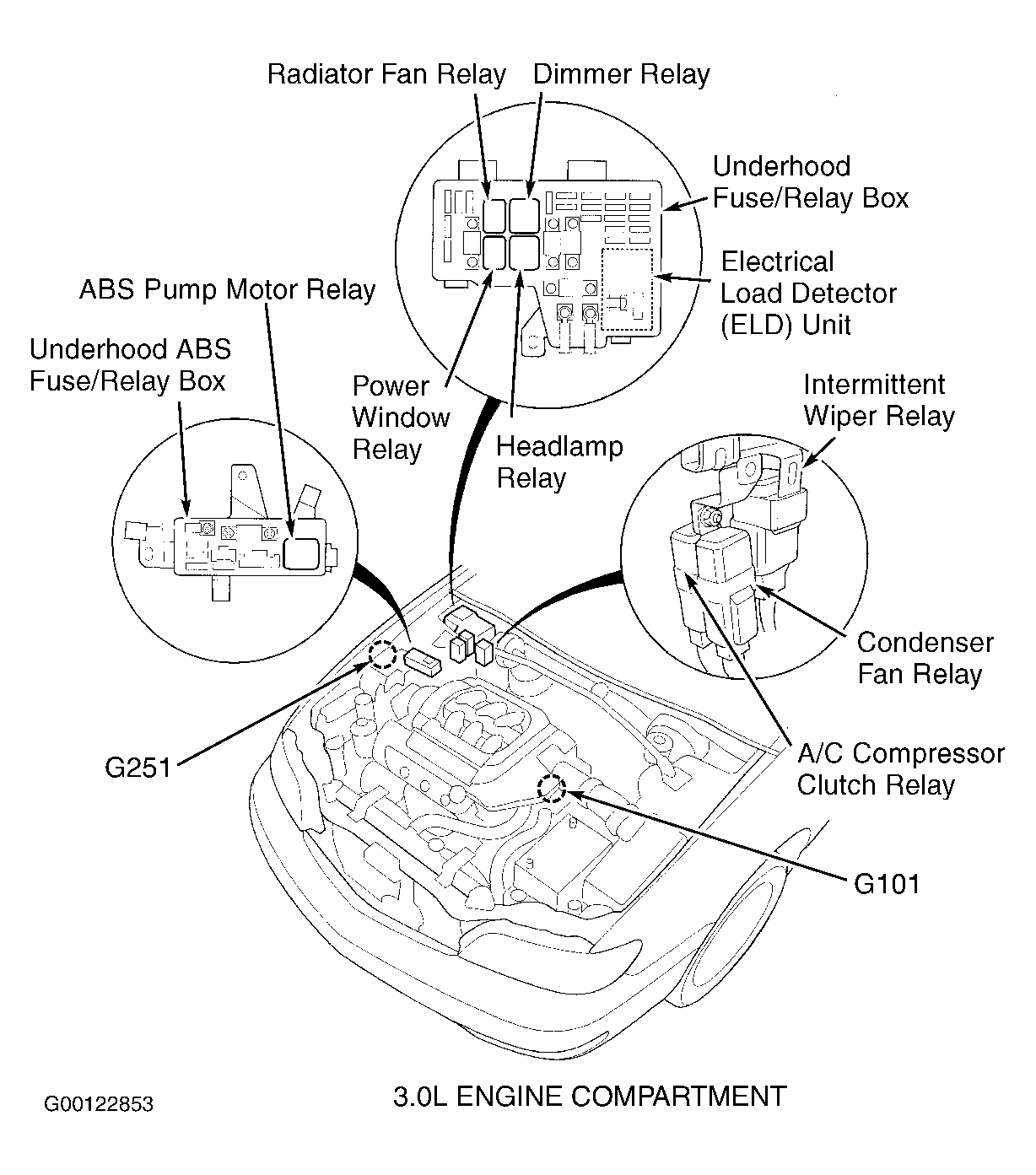

Underhood ABS Fuse/Relay Box (3.0L) On right side of engine compartment. See Figure .
Underhood Fuse/Relay Box (2.2L) On right side of engine compartment. See Figure .
Underhood Fuse/Relay Box (3.0L) On right side of engine compartment. See Figure .
