Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

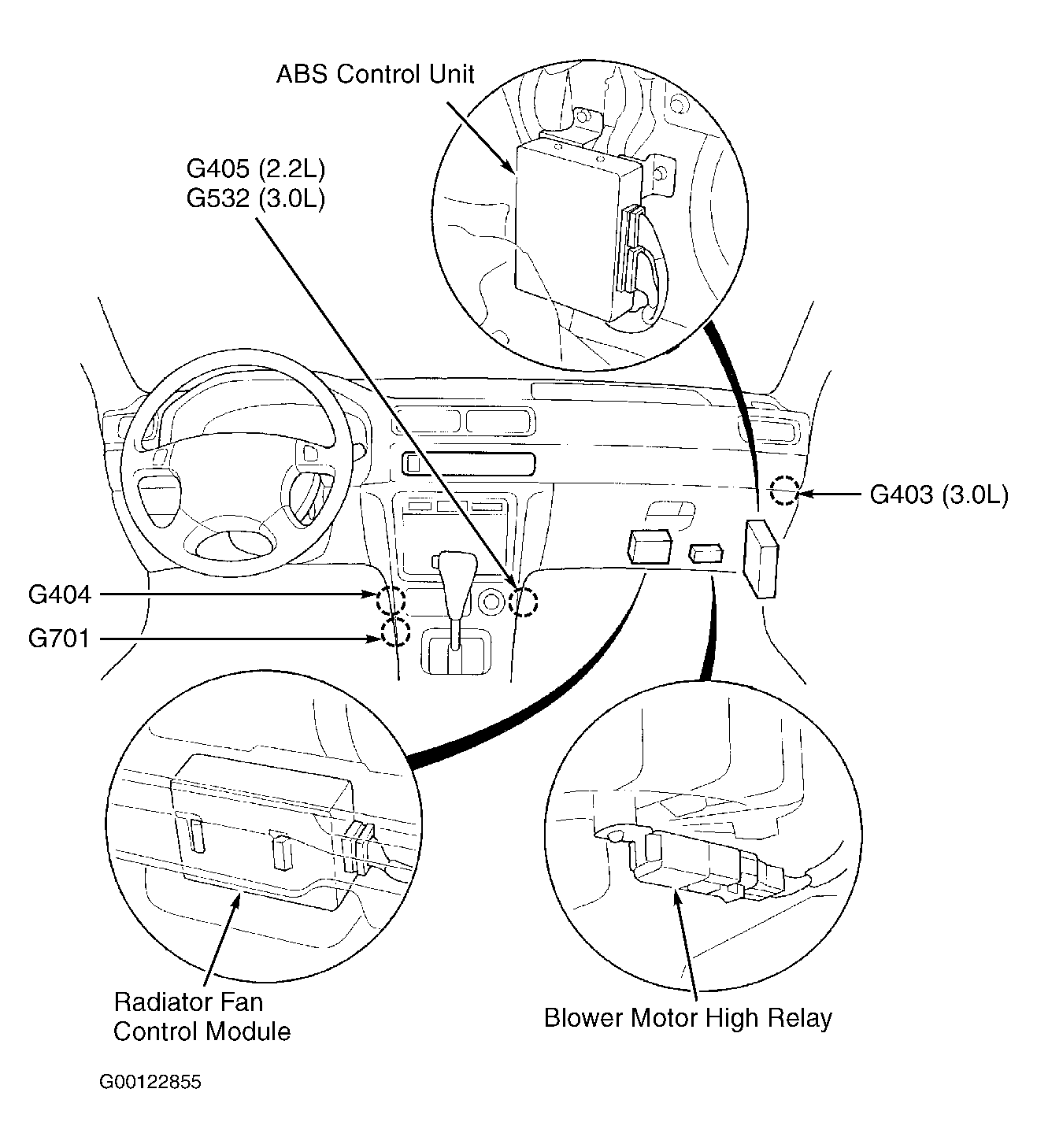

| ABS Control Unit | On right kick panel. See Figure . |
| ABS Modulator Unit (2.2L) | On left front corner of engine compartment. |
| ABS Modulator Unit (3.0L) | On right front corner of engine compartment. |

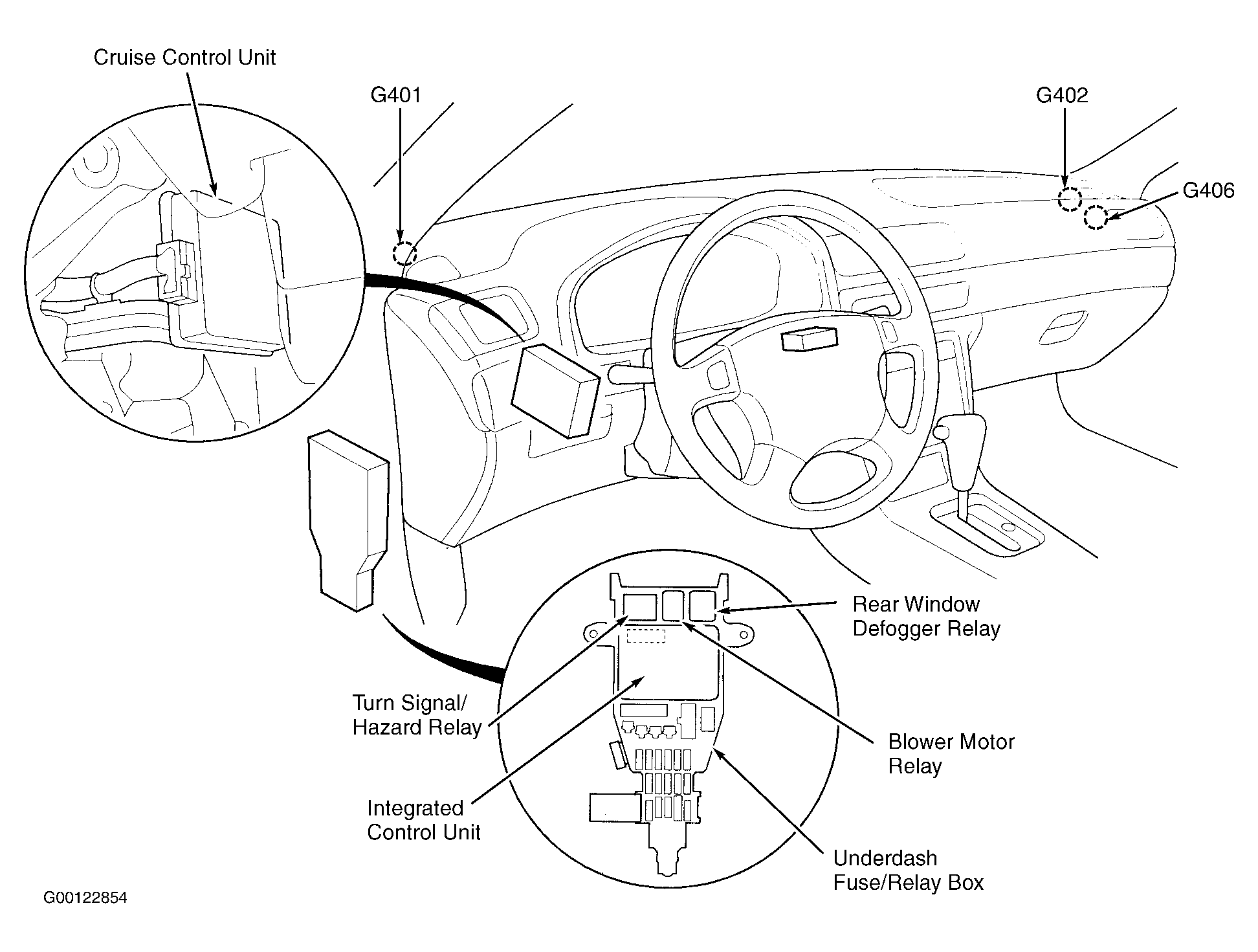

| Cruise Control Unit | Behind left side of dash. See Figure . |
| Daytime Running Lamps Control Unit (Canada) | Behind left side of dash. See Figure . |
| Engine Control Module (ECM) (2.2L M/T) | On underside of right front footrest. See Figure . |
| Engine Control Module (ECM) (3.0L) | On underside of right front footrest. See Figure . |
| Integrated Control Unit | On rear of underdash fuse/relay box. See Figure . |

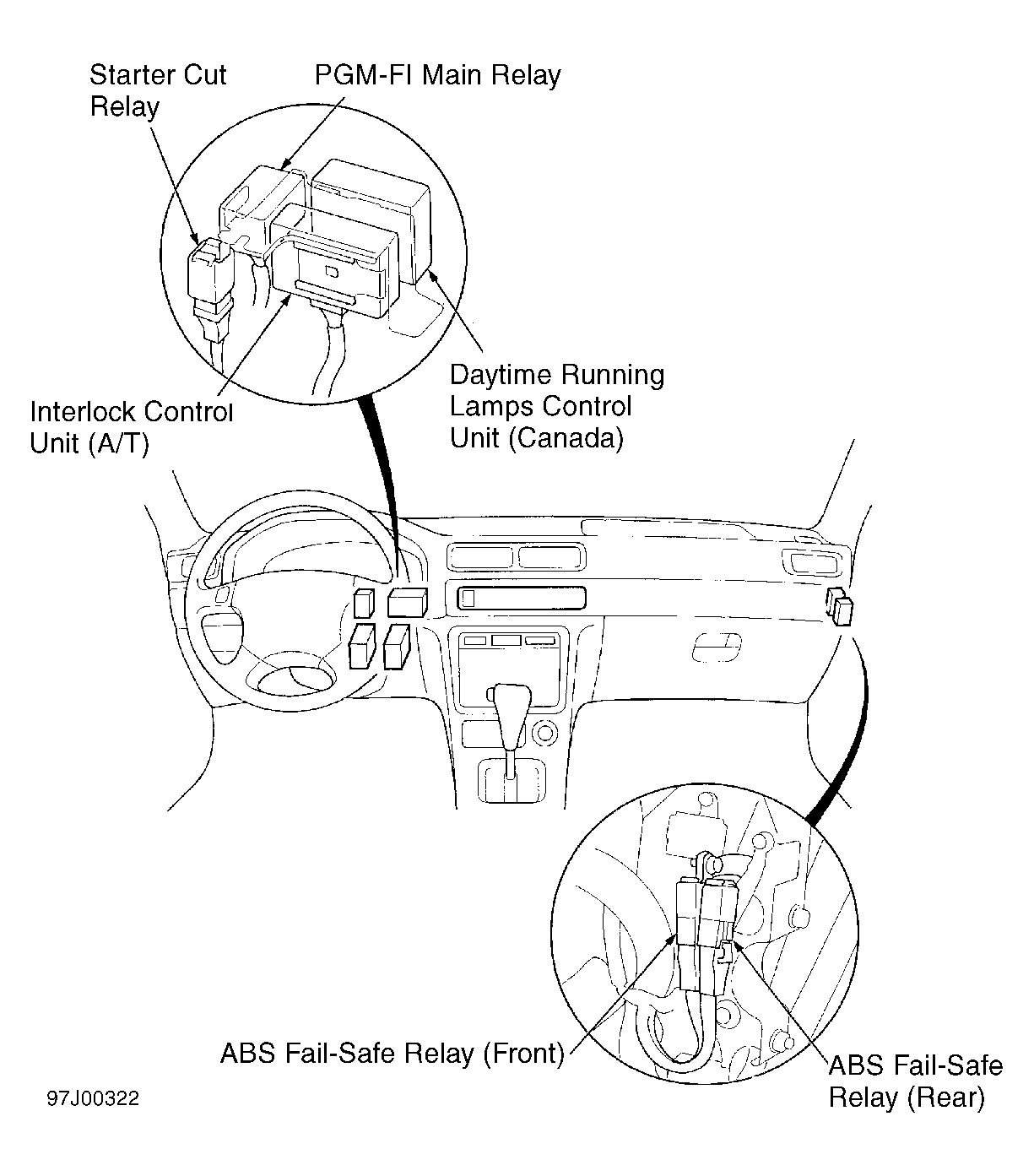

| Interlock Control Unit (A/T) | Behind left side of dash. See Figure . |
| Keyless/Security Control Unit | Below front passenger's seat. See Figure . |
| Moon Roof Control Unit | On center rear underside of roof. |
| Powertrain Control Module (PCM) (2.2L A/T) | On underside of right front footrest. See Figure . |
| Power Seat Control Unit | On underside of driver's seat. |
| Radiator Fan Control Module | Behind right side of dash. See Figure . |

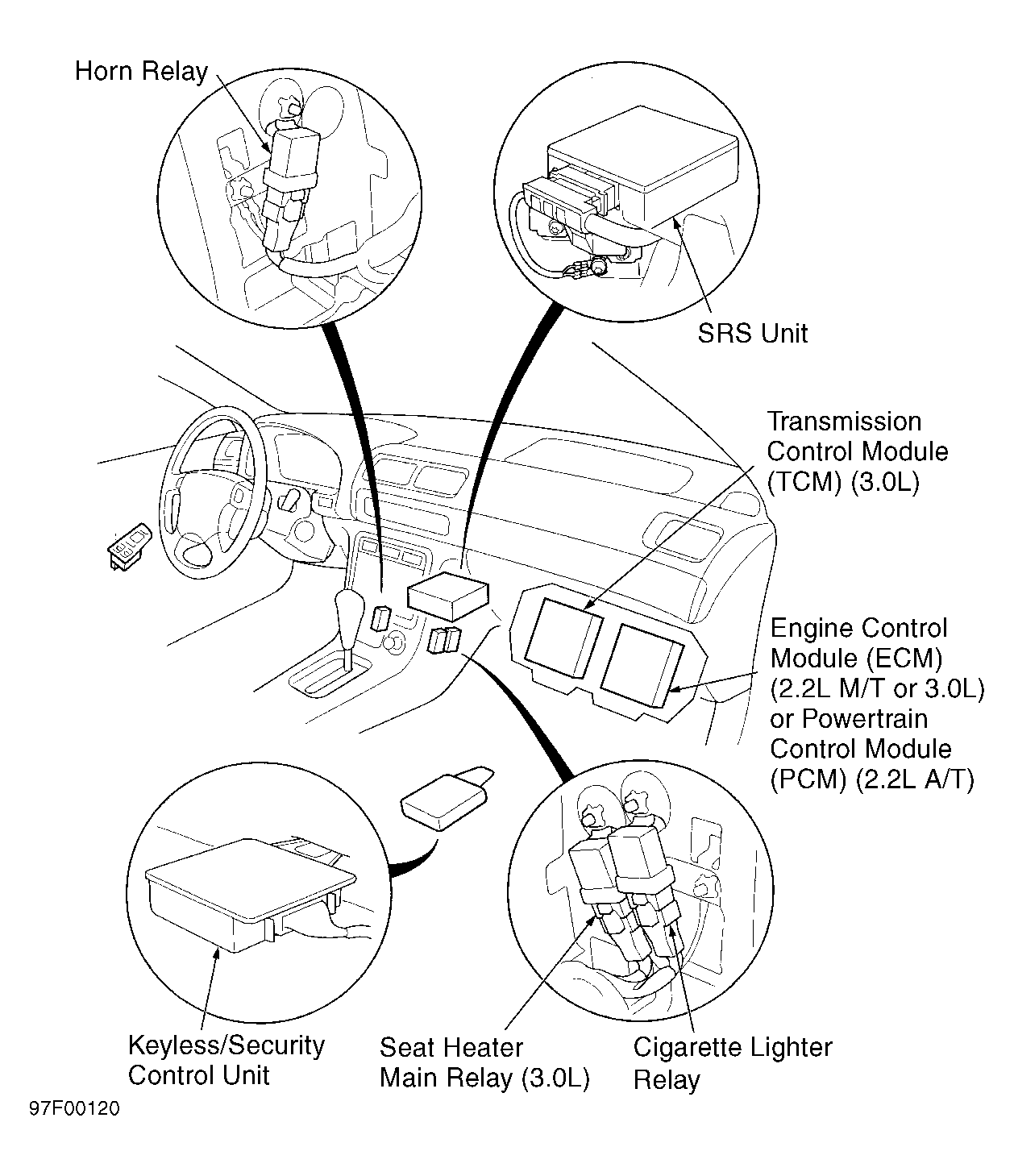

| SRS Unit | Below center of dash. See Figure . |
| Transmission Control Module (TCM) (3.0L) | On underside of right front footrest. See Figure . |
