The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 3
.

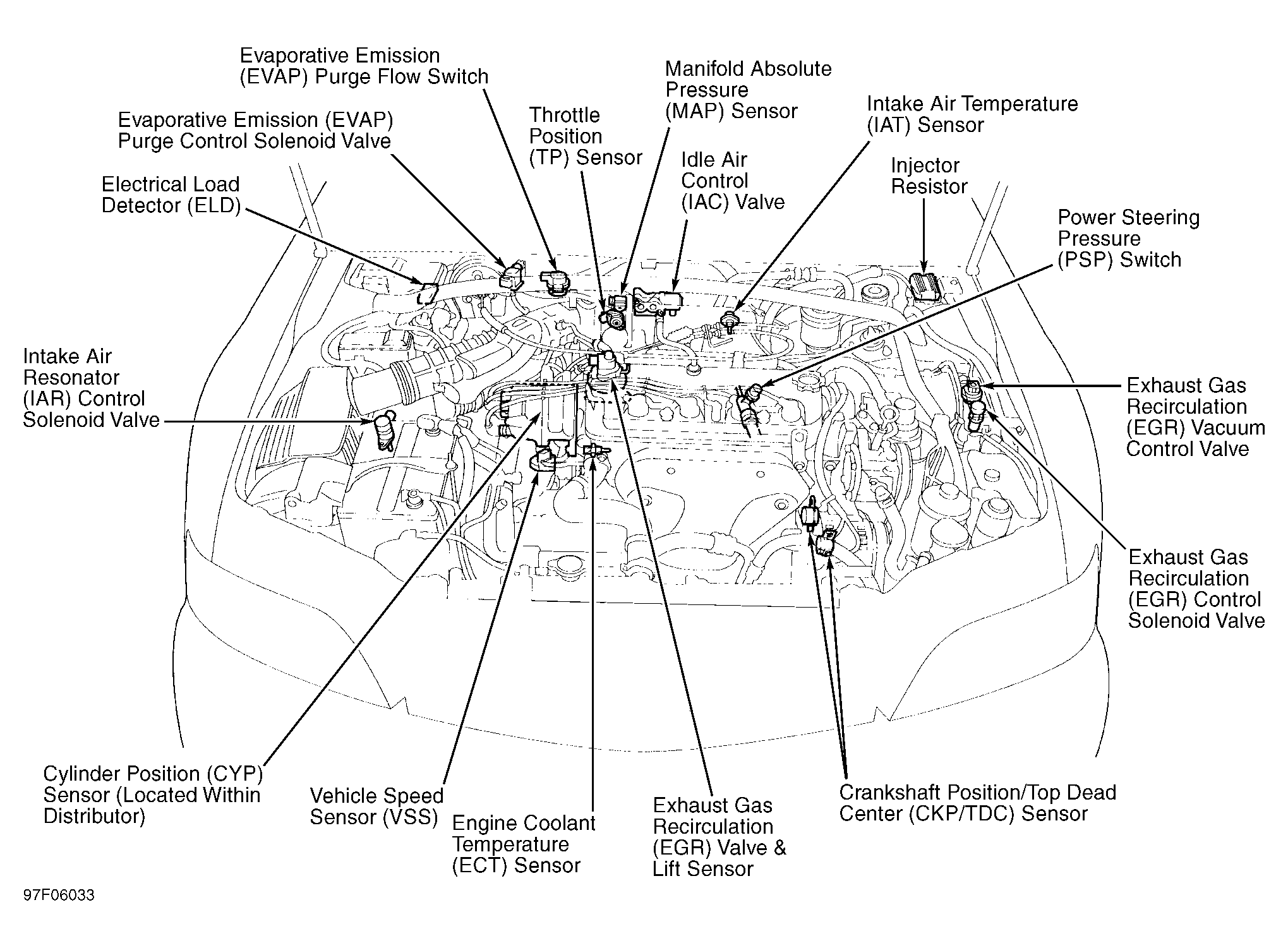

Fig 1: Locating Engine Performance-Related Components (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

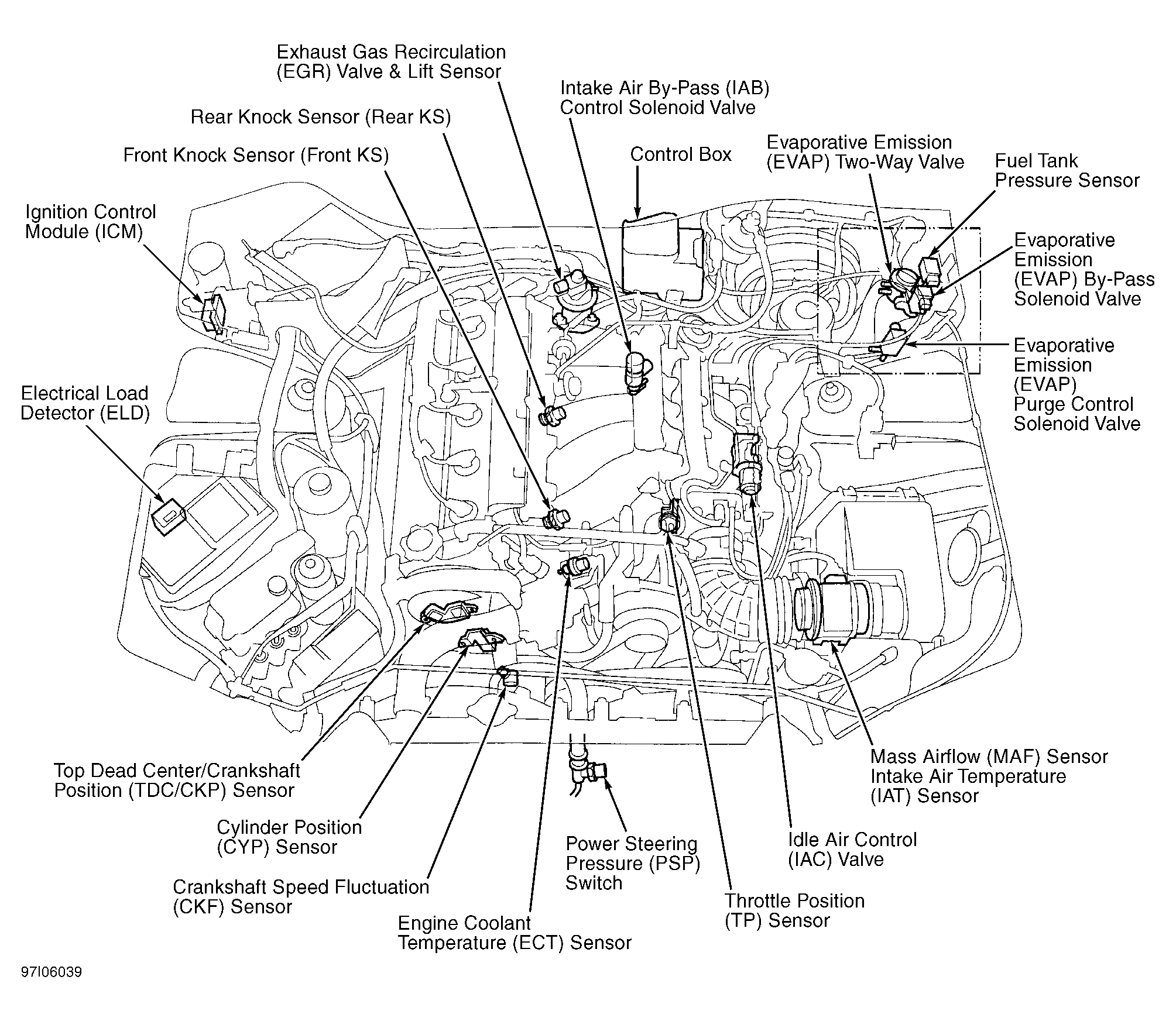

Fig 2: Locating Engine Performance-Related Components (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

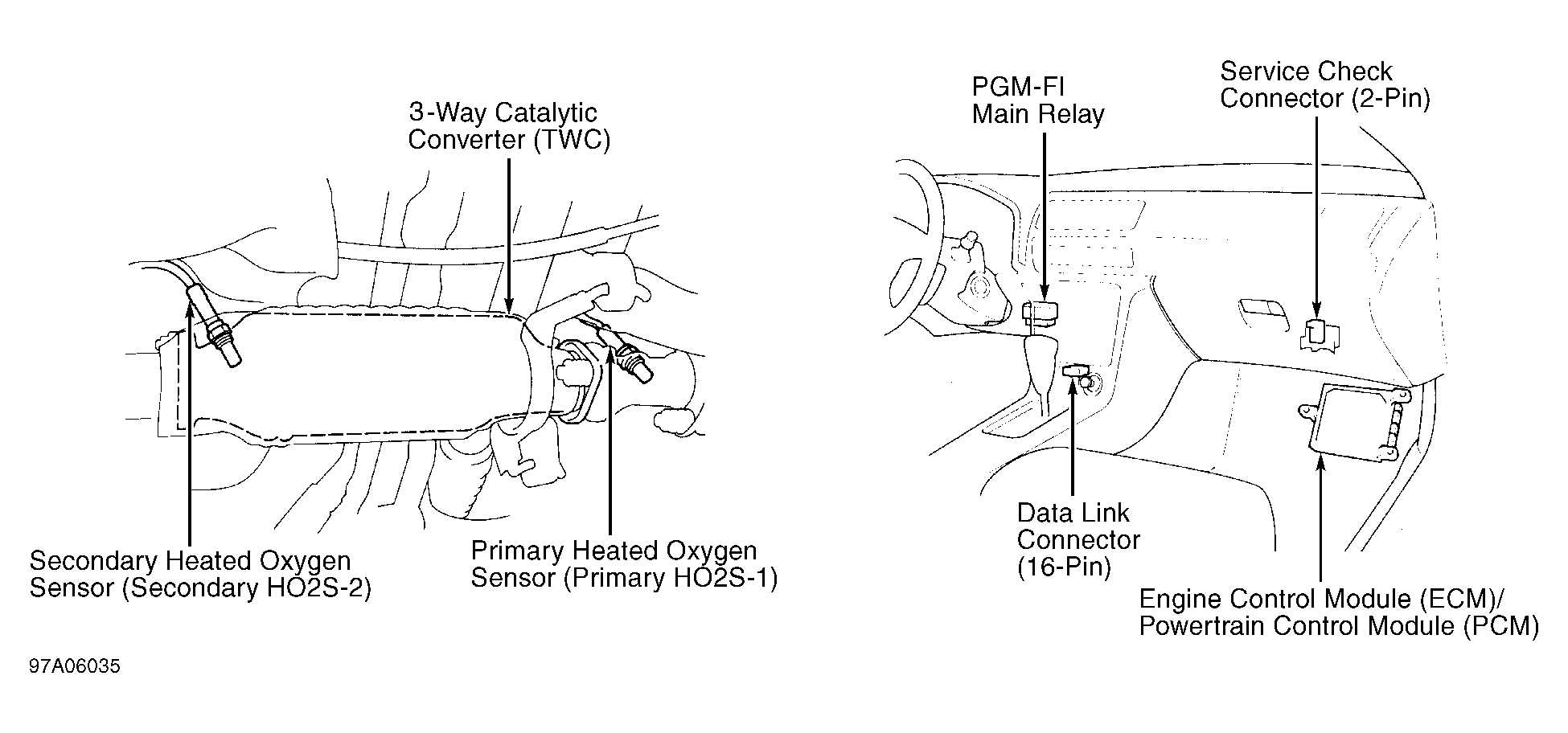

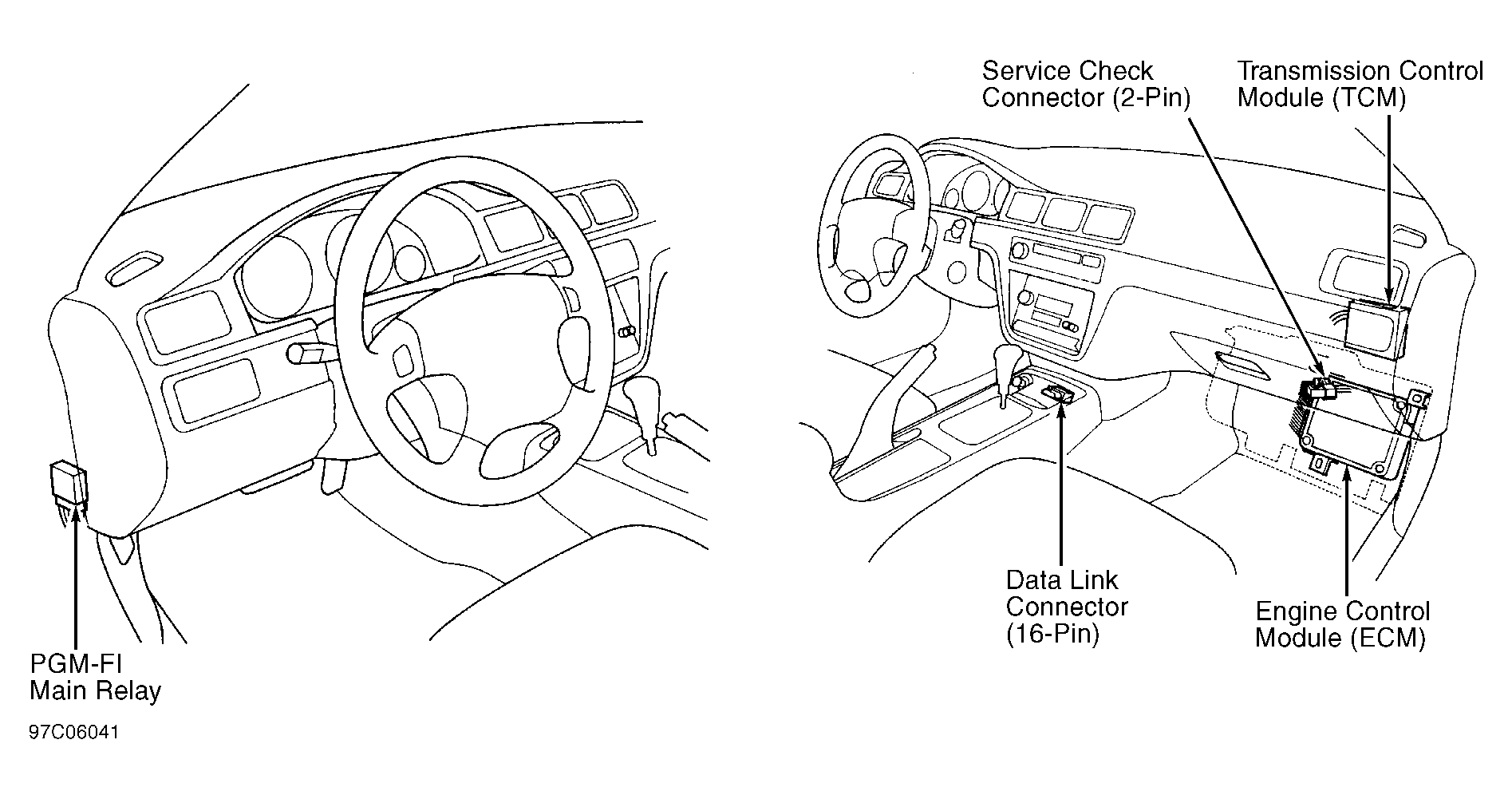

Fig 3: Locating Engine Performance-Related Components (3 Of 3)
