Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind glove box. See Figure . |
| ABS Modulator Unit | On lower right front corner of engine compartment. |
| Cruise Control Unit | Behind dash, left of steering column. See Figure . |

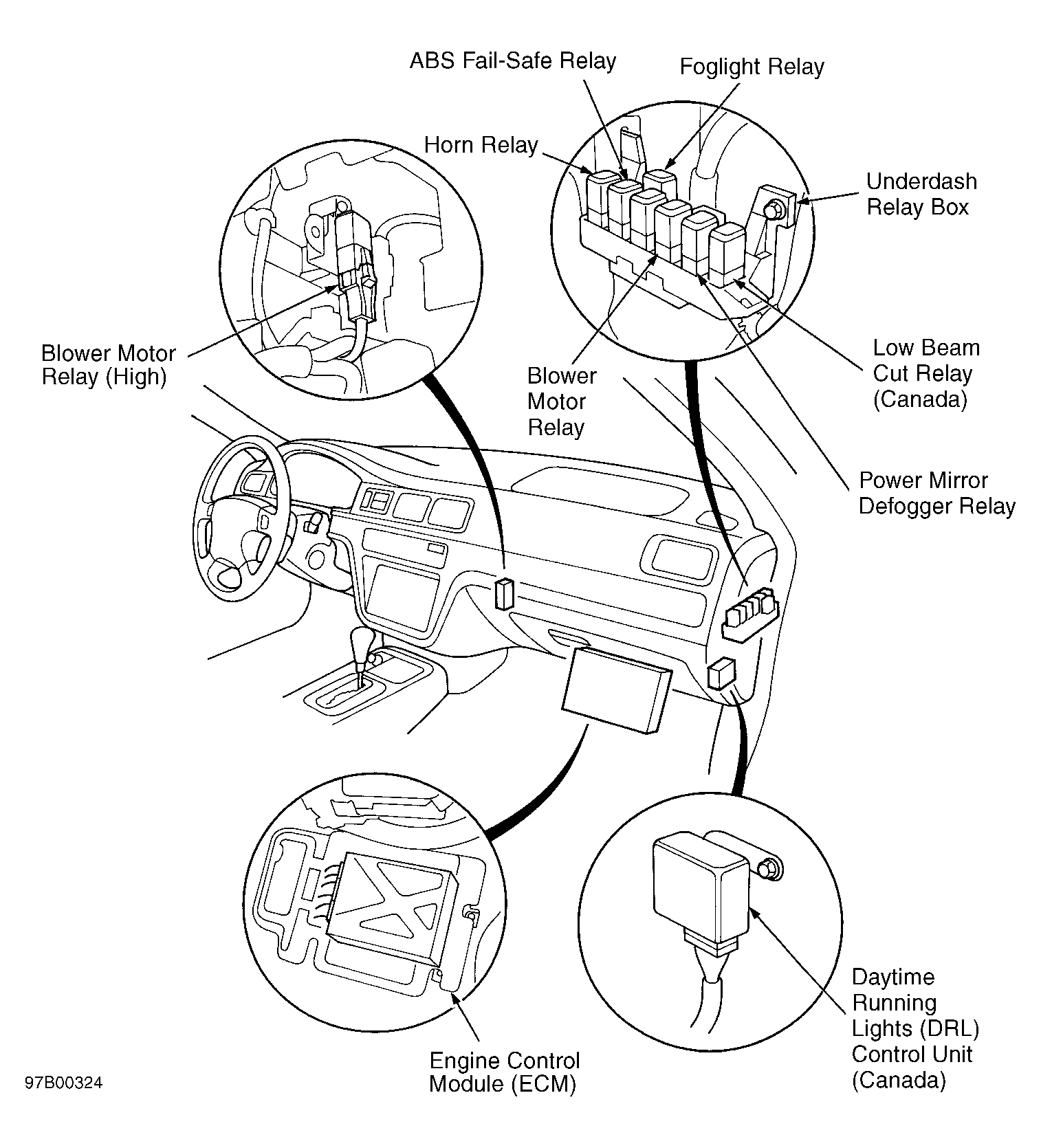

| Daytime Running Lamps (DRL) Control Unit (Canada) | Behind right side of dash. See Figure . |
| Engine Control Module (ECM) | Below right front footrest. See Figure . |

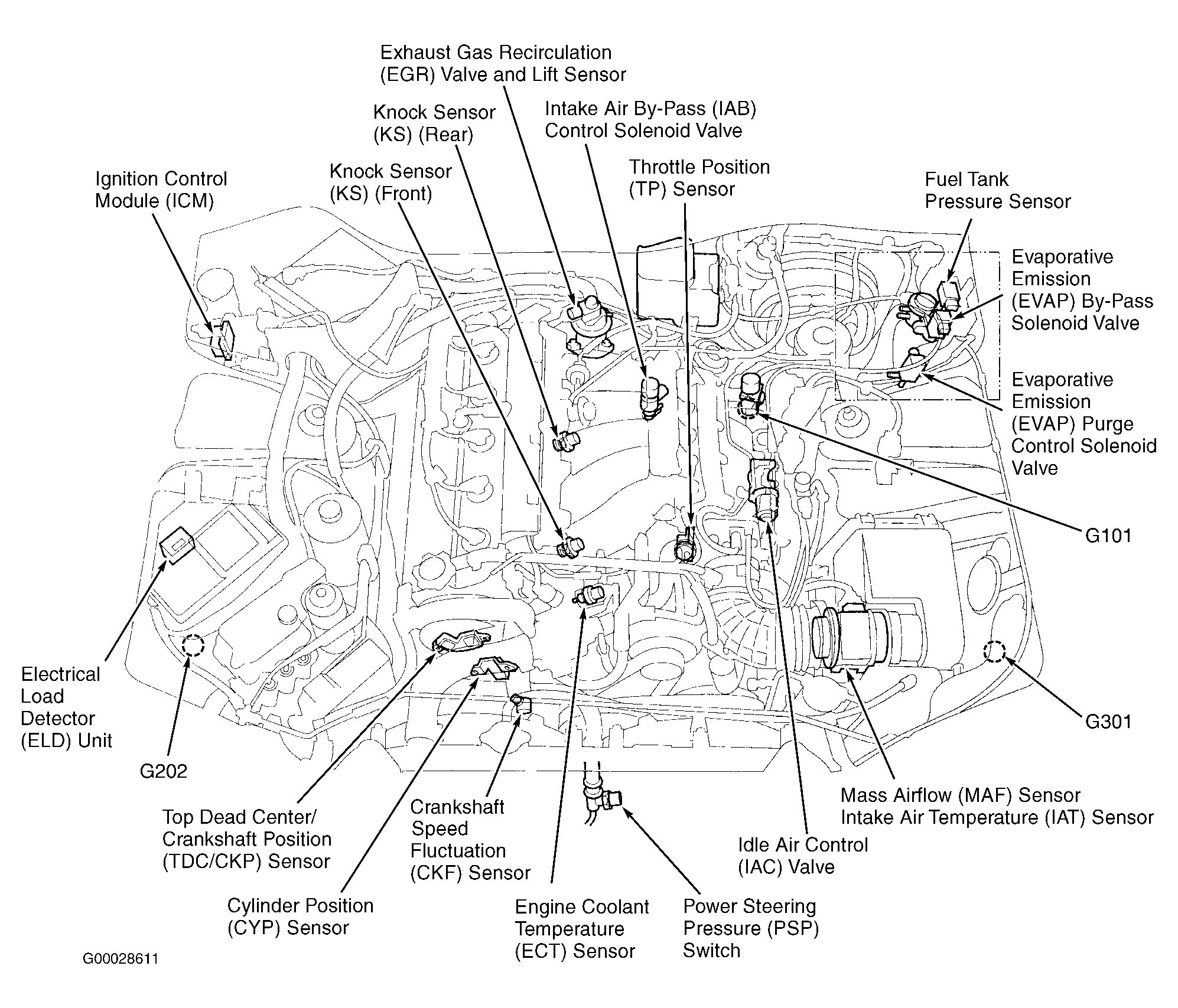

| Ignition Control Module (ICM) | On right rear corner of engine compartment. See Figure . |
| Integrated Control Unit | On rear of underdash fuse/relay box. See Figure . |
| Interlock Control Unit | Behind dash, left of steering column. See Figure . |
| Power Door Lock Control Unit | In driver's door. |
| Radiator Fan Control Module | Behind glove box, behind ABS control unit. See Figure . |
| Security Control Unit | Behind glove box, behind ABS control unit. See Figure . |
| SRS Unit | Behind center of dash, below radio. See Figure . |
| Transmission Control Module (TCM) | Behind glove box, behind ABS control unit. See Figure . |
