Trouble Shooting: Notes

WARNING: All models are equipped with air bag system. To avoid injury from accidental air bag deployment, read and carefully follow all WARNINGS and SERVICE PRECAUTIONS. See AIR BAG RESTRAINT SYSTEM article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

NOTE: Ensure all component terminals and ground connections are clean and tight. Check possible faults in order listed. Repair or replace components and circuits as necessary. Some wires have been assigned a superscript to distinguish them from other wires of the same color. For example, the Yellow/Green(1) wire is not the same as the Yellow/Green(2) wire.

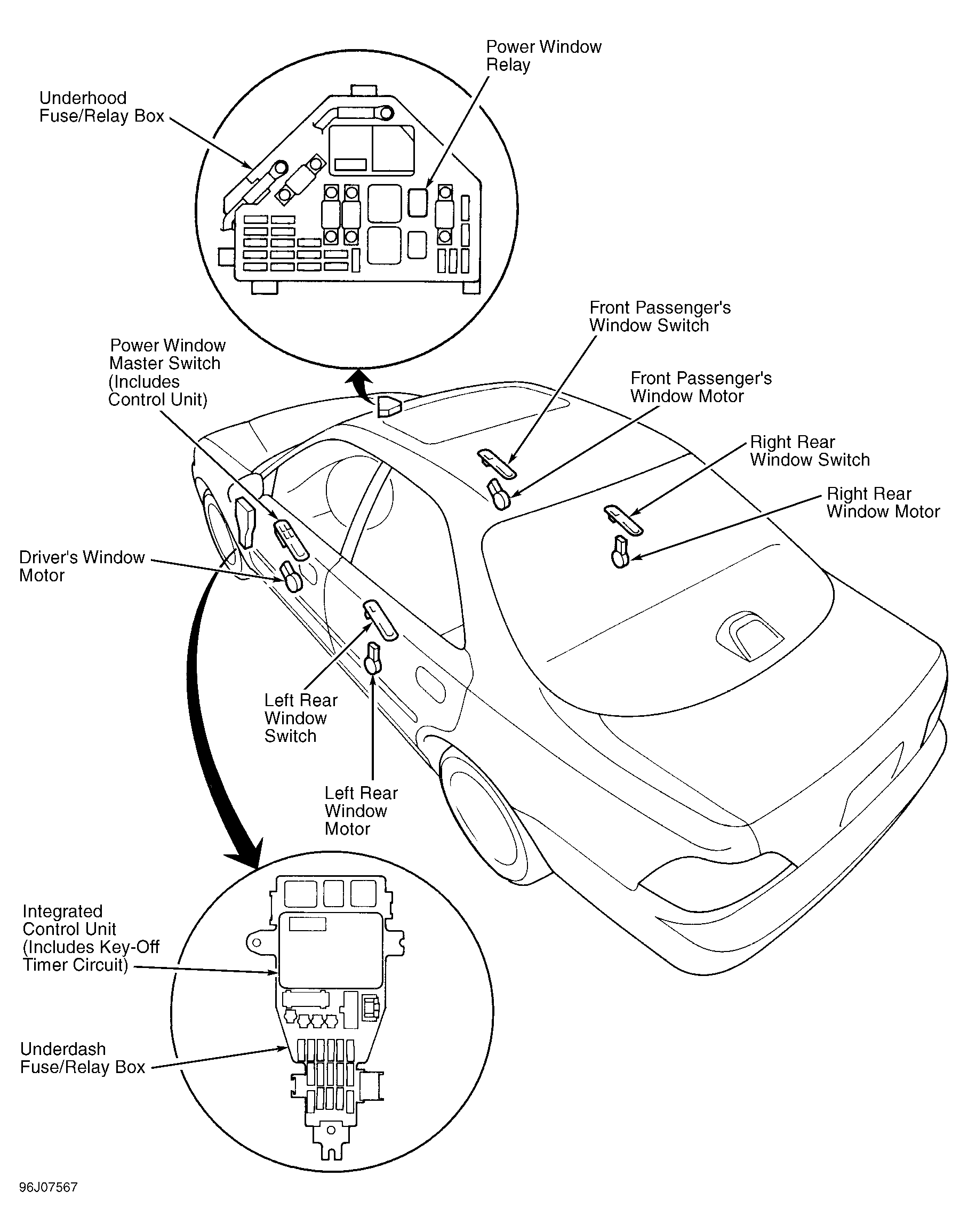

NOTE: For locating power windows components, see Figure .
