Self-Diagnosis Function

When TCS control unit detects a fault, a Diagnostic Trouble Code (DTC) is stored. DTC is displayed at TCS indicator light when SCS Service Connector (07PAZ-0010100) is connected to 2-pin service check connector. See Fig 1 .

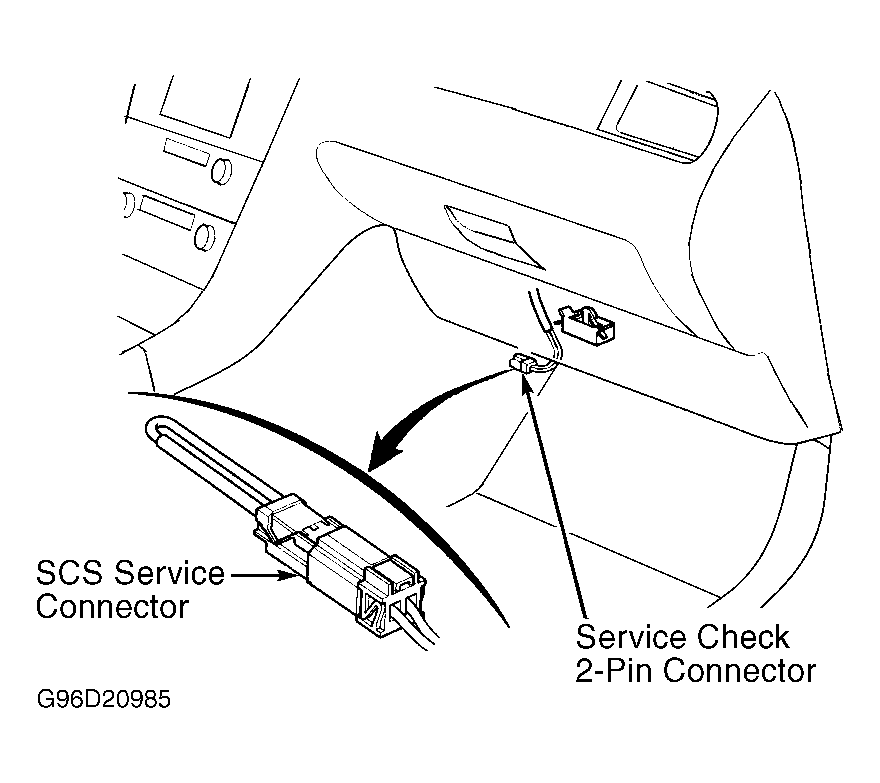

Fig 1: Locating 2-Pin Service Check Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
