Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 4 .

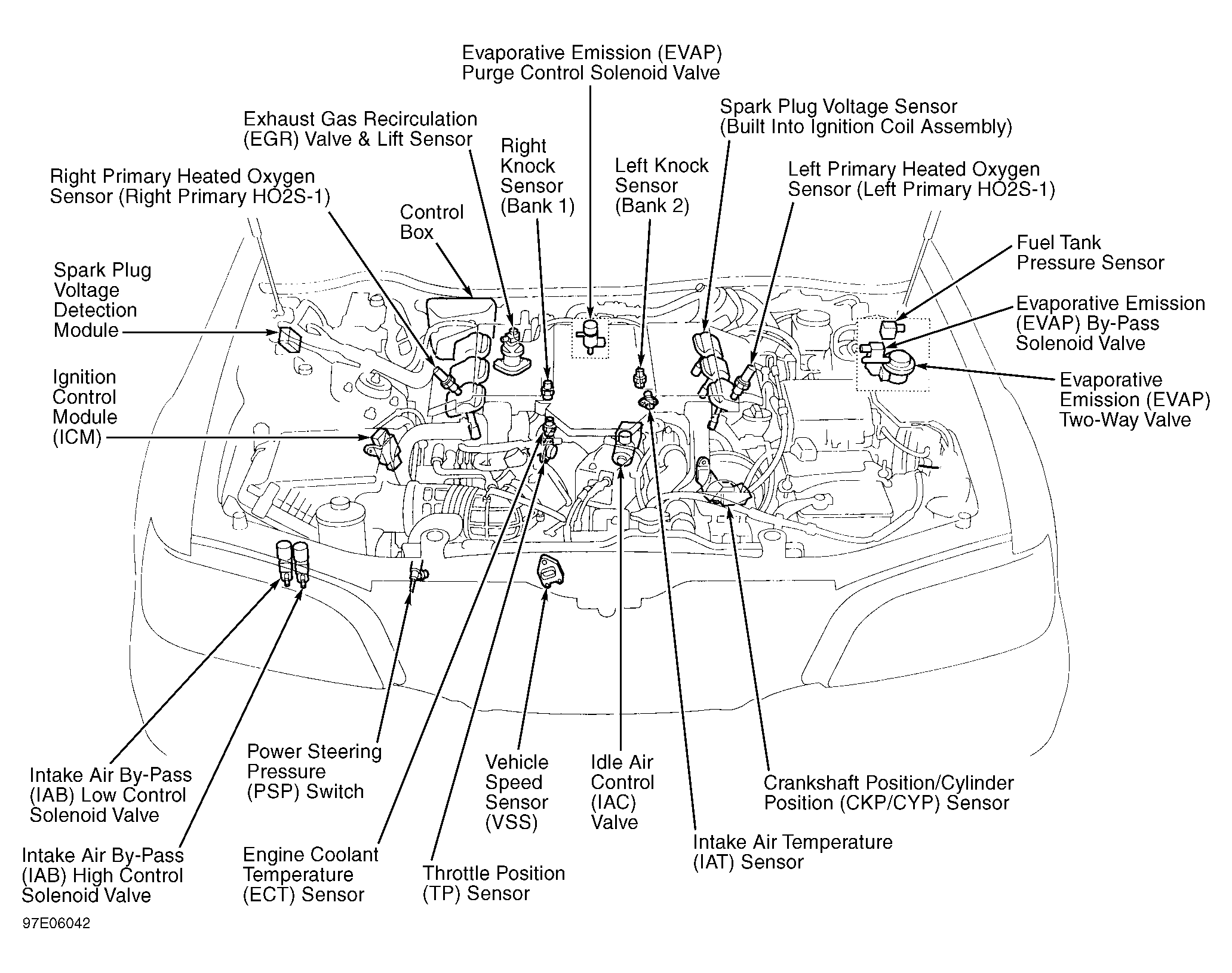

Fig 1: Locating Engine Performance-Related Components (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Engine Performance-Related Components (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Engine Performance-Related Components (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Engine Performance-Related Components (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
