Power Mirror Control Unit Input Test

Power mirror control unit is located behind driver's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect power mirror control unit connectors and check for bent, loose or corroded terminals and repair as required. SeeFig 1 and Fig 2 .

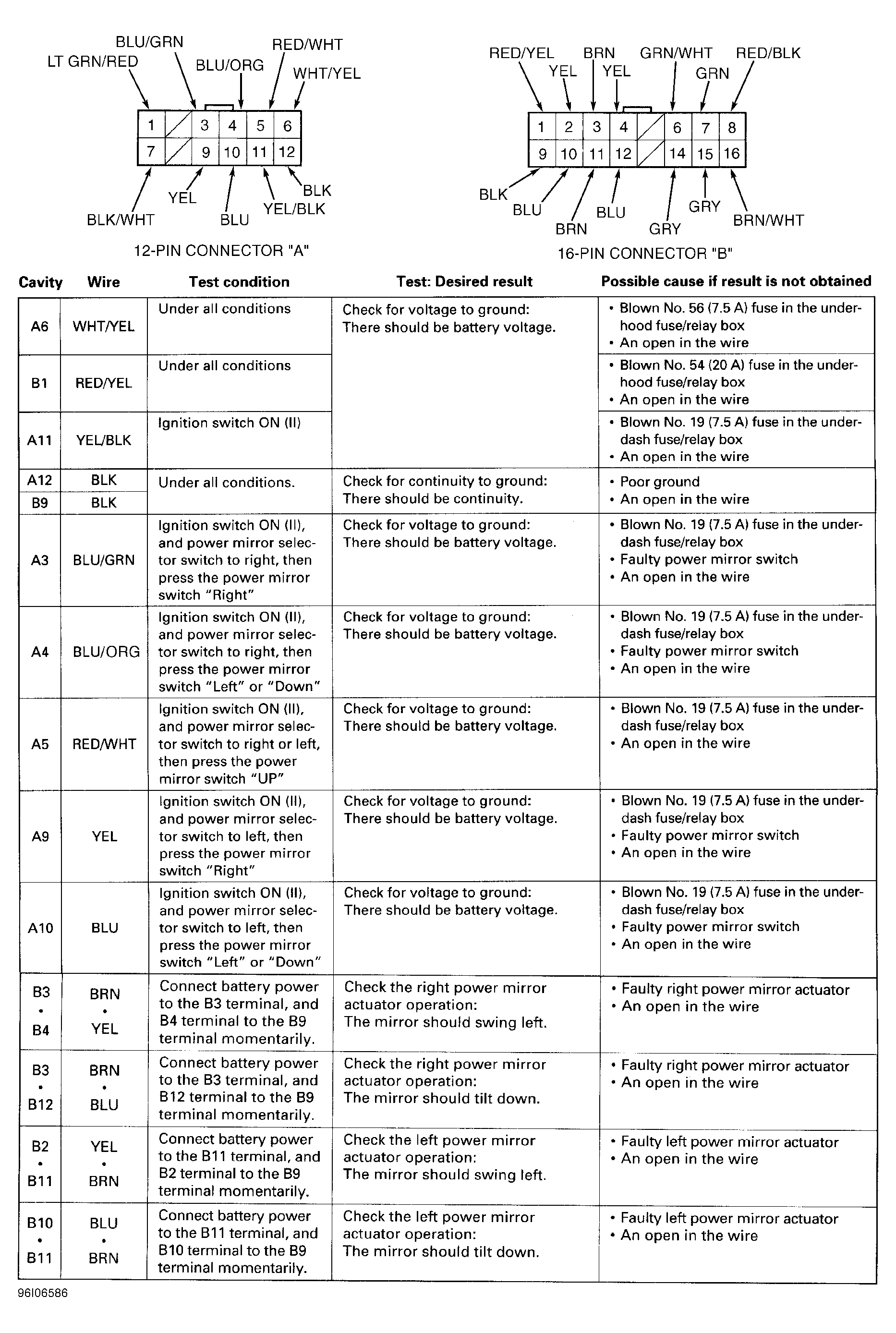

Fig 1: Power Mirror Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Power Mirror Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
