Power Seat Control Unit Input Test

Power seat control unit is located under front center of driver's seat. See FRONT SEAT under REMOVAL & INSTALLATION. Disconnect power seat control unit connectors and check for bent, loose or corroded terminals and repair as required. SeeFig 1 -Fig 3 .

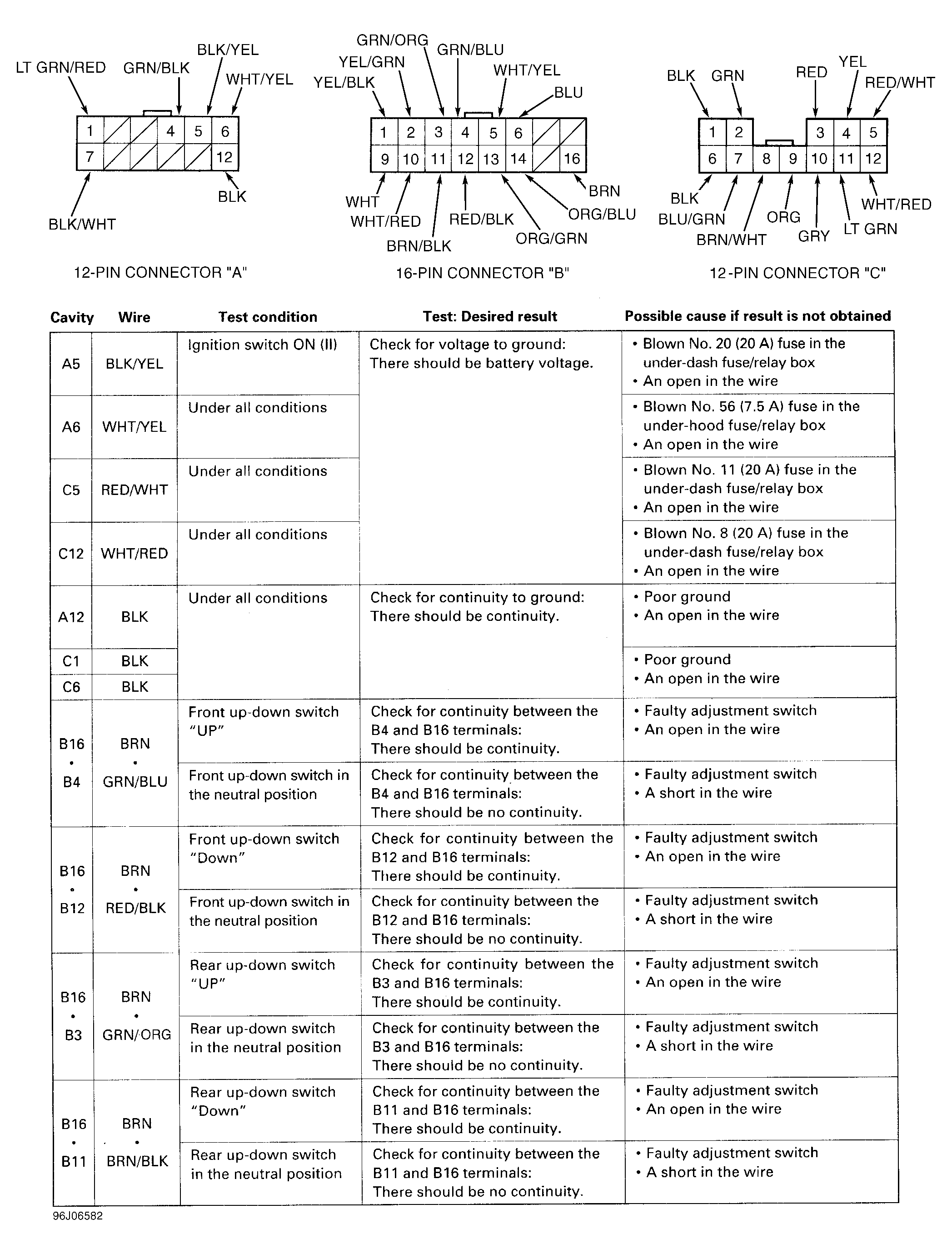

Fig 1: Power Seat Control Unit Input Test (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Power Seat Control Unit Input Test (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Power Seat Control Unit Input Test (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
