Master Switch
Remove power window master switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in specified position. See POWER WINDOW MASTER SWITCH TEST table. See Fig 1 or Fig 2 . If continuity is not as specified, replace switch.
NOTE:

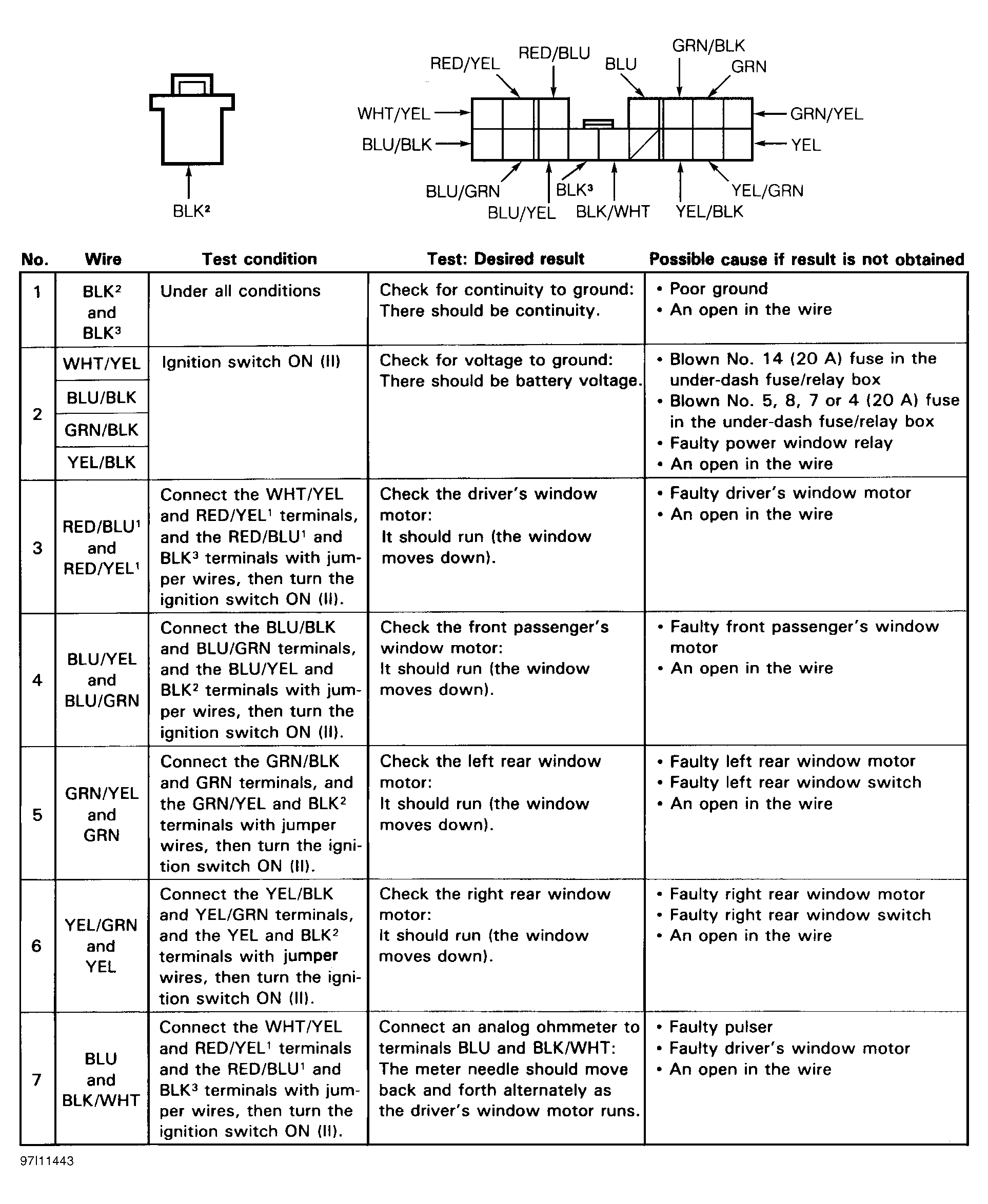

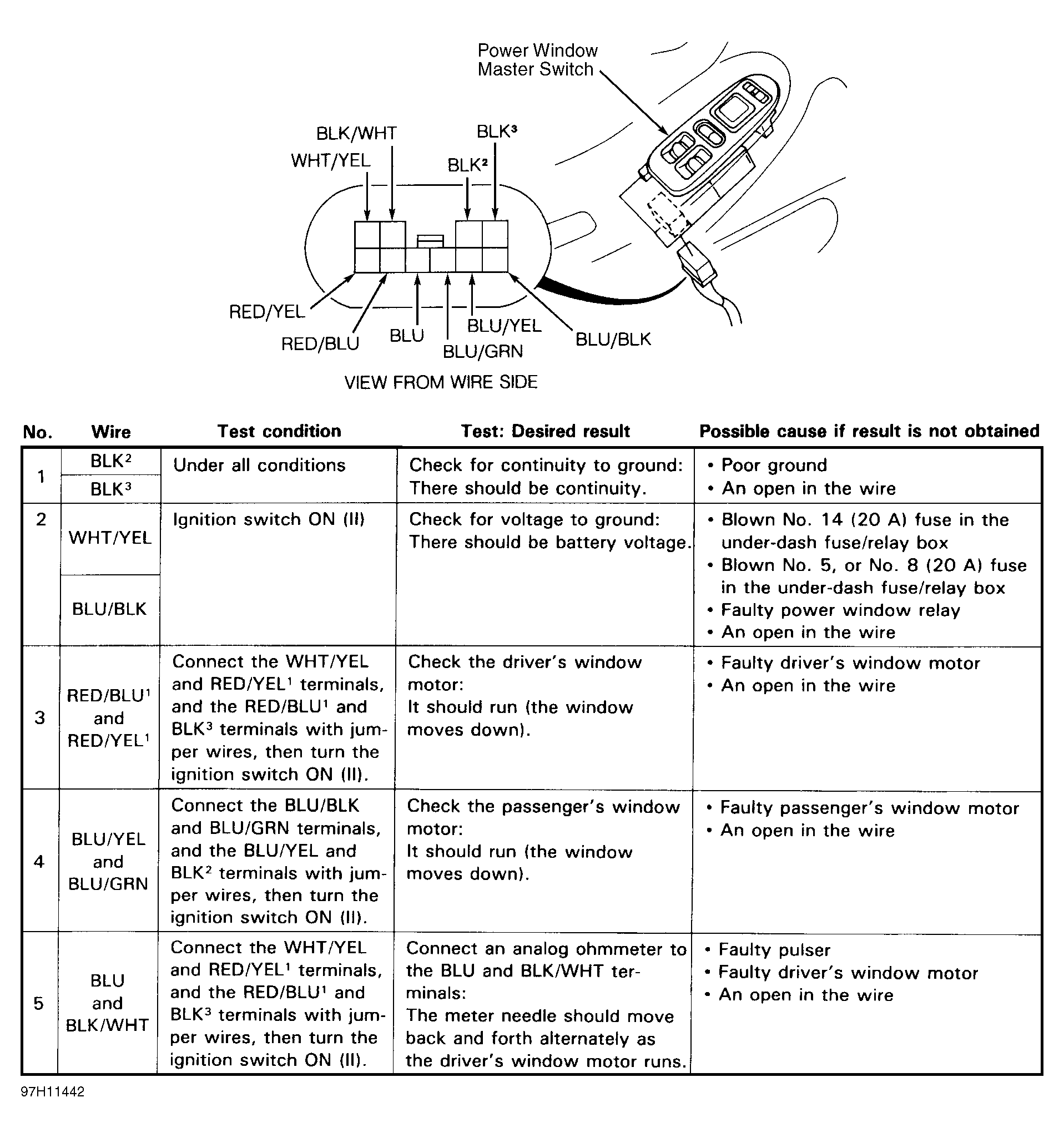

Driver's power window switch is integrated with control unit and cannot be isolated for testing. On hatchback (2-door) models, perform tests No. 1, 2, 3, and 5. On sedan (4-door) models, perform tests No. 1, 2, 3 and 7. See POWER WINDOW MASTER SWITCH INPUT TEST. See Figure
or Figure
. If inputs are normal and driver's power window switch does not operate properly, replace power window master switch assembly.
POWER WINDOW MASTER SWITCH TEST
| Window Switch Position | Main Switch Position | Continuity Between Terminals | ||
|---|---|---|---|---|
| Right Front Switch | ||||
| Hatchback | ||||
| Off | On | D, H & I | ||
| Off | H & I | |||
| Up | On | D & H; I & J | ||
| Off | I & J | |||
| Down | On | D & I; H & J | ||
| Off | H & J | |||
| Sedan (4-Door) | ||||
| Off | On | I, J & Q | ||
| Off | I & J | |||
| Up | On | H & J; I & Q | ||
| Off | H & J | |||
| Down | On | H & I; J & Q | ||
| Off | H & I | |||
| Left Rear Switch | ||||
| Off | On | F, G & Q | ||
| Off | F & G | |||
| Up | On | E & G; F & Q | ||
| Off | E & G | |||
| Down | On | E & F; G & Q | ||
| Off | E & F | |||
| Right Rear Switch | ||||
| Off | On | O, P & Q | ||
| Off | O & P | |||
| Up | On | N & P; O & Q | ||
| Off | N & P | |||
| Down | On | N & O; P & Q | ||
| Off | N & O | |||
