2.3CL & 3.0CL

Disable air bag. See appropriate AIR BAG RESTRAINT SYSTEMS article in the ACCESSORIES/SAFETY EQUIPMENT section. Remove driver's side kick panel. Disconnect ICU 16-pin connector. Remove ICU from underdash fuse/relay box. Inspect connector terminals and ICU socket for damage. Test each circuit of ICU connector for continuity or voltage as indicated. See Fig 1 , Fig 2 and Fig 3 . Correct any problems found. If no problems are found, replace ICU.

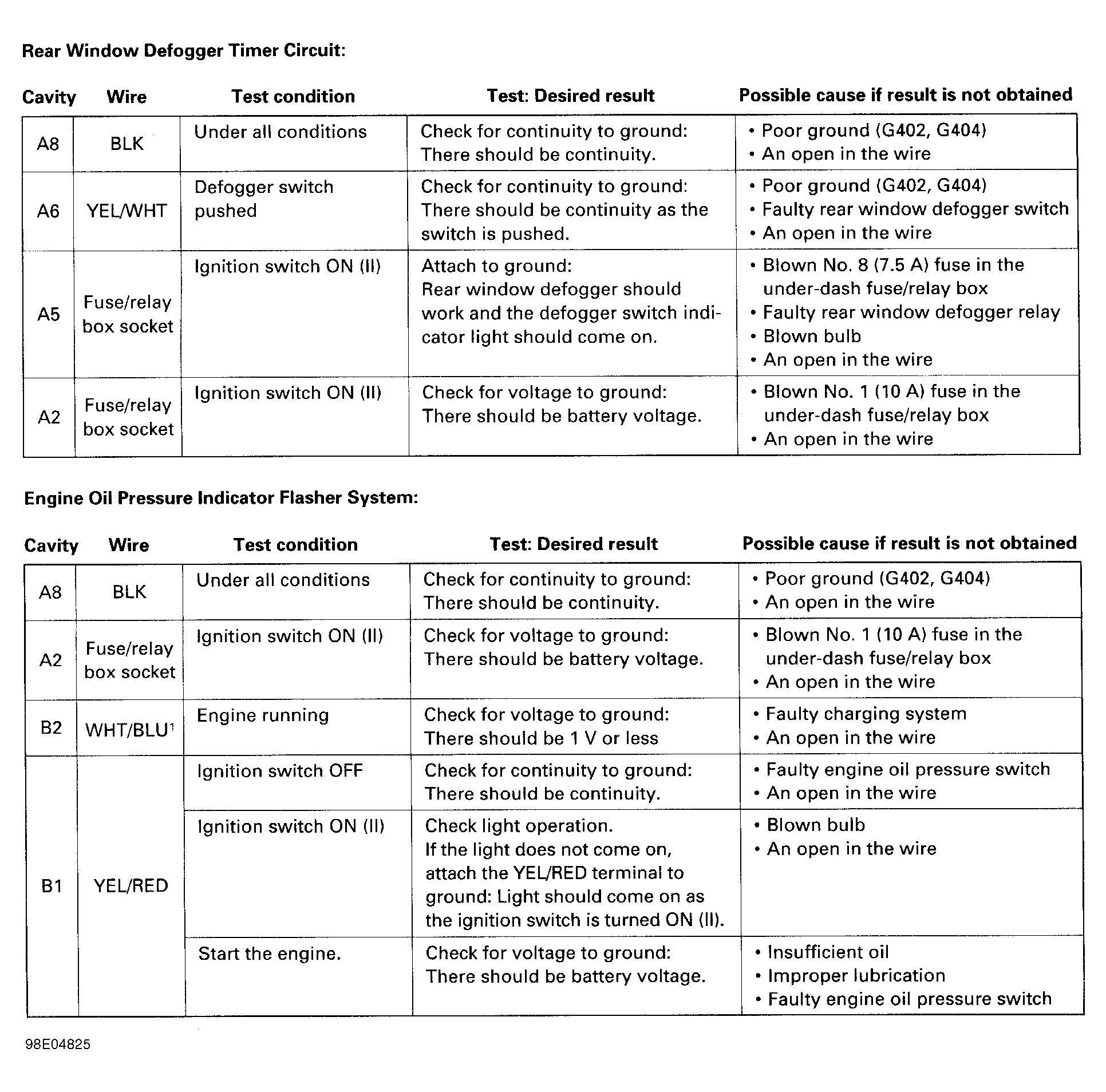

Fig 1: Testing Integrated Control Unit (2.3CL & 3.0CL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

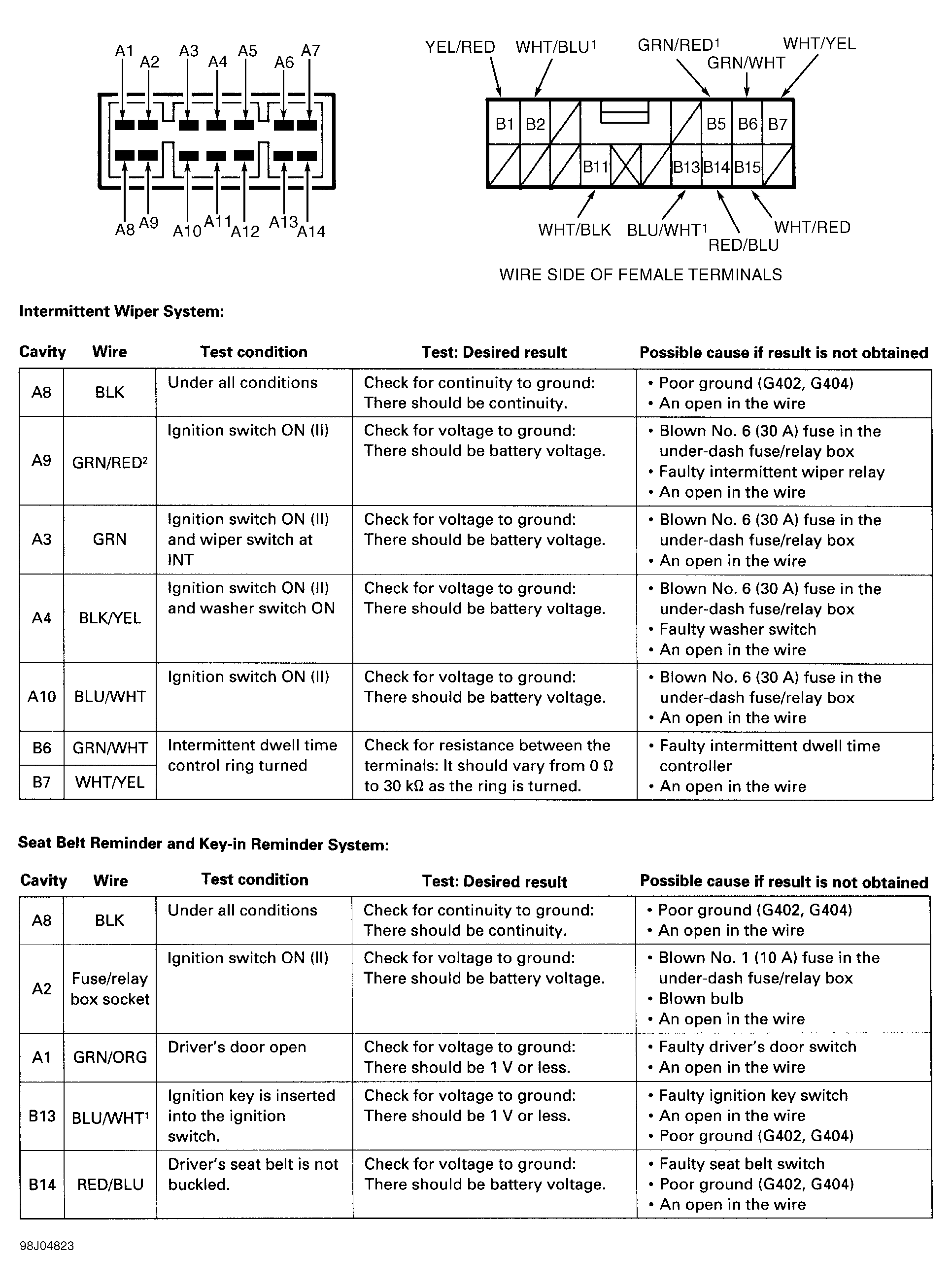

Fig 2: Testing Integrated Control Unit (2.3CL & 3.0CL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

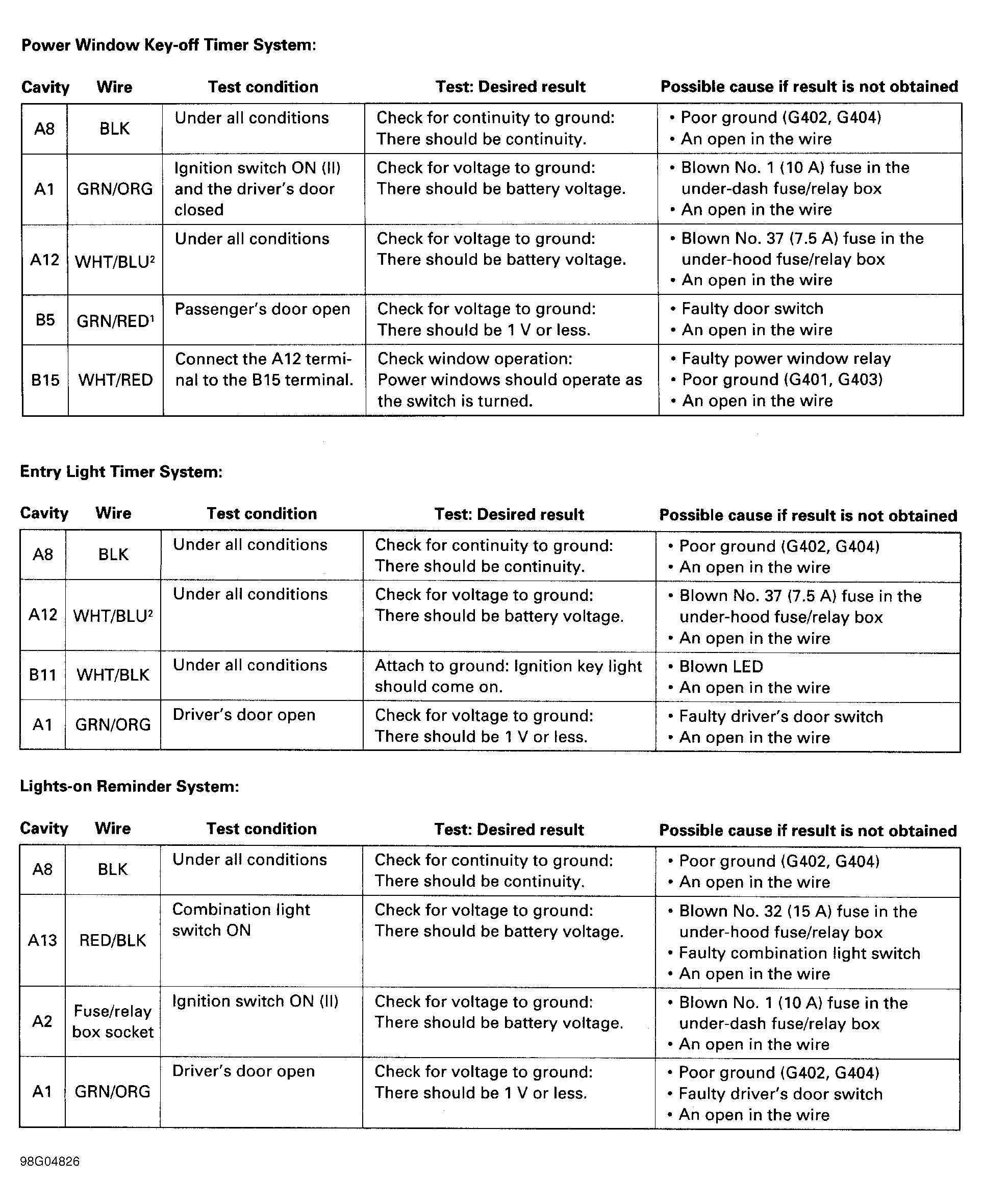

Fig 3: Testing Integrated Control Unit (2.3CL & 3.0CL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
