Abs Control Unit: Installation

Connect ABS control unit connectors. Install ABS control unit into kick panel area. See Fig 1 . Install right kick panel. After installation, perform ABS FUNCTION TEST under DIAGNOSIS & TESTING.

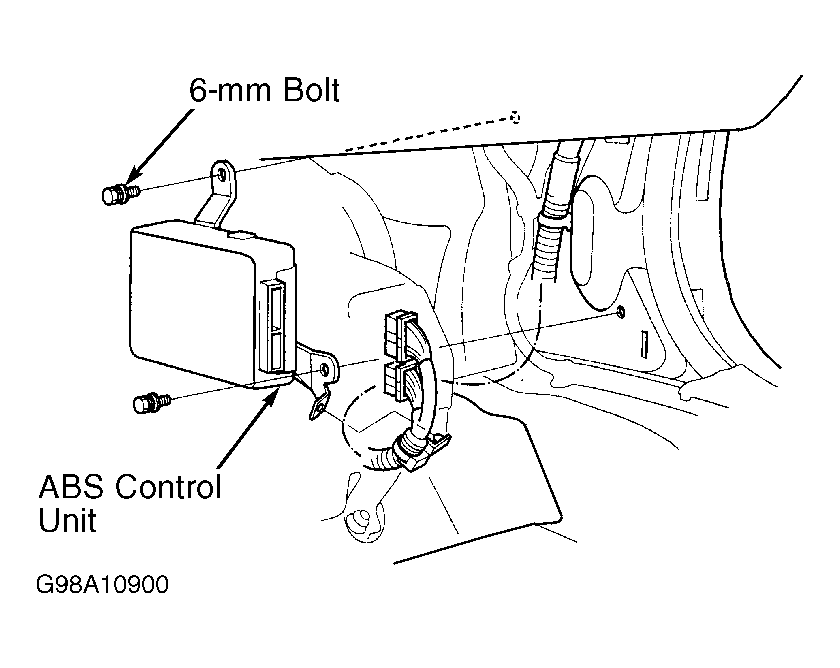

Fig 1: Accessing ABS Control Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
